MX73L-XEPGFW (1984)

Toyota Cressida

Production Aug 1984 - Aug 1986
Engine 5MGE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8408- )5MGE

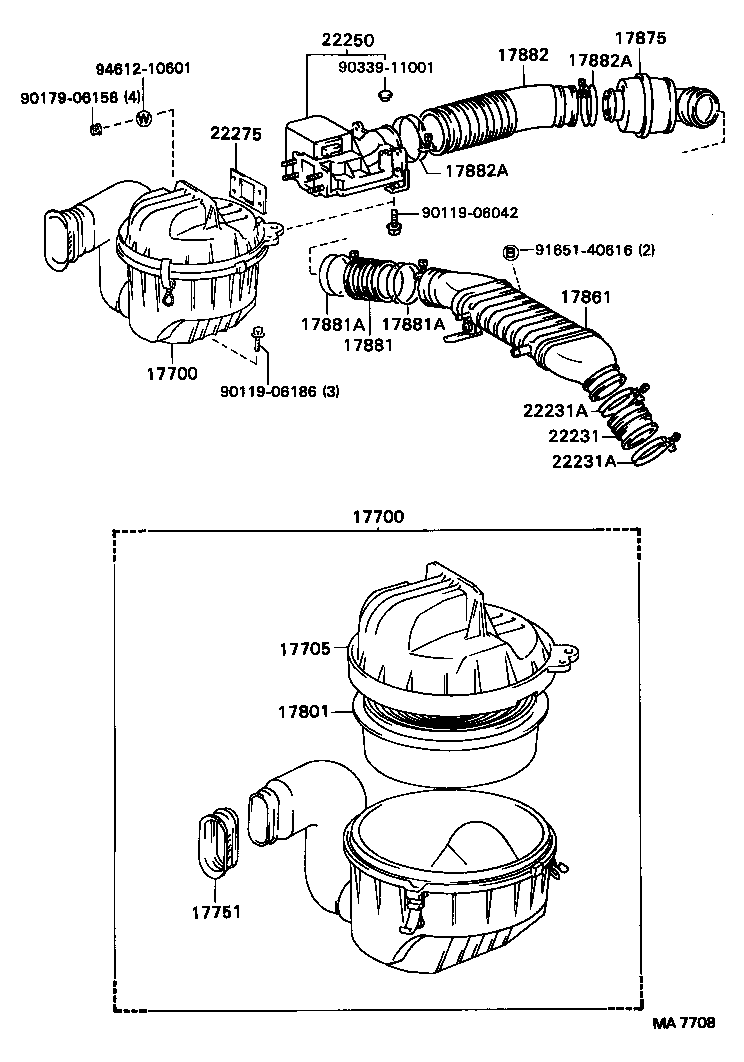

Click highlighted areas on diagram

diagram 17700 17700 17705 17751 17801 17861 17875 17881 17881A 17881A 17882 17882A 17882A 22231 22231A 22231A 22250 22275 9011906042 9011906186 9017906158 9033911001 9165140616 9461210601
Part # Description Qty Price
17700 - CLEANER ASSY, AIR
17700-70030

5MGE..MX73

 1
17700 - CLEANER ASSY, AIR
17700-70030

5MGE..MX73

 1
17705 - CAP SUB-ASSY, AIR CLEANER
17705-70030

5MGE..MX73

 1
17751 - INLET, AIR CLEANER, NO.1
17751-70010

5M#..MX7#

 1
17801 - ELEMENT SUB-ASSY, AIR CLEANER FILTER
17801-70020

5M#..MX7#

 1
17861 - CONNECTOR, INTAKE AIR
17860-43020

5MGE..MX73

 1
17875 - PIPE, INTAKE AIR CONNECTOR
17875-43050

5MGE..MX73

 1
17881 - HOSE, AIR CLEANER, NO.1
17881-43070

5MGE..MX73

 1
17881A - CLAMP(FOR AIR CLEANER HOSE, NO.1)
96111-10830

5MGE..MX73

 2
17881A - CLAMP(FOR AIR CLEANER HOSE, NO.1)
96111-10830

5MGE..MX73

 2
17882 - HOSE, AIR CLEANER, NO.2
17882-43110

5MGE..MX73

 1
17882A - CLAMP(FOR AIR CLEANER HOSE, NO.2)
96111-10830

5MGE..MX73

PIPE SIDE

 1
96111-10900

5MGE..MX73

AIR FLOW METER SIDE

 1
17882A - CLAMP(FOR AIR CLEANER HOSE, NO.2)
96111-10830

5MGE..MX73

PIPE SIDE

 1
96111-10900

5MGE..MX73

AIR FLOW METER SIDE

 1
22231 - HOSE, THROTTLE BODY
22231-43010

5MGE..MX73

 1
22231A - CLAMP OR CLIP(FOR THROTTLE BODY HOSE)
96111-10800

5MGE..MX73

 2
22231A - CLAMP OR CLIP(FOR THROTTLE BODY HOSE)
96111-10800

5MGE..MX73

 2
22250 - METER ASSY, INTAKE AIR FLOW
22250-43240

5MGE..MX73..EUR,GEN,SA

 1
22275 - GASKET, AIR FLOW METER
22275-43010

5MGE..MX73

 1
Common parts
90119-06042
90119-06186
90179-06158
90339-11001
91651-40616
94612-10601
