MX73L-XEPEEC (1984)

Toyota Cressida

Production Aug 1984 - Aug 1986
Engine 5ME
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8408-8608)5ME..ARL,EUR

Click highlighted areas on diagram

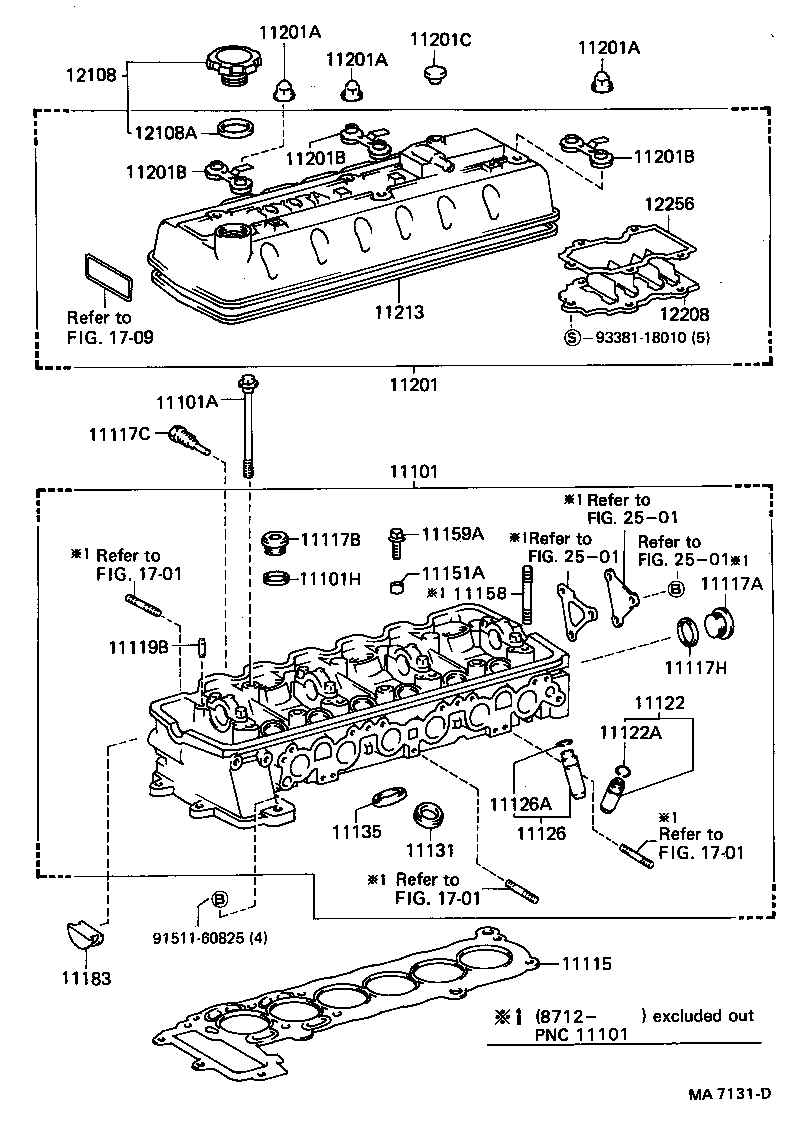

diagram 11101 11101A 11101H 11115 11117A 11117B 11117H 11119B 11119B 11122 11122A 11126 11126A 11131 11135 11151A 11158 11159A 11183 11201 11201A 11201A 11201A 11201B 11201B 11201B 11201C 11213 12108 12108A 12208 12256 1701 1701 1701 1709 2501 2501 2501 9151160825 9338118010
Part # Description Qty Price
11101 - HEAD SUB-ASSY, CYLINDER
11101-49266

5ME..MX7#..ARL,EUR

 1
11101A - BOLT(FOR CYLINDER HEAD SET)
90910-02058

5ME..MX7#

*12-1.25PX166.5-21

 14
11101H - GASKET(FOR CYLINDER HEAD SCREW PLUG)
90430-33133

5ME..MX7#

 3
11115 - GASKET, CYLINDER HEAD
11115-43021

5ME..MX7#

 1
11117A - PLUG, W/HEAD TAPER SCREW, NO.1
90341-36001

5ME..MX7#

 1
11117B - PLUG, W/HEAD TAPER SCREW, NO.2
90341-32070

5ME..MX7#

 3
11117H - GASKET(FOR WATER HOLE)
90430-36001

5M#..MX7#

 1
11119B - PIN, STRAIGHT, NO.2
90253-08001

5ME..MX7#

L=18,OD=7.9

 2
11119B - PIN, STRAIGHT, NO.2
90253-08001

5ME..MX7#

L=18,OD=7.9

 2
11122 - BUSH, INTAKE VALVE GUIDE
11122-41020

5ME..MX7#

STD,STD

 6
11123-41020

5ME..MX7#

O/S 0.05,O/S 0.05

 6
11122A - RING, SHAFT SNAP (FOR VALVE GUIDE BUSH)
90520-12049

5M#..MX7#

 6
11126 - BUSH, EXHAUST VALVE GUIDE
11126-41040

5ME..MX7#

STD,STD

 6
11127-41040

5ME..MX7#

O/S 0.05,O/S 0.05

 6
11126A - RING, SHAFT SNAP(FOR VALVE GUIDE BUSH)
90520-12049

5M#..MX7#

 6
11131 - SEAT, INTAKE VALVE
11132-43010

5ME..MX7#

O/S 0.03,O/S 0.03

 6
11131-43010

5ME..MX7#

STD,STD

 6
11135 - SEAT, EXHAUST VALVE
11135-45010

5ME..MX7#

STD,STD

 6
11136-45010

5ME..MX7#

O/S 0.03,O/S 0.03

 6
11151A - PIN, RING(FOR CAMSHAFT BEARING CAP SETTING)
90253-11021

5ME..MX7#

L=8,OD=11

 8
11158 - BOLT, STUD(FOR HEAD TO CYLINDER HEAD COVER)
90116-08003

5ME..MX7#

L=51,L=51,S=14&8.5

 6
11159A - BOLT(FOR HEAD TO CAMSHAFT BEARING CAP)
91611-60825

5ME..MX7#

 8
11183 - PLUG, SEMICIRCULAR
11183-45020

5ME..MX7#

 2
11201 - COVER SUB-ASSY, CYLINDER HEAD
11201-49146

5ME..MX7#

 1
11201A - NUT, CAP(FOR CYLINDER HEAD COVER)
90176-08015

5ME..MX7#

 6
11201A - NUT, CAP(FOR CYLINDER HEAD COVER)
90176-08015

5ME..MX7#

 6
11201A - NUT, CAP(FOR CYLINDER HEAD COVER)
90176-08015

5ME..MX7#

 6
11201B - WASHER, SEAL(FOR CYLINDER HEAD COVER)
90210-09009

5ME..MX7#

FR

 1
90210-09002

5ME..MX7#

CTR,RR

 2
11201B - WASHER, SEAL(FOR CYLINDER HEAD COVER)
90210-09009

5ME..MX7#

FR

 1
90210-09002

5ME..MX7#

CTR,RR

 2
11201B - WASHER, SEAL(FOR CYLINDER HEAD COVER)
90210-09009

5ME..MX7#

FR

 1
90210-09002

5ME..MX7#

CTR,RR

 2
11201C - PLUG(FOR POSITIVE CRANKCASE VENTILATION VALVE HOLE)
90339-19001

5ME..MX7#

 1
11213 - GASKET, CYLINDER HEAD COVER
11213-41020

5ME..MX7#

 1
12108 - CAP SUB-ASSY, OIL FILLER
12180-70010

5M#..MX7#

 1
12180-70010

5M#..MX7#

 1
12180-70010

5M#..MX7#

 1
12108A - GASKET(FOR OIL FILLER CAP)
90430-37140

5M#..MX7#

 1
12208 - PLATE SUB-ASSY, VENTILATION BAFFLE
12208-41010

5ME..MX7#

 1
12256 - GASKET, VENTILATION BAFFLE
12256-41021

5ME..MX7#

 1
Common parts
91511-60825
93381-18010
Linked diagrams
1701
1709
2501

(8411- )5ME..MX73..GEN,ME

Click highlighted areas on diagram

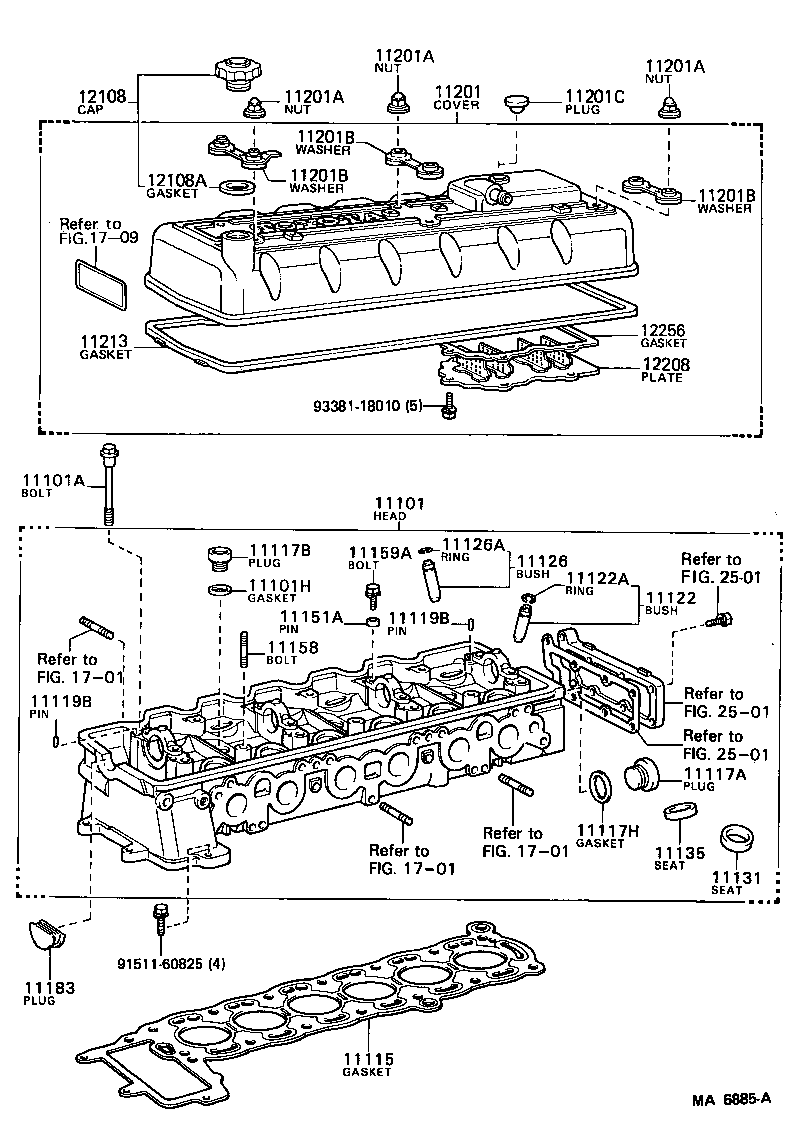

diagram 11101 11101A 11101H 11115 11117A 11117B 11117C 11117H 11119B 11122 11122A 11126 11126A 11131 11135 11151A 11158 11159A 11183 11201 11201A 11201A 11201A 11201B 11201B 11201B 11201C 11213 12108 12108A 12208 12256 1701 1701 1701 1709 2501 2501 2501 9151160825 9338118010
Part # Description Qty Price
11101 - HEAD SUB-ASSY, CYLINDER
11101-49266

5ME..MX7#..ARL,EUR

 1
11101A - BOLT(FOR CYLINDER HEAD SET)
90910-02058

5ME..MX7#

*12-1.25PX166.5-21

 14
11101H - GASKET(FOR CYLINDER HEAD SCREW PLUG)
90430-33133

5ME..MX7#

 3
11115 - GASKET, CYLINDER HEAD
11115-43021

5ME..MX7#

 1
11117A - PLUG, W/HEAD TAPER SCREW, NO.1
90341-36001

5ME..MX7#

 1
11117B - PLUG, W/HEAD TAPER SCREW, NO.2
90341-32070

5ME..MX7#

 3
11117H - GASKET(FOR WATER HOLE)
90430-36001

5M#..MX7#

 1
11119B - PIN, STRAIGHT, NO.2
90253-08001

5ME..MX7#

L=18,OD=7.9

 2
11122 - BUSH, INTAKE VALVE GUIDE
11122-41020

5ME..MX7#

STD,STD

 6
11123-41020

5ME..MX7#

O/S 0.05,O/S 0.05

 6
11122A - RING, SHAFT SNAP (FOR VALVE GUIDE BUSH)
90520-12049

5M#..MX7#

 6
11126 - BUSH, EXHAUST VALVE GUIDE
11126-41040

5ME..MX7#

STD,STD

 6
11127-41040

5ME..MX7#

O/S 0.05,O/S 0.05

 6
11126A - RING, SHAFT SNAP(FOR VALVE GUIDE BUSH)
90520-12049

5M#..MX7#

 6
11131 - SEAT, INTAKE VALVE
11132-43010

5ME..MX7#

O/S 0.03,O/S 0.03

 6
11131-43010

5ME..MX7#

STD,STD

 6
11135 - SEAT, EXHAUST VALVE
11135-45010

5ME..MX7#

STD,STD

 6
11136-45010

5ME..MX7#

O/S 0.03,O/S 0.03

 6
11151A - PIN, RING(FOR CAMSHAFT BEARING CAP SETTING)
90253-11021

5ME..MX7#

L=8,OD=11

 8
11158 - BOLT, STUD(FOR HEAD TO CYLINDER HEAD COVER)
90116-08003

5ME..MX7#

L=51,L=51,S=14&8.5

 6
11159A - BOLT(FOR HEAD TO CAMSHAFT BEARING CAP)
91611-60825

5ME..MX7#

 8
11183 - PLUG, SEMICIRCULAR
11183-45020

5ME..MX7#

 2
11201 - COVER SUB-ASSY, CYLINDER HEAD
11201-49146

5ME..MX7#

 1
11201A - NUT, CAP(FOR CYLINDER HEAD COVER)
90176-08015

5ME..MX7#

 6
11201A - NUT, CAP(FOR CYLINDER HEAD COVER)
90176-08015

5ME..MX7#

 6
11201A - NUT, CAP(FOR CYLINDER HEAD COVER)
90176-08015

5ME..MX7#

 6
11201B - WASHER, SEAL(FOR CYLINDER HEAD COVER)
90210-09009

5ME..MX7#

FR

 1
90210-09002

5ME..MX7#

CTR,RR

 2
11201B - WASHER, SEAL(FOR CYLINDER HEAD COVER)
90210-09009

5ME..MX7#

FR

 1
90210-09002

5ME..MX7#

CTR,RR

 2
11201B - WASHER, SEAL(FOR CYLINDER HEAD COVER)
90210-09009

5ME..MX7#

FR

 1
90210-09002

5ME..MX7#

CTR,RR

 2
11201C - PLUG(FOR POSITIVE CRANKCASE VENTILATION VALVE HOLE)
90339-19001

5ME..MX7#

 1
11213 - GASKET, CYLINDER HEAD COVER
11213-41020

5ME..MX7#

 1
12108 - CAP SUB-ASSY, OIL FILLER
12180-70010

5M#..MX7#

 1
12180-70010

5M#..MX7#

 1
12180-70010

5M#..MX7#

 1
12108A - GASKET(FOR OIL FILLER CAP)
90430-37140

5M#..MX7#

 1
12208 - PLATE SUB-ASSY, VENTILATION BAFFLE
12208-41010

5ME..MX7#

 1
12256 - GASKET, VENTILATION BAFFLE
12256-41021

5ME..MX7#

 1
Common parts
91511-60825
93381-18010
Linked diagrams
1701
1709
2501

(8502- )5M#
