Toyota Cressida MX73 HEATING & AIR CONDITIONING - HEATER UNIT & BLOWER

Manufacturers Home
Toyota
EU
CRESSIDA
MX73L-XEMGEV (1984)
8712 - HEATING & AIR CONDITIONING - HEATER UNIT & BLOWER

MX73L-XEMGEV (1984)

Toyota Cressida

Production Nov 1984 - Aug 1988

Engine 5ME

Transmission 5F MTM

Displacement 2500cc

Power 168 HP (125 kW)

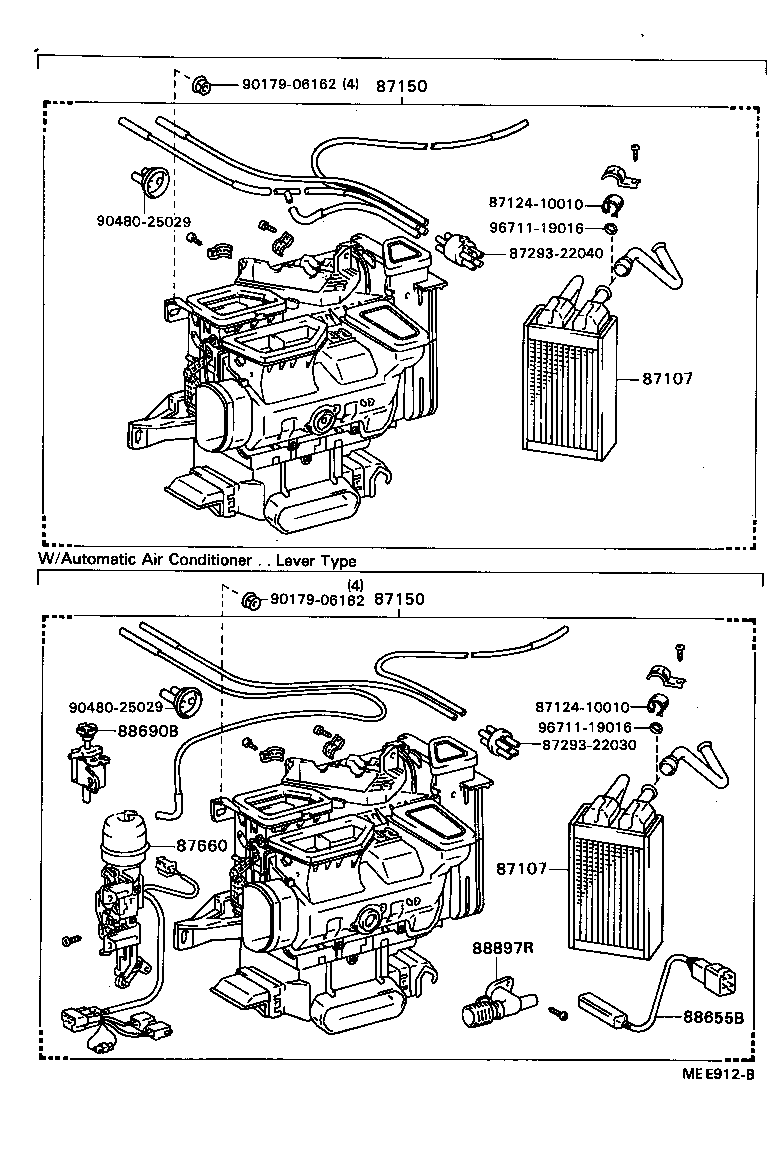

(8408-8608)RHD..ARL,EUR ; (8408-8608)GX71,RX70,YX70..RHD ; (8608- )

Click highlighted areas on diagram

Part #	Description	Period	Qty
87107 - UNIT SUB-ASSY, HEATER RADIATOR
87107-22150	MX7#..LHD..EFI	08/1984 - 08/1986	1
87107-22150	GX71,LX70,MX73,RX7#..LHD	08/1986 - 08/1988	1
87107 - UNIT SUB-ASSY, HEATER RADIATOR
87107-22150	MX7#..LHD..EFI	08/1984 - 08/1986	1
87107-22150	GX71,LX70,MX73,RX7#..LHD	08/1986 - 08/1988	1
87150 - RADIATOR ASSY, HEATER
87150-22350	MX7#..LHD..EFI W/LEVER TYPE *AAC	08/1984 - 10/1985	1
87150-22360	MX73..ME W/PUSH TYPE *AAC	11/1984 - 04/1986	1
87150-22340	MX7#..EFI	10/1985 - 08/1986	1
87150-22361	MX73..ME W/PUSH TYPE *AAC	04/1986 - 08/1986	1
87150-22362	MX73..GD,GTX W/PUSH TYPE *AAC	08/1986 - 08/1988	1
87150-22341	GX71,LX70,MX73,RX7#..LHD	08/1986 - 08/1988	1
87150 - RADIATOR ASSY, HEATER
87150-22350	MX7#..LHD..EFI W/LEVER TYPE *AAC	08/1984 - 10/1985	1
87150-22360	MX73..ME W/PUSH TYPE *AAC	11/1984 - 04/1986	1
87150-22340	MX7#..EFI	10/1985 - 08/1986	1
87150-22361	MX73..ME W/PUSH TYPE *AAC	04/1986 - 08/1986	1
87150-22362	MX73..GD,GTX W/PUSH TYPE *AAC	08/1986 - 08/1988	1
87150-22341	GX71,LX70,MX73,RX7#..LHD	08/1986 - 08/1988	1
87660 - SERVO ASSY, AIR CONDITIONER
88660-22110	MX7#..LHD	08/1984 - 04/1986	1
88660-22101	MX73..ME	04/1986 - 08/1986	1
88660-22150	MX73..GD,GTX	08/1986 - 08/1988	1
88655B - SWITCH, WATER TEMPERATURE
88655-22020	MX7#..EFI;MX73..GLX..TWC	08/1984 - 08/1986	1
88655-22020	MX73..GD,GTX	08/1986 - 08/1988	1
88690B - VALVE ASSY, COOLER MAGNET
88691-22110	MX73..ME W/PUSH TYPE *AAC	11/1984 - 08/1986	1
88691-22110	MX73..GD,GTX	08/1986 - 08/1988	1
88897R - ASPIRATOR
88897-22090	MX7#..EFI;MX73..GLX..TWC	08/1984 - 08/1986	1
88897-22090	MX73..GD,GTX	08/1986 - 08/1988	1
Common parts
87124-10010
90179-06162
96711-19016

(8408-8608)MX7#..LHD

Click highlighted areas on diagram

Part #	Description	Period	Qty
87107 - UNIT SUB-ASSY, HEATER RADIATOR
87107-22150	MX7#..LHD..EFI	08/1984 - 08/1986	1
87107-22150	GX71,LX70,MX73,RX7#..LHD	08/1986 - 08/1988	1
87107 - UNIT SUB-ASSY, HEATER RADIATOR
87107-22150	MX7#..LHD..EFI	08/1984 - 08/1986	1
87107-22150	GX71,LX70,MX73,RX7#..LHD	08/1986 - 08/1988	1
87150 - RADIATOR ASSY, HEATER
87150-22350	MX7#..LHD..EFI W/LEVER TYPE *AAC	08/1984 - 10/1985	1
87150-22360	MX73..ME W/PUSH TYPE *AAC	11/1984 - 04/1986	1
87150-22340	MX7#..EFI	10/1985 - 08/1986	1
87150-22361	MX73..ME W/PUSH TYPE *AAC	04/1986 - 08/1986	1
87150-22362	MX73..GD,GTX W/PUSH TYPE *AAC	08/1986 - 08/1988	1
87150-22341	GX71,LX70,MX73,RX7#..LHD	08/1986 - 08/1988	1
87150 - RADIATOR ASSY, HEATER
87150-22350	MX7#..LHD..EFI W/LEVER TYPE *AAC	08/1984 - 10/1985	1
87150-22360	MX73..ME W/PUSH TYPE *AAC	11/1984 - 04/1986	1
87150-22340	MX7#..EFI	10/1985 - 08/1986	1
87150-22361	MX73..ME W/PUSH TYPE *AAC	04/1986 - 08/1986	1
87150-22362	MX73..GD,GTX W/PUSH TYPE *AAC	08/1986 - 08/1988	1
87150-22341	GX71,LX70,MX73,RX7#..LHD	08/1986 - 08/1988	1
87660 - SERVO ASSY, AIR CONDITIONER
88660-22110	MX7#..LHD	08/1984 - 04/1986	1
88660-22101	MX73..ME	04/1986 - 08/1986	1
88660-22150	MX73..GD,GTX	08/1986 - 08/1988	1
88655B - SWITCH, WATER TEMPERATURE
88655-22020	MX7#..EFI;MX73..GLX..TWC	08/1984 - 08/1986	1
88655-22020	MX73..GD,GTX	08/1986 - 08/1988	1
88690B - VALVE ASSY, COOLER MAGNET
88691-22110	MX73..ME W/PUSH TYPE *AAC	11/1984 - 08/1986	1
88691-22110	MX73..GD,GTX	08/1986 - 08/1988	1
88897R - ASPIRATOR
88897-22090	MX7#..EFI;MX73..GLX..TWC	08/1984 - 08/1986	1
88897-22090	MX73..GD,GTX	08/1986 - 08/1988	1
Common parts
87124-10010
87293-22030
87293-22040
90179-06162
90480-25029
96711-19016

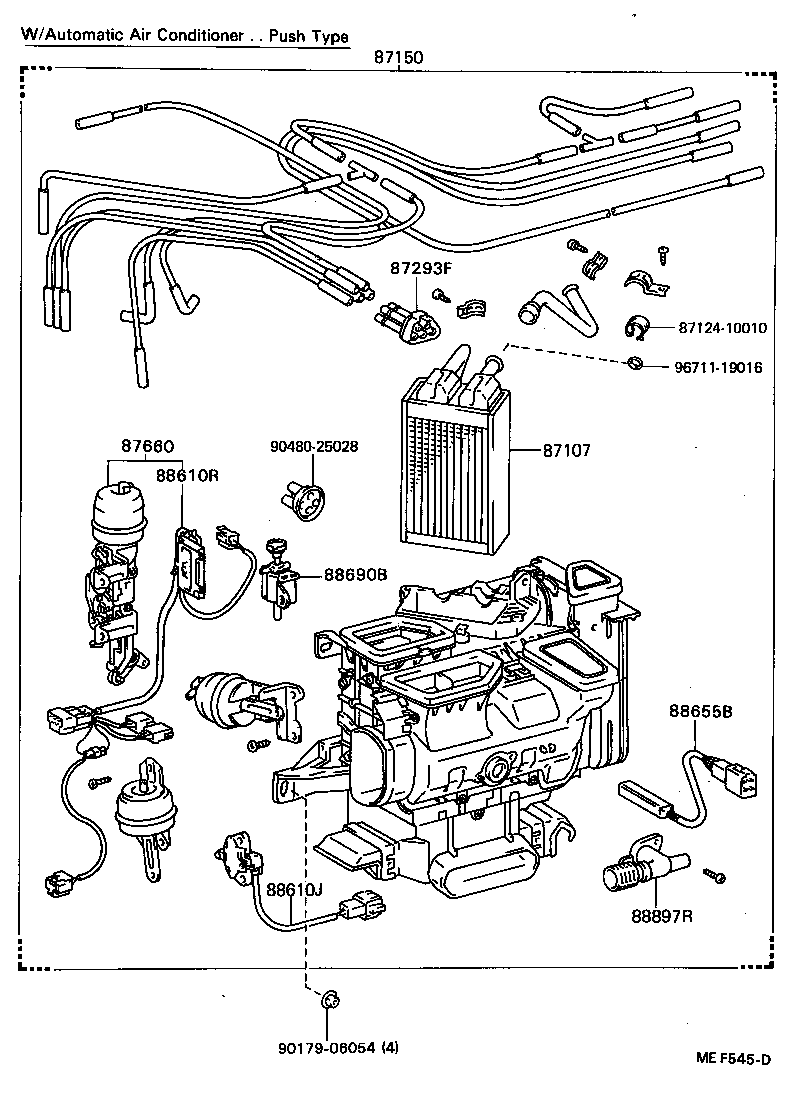

(8411- )GD,GTX

Click highlighted areas on diagram

Part #	Description	Period	Qty
87107 - UNIT SUB-ASSY, HEATER RADIATOR
87107-22150	MX7#..LHD..EFI	08/1984 - 08/1986	1
87107-22150	GX71,LX70,MX73,RX7#..LHD	08/1986 - 08/1988	1
87150 - RADIATOR ASSY, HEATER
87150-22350	MX7#..LHD..EFI W/LEVER TYPE *AAC	08/1984 - 10/1985	1
87150-22360	MX73..ME W/PUSH TYPE *AAC	11/1984 - 04/1986	1
87150-22340	MX7#..EFI	10/1985 - 08/1986	1
87150-22361	MX73..ME W/PUSH TYPE *AAC	04/1986 - 08/1986	1
87150-22362	MX73..GD,GTX W/PUSH TYPE *AAC	08/1986 - 08/1988	1
87150-22341	GX71,LX70,MX73,RX7#..LHD	08/1986 - 08/1988	1
87293F - CONNECTOR, VACUUM
87293-22021	GX71,MX73..(GD,GLX,GTX)..(ARL,GEN,ME)	08/1986 - 08/1988	1
87293-22020	MX73..GEN,ME,SA	11/1984 - 08/1986	1
87660 - SERVO ASSY, AIR CONDITIONER
88660-22110	MX7#..LHD	08/1984 - 04/1986	1
88660-22101	MX73..ME	04/1986 - 08/1986	1
88660-22150	MX73..GD,GTX	08/1986 - 08/1988	1
88610J - SWITCH ASSY, CONTROL
88610-22100	MX73..ME	11/1984 - 08/1988	1
88610R - SWITCH ASSY, CONTROL
88610-22120	MX73..GD,GTX	08/1986 - 08/1988	1
88610-22071	MX73..GEN,ME,SA	07/1986 - 08/1986	1
88655B - SWITCH, WATER TEMPERATURE
88655-22020	MX7#..EFI;MX73..GLX..TWC	08/1984 - 08/1986	1
88655-22020	MX73..GD,GTX	08/1986 - 08/1988	1
88690B - VALVE ASSY, COOLER MAGNET
88691-22110	MX73..ME W/PUSH TYPE *AAC	11/1984 - 08/1986	1
88691-22110	MX73..GD,GTX	08/1986 - 08/1988	1
88897R - ASPIRATOR
88897-22090	MX7#..EFI;MX73..GLX..TWC	08/1984 - 08/1986	1
88897-22090	MX73..GD,GTX	08/1986 - 08/1988	1
Common parts
87124-10010
90179-06054
90480-25028
96711-19016

(8608- )LHD..GD,GL,GLX,GT,XL

Click highlighted areas on diagram

Part #	Description	Period	Qty
87107 - UNIT SUB-ASSY, HEATER RADIATOR
87107-22150	MX7#..LHD..EFI	08/1984 - 08/1986	1
87107-22150	GX71,LX70,MX73,RX7#..LHD	08/1986 - 08/1988	1
87107 - UNIT SUB-ASSY, HEATER RADIATOR
87107-22150	MX7#..LHD..EFI	08/1984 - 08/1986	1
87107-22150	GX71,LX70,MX73,RX7#..LHD	08/1986 - 08/1988	1
87150 - RADIATOR ASSY, HEATER
87150-22350	MX7#..LHD..EFI W/LEVER TYPE *AAC	08/1984 - 10/1985	1
87150-22360	MX73..ME W/PUSH TYPE *AAC	11/1984 - 04/1986	1
87150-22340	MX7#..EFI	10/1985 - 08/1986	1
87150-22361	MX73..ME W/PUSH TYPE *AAC	04/1986 - 08/1986	1
87150-22362	MX73..GD,GTX W/PUSH TYPE *AAC	08/1986 - 08/1988	1
87150-22341	GX71,LX70,MX73,RX7#..LHD	08/1986 - 08/1988	1
87150 - RADIATOR ASSY, HEATER
87150-22350	MX7#..LHD..EFI W/LEVER TYPE *AAC	08/1984 - 10/1985	1
87150-22360	MX73..ME W/PUSH TYPE *AAC	11/1984 - 04/1986	1
87150-22340	MX7#..EFI	10/1985 - 08/1986	1
87150-22361	MX73..ME W/PUSH TYPE *AAC	04/1986 - 08/1986	1
87150-22362	MX73..GD,GTX W/PUSH TYPE *AAC	08/1986 - 08/1988	1
87150-22341	GX71,LX70,MX73,RX7#..LHD	08/1986 - 08/1988	1
87293F - CONNECTOR, VACUUM
87293-22021	GX71,MX73..(GD,GLX,GTX)..(ARL,GEN,ME)	08/1986 - 08/1988	1
87293-22020	MX73..GEN,ME,SA	11/1984 - 08/1986	1
87660 - SERVO ASSY, AIR CONDITIONER
88660-22110	MX7#..LHD	08/1984 - 04/1986	1
88660-22101	MX73..ME	04/1986 - 08/1986	1
88660-22150	MX73..GD,GTX	08/1986 - 08/1988	1
88610R - SWITCH ASSY, CONTROL
88610-22120	MX73..GD,GTX	08/1986 - 08/1988	1
88610-22071	MX73..GEN,ME,SA	07/1986 - 08/1986	1
88655B - SWITCH, WATER TEMPERATURE
88655-22020	MX7#..EFI;MX73..GLX..TWC	08/1984 - 08/1986	1
88655-22020	MX73..GD,GTX	08/1986 - 08/1988	1
88897R - ASPIRATOR
88897-22090	MX7#..EFI;MX73..GLX..TWC	08/1984 - 08/1986	1
88897-22090	MX73..GD,GTX	08/1986 - 08/1988	1
Common parts
87124-10010
90179-06054
90480-25029
96711-19016
