MX73L-XEMGEV (1984)
Toyota Cressida
(8411- )MX73..GD,GT,GTX
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 78010 - LINK, ACCELERATOR | ||||
| 78100-22050 |
LX70,MX73..LHD |
1 | ||
| 78100-22050 |
MX73..ME |
1 | ||
| 78024 - BRACKET SUB-ASSY, ACCELERATOR CONTROL CABLE | ||||
| 78184-30070 |
MX73..TWC..ARL;MX7#..EFI..(ARL,EUR,ME) |
1 | ||
| 78100 - LINK ASSY, ACCELERATOR | ||||
| 78100-32020 |
MX73..GD,GT,GTX W/AUTO DRIVE |
1 | ||
| 78100A - STOPPER, ACCELERATOR LINK | ||||
| 78118-12010 |
MX73..GD,GT,GTX W/AUTO DRIVE |
1 | ||
| 78100B - SPRING (FOR ACCELERATOR LINK) | ||||
| 90506-08019 |
MX73..GD,GT,GTX W/AUTO DRIVE |
1 | ||
| 78110 - ROD ASSY, ACCELERATOR PEDAL | ||||
| 78120-22210 |
MX73..5F..ME |
1 | ||
| 78120-22210 |
LX70,MX73..LHD..5F |
1 | ||
| 78110A - SPRING (FOR ACCELERATOR PEDAL ROD) | ||||
| 90508-26054 |
MX73..5F..GLX..SA;GX71,RX7#,YX70..MTM;MX73..5F..(GD,GL,GT,GTX,XL) |
1 | ||
| 78110C - BUSH (FOR ACCELERATOR PEDAL ROD) | ||||
| 90386-08050 |
MX73..ME D=17 |
1 | ||
| 90386-08164 |
MX73..ME D=14 |
2 | ||
| 90386-08050 |
LX70,MX73 D=17 |
1 | ||
| 90386-08164 |
LX70,MX73..LHD D=14 |
2 | ||
| 78110C - BUSH (FOR ACCELERATOR PEDAL ROD) | ||||
| 90386-08050 |
MX73..ME D=17 |
1 | ||
| 90386-08164 |
MX73..ME D=14 |
2 | ||
| 90386-08050 |
LX70,MX73 D=17 |
1 | ||
| 90386-08164 |
LX70,MX73..LHD D=14 |
2 | ||
| 78111 - PEDAL, ACCELERATOR | ||||
| 78111-12100 |
GX71,LX7#,MX7#,RX7#,YX70 |
1 | ||
| 78111A - SPRING (FOR ACCELERATOR PEDAL) | ||||
| 90508-23088 |
GX71,LX7#,MX7#,RX7#,YX70 |
1 | ||
| 78111C - PIN (FOR ACCELERATOR PEDAL) | ||||
| 90249-05001 |
GX71,LX7#,MX7#,RX7#,YX70 |
1 | ||
| 78113A - COVER, AUTO DRIVE ACCELERATOR LINK | ||||
| 78113-32020 |
MX73..GD,GT,GTX |
1 | ||
| 78118 - PAD, ACCELERATOR PEDAL | ||||
| 78119-30050 |
LX70,MX73..LHD |
1 | ||
| 78119-30050 |
MX73..ME |
1 | ||
| 78150B - CABLE ASSY, ACCELERATOR AUTO DRIVE | ||||
| 78150-22010 |
MX73..GD,GT,GTX W/AUTO DRIVE |
1 | ||
| 78180 - WIRE ASSY, ACCELERATOR | ||||
| 78180-22450 |
MX7#..LHD..EFI |
1 | ||
| 78180-22890 |
MX73..GD,GT,GTX W/AUTO DRIVE |
1 | ||
| 78195 - BRACKET, ACCELERATOR LINK | ||||
| 78195-22040 |
MX73..GD,GT,GTX W/AUTO DRIVE |
1 | ||
| Common parts | ||||
| 90189-04042 | ||||
| 90464-00020 | ||||
| 91611-40812 | ||||
| 91615-40630 | ||||
| 91651-40614 | ||||
| 91651-40620 | ||||
| 93315-15012 | ||||
| 93560-54012 | ||||
| 96160-00400 | ||||
| 96160-00600 | ||||

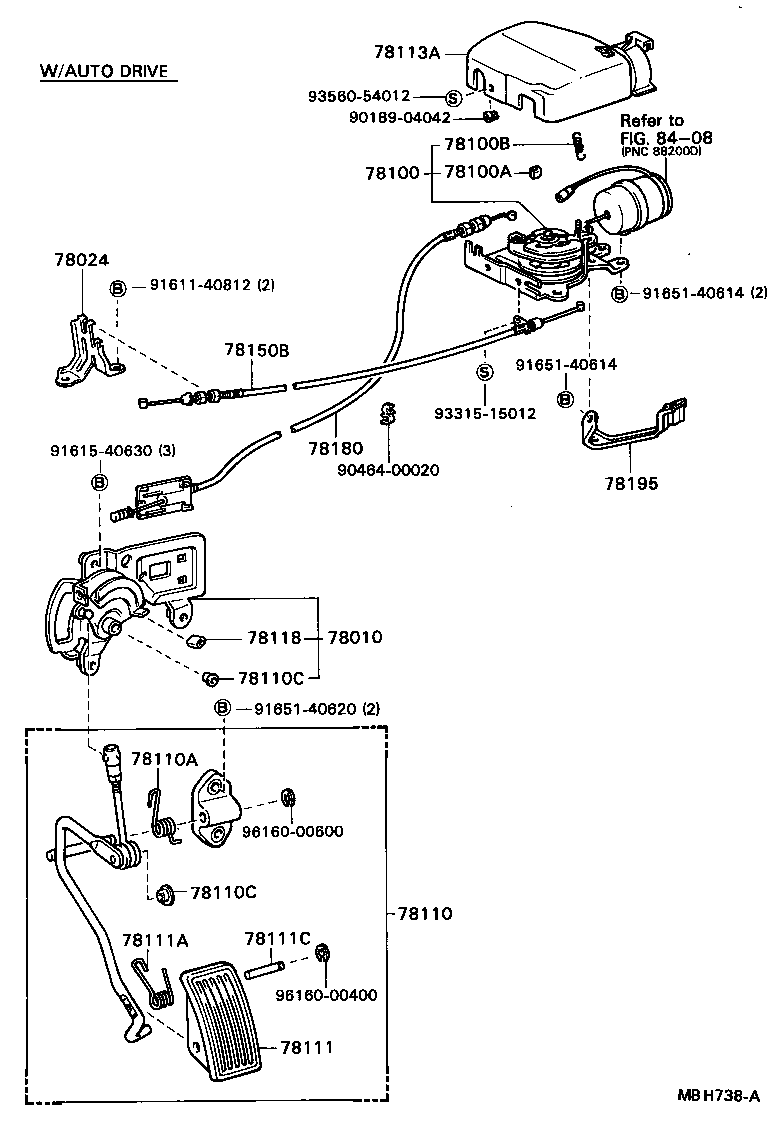

| Linked diagrams | ||||
| 8408 | ||||
