MX73L-XEMGEV (1984)

Toyota Cressida

Production Nov 1984 - Aug 1988
Engine 5ME
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8411- )5ME..MX73..ME

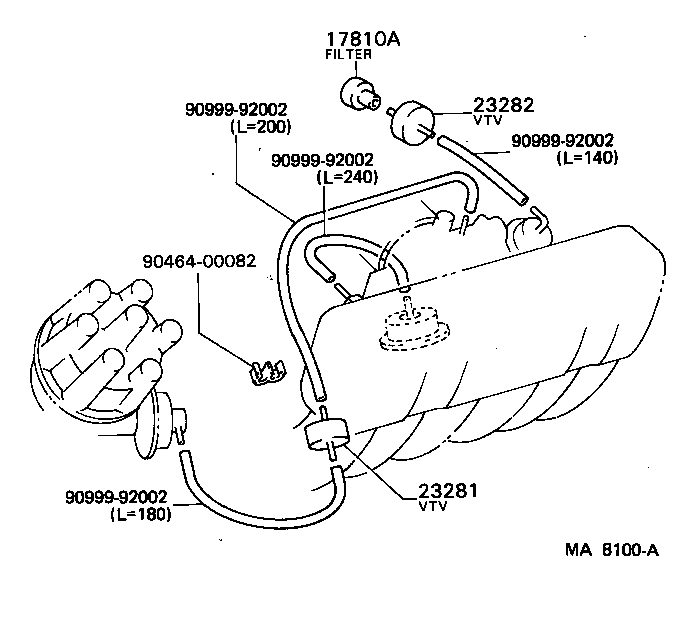

Click highlighted areas on diagram

diagram 17810A 23281 23282 9046400082 9099992002 9099992002 9099992002 9099992002
Part # Description Qty Price
17810A - FILTER ASSY, AIR
90925-06006

5M#..MX7#

 1
23281 - VALVE, VACUUM TRANSMITTING, NO.1
90925-01095

5ME..MX73..ME

 1
23282 - VALVE, VACUUM TRANSMITTING, NO.2
90925-01021

5ME..MX7#

 1
Common parts
90464-00082
90999-92002
