MX73L-XEMEEC (1984)
Toyota Cressida
Production
Aug 1984
-
Aug 1986
Engine
5ME
Transmission
5F MTM
Displacement
2500cc
Power
168 HP (125 kW)
(8408-8508)ARL ; (8408- )MX7#..LHD..EFI

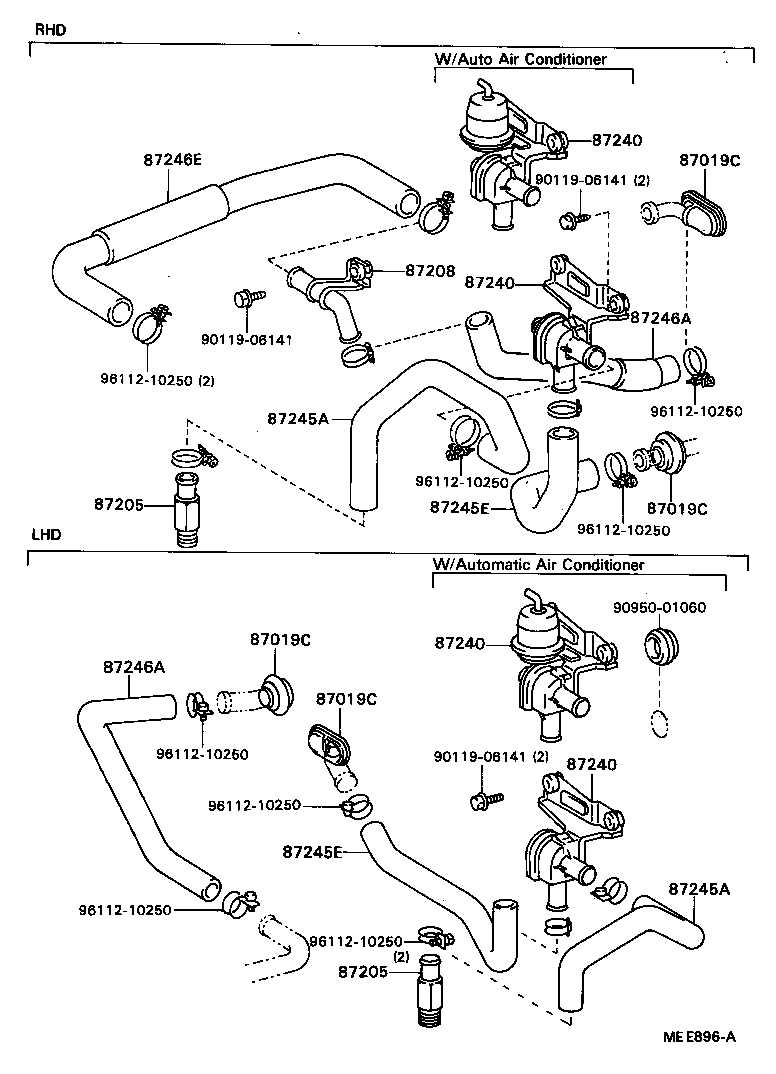

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 87019C - GROMMET, HEATER HOSE | ||||
| 90480-01272 |
GX71,LX7#,MX7#,RX7#..LHD INLET |
1 | ||
| 90480-36011 |
GX71,LX7#,MX7#,RX7#..LHD OUTLET |
1 | ||
| 87019C - GROMMET, HEATER HOSE | ||||
| 90480-01272 |
GX71,LX7#,MX7#,RX7#..LHD INLET |
1 | ||
| 90480-36011 |
GX71,LX7#,MX7#,RX7#..LHD OUTLET |
1 | ||
| 87019C - GROMMET, HEATER HOSE | ||||
| 90480-01272 |
GX71,LX7#,MX7#,RX7#..LHD INLET |
1 | ||
| 90480-36011 |
GX71,LX7#,MX7#,RX7#..LHD OUTLET |
1 | ||
| 87019C - GROMMET, HEATER HOSE | ||||
| 90480-01272 |
GX71,LX7#,MX7#,RX7#..LHD INLET |
1 | ||
| 90480-36011 |
GX71,LX7#,MX7#,RX7#..LHD OUTLET |
1 | ||
| 87205 - JOINT OR UNION, FRONT HEATER HOSE THROUGH OR INLET VALV | ||||
| 87251-22010 |
MX7#..EFI |
1 | ||
| 87205 - JOINT OR UNION, FRONT HEATER HOSE THROUGH OR INLET VALV | ||||
| 87251-22010 |
MX7#..EFI |
1 | ||
| 87240 - VALVE ASSY, HEATER WATER | ||||
| 87240-22240 |
MX7#..SWZ |
1 | ||
| 87240-22290 |
MX7#..LHD..EFI W/*AAC |
1 | ||
| 87240-22240 |
MX7#..EFI |
1 | ||
| 87240 - VALVE ASSY, HEATER WATER | ||||
| 87240-22240 |
MX7#..SWZ |
1 | ||
| 87240-22290 |
MX7#..LHD..EFI W/*AAC |
1 | ||
| 87240-22240 |
MX7#..EFI |
1 | ||
| 87240 - VALVE ASSY, HEATER WATER | ||||
| 87240-22240 |
MX7#..SWZ |
1 | ||
| 87240-22290 |
MX7#..LHD..EFI W/*AAC |
1 | ||
| 87240-22240 |
MX7#..EFI |
1 | ||
| 87240 - VALVE ASSY, HEATER WATER | ||||
| 87240-22240 |
MX7#..SWZ |
1 | ||
| 87240-22290 |
MX7#..LHD..EFI W/*AAC |
1 | ||
| 87240-22240 |
MX7#..EFI |
1 | ||
| 87245A - HOSE, HEATER WATER, INLET A | ||||
| 87245-22710 |
MX7#..EFI |
1 | ||
| 87245A - HOSE, HEATER WATER, INLET A | ||||
| 87245-22710 |
MX7#..EFI |
1 | ||
| 87245E - HOSE, HEATER WATER, INLET E | ||||
| 87245-22640 |
MX7#..LHD..EFI |
1 | ||
| 87245E - HOSE, HEATER WATER, INLET E | ||||
| 87245-22640 |
MX7#..LHD..EFI |
1 | ||
| 87246A - HOSE, HEATER WATER, OUTLET A | ||||
| 87245-22820 |
GX71,MX7#..LHD |
1 | ||
| 87246A - HOSE, HEATER WATER, OUTLET A | ||||
| 87245-22820 |
GX71,MX7#..LHD |
1 | ||
| Common parts | ||||
| 90119-06141 | ||||
| 90950-01060 | ||||
| 96112-10250 | ||||
