MX73L-XEMEEC (1984)

Toyota Cressida

Production Aug 1984 - Aug 1986
Engine 5ME
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8408- )1GGE,5M#

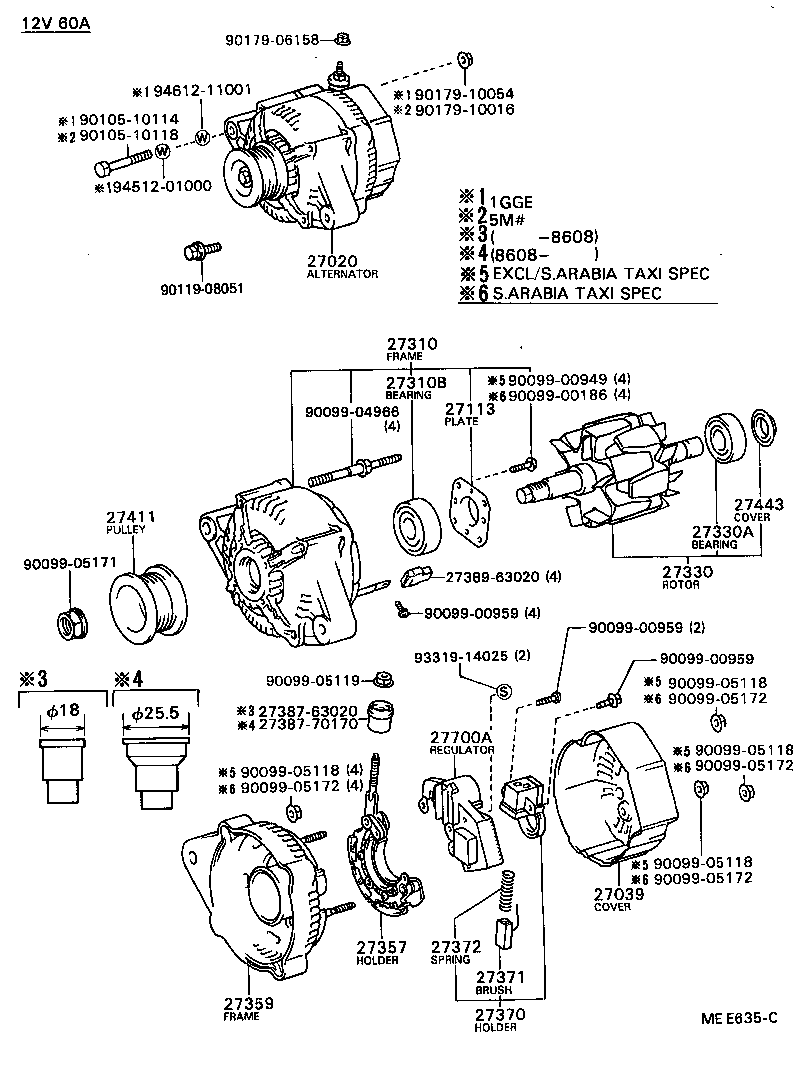

Click highlighted areas on diagram

diagram 27020 27039 27113 27310 27310B 27330 27330A 27357 27359 27370 27371 27372 2738770170 2738963020 27411 27443 27700A 9009900186 9009900949 9009900959 9009900959 9009900959 9009904966 9009905118 9009905118 9009905118 9009905118 9009905119 9009905171 9009905172 9009905172 9009905172 9009905172 9010510114 9010510118 9011908051 9017906158 9017910016 9017910054 9331914025 9451201000 9461211001
Part # Description Qty Price
27020 - ALTERNATOR ASSY
27060-43060

5M#..MX7#

12V 60A,12V 60A

 1
27039 - COVER, ALTERNATOR REAR END
27039-63021

1GGE,5M#..GX71,MX73

12V 60A

 1
27113 - PLATE, BEARING RETAINER, ALTERNATOR
27312-63020

1G#,5M#..GX71,MX7#

12V 60A

 1
27310 - FRAME ASSY, DRIVE END, ALTERNATOR
27310-72090

5M#..MX7#

12V 60A

 1
27310B - BEARING(FOR ALTERNATOR DRIVE END FRAME)
90099-10156

5M#..MX7#

12V 60A

 1
27330 - ROTOR ASSY, ALTERNATOR
27330-63021

1G#,5M#..GX71,MX7#

12V 60A

 1
27330A - BEARING(FOR ALTERNATOR ROTOR)
90099-10140

1G#,5M#..GX71,MX7#

12V 60A,70A

 1
27357 - HOLDER, ALTERNATOR, W/RECTIFIER
27357-63020

1GGE,5M#..GX71,MX7#

12V 60A

 1
27359 - FRAME, ALTERNATOR RECTIFIER END
27359-43050

5M#..MX7#

12V 60A

 1
27370 - HOLDER ASSY, ALTERNATOR BRUSH
27370-63021

1GGE,5M#..GX71,MX7#

12V 60A

 1
27370-72100

1GGE,5M#..GX71,MX7#

12V 60A

 1
27371 - BRUSH, ALTERNATOR
27371-63020

1G#,5M#..GX71,MX7#

12V 60A,70A

 2
27372 - SPRING, ALTERNATOR BRUSH
27372-63020

1G#,5M#..GX71,MX7#

12V 60A

 2
27411 - PULLEY, ALTERNATOR
27411-43050

5M#..MX7#

12V 60A

 1
27443 - COVER, ALTERNATOR BEARING
27443-63020

1G#,5M#..GX71,MX7#

12V 60A,70A

 1
27700A - REGULATOR ASSY, GENERATOR
27700-63021

1G#,5M#..GX71,MX7#

12V 60A,70A

 1
Common parts
27387-70170
27389-63020
90099-00186
90099-00949
90099-00959
90099-04966
90099-05118
90099-05119
90099-05171
90099-05172
90105-10114
90105-10118
90119-08051
90179-06158
90179-10016
90179-10054
93319-14025
94512-01000
94612-11001
