MX62RG-XWPDEQ (1980)

Toyota Cressida

Production Sep 1980 - Aug 1982
Engine 5ME
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8009- )5ME

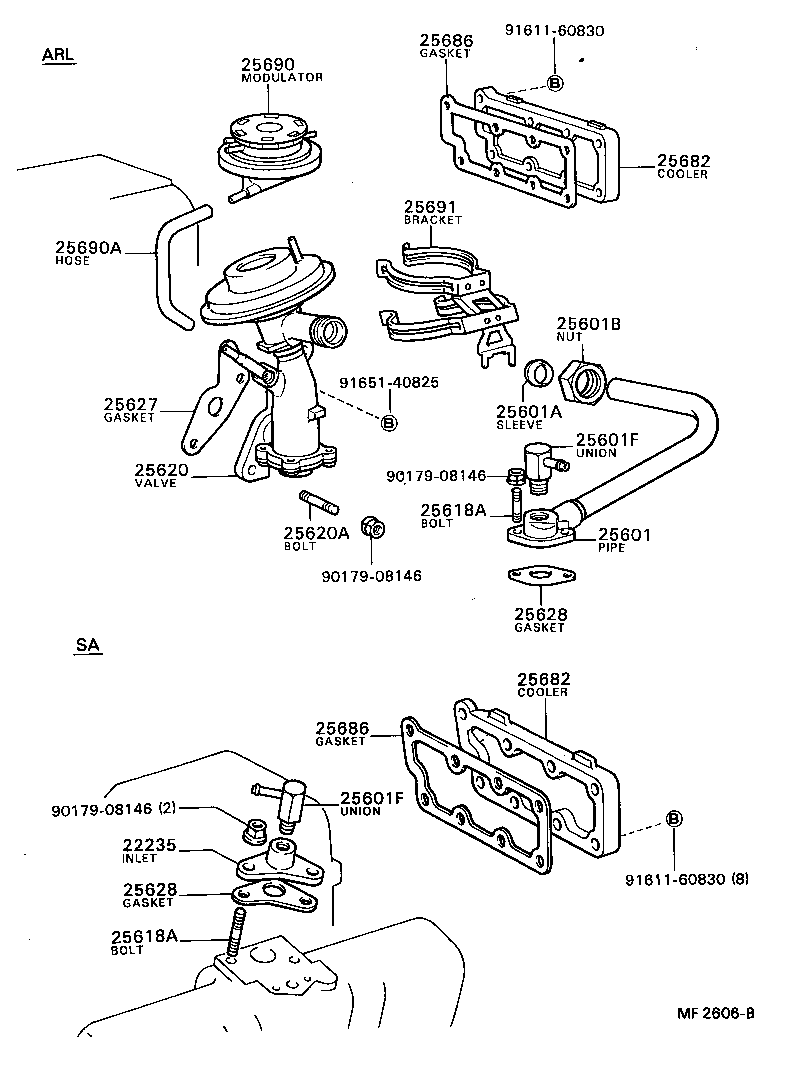

Click highlighted areas on diagram

diagram 22235 25601 25601A 25601B 25601F 25601F 25618A 25618A 25620 25620A 25627 25628 25628 25682 25682 25686 25686 25690 25690A 25691 9017908146 9017908146 9017908146 9161160830 9161160830 9165140825
Part # Description Qty Price
25601 - PIPE SUB-ASSY, EGR, NO.1
25601-43010

5ME..MX62

 1
25601A - SLEEVE, BALL, EGR PIPE, NO.1
90410-16001

5ME..MX62

 1
25601B - NUT, UNION, EGR PIPE, NO.1
90402-22005

5ME..MX62

 1
25601F - UNION(FOR EGR PIPE, NO.1)
90404-53027

5ME..MX6#

 1
25601F - UNION(FOR EGR PIPE, NO.1)
90404-53027

5ME..MX6#

 1
25618A - BOLT, STUD(FOR EGR INLET)
90116-08025

5ME..MX6#

 2
25618A - BOLT, STUD(FOR EGR INLET)
90116-08025

5ME..MX6#

 2
25620 - VALVE ASSY, EGR
25620-43030

5ME..MX62

 1
25620A - BOLT, STUD(FOR EGR VALVE)
90116-08025

5ME..MX62

 2
25627 - GASKET, EGR VALVE
25627-45011

5ME..MX62

 1
25628 - GASKET, EGR INLET
25628-43010

5ME..MX62

 1
25628 - GASKET, EGR INLET
25628-43010

5ME..MX62

 1
25682 - COOLER, EGR, NO.2
25682-45020

5ME..MX6#

 1
25682 - COOLER, EGR, NO.2
25682-45020

5ME..MX6#

 1
25686 - GASKET, EGR COOLER, NO.2
25686-45010

5ME..MX6#

 1
25686 - GASKET, EGR COOLER, NO.2
25686-45010

5ME..MX6#

 1
25690 - MODULATOR ASSY, EGR VACUUM
25870-43020

5ME..MX62

 1
25690A - HOSE(FOR EGR VACUUM MODULATOR)
90445-11020

5ME..MX62

 1
25691 - BRACKET, EGR VACUUM MODULATOR
25691-43010

5ME..MX62

 1
Common parts
90179-08146
91611-60830
91651-40825
