MX62RG-XWPDEQ (1980)

Toyota Cressida

Production Sep 1980 - Aug 1982
Engine 5ME
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8009- )L

Click highlighted areas on diagram

diagram 17111 17141 17152 17159 17159 17173 17177 9011910237 9017008184 9017010199 9017908040 9020110283 9161160822 9162160825 9461110800
Part # Description Qty Price
17111 - MANIFOLD, INTAKE
17111-45080

5ME..MX6#

 1
17141 - MANIFOLD, EXHAUST
17141-41070

5ME..MX6#

 1
17152 - BOLT, STUD(FOR MANIFOLD TO EXHAUST PIPE)
90116-10017

5ME..MX62

L=41,S=14&21

 3
17159 - BOLT, STUD(FOR MANIFOLD TO CYLINDER HEAD)
90116-08020

5ME..MX6#

INTAKE,L=44,S=12&18

 4
90116-10025

5ME..MX6#

EXHAUST UPR,L=57,S=15&31

 7
90116-10024

5ME..MX6#

EXHAUST LWR,L=53,S=15&29

 3
17159 - BOLT, STUD(FOR MANIFOLD TO CYLINDER HEAD)
90116-08020

5ME..MX6#

INTAKE,L=44,S=12&18

 4
90116-10025

5ME..MX6#

EXHAUST UPR,L=57,S=15&31

 7
90116-10024

5ME..MX6#

EXHAUST LWR,L=53,S=15&29

 3
17173 - GASKET, EXHAUST MANIFOLD TO HEAD
17173-45030

5ME..MX6#

 1
17177 - GASKET, INTAKE MANIFOLD TO HEAD, NO.1
17177-41030

5ME..MX62

 1
Common parts
90119-10237
90170-08184
90170-10199
90179-08040
90201-10283
91611-60822
91621-60825
94611-10800

(8009-8308)5ME

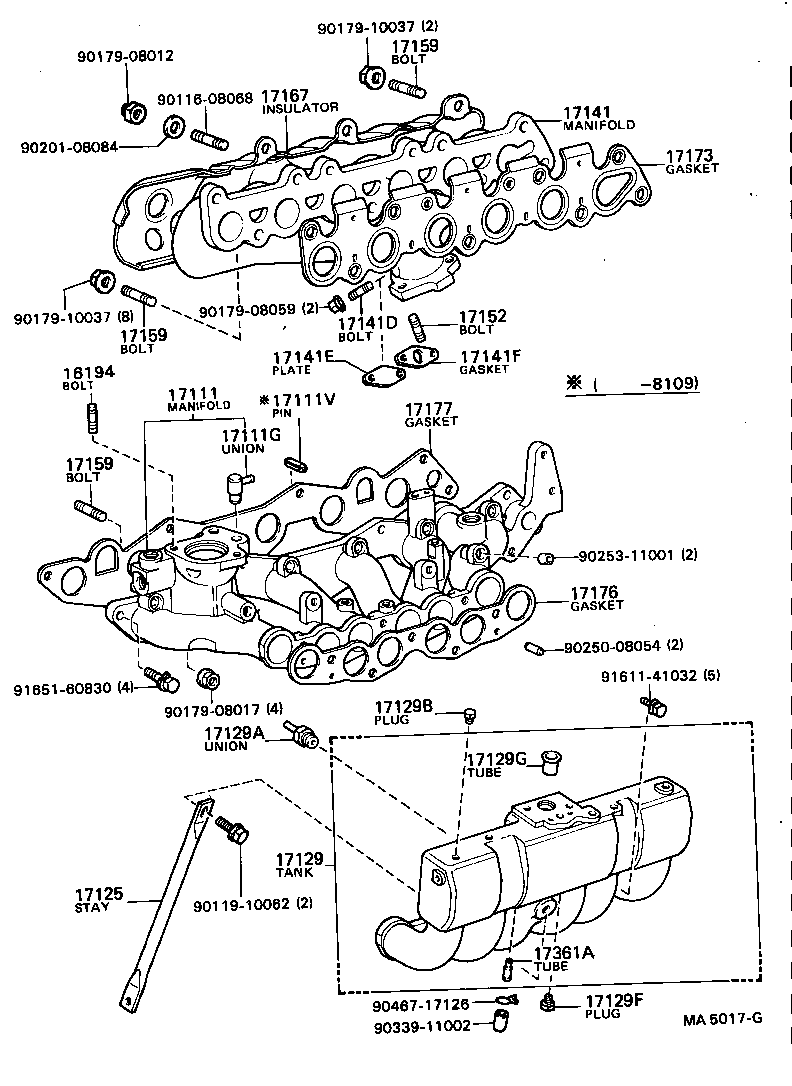

Click highlighted areas on diagram

diagram 16194 17111 17111G 17111V 17125 17129 17129A 17129B 17129F 17129G 17141 17141D 17141E 17141F 17152 17159 17159 17159 17167 17173 17176 17177 17361A 9011608068 9011910062 9017908012 9017908017 9017908059 9017910037 9017910037 9020108084 9025008054 9025311001 9033911002 9046717126 9161141032 9165160830
Part # Description Qty Price
16194 - BOLT, STUD(FOR WATER OUTLET SETTING)
90116-08025

5ME..MX6#

 2
17111 - MANIFOLD, INTAKE
17111-45080

5ME..MX6#

 1
17111G - UNION(FOR INTAKE MANIFOLD WATER)
90407-52005

5ME..MX6#

 1
17111V - PIN, STRAIGHT(FOR INTAKE MANIFOLD SETTING)
90254-08001

5ME..MX62

 2
17125 - STAY, SURGE TANK, NO.1
17125-41020

5ME..MX62

 1
17129 - TANK, INTAKE AIR SURGE
17109-41050

5ME..MX62

 1
17129A - UNION, NO.1
90404-53029

5ME..MX62

 1
17129B - PLUG
90072-34107

5ME..MX6#

 1
17129F - PLUG, INTAKE MANIFOLD SUCTION HOLE
90072-34107

5ME..MX62

 1
17129G - TUBE, EGR INLET
25619-45010

5ME..MX6#

 1
17141 - MANIFOLD, EXHAUST
17141-41070

5ME..MX6#

 1
17141D - BOLT, STUD(FOR OXYGEN SENSOR)
90116-08045

5ME..MX62

 2
17141E - PLATE, EXHAUST MANIFOLD
17148-41010

5ME..MX6#

 1
17141F - GASKET(FOR EXHAUST MANIFOLD PLATE)
89466-30010

5ME..MX6#

 1
17152 - BOLT, STUD(FOR MANIFOLD TO EXHAUST PIPE)
90116-10017

5ME..MX62

L=41,S=14&21

 3
17159 - BOLT, STUD(FOR MANIFOLD TO CYLINDER HEAD)
90116-08020

5ME..MX6#

INTAKE,L=44,S=12&18

 4
90116-10025

5ME..MX6#

EXHAUST UPR,L=57,S=15&31

 7
90116-10024

5ME..MX6#

EXHAUST LWR,L=53,S=15&29

 3
17159 - BOLT, STUD(FOR MANIFOLD TO CYLINDER HEAD)
90116-08020

5ME..MX6#

INTAKE,L=44,S=12&18

 4
90116-10025

5ME..MX6#

EXHAUST UPR,L=57,S=15&31

 7
90116-10024

5ME..MX6#

EXHAUST LWR,L=53,S=15&29

 3
17159 - BOLT, STUD(FOR MANIFOLD TO CYLINDER HEAD)
90116-08020

5ME..MX6#

INTAKE,L=44,S=12&18

 4
90116-10025

5ME..MX6#

EXHAUST UPR,L=57,S=15&31

 7
90116-10024

5ME..MX6#

EXHAUST LWR,L=53,S=15&29

 3
17167 - INSULATOR, EXHAUST MANIFOLD HEAT, NO.1
17107-41010

5ME..MX6#

 1
17173 - GASKET, EXHAUST MANIFOLD TO HEAD
17173-45030

5ME..MX6#

 1
17176 - GASKET, AIR SURGE TANK TO INTAKE MANIFOLD
17176-41030

5ME..MX6#

 1
17177 - GASKET, INTAKE MANIFOLD TO HEAD, NO.1
17177-41030

5ME..MX62

 1
17361A - TUBE, AIR(FOR EFI)
17361-41010

5ME..MX62

 1
Common parts
90116-08068
90119-10062
90179-08012
90179-08017
90179-08059
90179-10037
90201-08084
90250-08054
90253-11001
90339-11002
90467-17126
91611-41032
91651-60830
