MX62RG-XWPDEQ (1980)
Toyota Cressida
(8009-8208)5ME
| Part # | Description | Qty | Price | |
|---|---|---|---|---|

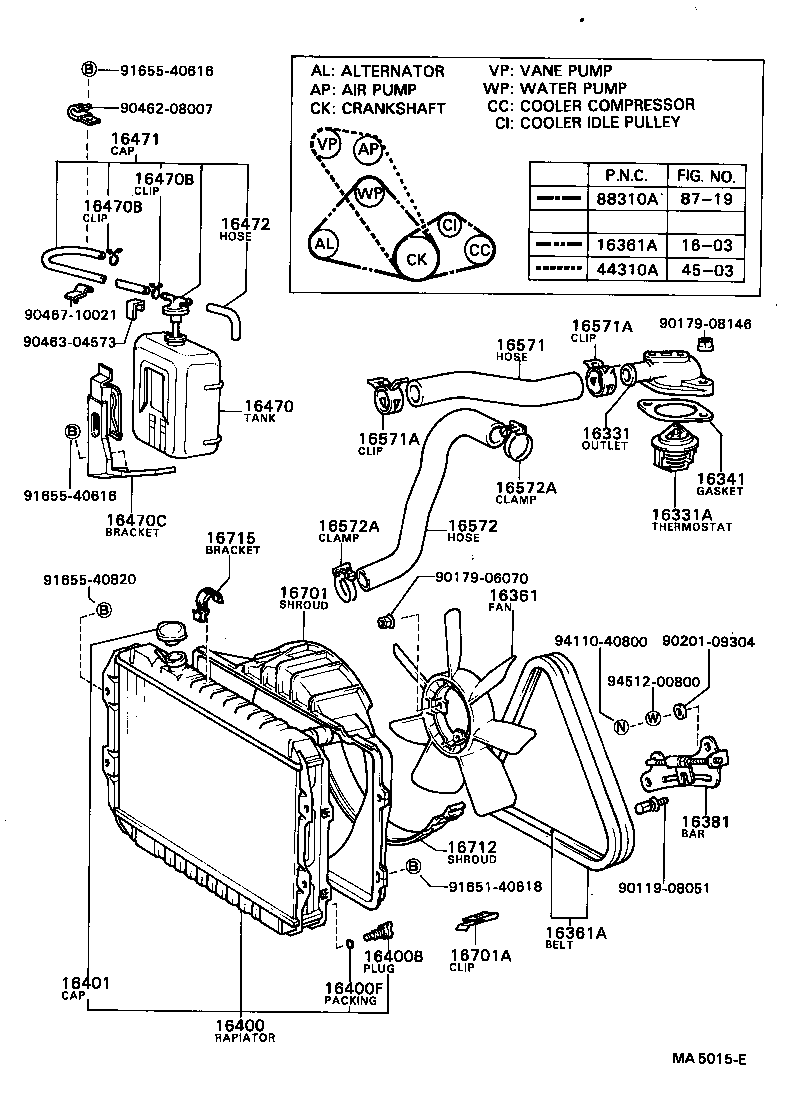

| 16331 - OUTLET, WATER | ||||
| 16331-41071 |
5ME..MX62 |
1 | ||
| 16331A - THERMOSTAT | ||||
| 90916-03034 |
5ME..MX62 *WAX 82-95,FUJI-THOMSON |
1 | ||
| 90916-03037 |
5ME..MX62 *WAX 82-95,KUZEH |
1 | ||
| 16341 - GASKET, WATER OUTLET | ||||
| 16341-38010 |
5ME..MX62 |
1 | ||
| 16341-38010 |
5ME..MX62 |
1 | ||
| 16361 - FAN | ||||
| 16361-41090 |
5ME..MX6# |
1 | ||
| 16361A - BELT, V(FOR FAN & ALTERNATOR) | ||||
| 90916-02076 |
5ME..MX62 DOUBLE V BELTS,L=925 |
1 | ||
| 16361A - BELT, V(FOR FAN & ALTERNATOR) | ||||
| 90916-02076 |
5ME..MX62 DOUBLE V BELTS,L=925 |
1 | ||
| 16381 - BAR, FAN BELT ADJUSTING | ||||
| 16381-45011 |
5ME..MX62 |
1 | ||
| 16400 - RADIATOR ASSY | ||||
| 16400-41280 |
5ME..MX62 |
1 | ||
| 16400B - PLUG, RADIATOR DRAIN COCK | ||||
| 90910-09054 |
5ME..MX6# |
1 | ||
| 16400F - PACKING(FOR RADIATOR DRAIN COCK) | ||||
| 96710-01007 |
5ME..MX62 |
1 | ||
| 16401 - CAP SUB-ASSY, RADIATOR | ||||
| 16401-36011 |
5ME..MX6# |
1 | ||
| 16470 - TANK ASSY, RADIATOR RESERVE | ||||
| 16480-24010 |
5ME..MX62 |
1 | ||
| 16470B - CLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE) | ||||
| 90467-11085 |
5ME..MX6# |
2 | ||
| 16470B - CLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE) | ||||
| 90467-11085 |
5ME..MX6# |
2 | ||
| 16470C - BRACKET(FOR RADIATOR RESERVE TANK) | ||||
| 16402-43010 |
5ME..MX62 |
1 | ||
| 16471 - CAP SUB-ASSY, RESERVE TANK | ||||
| 16405-43010 |
5ME..MX62 |
1 | ||
| 16472 - HOSE, BREATHER | ||||
| 85338-22020 |
5ME..MX6# |
1 | ||
| 16571 - HOSE, RADIATOR, INLET | ||||
| 16571-41090 |
5ME..MX62 |
1 | ||
| 16571A - CLAMP OR CLIP, HOSE(FOR RADIATOR INLET) | ||||
| 90467-37001 |
5ME..MX6# |
2 | ||
| 16571A - CLAMP OR CLIP, HOSE(FOR RADIATOR INLET) | ||||
| 90467-37001 |
5ME..MX6# |
2 | ||
| 16572 - HOSE, RADIATOR, OUTLET | ||||
| 16572-41080 |
5ME..MX6# |
1 | ||
| 16572A - CLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1) | ||||
| 96111-10430 |
5ME..MX62 ID=43 |
2 | ||
| 16572A - CLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1) | ||||
| 96111-10430 |
5ME..MX62 ID=43 |
2 | ||
| 16701 - SHROUD SUB-ASSY, FAN | ||||
| 16711-43010 |
5ME..MX62 |
1 | ||
| 16701A - CLIP(FOR FAN SHROUD) | ||||
| 90468-06013 |
5ME..MX6# |
2 | ||
| 16712 - SHROUD, FAN, NO.2 | ||||
| 16712-43010 |
5ME..MX6# W/COOLER |
1 | ||
| 16715 - BRACKET, FAN SHROUD | ||||
| 16715-43010 |
5ME..MX6# |
1 | ||
| 88310A - BELT, V (COOLER COMPRESSOR TO CRANKSHAFT PULLEY), NO.1 | ||||
| 99332-00910 |
MX62 |
1 | ||
| Common parts | ||||
| 90119-08051 | ||||
| 90179-06070 | ||||
| 90179-08146 | ||||
| 90201-09304 | ||||
| 90462-08007 | ||||
| 90463-04573 | ||||
| 90467-10021 | ||||
| 91651-40618 | ||||
| 91655-40616 | ||||
| 91655-40820 | ||||
| 94110-40800 | ||||
| 94512-00800 | ||||
| Linked diagrams | ||||
| 1603 | ||||
| 4503 | ||||
| 8719 | ||||
(8009-8208)L
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 16331 - OUTLET, WATER | ||||
| 16331-41071 |
5ME..MX62 |
1 | ||
| 16331A - THERMOSTAT | ||||
| 90916-03034 |
5ME..MX62 *WAX 82-95,FUJI-THOMSON |
1 | ||
| 90916-03037 |
5ME..MX62 *WAX 82-95,KUZEH |
1 | ||
| 16341 - GASKET, WATER OUTLET | ||||
| 16341-38010 |
5ME..MX62 |
1 | ||
| 16341-38010 |
5ME..MX62 |
1 | ||
| 16361 - FAN | ||||
| 16361-41090 |
5ME..MX6# |
1 | ||
| 16361A - BELT, V(FOR FAN & ALTERNATOR) | ||||
| 90916-02076 |
5ME..MX62 DOUBLE V BELTS,L=925 |
1 | ||
| 16381 - BAR, FAN BELT ADJUSTING | ||||
| 16381-45011 |
5ME..MX62 |
1 | ||
| 16400 - RADIATOR ASSY | ||||
| 16400-41280 |
5ME..MX62 |
1 | ||
| 16400B - PLUG, RADIATOR DRAIN COCK | ||||
| 90910-09054 |
5ME..MX6# |
1 | ||
| 16400F - PACKING(FOR RADIATOR DRAIN COCK) | ||||
| 96710-01007 |
5ME..MX62 |
1 | ||
| 16401 - CAP SUB-ASSY, RADIATOR | ||||
| 16401-36011 |
5ME..MX6# |
1 | ||
| 16470 - TANK ASSY, RADIATOR RESERVE | ||||
| 16480-24010 |
5ME..MX62 |
1 | ||
| 16470B - CLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE) | ||||
| 90467-11085 |
5ME..MX6# |
2 | ||
| 16470B - CLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE) | ||||
| 90467-11085 |
5ME..MX6# |
2 | ||
| 16470C - BRACKET(FOR RADIATOR RESERVE TANK) | ||||
| 16402-43010 |
5ME..MX62 |
1 | ||
| 16471 - CAP SUB-ASSY, RESERVE TANK | ||||
| 16405-43010 |
5ME..MX62 |
1 | ||
| 16472 - HOSE, BREATHER | ||||
| 85338-22020 |
5ME..MX6# |
1 | ||
| 16571 - HOSE, RADIATOR, INLET | ||||
| 16571-41090 |
5ME..MX62 |
1 | ||
| 16571A - CLAMP OR CLIP, HOSE(FOR RADIATOR INLET) | ||||
| 90467-37001 |
5ME..MX6# |
2 | ||
| 16571A - CLAMP OR CLIP, HOSE(FOR RADIATOR INLET) | ||||
| 90467-37001 |
5ME..MX6# |
2 | ||
| 16572 - HOSE, RADIATOR, OUTLET | ||||
| 16572-41080 |
5ME..MX6# |
1 | ||
| 16572A - CLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1) | ||||
| 96111-10430 |
5ME..MX62 ID=43 |
2 | ||
| 16572A - CLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1) | ||||
| 96111-10430 |
5ME..MX62 ID=43 |
2 | ||
| 16701 - SHROUD SUB-ASSY, FAN | ||||
| 16711-43010 |
5ME..MX62 |
1 | ||
| 16701A - CLIP(FOR FAN SHROUD) | ||||
| 90468-06013 |
5ME..MX6# |
2 | ||
| 16712 - SHROUD, FAN, NO.2 | ||||
| 16712-43010 |
5ME..MX6# W/COOLER |
1 | ||
| Common parts | ||||
| 90119-08108 | ||||
| 90119-08127 | ||||
| 90179-06070 | ||||
| 91611-60820 | ||||
| 91611-60840 | ||||
| 91651-40818 | ||||
| 91655-40616 | ||||
| 91655-40818 | ||||
| 91659-41222 | ||||
(8009- )L
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 16361A - BELT, V(FOR FAN & ALTERNATOR) | ||||
| 90916-02076 |
5ME..MX62 DOUBLE V BELTS,L=925 |
1 | ||
| 88310A - BELT, V (COOLER COMPRESSOR TO CRANKSHAFT PULLEY), NO.1 | ||||
| 99332-00910 |
MX62 |
1 | ||
| Linked diagrams | ||||
| 1603 | ||||
| 4503 | ||||
| 8719 | ||||
(8009- )5ME
| Part # | Description | Qty | Price | |
|---|---|---|---|---|

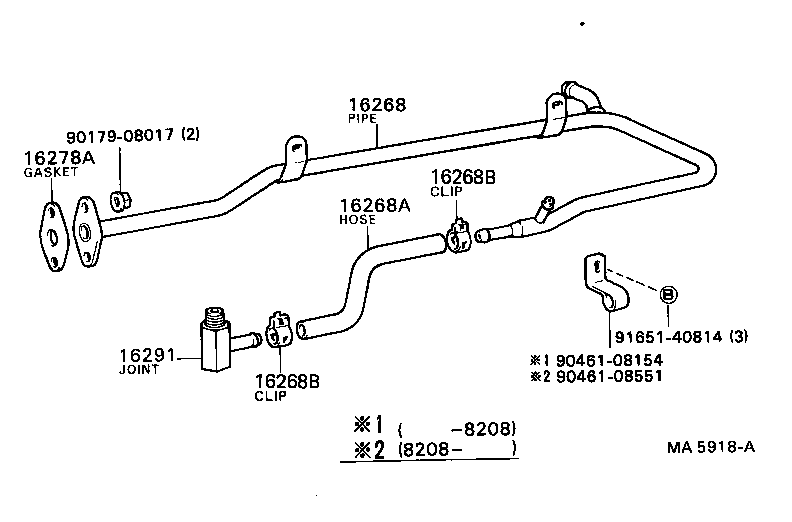

| 16268 - PIPE, WATER BY-PASS, NO.1 | ||||
| 16268-41120 |
5ME..MX62 |
1 | ||
| 16268A - HOSE(FOR WATER BY-PASS PIPE) | ||||
| 16267-45020 |
5ME..MX6# |
1 | ||
| 16268B - CLAMP OR CLIP, HOSE(FOR WATER BY-PASS PIPE) | ||||
| 96112-10220 |
5ME..MX6# |
2 | ||
| 16268B - CLAMP OR CLIP, HOSE(FOR WATER BY-PASS PIPE) | ||||
| 96112-10220 |
5ME..MX6# |
2 | ||
| 16278A - GASKET, WATER BY-PASS | ||||
| 16347-45010 |
5ME..MX6# |
1 | ||
| 16291 - JOINT, WATER HOSE | ||||
| 90404-53026 |
5ME..MX62 |
1 | ||
| Common parts | ||||
| 90179-08017 | ||||
| 90461-08154 | ||||
| 90461-08551 | ||||
| 91651-40814 | ||||
