MX62R-XEPNEQ (1980)
Toyota Cressida
(8009- )5ME
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 17700 - CLEANER ASSY, AIR | ||||
| 17700-43020 |
5ME..MX62 AIR PUMP |
1 | ||
| 17700-43010 |
5ME..MX6# ENGINE |
1 | ||
| 17700 - CLEANER ASSY, AIR | ||||
| 17700-43020 |
5ME..MX62 AIR PUMP |
1 | ||
| 17700-43010 |
5ME..MX6# ENGINE |
1 | ||
| 17705 - CAP SUB-ASSY, AIR CLEANER | ||||
| 17705-43010 |
5ME..MX62 AIR PUMP |
1 | ||
| 17751 - INLET, AIR CLEANER, NO.1 | ||||
| 17751-43010 |
5ME..MX6# |
1 | ||
| 17801 - ELEMENT SUB-ASSY, AIR CLEANER FILTER | ||||
| 17801-44080 |
5ME..MX62 AIR PUMP |
1 | ||
| 17801-45010 |
5ME..MX6# ENGINE |
1 | ||
| 17801 - ELEMENT SUB-ASSY, AIR CLEANER FILTER | ||||
| 17801-44080 |
5ME..MX62 AIR PUMP |
1 | ||
| 17801-45010 |
5ME..MX6# ENGINE |
1 | ||
| 17861 - CONNECTOR, INTAKE AIR | ||||
| 17805-41011 |
5ME..MX62 |
1 | ||
| 17860-41010 |
5ME..MX62 |
1 | ||
| 17861C - CAP(FOR INTAKE AIR CONNECTOR) | ||||
| 90339-07016 |
5ME..MX6# |
1 | ||
| 17875 - PIPE, INTAKE AIR CONNECTOR | ||||
| 17875-41031 |
5ME..MX6# |
1 | ||
| 17881 - HOSE, AIR CLEANER, NO.1 | ||||
| 17881-41051 |
5ME..MX6# |
1 | ||
| 17881A - CLAMP(FOR AIR CLEANER HOSE, NO.1) | ||||
| 96111-10710 |
5ME..MX6# |
2 | ||
| 17881A - CLAMP(FOR AIR CLEANER HOSE, NO.1) | ||||
| 96111-10710 |
5ME..MX6# |
2 | ||
| 17882 - HOSE, AIR CLEANER, NO.2 | ||||
| 17882-43040 |
5ME..MX6# |
1 | ||
| 17882A - CLAMP(FOR AIR CLEANER HOSE, NO.2) | ||||
| 96111-10710 |
5ME..MX6# PIPE SIDE,ID=71 |
1 | ||
| 96111-10800 |
5ME..MX6# CLEANER SIDE,ID=80 |
1 | ||
| 17882A - CLAMP(FOR AIR CLEANER HOSE, NO.2) | ||||
| 96111-10710 |
5ME..MX6# PIPE SIDE,ID=71 |
1 | ||
| 96111-10800 |
5ME..MX6# CLEANER SIDE,ID=80 |
1 | ||
| 22231 - HOSE, THROTTLE BODY | ||||
| 22231-41030 |
5ME..MX6# |
1 | ||
| 22231A - CLAMP OR CLIP(FOR THROTTLE BODY HOSE) | ||||
| 96111-10710 |
5ME..MX6# CONNECTOR SIDE |
1 | ||
| 96111-10800 |
5ME..MX6# THROTTLE BODY SIDE |
1 | ||
| 22231A - CLAMP OR CLIP(FOR THROTTLE BODY HOSE) | ||||
| 96111-10710 |
5ME..MX6# CONNECTOR SIDE |
1 | ||
| 96111-10800 |
5ME..MX6# THROTTLE BODY SIDE |
1 | ||
| 22250 - METER ASSY, INTAKE AIR FLOW | ||||
| 22250-43060 |
5ME..MX6# |
1 | ||
| 22255 - BRACKET, AIR FLOW METER | ||||
| 22255-43010 |
5ME..MX6# |
1 | ||
| 22275 - GASKET, AIR FLOW METER | ||||
| 22275-41010 |
5ME..MX6# |
1 | ||
| Common parts | ||||
| 90179-06096 | ||||
| 90339-03009 | ||||
| 90339-11001 | ||||
| 90560-06009 | ||||
| 91655-40816 | ||||
| 91661-40612 | ||||
| 91661-40825 | ||||
| 91666-40830 | ||||
| 93383-16014 | ||||
(8009-8208)L
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 17700 - CLEANER ASSY, AIR | ||||
| 17700-43020 |
5ME..MX62 AIR PUMP |
1 | ||
| 17700-43010 |
5ME..MX6# ENGINE |
1 | ||
| 17801 - ELEMENT SUB-ASSY, AIR CLEANER FILTER | ||||
| 17801-44080 |
5ME..MX62 AIR PUMP |
1 | ||
| 17801-45010 |
5ME..MX6# ENGINE |
1 | ||
| 17881 - HOSE, AIR CLEANER, NO.1 | ||||
| 17881-41051 |
5ME..MX6# |
1 | ||
| 17881A - CLAMP(FOR AIR CLEANER HOSE, NO.1) | ||||
| 96111-10710 |
5ME..MX6# |
2 | ||
| 17881A - CLAMP(FOR AIR CLEANER HOSE, NO.1) | ||||
| 96111-10710 |
5ME..MX6# |
2 | ||
| 17882 - HOSE, AIR CLEANER, NO.2 | ||||
| 17882-43040 |
5ME..MX6# |
1 | ||
| 17882A - CLAMP(FOR AIR CLEANER HOSE, NO.2) | ||||
| 96111-10710 |
5ME..MX6# PIPE SIDE,ID=71 |
1 | ||
| 96111-10800 |
5ME..MX6# CLEANER SIDE,ID=80 |
1 | ||
| 17882A - CLAMP(FOR AIR CLEANER HOSE, NO.2) | ||||
| 96111-10710 |
5ME..MX6# PIPE SIDE,ID=71 |
1 | ||
| 96111-10800 |
5ME..MX6# CLEANER SIDE,ID=80 |
1 | ||
| Common parts | ||||
| 90119-06108 | ||||
| 91655-40616 | ||||

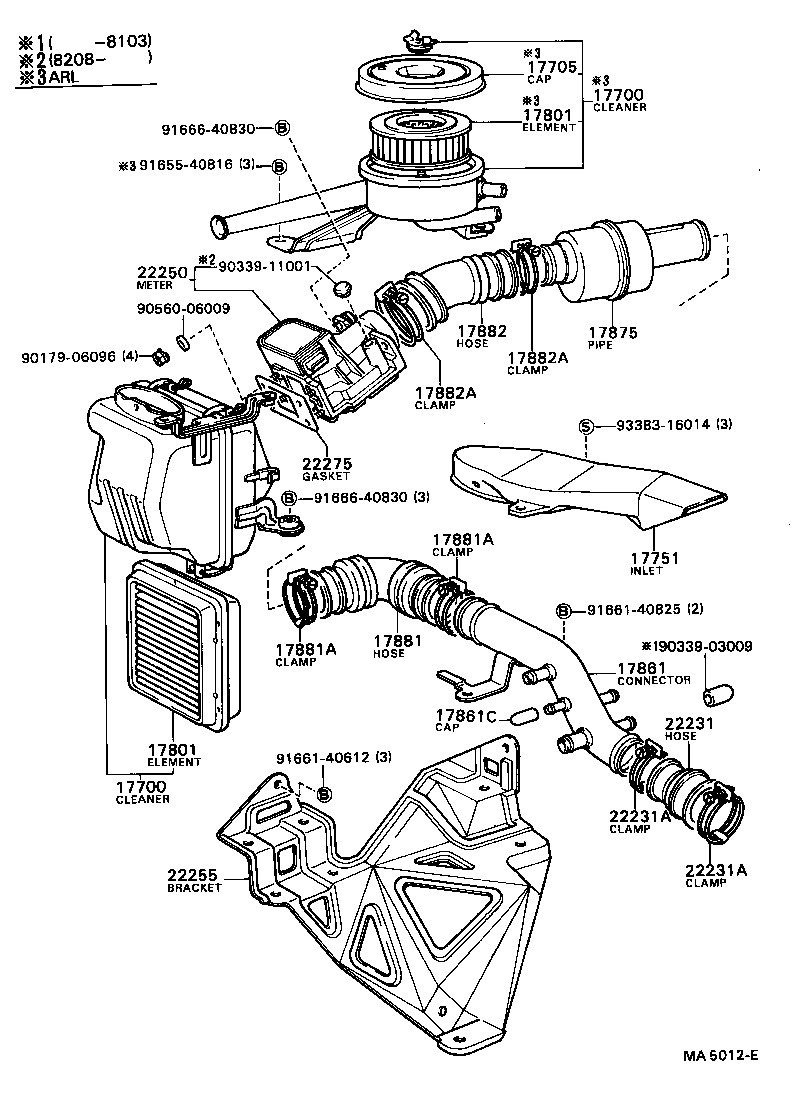

| Linked diagrams | ||||
| 1709 | ||||
(8208- )L
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 17700 - CLEANER ASSY, AIR | ||||
| 17700-43020 |
5ME..MX62 AIR PUMP |
1 | ||
| 17700-43010 |
5ME..MX6# ENGINE |
1 | ||
| 17705 - CAP SUB-ASSY, AIR CLEANER | ||||
| 17705-43010 |
5ME..MX62 AIR PUMP |
1 | ||
| 17801 - ELEMENT SUB-ASSY, AIR CLEANER FILTER | ||||
| 17801-44080 |
5ME..MX62 AIR PUMP |
1 | ||
| 17801-45010 |
5ME..MX6# ENGINE |
1 | ||
| 17881 - HOSE, AIR CLEANER, NO.1 | ||||
| 17881-41051 |
5ME..MX6# |
1 | ||
| 17881A - CLAMP(FOR AIR CLEANER HOSE, NO.1) | ||||
| 96111-10710 |
5ME..MX6# |
2 | ||
| 17881A - CLAMP(FOR AIR CLEANER HOSE, NO.1) | ||||
| 96111-10710 |
5ME..MX6# |
2 | ||
| 17882 - HOSE, AIR CLEANER, NO.2 | ||||
| 17882-43040 |
5ME..MX6# |
1 | ||
| 17882A - CLAMP(FOR AIR CLEANER HOSE, NO.2) | ||||
| 96111-10710 |
5ME..MX6# PIPE SIDE,ID=71 |
1 | ||
| 96111-10800 |
5ME..MX6# CLEANER SIDE,ID=80 |
1 | ||
| 17882A - CLAMP(FOR AIR CLEANER HOSE, NO.2) | ||||
| 96111-10710 |
5ME..MX6# PIPE SIDE,ID=71 |
1 | ||
| 96111-10800 |
5ME..MX6# CLEANER SIDE,ID=80 |
1 | ||
| Common parts | ||||
| 90119-06108 | ||||
| 90159-60176 | ||||
| 90540-09080 | ||||
| 90560-06456 | ||||
