MX36R-WKDQ (1976)

Toyota Cressida

Production Dec 1976 - Aug 1980
Engine 4M
Transmission 4F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(7612-8008)4M

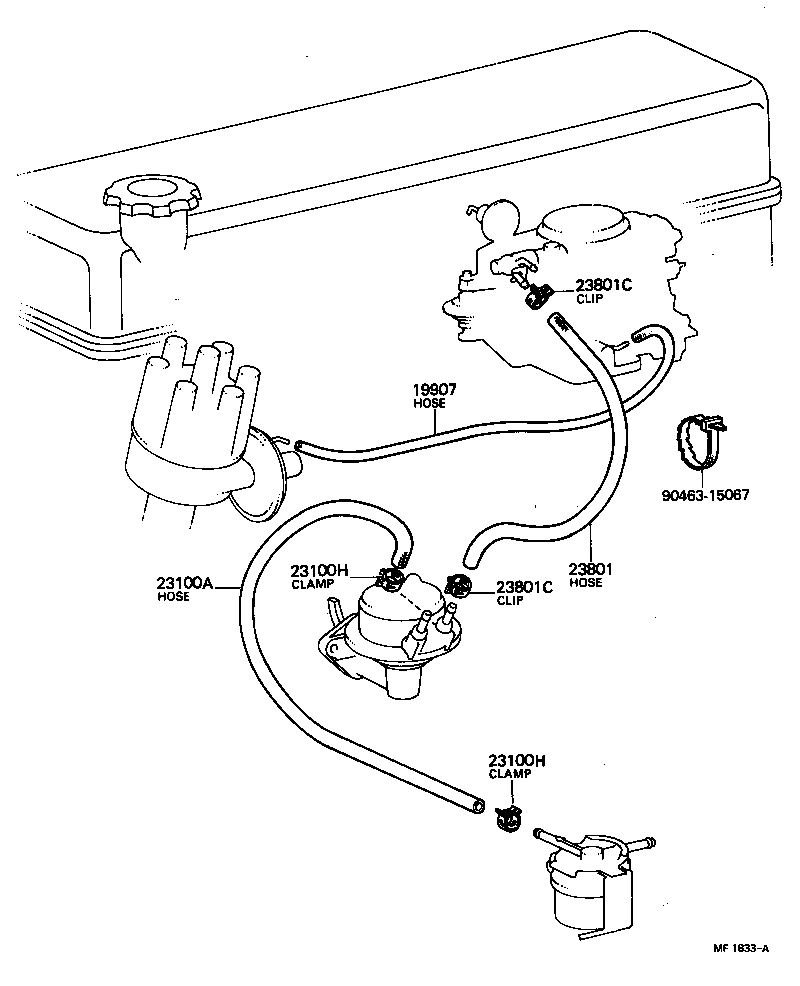

Click highlighted areas on diagram

diagram 19907 23100A 23100H 23100H 23801 23801C 23801C 9046315067
Part # Description Qty Price
23100A - HOSE, FUEL
95331-08030

4M..MX3#

L=300

 1
95332-08030

4M..MX3#

L=300

 1
23100H - CLIP(FOR FUEL HOSE)
96132-30800

4M..MX3#

 2
23100H - CLIP(FOR FUEL HOSE)
96132-30800

4M..MX3#

 2
23801 - PIPE OR HOSE SUB-ASSY, CARBURETOR FUEL, NO.1
95332-08034

4M..MX3#

*H,L=340,ID=7.6

 1
95331-08034

4M..MX3#

*H,L=340

 1
95332-08040

4M..MX3#

*H,L=340,ID=7.6

 1
23801C - CLIP(FOR CARBURETOR FUEL HOSE)
96132-30800

4M..MX3#

 2
23801C - CLIP(FOR CARBURETOR FUEL HOSE)
96132-30800

4M..MX3#

 2
Common parts
90463-15067
