MX36R-WKDQ (1976)

Toyota Cressida

Production Dec 1976 - Aug 1980
Engine 4M
Transmission 4F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(7612-8008)4M

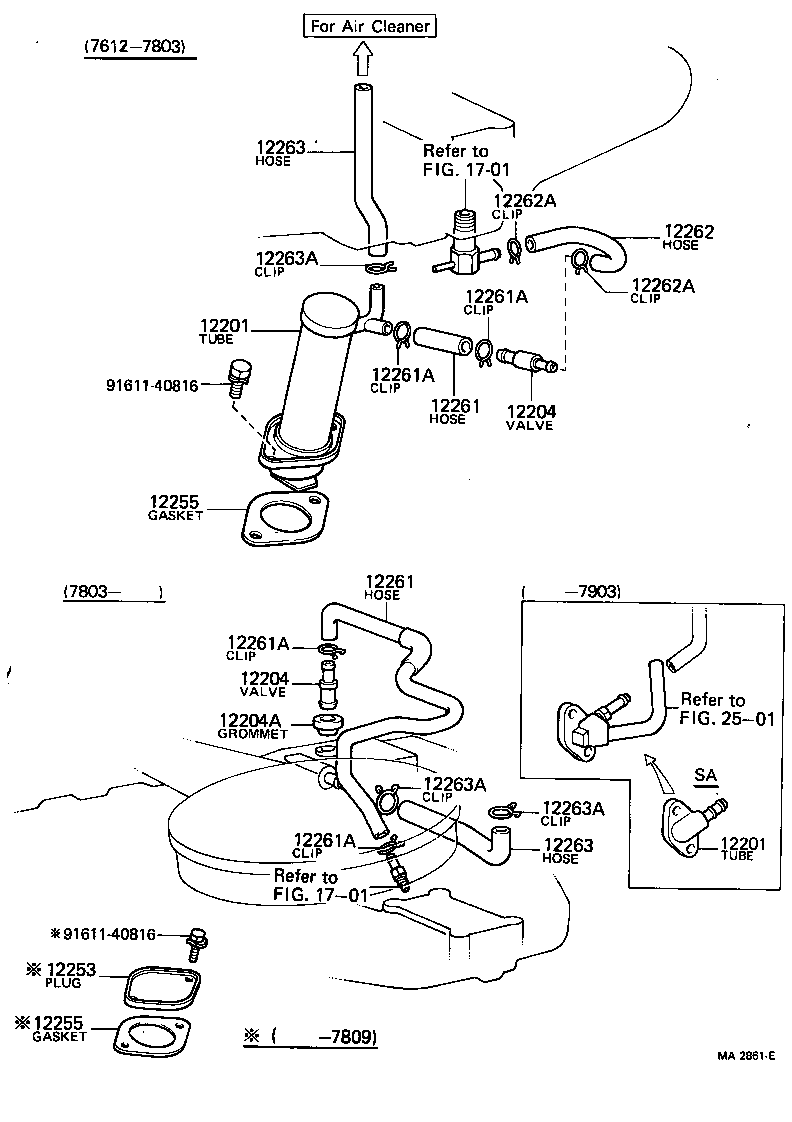

Click highlighted areas on diagram

diagram 12201 12201 12204 12204 12204A 12253 12255 12255 12261 12261 12261A 12261A 12261A 12261A 12262 12262A 12262A 12263 12263 12263A 12263A 12263A 1701 1701 2501 9161140816 9161140816
Part # Description Qty Price
12201 - TUBE SUB-ASSY, VENTILATION
12201-45010

4M..MX3#

 1
12201 - TUBE SUB-ASSY, VENTILATION
12201-45010

4M..MX3#

 1
12204 - VALVE SUB-ASSY, VENTILATION
12204-31020

4M..MX3#

 1
12204-45010

4M..MX3#

 1
12204-41010

4M..MX3#

 1
12204 - VALVE SUB-ASSY, VENTILATION
12204-31020

4M..MX3#

 1
12204-45010

4M..MX3#

 1
12204-41010

4M..MX3#

 1
12204A - GROMMET(FOR VENTILATION SYSTEM)
90480-18180

4M..MX3#

 1
12253 - PLUG, VENTILATION HOLE
11495-41020

4M..MX3#

 1
12255 - GASKET, VENTILATION
12255-41010

4M..MX3#

 1
12255 - GASKET, VENTILATION
12255-41010

4M..MX3#

 1
12261 - HOSE, VENTILATION
12261-41060

4M..MX3#

 1
12261-41070

4M..MX3#

 1
90445-20004

4M..MX3#

 1
12261 - HOSE, VENTILATION
12261-41060

4M..MX3#

 1
12261-41070

4M..MX3#

 1
90445-20004

4M..MX3#

 1
12261A - CLIP OR CLAMP(FOR VENTILATION HOSE)
90467-20020

4M..MX3#

ID=19

 1
90467-16035

4M..MX3#

ID=16

 2
90467-19122

4M..MX3#

ID=18.5

 1
12261A - CLIP OR CLAMP(FOR VENTILATION HOSE)
90467-20020

4M..MX3#

ID=19

 1
90467-16035

4M..MX3#

ID=16

 2
90467-19122

4M..MX3#

ID=18.5

 1
12261A - CLIP OR CLAMP(FOR VENTILATION HOSE)
90467-20020

4M..MX3#

ID=19

 1
90467-16035

4M..MX3#

ID=16

 2
90467-19122

4M..MX3#

ID=18.5

 1
12261A - CLIP OR CLAMP(FOR VENTILATION HOSE)
90467-20020

4M..MX3#

ID=19

 1
90467-16035

4M..MX3#

ID=16

 2
90467-19122

4M..MX3#

ID=18.5

 1
12262 - HOSE, VENTILATION, NO.2
12261-45010

4M..MX3#

 1
12262A - CLIP(FOR VENTILATION HOSE NO.2)
90467-16010

4M..MX3#

ID=15.5

 2
90467-16035

4M..MX3#

ID=16

 2
12262A - CLIP(FOR VENTILATION HOSE NO.2)
90467-16010

4M..MX3#

ID=15.5

 2
90467-16035

4M..MX3#

ID=16

 2
12263 - HOSE, VENTILATION, NO.3
12262-41060

4M..MX3#

 1
90910-05104

4M..MX3#

 1
12263 - HOSE, VENTILATION, NO.3
12262-41060

4M..MX3#

 1
90910-05104

4M..MX3#

 1
12263A - CLIP(FOR VENTILATION HOSE)
90467-20020

4M..MX3#

ID=19

 2
90467-20002

4M..MX3#

ID=20

 2
90467-19122

4M..MX3#

ID=18.5

 2
12263A - CLIP(FOR VENTILATION HOSE)
90467-20020

4M..MX3#

ID=19

 2
90467-20002

4M..MX3#

ID=20

 2
90467-19122

4M..MX3#

ID=18.5

 2
12263A - CLIP(FOR VENTILATION HOSE)
90467-20020

4M..MX3#

ID=19

 2
90467-20002

4M..MX3#

ID=20

 2
90467-19122

4M..MX3#

ID=18.5

 2
Common parts
91611-40816
Linked diagrams
1701
2501
