MX36R-WKDQ (1976)

Toyota Cressida

Production Dec 1976 - Aug 1980
Engine 4M
Transmission 4F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(7612-8008)4M

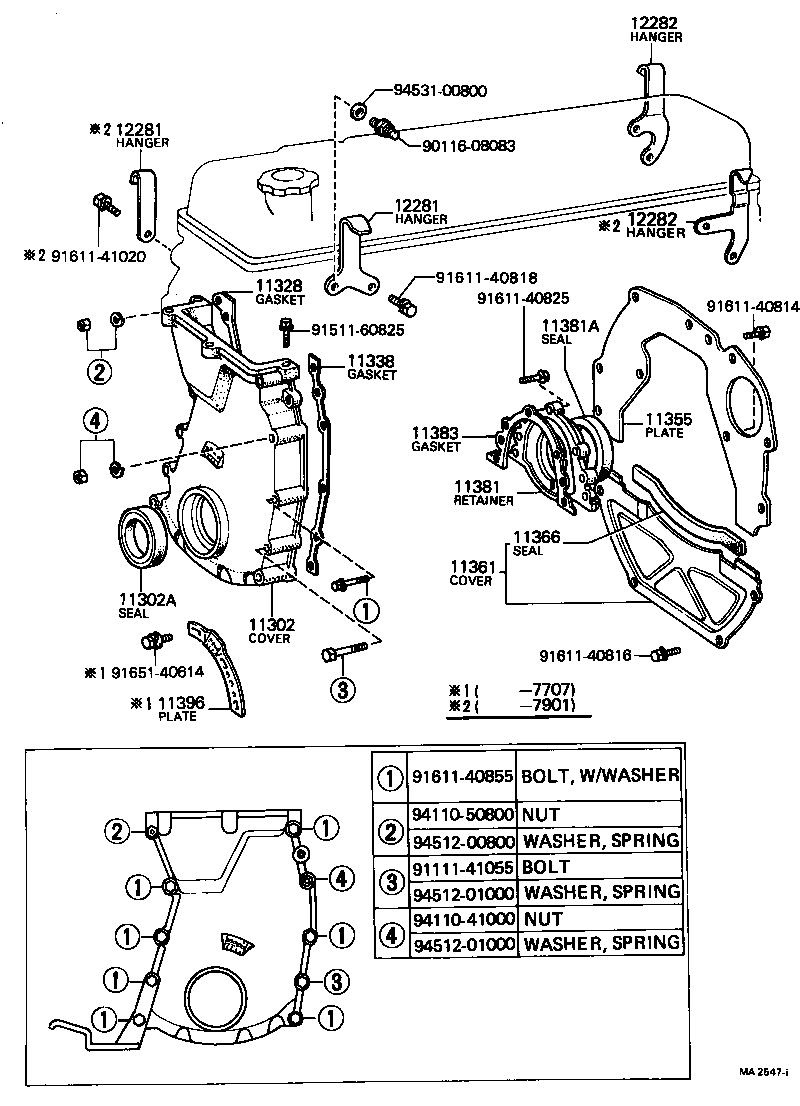

Click highlighted areas on diagram

diagram 11302 11302A 11328 11338 11355 11361 11366 11381 11381A 11383 11396 12281 12281 12282 12282 9011608083 9111141055 9151160825 9161140814 9161140816 9161140818 9161140825 9161140855 9161141020 9165140614 9411041000 9411050800 9451200800 9451201000 9451201000 9453100800
Part # Description Qty Price
11302 - COVER SUB-ASSY, TIMING CHAIN OR BELT
11321-45011

4M..MX3#

 1
11321-41020

4M..MX3#

 1
11302A - SEAL, OIL(FOR TIMING CHAIN OR BELT COVER)
90311-45069

4M..MX3#

TC3 45 68 12

 1
11328 - GASKET, TIMING GEAR OR CHAIN COVER
11328-41010

4M..MX3#

 1
11338 - GASKET, TIMING CHAIN COVER, NO.2
11338-41010

4M..MX3#

 1
11355 - PLATE, REAR END
11355-41010

4M..MX3#

 1
11361 - COVER, FLYWHEEL HOUSING UNDER
11361-45010

4M..MX3#

 1
11366 - SEAL, FLYWHEEL HOUSING UNDER COVER DUST
31131-30010

4M..MX3#

 1
11381 - RETAINER, ENGINE REAR OIL SEAL
11381-41011

4M..MX3#

 1
11381A - SEAL, ENGINE REAR OIL
90311-80139

4M..MX3#

HTC 80 100 12

 1
11383 - GASKET, ENGINE REAR OIL SEAL RETAINER
11383-41010

4M..MX3#

 1
11396 - PLATE, TIMING MARK
11396-45011

4M..MX3#

 1
11396-45010

4M..MX3#

 1
12281 - HANGER, ENGINE, NO.1
12281-45020

4M..MX3#

 1
12281 - HANGER, ENGINE, NO.1
12281-45020

4M..MX3#

 1
12282 - HANGER, ENGINE, NO.2
12281-45012

4M..MX3#

 1
12281-45030

4M..MX3#

 1
12282 - HANGER, ENGINE, NO.2
12281-45012

4M..MX3#

 1
12281-45030

4M..MX3#

 1
Common parts
90116-08083
91111-41055
91511-60825
91611-40814
91611-40816
91611-40818
91611-40825
91611-40855
91611-41020
91651-40614
94110-41000
94110-50800
94512-00800
94512-01000
94531-00800
