MX36R-WHDQ (1976)

Toyota Cressida

Production Dec 1976 - Aug 1980
Engine 4M
Transmission 3FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(7612-8008)4M..ARL

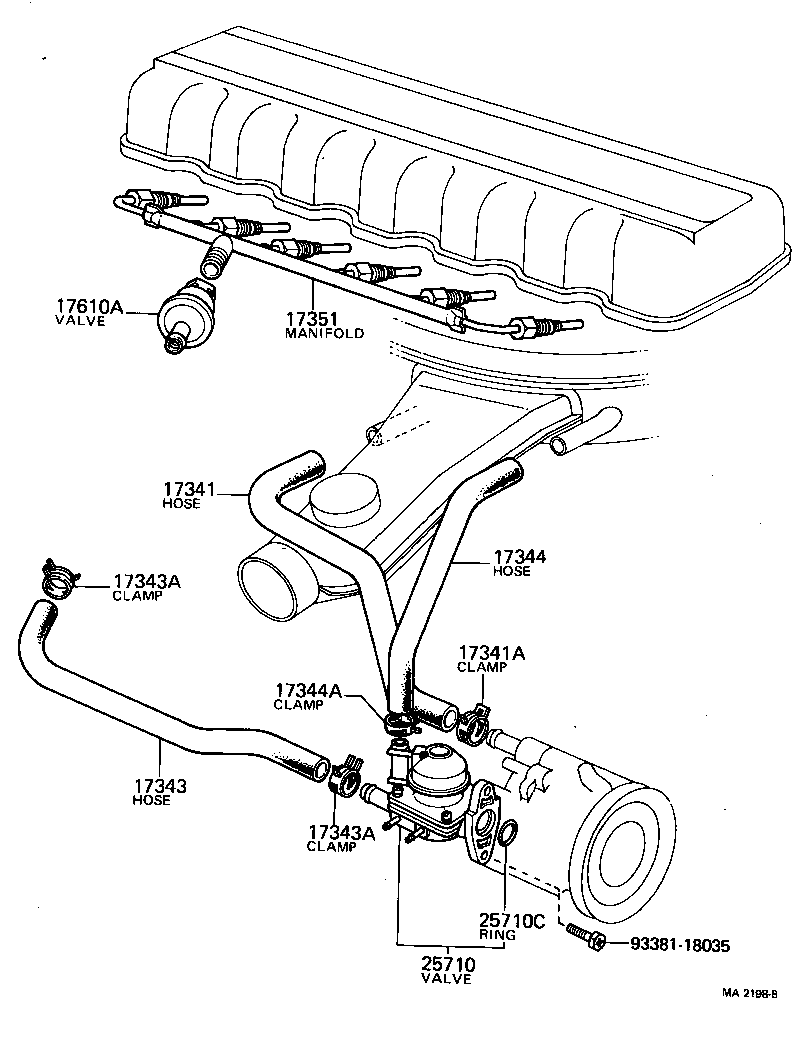

Click highlighted areas on diagram

diagram 17341 17341A 17343 17343A 17343A 17344 17344A 17351 17610A 25710 25710C 9338118035
Part # Description Qty Price
17341 - HOSE, NO.1(FOR AIR INJECTION SYSTEM)
17341-45030

4M..MX3#..ARL

 1
17341A - CLAMP OR CLIP, NO.1(FOR AIR INJECTION SYSTEM HOSE, NO.1
90467-28001

4M..MX3#..ARL

 1
17343 - HOSE, NO.3(FOR AIR INJECTION SYSTEM)
17343-45020

4M..MX3#..ARL

 1
17343A - CLAMP OR CLIP, NO.3(FOR AIR INJECTION SYSTEM HOSE, NO.3
90467-26001

4M..MX3#..ARL

 2
17343A - CLAMP OR CLIP, NO.3(FOR AIR INJECTION SYSTEM HOSE, NO.3
90467-26001

4M..MX3#..ARL

 2
17344 - HOSE, NO.4(FOR AIR INJECTION SYSTEM)
17344-45020

4M..MX3#..ARL

 1
17344A - CLAMP OR CLIP, NO.4(FOR AIR INJECTION SYSTEM HOSE, NO.4
90467-26001

4M..MX3#..ARL

 1
17351 - MANIFOLD, AIR INJECTION
17351-45020

4M..MX3#..ARL

 1
17351-45060

4M..MX3#..ARL

 1
17610A - VALVE, CHECK(FOR AIR INJECTION SYSTEM)
90917-10051

4M..MX3#..ARL

 1
25710 - VALVE ASSY, AIR SWITCHING
25710-41010

4M..MX3#..ARL

 1
25710C - RING, O
96710-01022

4M..MX3#..ARL

 1
Common parts
93381-18035
