MX36R-WHDQ (1976)

Toyota Cressida

Production Dec 1976 - Aug 1980
Engine 4M
Transmission 3FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

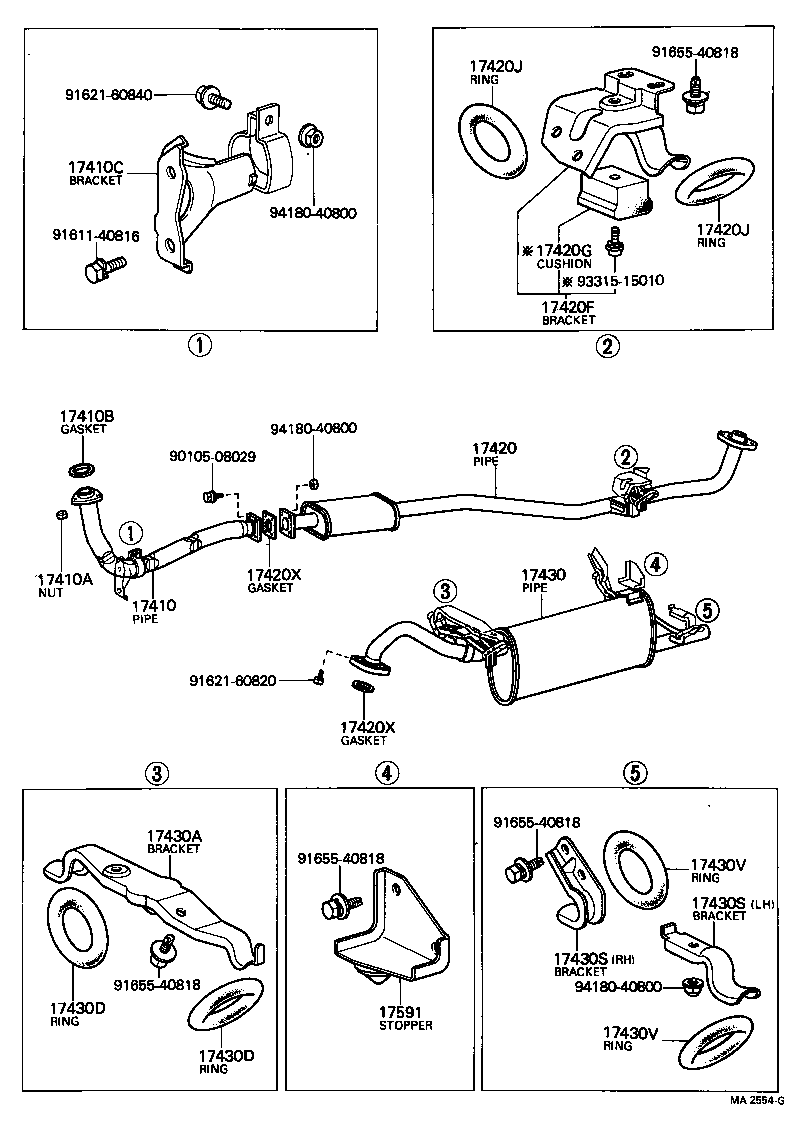

(7612-7908)4M..MX36

Click highlighted areas on diagram

diagram 17410 17410A 17410B 17410C 17420 17420F 17420G 17420J 17420J 17420X 17420X 17430 17430A 17430D 17430D 17430S 17430S 17430V 17430V 17591 9010508029 9161140816 9162160820 9162160840 9165540818 9165540818 9165540818 9165540818 9331515010 9418040800 9418040800 9418040800
Part # Description Qty Price
17410 - PIPE ASSY, EXHAUST, FRONT
17410-45091

4M..MX3#..ARL

 1
17410-45190

4M..MX3#..ARL

 1
17410-45090

4M..MX3#

 1
17410-45092

4M..MX3#..ARL

 1
17410A - NUT, EXHAUST PIPE SET STUD BOLT
90179-10028

18R#,4M,3T..MX3#,RX3#,TX30

 3
90179-10118

18R#,4M..MX3#,RX3#

 3
17410B - GASKET, EXHAUST PIPE
90917-06013

4M..MX3#

 1
90917-06022

4M..MX3#..ARL

 1
17410C - BRACKET, EXHAUST PIPE FRONT (FOR FRONT)
17571-45040

4M..MX3#..ARL

 1
17571-41060

4M..MX3#

 1
17571-41061

4M..MX3#..ARL

 1
17420 - PIPE ASSY, EXHAUST, CENTER
17420-45091

4M..MX3#..ARL

 1
17420-45090

4M..MX3#..ARL

 1
17420F - BRACKET, EXHAUST PIPE, CENTER
17506-38060

4M..MX3#..ARL

 1
17506-34030

4M..MX3#..ARL

 1
17420G - CUSHION, EXHAUST PIPE CENTER, CENTER
17591-36010

4M..MX3#..ARL

 1
17420J - BOLT OR RING, EXHAUST PIPE CENTER
90301-34207

4M..MX3#..ARL

 2
17420J - BOLT OR RING, EXHAUST PIPE CENTER
90301-34207

4M..MX3#..ARL

 2
17420X - GASKET, EXHAUST PIPE, CENTER
17451-45010

4M..MX3#..ARL

FRONT

 1
90917-06004

18R#,4M,3T..MX3#,RX3#,TX30

 1
17420X - GASKET, EXHAUST PIPE, CENTER
17451-45010

4M..MX3#..ARL

FRONT

 1
90917-06004

18R#,4M,3T..MX3#,RX3#,TX30

 1
17430 - PIPE ASSY, EXHAUST, TAIL
17430-45110

4M..MX36

 1
17430-45111

4M..MX36

 1
17430A - BRACKET, EXHAUST TAIL PIPE(FOR FRONT)
17507-36030

18R#,4M..MX36,RX35

 1
17430D - BOLT OR RING, EXHAUST TAIL PIPE (FOR FRONT)
90301-34207

18R#,4M,3T..MX3#,RX3#,TX30

 2
17430D - BOLT OR RING, EXHAUST TAIL PIPE (FOR FRONT)
90301-34207

18R#,4M,3T..MX3#,RX3#,TX30

 2
17430S - BRACKET, EXHAUST TAIL PIPE (FOR REAR)
17577-36010

18R#,4M..MX36,RX35

RH

 1
17576-36030

18R#,4M..MX36,RX35

LH

 1
17430S - BRACKET, EXHAUST TAIL PIPE (FOR REAR)
17577-36010

18R#,4M..MX36,RX35

RH

 1
17576-36030

18R#,4M..MX36,RX35

LH

 1
17430V - BOLT OR RING, EXHAUST TAIL PIPE (FOR REAR)
90301-34207

18R#,4M..MX36,RX35

 2
17430V - BOLT OR RING, EXHAUST TAIL PIPE (FOR REAR)
90301-34207

18R#,4M..MX36,RX35

 2
17591 - STOPPER, EXHAUST PIPE HANGER
17509-36010

18R#,4M..MX36,RX35

 1
Common parts
90105-08029
91611-40816
91621-60820
91621-60840
91655-40818
93315-15010
94180-40800

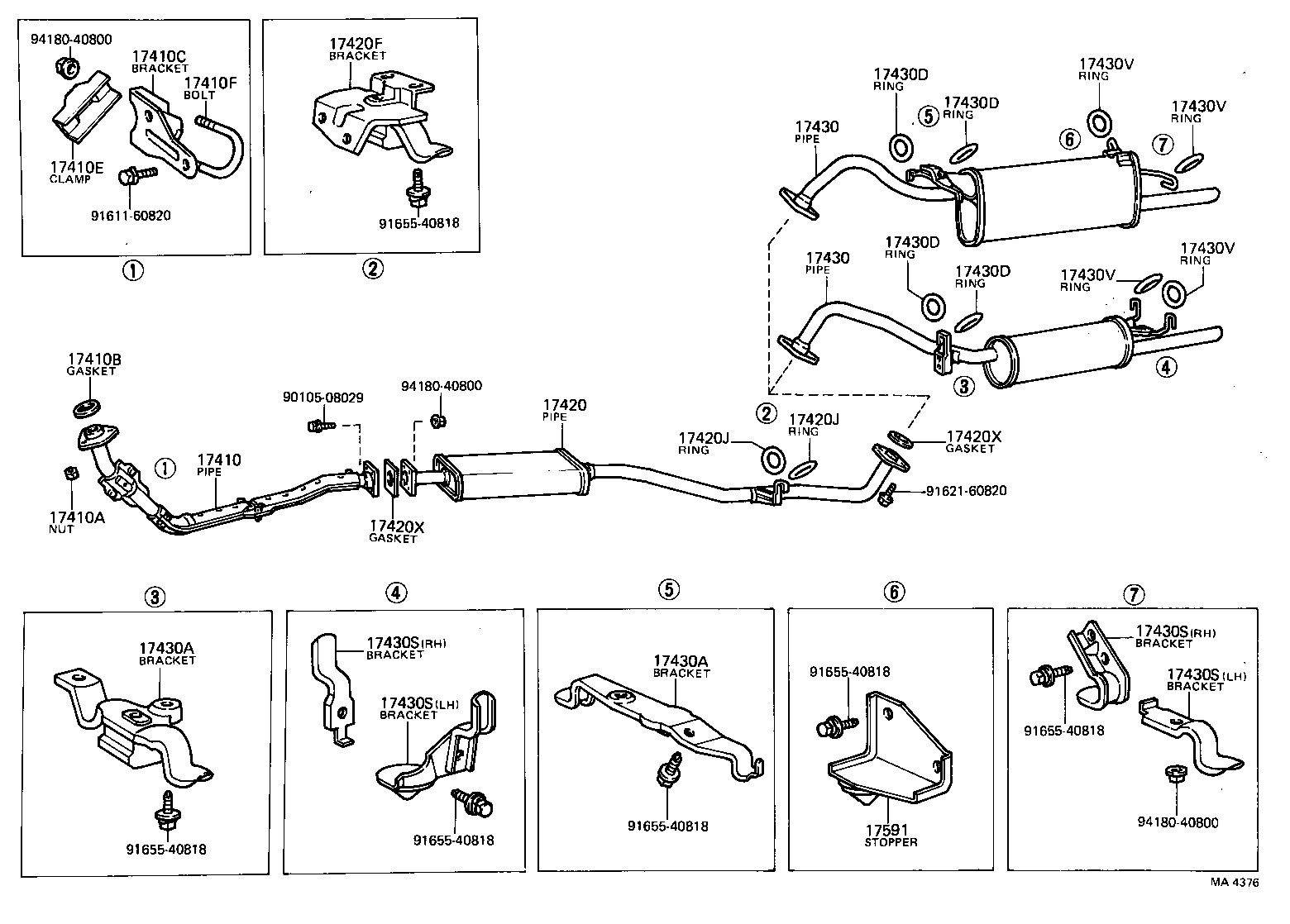

(7908-8008)4M..ARL

Click highlighted areas on diagram

diagram 17410 17410A 17410B 17410C 17410E 17410F 17420 17420F 17420J 17420J 17420X 17420X 17430 17430 17430A 17430A 17430D 17430D 17430D 17430D 17430S 17430S 17430S 17430S 17430V 17430V 17430V 17430V 17591 9010508029 9161160820 9162160820 9165540818 9165540818 9165540818 9165540818 9165540818 9165540818 9418040800 9418040800 9418040800
Part # Description Qty Price
17410 - PIPE ASSY, EXHAUST, FRONT
17410-45091

4M..MX3#..ARL

 1
17410-45190

4M..MX3#..ARL

 1
17410-45090

4M..MX3#

 1
17410-45092

4M..MX3#..ARL

 1
17410A - NUT, EXHAUST PIPE SET STUD BOLT
90179-10028

18R#,4M,3T..MX3#,RX3#,TX30

 3
90179-10118

18R#,4M..MX3#,RX3#

 3
17410B - GASKET, EXHAUST PIPE
90917-06013

4M..MX3#

 1
90917-06022

4M..MX3#..ARL

 1
17410C - BRACKET, EXHAUST PIPE FRONT (FOR FRONT)
17571-45040

4M..MX3#..ARL

 1
17571-41060

4M..MX3#

 1
17571-41061

4M..MX3#..ARL

 1
17410E - CLAMP NO.1, EXHAUST PIPE FRONT (FOR FRONT)
90917-04031

4M..MX3#..ARL

 1
17410F - BOLT OR RING, EXHAUST PIPE FRONT (FOR FRONT)
90117-08002

4M..MX3#..ARL

 1
17420 - PIPE ASSY, EXHAUST, CENTER
17420-45091

4M..MX3#..ARL

 1
17420-45090

4M..MX3#..ARL

 1
17420F - BRACKET, EXHAUST PIPE, CENTER
17506-38060

4M..MX3#..ARL

 1
17506-34030

4M..MX3#..ARL

 1
17420J - BOLT OR RING, EXHAUST PIPE CENTER
90301-34207

4M..MX3#..ARL

 2
17420J - BOLT OR RING, EXHAUST PIPE CENTER
90301-34207

4M..MX3#..ARL

 2
17420X - GASKET, EXHAUST PIPE, CENTER
17451-45010

4M..MX3#..ARL

FRONT

 1
90917-06004

18R#,4M,3T..MX3#,RX3#,TX30

 1
17420X - GASKET, EXHAUST PIPE, CENTER
17451-45010

4M..MX3#..ARL

FRONT

 1
90917-06004

18R#,4M,3T..MX3#,RX3#,TX30

 1
17430 - PIPE ASSY, EXHAUST, TAIL
17430-45110

4M..MX36

 1
17430-45111

4M..MX36

 1
17430 - PIPE ASSY, EXHAUST, TAIL
17430-45110

4M..MX36

 1
17430-45111

4M..MX36

 1
17430A - BRACKET, EXHAUST TAIL PIPE(FOR FRONT)
17507-36030

18R#,4M..MX36,RX35

 1
17430A - BRACKET, EXHAUST TAIL PIPE(FOR FRONT)
17507-36030

18R#,4M..MX36,RX35

 1
17430D - BOLT OR RING, EXHAUST TAIL PIPE (FOR FRONT)
90301-34207

18R#,4M,3T..MX3#,RX3#,TX30

 2
17430D - BOLT OR RING, EXHAUST TAIL PIPE (FOR FRONT)
90301-34207

18R#,4M,3T..MX3#,RX3#,TX30

 2
17430D - BOLT OR RING, EXHAUST TAIL PIPE (FOR FRONT)
90301-34207

18R#,4M,3T..MX3#,RX3#,TX30

 2
17430D - BOLT OR RING, EXHAUST TAIL PIPE (FOR FRONT)
90301-34207

18R#,4M,3T..MX3#,RX3#,TX30

 2
17430S - BRACKET, EXHAUST TAIL PIPE (FOR REAR)
17577-36010

18R#,4M..MX36,RX35

RH

 1
17576-36030

18R#,4M..MX36,RX35

LH

 1
17430S - BRACKET, EXHAUST TAIL PIPE (FOR REAR)
17577-36010

18R#,4M..MX36,RX35

RH

 1
17576-36030

18R#,4M..MX36,RX35

LH

 1
17430S - BRACKET, EXHAUST TAIL PIPE (FOR REAR)
17577-36010

18R#,4M..MX36,RX35

RH

 1
17576-36030

18R#,4M..MX36,RX35

LH

 1
17430S - BRACKET, EXHAUST TAIL PIPE (FOR REAR)
17577-36010

18R#,4M..MX36,RX35

RH

 1
17576-36030

18R#,4M..MX36,RX35

LH

 1
17430V - BOLT OR RING, EXHAUST TAIL PIPE (FOR REAR)
90301-34207

18R#,4M..MX36,RX35

 2
17430V - BOLT OR RING, EXHAUST TAIL PIPE (FOR REAR)
90301-34207

18R#,4M..MX36,RX35

 2
17430V - BOLT OR RING, EXHAUST TAIL PIPE (FOR REAR)
90301-34207

18R#,4M..MX36,RX35

 2
17430V - BOLT OR RING, EXHAUST TAIL PIPE (FOR REAR)
90301-34207

18R#,4M..MX36,RX35

 2
17591 - STOPPER, EXHAUST PIPE HANGER
17509-36010

18R#,4M..MX36,RX35

 1
Common parts
90105-08029
91611-60820
91621-60820
91655-40818
94180-40800
