MX32R-EKDQ (1976)

Toyota Cressida

Production Dec 1976 - Aug 1980
Engine 4M
Transmission 4F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(7612-8008)4M..ARL

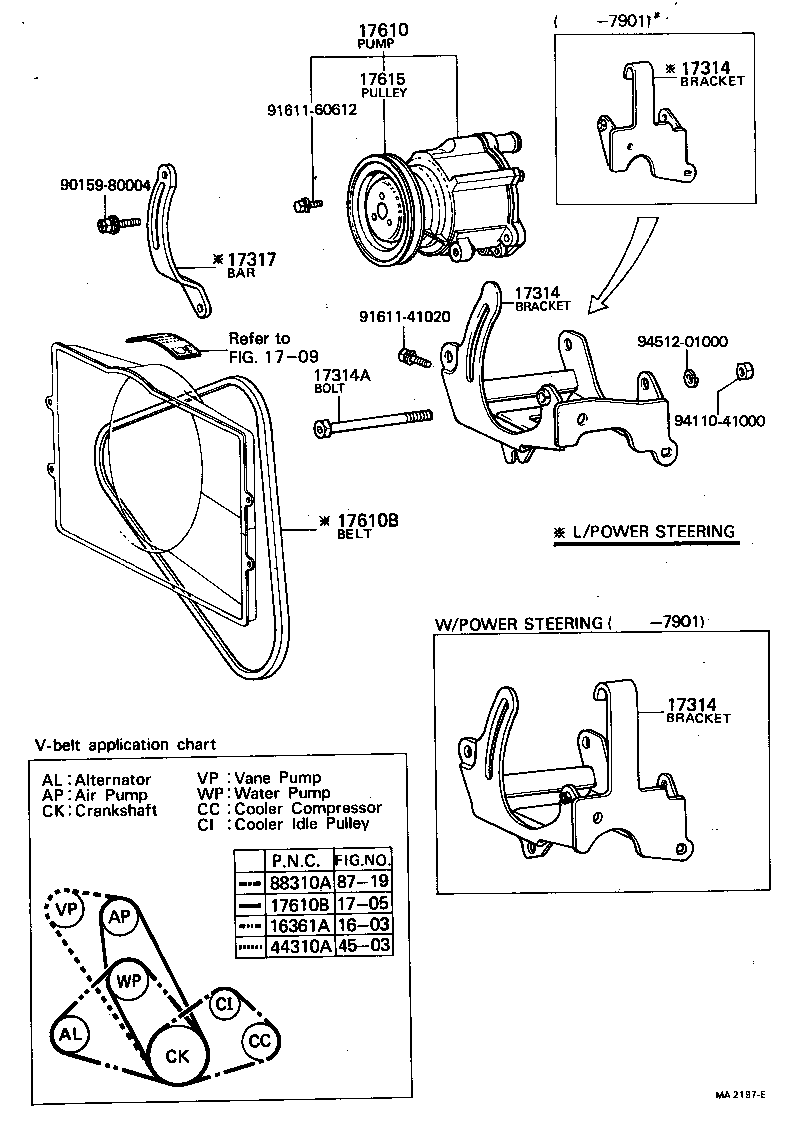

Click highlighted areas on diagram

diagram 1603 16361A 1705 1709 17314 17314 17314 17314A 17317 17610 17610B 17610B 17615 44310A 4503 8719 88310A 9015980004 9161141020 9161160612 9411041000 9451201000
Part # Description Qty Price
16361A - BELT, V(FOR FAN & ALTERNATOR)
99522-10904

4M..MX3#

 1
90916-02076

4M..MX3#..ARL

DOUBLE V BELTS

 1
90916-02074

4M..MX3#

DOUBLE V BELTS

 1
17314 - BRACKET, AIR PUMP
17314-41010

4M..MX3#..ARL

W/POWER STEERING

 1
17314-45013

4M..MX3#..ARL

L/POWER STEERING

 1
17314-41030

4M..MX3#..ARL

W/POWER STEERING

 1
17314 - BRACKET, AIR PUMP
17314-41010

4M..MX3#..ARL

W/POWER STEERING

 1
17314-45013

4M..MX3#..ARL

L/POWER STEERING

 1
17314-41030

4M..MX3#..ARL

W/POWER STEERING

 1
17314 - BRACKET, AIR PUMP
17314-41010

4M..MX3#..ARL

W/POWER STEERING

 1
17314-45013

4M..MX3#..ARL

L/POWER STEERING

 1
17314-41030

4M..MX3#..ARL

W/POWER STEERING

 1
17314A - BOLT, HEXAGON(FOR AIR PUMP BRACKET SETTING)
90110-10001

4M..MX3#..ARL

 1
17317 - BAR, AIR PUMP ADJUSTING, NO.1
17317-45011

4M..MX3#..ARL

L/POWER STEERING

 1
17610 - PUMP ASSY, AIR
17610-45030

4M..MX3#

 1
17610-45031

4M..MX3#..ARL

 1
17610B - BELT, V(FOR AIR PUMP)
99522-11159

4M..MX3#..ARL

 1
99322-01155

4M..MX3#..ARL

L/POWER STEERING

 1
17610B - BELT, V(FOR AIR PUMP)
99522-11159

4M..MX3#..ARL

 1
99322-01155

4M..MX3#..ARL

L/POWER STEERING

 1
17615 - PULLEY(FOR AIR PUMP)
17615-45010

4M..MX3#

 1
17615-41020

4M..MX3#..ARL

 1
44310A - BELT, V(FOR VANE PUMP)
99522-11390

MX3#..ARL

L=1390

 1
88310A - BELT, V (COOLER COMPRESSOR TO CRANKSHAFT PULLEY), NO.1
99522-10901

MX3#

 1
99522-10890

MX3#

 1
Common parts
90159-80004
91611-41020
91611-60612
94110-41000
94512-01000
Linked diagrams
1603
1705
1709
4503
8719
