MX32R-EHNN (1977)

Toyota Cressida

Production Jul 1977 - Jan 1980
Engine 4M
Transmission 3FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(7612-7808)4M

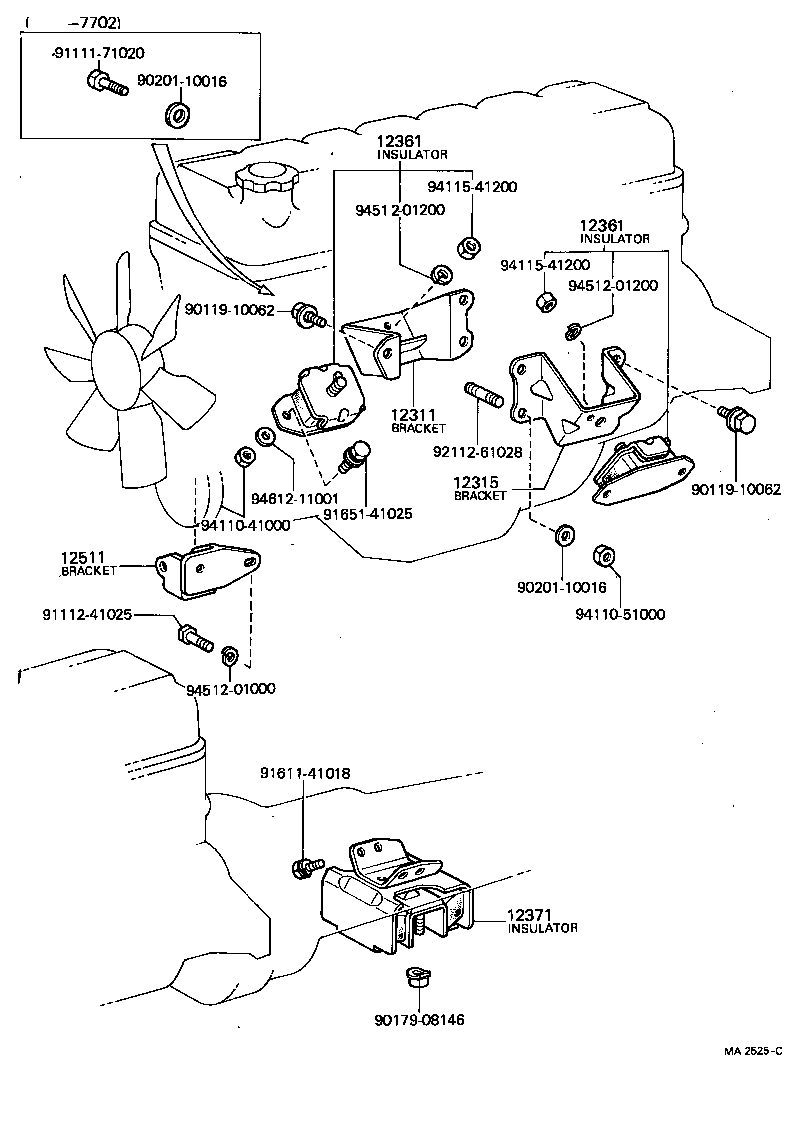

Click highlighted areas on diagram

diagram 12311 12315 12361 12361 12371 12511 9011910062 9011910062 9017908146 9020110016 9020110016 9111171020 9111241025 9161141018 9165141025 9211261028 9411041000 9411051000 9411541200 9411541200 9451201000 9451201200 9451201200 9461211001
Part # Description Qty Price
12311 - BRACKET, ENGINE MOUNTING, FRONT NO.1 RH
12311-41050

4M..MX3#

 1
12315 - BRACKET, ENGINE MOUNTING, FRONT NO.1 LH
12315-41040

4M..MX3#

 1
12361 - INSULATOR, ENGINE MOUNTING, FRONT
12361-49095

4M..MX3#

 2
12361 - INSULATOR, ENGINE MOUNTING, FRONT
12361-49095

4M..MX3#

 2
12371 - INSULATOR, ENGINE MOUNTING, REAR NO.1
12371-45020

4M..MX3#

 1
12511 - BRACKET, ALTERNATOR, NO.1
12511-41012

4M..MX3#

 1
Common parts
90119-10062
90179-08146
90201-10016
91111-71020
91112-41025
91611-41018
91651-41025
92112-61028
94110-41000
94110-51000
94115-41200
94512-01000
94512-01200
94612-11001
