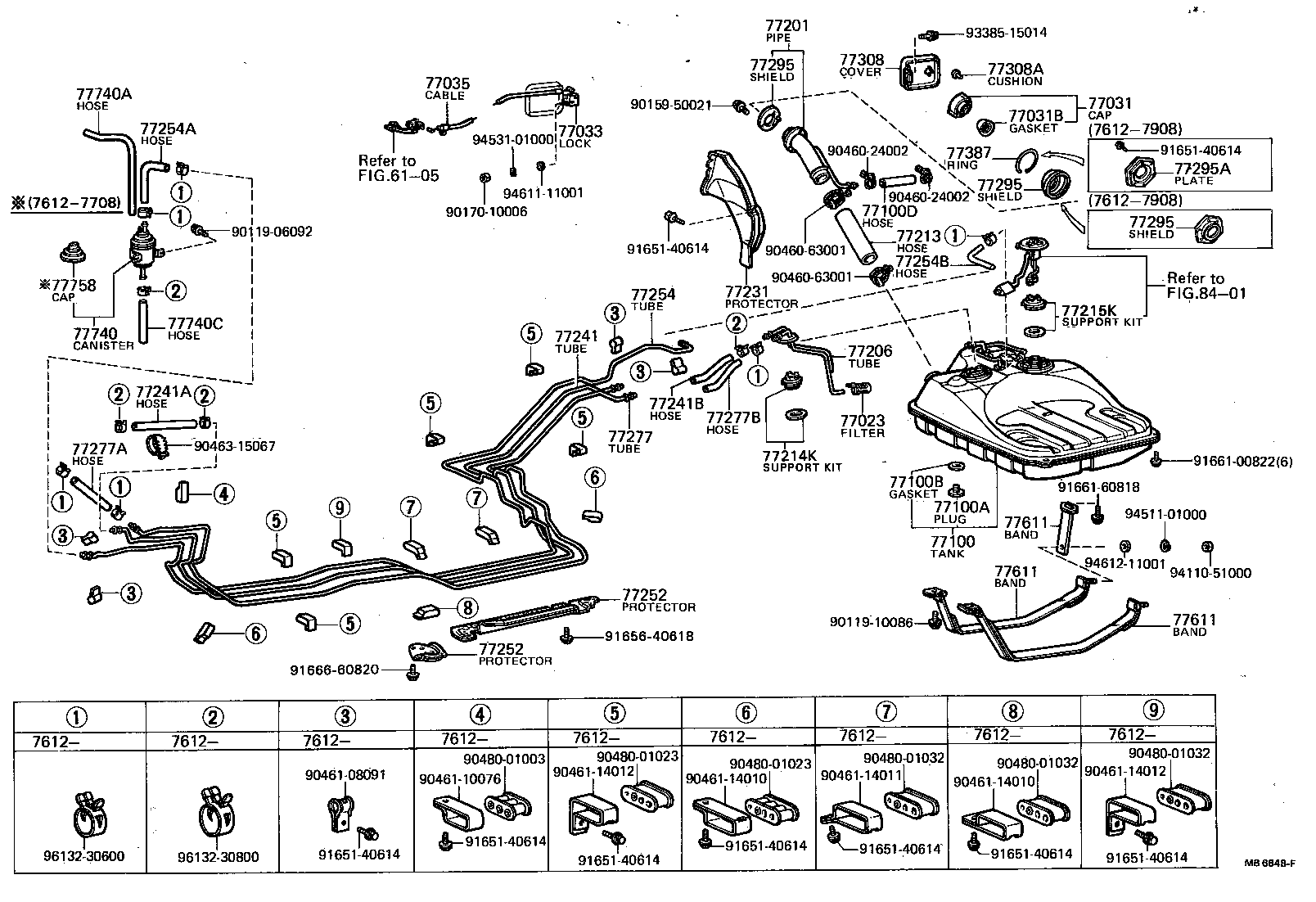

MX32R-EHDQ (1976)
Toyota Cressida
(7612-8008)MX32..ARL
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 77023 - FILTER SUB-ASSY, FUEL SUCTION TUBE | ||||
| 77023-22040 |
MX3# |
1 | ||
| 77031 - CAP ASSY, FUEL TANK | ||||
| 77310-14070 |
MX3#,RX3# |
1 | ||
| 77310-30050 |
MX3#,RX3# |
1 | ||
| 77310-12090 |
MX3#,RX3#,TX30 |
1 | ||
| 77031B - GASKET (FOR FUEL TANK CAP) | ||||
| 77316-12050 |
MX3#,RX3#,TX30 |
1 | ||
| 77316-12060 |
MX3#,RX3# |
1 | ||
| 77033 - LOCK SUB-ASSY, FUEL TANK CAP | ||||
| 77037-22030 |
MX3#,RX3#..(DLX,GL)..(ARL,EUR,GEN) |
1 | ||
| 77035 - CABLE SUB-ASSY, FUEL LID LOCK CONTROL | ||||
| 77035-22030 |
MX32,RX30..SED..RHD..(DLX,GL)..(ARL,EUR,GEN) |
1 | ||
| 77100 - TANK ASSY, FUEL | ||||
| 77001-22120 |
MX32,RX30..ARL,GEN,SA |
1 | ||
| 77001-22141 |
MX32,RX30,TX30 |
1 | ||
| 77100A - PLUG(FOR FUEL TANK) | ||||
| 90341-24036 |
MX32,RX30,TX30 |
1 | ||
| 77100B - GASKET(FOR FUEL TANK) | ||||
| 90430-24047 |
MX32,RX30,TX30 |
1 | ||
| 77100D - HOSE, FUEL, NO.1(FOR FUEL TANK) | ||||
| 90445-22003 |
MX32,RX30,TX30 L=120 |
1 | ||
| 77201 - PIPE SUB-ASSY, FUEL TANK INLET | ||||
| 77201-22070 |
MX32,RX30 |
1 | ||
| 77201-22072 |
MX32,RX30,TX30..SED |
1 | ||
| 77206 - TUBE SUB-ASSY, FUEL TANK SUCTION | ||||
| 77017-22010 |
MX32 |
1 | ||
| 77017-22011 |
MX32 |
1 | ||
| 77213 - HOSE, FUEL TANK SUB INLET | ||||
| 77213-22040 |
MX32,RX30,TX30 |
1 | ||
| 77214K - SUPPORT KIT, FUEL TANK TUBE | ||||
| 04772-12010 |
MX32,RX30,TX30 |
1 | ||
| 77215K - SUPPORT KIT, FUEL TANK GAGE | ||||
| 04772-12020 |
MX32,RX30,TX30 |
1 | ||
| 77231 - PROTECTOR, INLET TUBE | ||||
| 77277-22010 |
MX32,RX30 |
1 | ||
| 77277-22011 |
MX32,RX30,TX30..SED |
1 | ||
| 77241 - TUBE, FUEL MAIN, NO.1 | ||||
| 77251-22140 |
MX32..ARL |
1 | ||
| 77251-22141 |
MX32..ARL |
1 | ||
| 77241A - HOSE, FUEL, NO.1 (FOR MAIN TUBE, NO.1) | ||||
| 95332-08018 |
MX3# *H,L=180,ID=7.6 |
1 | ||
| 95331-08018 |
MX3# *H,L=180 |
1 | ||
| 95332-08020 |
MX3# *H,L=170,ID=7.6 |
1 | ||
| 77241B - HOSE, FUEL, NO.2 (FOR MAIN TUBE, NO.1) | ||||
| 95331-08024 |
MX32 *H,L=240 |
1 | ||
| 95332-08024 |
MX3# *H,L=240,ID=7.6 |
1 | ||
| 95332-08030 |
MX3# *H,L=240,ID=7.6 |
1 | ||
| 95332-08024 |
MX32 *H,L=240,ID=7.6 |
1 | ||
| 77252 - PROTECTOR, FUEL TUBE | ||||
| 77266-22020 |
MX3# FOR REAR |
1 | ||
| 77267-22010 |
MX3# FOR FRONT |
1 | ||
| 77252 - PROTECTOR, FUEL TUBE | ||||
| 77266-22020 |
MX3# FOR REAR |
1 | ||
| 77267-22010 |
MX3# FOR FRONT |
1 | ||
| 77254 - TUBE, FUEL EMISSION, NO.1 | ||||
| 77261-22020 |
MX32..ARL |
1 | ||
| 77261-22021 |
MX32..ARL |
1 | ||
| 77254A - HOSE, FUEL, NO.1 (FOR EMISSION TUBE, NO.1) | ||||
| 95332-06017 |
MX32 *H,L=170 |
1 | ||
| 95331-06017 |
MX3# *H,L=170 |
1 | ||
| 95332-06017 |
MX3#..ARL *H,L=170 |
1 | ||
| 95332-06020 |
MX3#..ARL *H,L=170 |
1 | ||
| 77254B - HOSE, FUEL, NO.2 (FOR EMISSION TUBE, NO.1) | ||||
| 95332-06017 |
MX32,RX30 *H,L=170 |
1 | ||
| 95331-06016 |
MX32,RX30 *H,L=160 |
1 | ||
| 95332-06016 |
MX32,RX30 *H,L=160 |
1 | ||
| 95332-06020 |
MX32,RX30,TX30 *H,L=170 |
1 | ||
| 77277 - TUBE, FUEL RETURN, NO.1 | ||||
| 77255-22050 |
MX32..ARL |
1 | ||
| 77255-22051 |
MX32..ARL |
1 | ||
| 77277A - HOSE, FUEL, NO.1(FOR RETURN TUBE, NO.1) | ||||
| 95331-06030 |
MX3# *H,L=300 |
1 | ||
| 95332-06030 |
MX3# *H,L=300 |
1 | ||
| 90445-12055 |
MX3# L=300 |
1 | ||
| 77277B - HOSE, FUEL, NO.2(FOR RETURN TUBE, NO.1) | ||||
| 95332-06024 |
MX32 *H,L=240 |
1 | ||
| 95332-06030 |
MX3# *H,L=240 |
1 | ||
| 95331-06024 |
MX32 *H,L=240 |
1 | ||
| 95332-06024 |
MX3# *H,L=240 |
1 | ||
| 77295 - SHIELD, FUEL FILLER PIPE | ||||
| 77291-22010 |
MX32,RX30 FOR LOWER |
1 | ||
| 77291-22011 |
MX32,RX30,TX30..SED FOR LOWER |
1 | ||
| 77292-22011 |
MX32,RX30,TX30..SED FOR UPPER |
1 | ||
| 77292-22010 |
MX32,RX30 FOR UPPER |
1 | ||
| 77295 - SHIELD, FUEL FILLER PIPE | ||||
| 77291-22010 |
MX32,RX30 FOR LOWER |
1 | ||
| 77291-22011 |
MX32,RX30,TX30..SED FOR LOWER |
1 | ||
| 77292-22011 |
MX32,RX30,TX30..SED FOR UPPER |
1 | ||
| 77292-22010 |
MX32,RX30 FOR UPPER |
1 | ||
| 77295 - SHIELD, FUEL FILLER PIPE | ||||
| 77291-22010 |
MX32,RX30 FOR LOWER |
1 | ||
| 77291-22011 |
MX32,RX30,TX30..SED FOR LOWER |
1 | ||
| 77292-22011 |
MX32,RX30,TX30..SED FOR UPPER |
1 | ||
| 77292-22010 |
MX32,RX30 FOR UPPER |
1 | ||
| 77295A - PLATE, FUEL FILLER PIPE SHIELD SUPPORT | ||||
| 77294-22010 |
MX32,RX30 |
1 | ||
| 77308 - COVER SUB-ASSY, FUEL INLET BOX | ||||
| 77350-22010 |
MX32,RX30 |
1 | ||
| 77350-22011 |
MX32,RX30 |
1 | ||
| 77308A - CUSHION(FOR FUEL INLET BOX COVER) | ||||
| 90541-03001 |
MX3#,RX3# |
1 | ||
| 90541-08003 |
MX3#,RX3#,TX30 |
1 | ||
| 77387 - RING, FUEL INLET BOX | ||||
| 77391-14010 |
MX32,RX30,TX30..SED |
1 | ||
| 77611 - BAND, FUEL TANK | ||||
| 77603-22020 |
MX32,RX30,TX30 FOR REAR |
2 | ||
| 77602-22030 |
MX32,RX30,TX30 FOR FRONT LH. |
1 | ||
| 77601-22020 |
MX32,RX30,TX30 FOR FRONT RH. |
1 | ||
| 77611 - BAND, FUEL TANK | ||||
| 77603-22020 |
MX32,RX30,TX30 FOR REAR |
2 | ||
| 77602-22030 |
MX32,RX30,TX30 FOR FRONT LH. |
1 | ||
| 77601-22020 |
MX32,RX30,TX30 FOR FRONT RH. |
1 | ||
| 77611 - BAND, FUEL TANK | ||||
| 77603-22020 |
MX32,RX30,TX30 FOR REAR |
2 | ||
| 77602-22030 |
MX32,RX30,TX30 FOR FRONT LH. |
1 | ||
| 77601-22020 |
MX32,RX30,TX30 FOR FRONT RH. |
1 | ||
| 77740 - CANISTER ASSY, CHARCOAL | ||||
| 77740-22130 |
MX3#..ARL |
1 | ||
| 77740A - HOSE, FUEL, NO.1(FOR CHARCOAL CANISTER) | ||||
| 95411-19960 |
MX3#..ARL *H,L=540,MARK=#* |
1 | ||
| 77740C - HOSE, FUEL, NO.3(FOR CHARCOAL CANISTER) | ||||
| 95331-08013 |
MX3# *H,L=130 |
1 | ||
| 95332-08013 |
MX3#..ARL *H,L=130,ID=7.6 |
1 | ||
| 95331-08017 |
MX3# *H,L=170 |
1 | ||
| 95332-08020 |
MX3#..ARL *H,L=130,ID=7.6 |
1 | ||
| 77758 - CAP, CHARCOAL CANISTER | ||||
| 77758-12020 |
MX3# |
1 | ||
| Common parts | ||||
| 90119-06092 | ||||
| 90119-10086 | ||||
| 90159-50021 | ||||
| 90170-10006 | ||||
| 90460-24002 | ||||
| 90460-63001 | ||||
| 90461-08091 | ||||
| 90461-10076 | ||||
| 90461-14010 | ||||
| 90461-14011 | ||||
| 90461-14012 | ||||
| 90463-15067 | ||||
| 90480-01003 | ||||
| 90480-01023 | ||||
| 90480-01032 | ||||
| 91651-40614 | ||||
| 91656-40618 | ||||
| 91661-00822 | ||||
| 91661-60818 | ||||
| 91666-60820 | ||||
| 93385-15014 | ||||
| 94110-51000 | ||||
| 94511-01000 | ||||
| 94531-01000 | ||||
| 94611-11001 | ||||
| 94612-11001 | ||||
| 96132-30600 | ||||
| 96132-30800 | ||||
| Linked diagrams | ||||
| 6105 | ||||
| 8401 | ||||
