LX70L-XEPES (1984)
Toyota Cressida

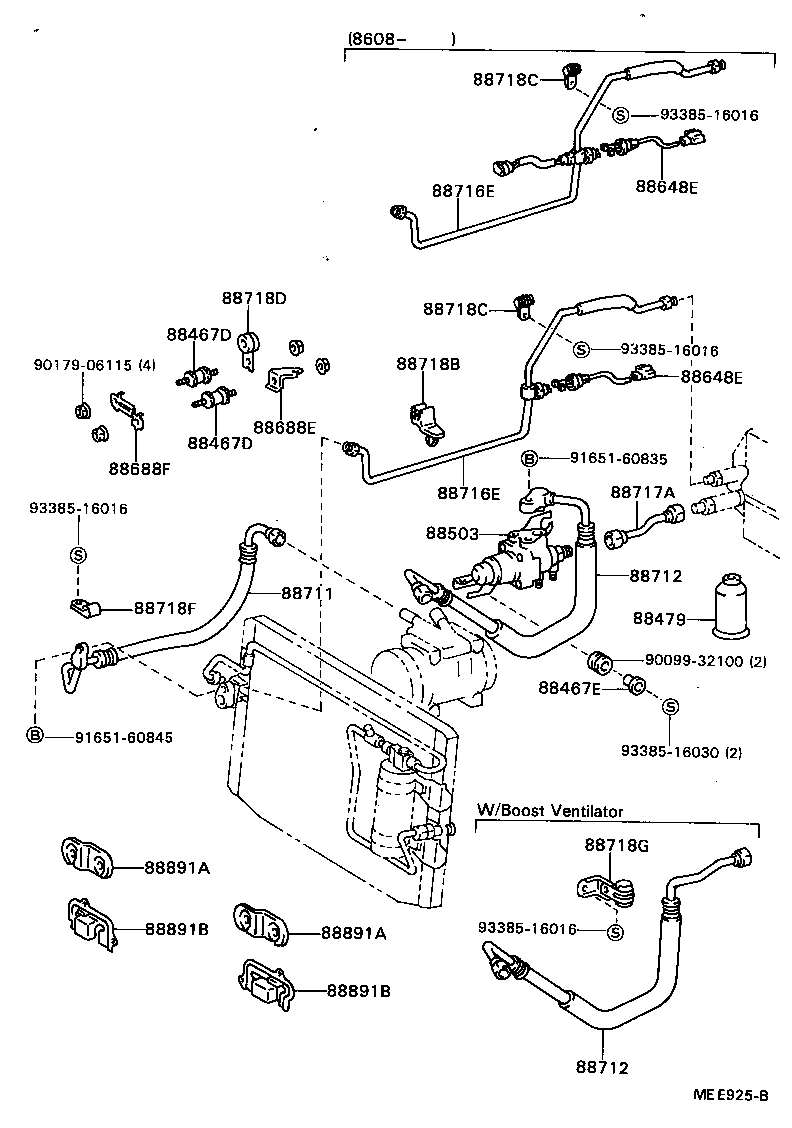

(8408- )LX7#
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88467D - CUSHION, COOLER REFRIGERANT PIPE CLAMP | ||||
| 88467-14040 |
LX7# |
2 | ||
| 88467D - CUSHION, COOLER REFRIGERANT PIPE CLAMP | ||||
| 88467-14040 |
LX7# |
2 | ||
| 88467E - CUSHION, PRESSURE REGULATOR | ||||
| 88467-14050 |
LX7# W/HEATER |
2 | ||
| 88479 - FREON GAS, AIR CONDITIONER (DRUM, COOLER REFRIGERANT) | ||||
| 90986-02001 |
MX73..GLX..SA;MX73..ARL,EUR,GEN,ME;GX71,LX7#,MX72,RX7#,YX70 400G |
2 | ||
| 88503 - REGULATOR ASSY, PRESSURE | ||||
| 88503-22170 |
LX7# |
1 | ||
| 88503-22170 |
GX71,LX7#,MX7#,RX70..LHD |
1 | ||
| 88648E - WIRING, COOLER | ||||
| 88648-22120 |
LX7# |
1 | ||
| 88648E - WIRING, COOLER | ||||
| 88648-22120 |
LX7# |
1 | ||
| 88688E - BRACKET, COOLER REFRIGERANT HOSE, NO.1 | ||||
| 88688-22210 |
LX7# |
1 | ||
| 88688F - BRACKET, COOLER REFRIGERANT HOSE, NO.2 | ||||
| 88688-22190 |
LX7# |
1 | ||
| 88711 - HOSE, COOLER REFRIGERANT DISCHARGE, NO.1 | ||||
| 88711-22371 |
LX7# |
1 | ||
| 88711-22370 |
LX7# |
1 | ||
| 88712 - HOSE, COOLER REFRIGERANT SUCTION, NO.1 | ||||
| 88712-22580 |
LX70..GEN W/*BV |
1 | ||
| 88712-22560 |
LX7# W/HEATER |
1 | ||
| 88712 - HOSE, COOLER REFRIGERANT SUCTION, NO.1 | ||||
| 88712-22580 |
LX70..GEN W/*BV |
1 | ||
| 88712-22560 |
LX7# W/HEATER |
1 | ||
| 88716E - PIPE, COOLER REFRIGERANT LIQUID, E | ||||
| 88710-22090 |
LX7# |
1 | ||
| 88710-22091 |
LX70 |
1 | ||
| 88716E - PIPE, COOLER REFRIGERANT LIQUID, E | ||||
| 88710-22090 |
LX7# |
1 | ||
| 88710-22091 |
LX70 |
1 | ||
| 88717A - PIPE, COOLER REFRIGERANT SUCTION, A | ||||
| 88717-22270 |
GX71,LX7#,MX7#,RX7#..LHD..(EUR,GEN) W/HEATER |
1 | ||
| 88717-22270 |
GX71,LX7#,MX7#,RX70..LHD W/HEATER |
1 | ||
| 88718B - CLAMP, NO.2(FOR COOLER REFRIGERANT PIPE) | ||||
| 88718-22650 |
MX73..GLX..SA;MX73..ARL,GEN,ME;GX71,LX70,RX7#,YX70 |
1 | ||
| 88718-22650 |
MX73..EFI;MX73..GLX..TWC;GX71,LX7#,MX72,RX70,YX70 |
1 | ||
| 88718C - CLAMP, NO.3(FOR COOLER REFRIGERANT PIPE) | ||||
| 88718-22630 |
GX71,LX7#,MX7#,RX7#..LHD |
1 | ||
| 88718C - CLAMP, NO.3(FOR COOLER REFRIGERANT PIPE) | ||||
| 88718-22630 |
GX71,LX7#,MX7#,RX7#..LHD |
1 | ||
| 88718D - CLAMP, NO.4(FOR COOLER REFRIGERANT PIPE) | ||||
| 88718-22730 |
LX7# |
1 | ||
| 88718F - CLAMP, NO.1(FOR COOLER REFRIGERANT HOSE) | ||||
| 88718-14450 |
LX7# |
1 | ||
| 88718G - CLAMP, NO.2(FOR COOLER REFRIGERANT HOSE) | ||||
| 88718-22660 |
LX70,RX7#..LHD..(GEN,ME) W/BOOST VENTILATOR |
1 | ||
| 88891A - PACKING A (FOR COOLER) | ||||
| 88892-22110 |
MX73..GLX..SA;MX73..ARL,GEN,ME;GX71,LX70,RX7#,YX70 |
2 | ||
| 88892-22110 |
MX73..EFI;MX73..GLX..TWC;GX71,LX7#,MX72,RX70,YX70 |
2 | ||
| 88891A - PACKING A (FOR COOLER) | ||||
| 88892-22110 |
MX73..GLX..SA;MX73..ARL,GEN,ME;GX71,LX70,RX7#,YX70 |
2 | ||
| 88892-22110 |
MX73..EFI;MX73..GLX..TWC;GX71,LX7#,MX72,RX70,YX70 |
2 | ||
| 88891B - PACKING B (FOR COOLER) | ||||
| 53286-22010 |
LX70..GEN LH,W/HEATER |
1 | ||
| 53285-22020 |
LX70 RH |
1 | ||
| 53285-22020 |
LX70..GEN RH,W/HEATER |
1 | ||
| 53286-22010 |
LX70 LH |
1 | ||
| 88891B - PACKING B (FOR COOLER) | ||||
| 53286-22010 |
LX70..GEN LH,W/HEATER |
1 | ||
| 53285-22020 |
LX70 RH |
1 | ||
| 53285-22020 |
LX70..GEN RH,W/HEATER |
1 | ||
| 53286-22010 |
LX70 LH |
1 | ||
| Common parts | ||||
| 90099-32100 | ||||
| 90179-06115 | ||||
| 91651-60835 | ||||
| 91651-60845 | ||||
| 93385-16016 | ||||
| 93385-16030 | ||||

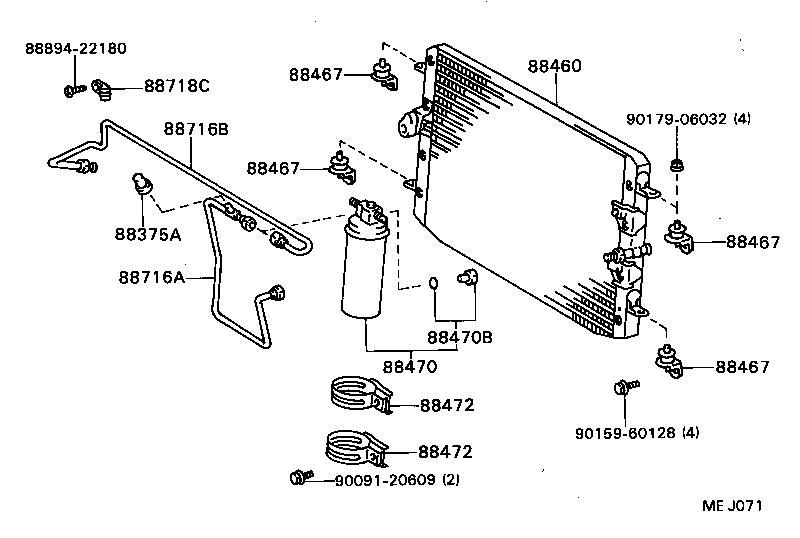

(8408-8608)LX7#
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88460 - CONDENSER ASSY, COOLER | ||||
| 88460-22281 |
LX7#,RX70,YX70 |
1 | ||
| 88460-22280 |
LX7#,RX70 |
1 | ||
| 88460-22320 |
LX70 |
1 | ||
| 88467 - CUSHION, COOLER CONDENSER, NO.1 | ||||
| 88467-22060 |
MX73..EFI;MX73..GLX..TWC;GX71,LX7#,MX72,RX70,YX70 |
4 | ||
| 88467-22060 |
MX73..GLX..SA;MX73..ARL,GEN,ME;GX71,LX70,RX7#,YX70 |
4 | ||
| 88467 - CUSHION, COOLER CONDENSER, NO.1 | ||||
| 88467-22060 |
MX73..EFI;MX73..GLX..TWC;GX71,LX7#,MX72,RX70,YX70 |
4 | ||
| 88467-22060 |
MX73..GLX..SA;MX73..ARL,GEN,ME;GX71,LX70,RX7#,YX70 |
4 | ||
| 88467 - CUSHION, COOLER CONDENSER, NO.1 | ||||
| 88467-22060 |
MX73..EFI;MX73..GLX..TWC;GX71,LX7#,MX72,RX70,YX70 |
4 | ||
| 88467-22060 |
MX73..GLX..SA;MX73..ARL,GEN,ME;GX71,LX70,RX7#,YX70 |
4 | ||
| 88467 - CUSHION, COOLER CONDENSER, NO.1 | ||||
| 88467-22060 |
MX73..EFI;MX73..GLX..TWC;GX71,LX7#,MX72,RX70,YX70 |
4 | ||
| 88467-22060 |
MX73..GLX..SA;MX73..ARL,GEN,ME;GX71,LX70,RX7#,YX70 |
4 | ||
| 88470 - RECEIVER & DRYER ASSY, COOLER | ||||
| 88470-12070 |
MX73..EFI;MX73..GLX..TWC;GX71,LX7#,MX72,RX70,YX70 |
1 | ||
| 88470-12070 |
MX73..GLX..SA;MX73..ARL,GEN,ME;GX71,LX70,RX7#,YX70 |
1 | ||
| 88470B - BOLT, FUSE | ||||
| 88475-12020 |
MX73..GLX..SA;MX73..ARL,GEN,ME;GX71,LX70,RX7#,YX70 |
1 | ||
| 88475-12020 |
MX73..EFI;MX73..GLX..TWC;GX71,LX7#,MX72,RX70,YX70 |
1 | ||
| 88472 - BRACKET, RECEIVER TANK, NO.1 | ||||
| 88472-22090 |
MX73..GLX..SA;MX73..ARL,EUR,GEN,ME;GX71,LX7#,MX72,RX7#,YX70 |
2 | ||
| 88472 - BRACKET, RECEIVER TANK, NO.1 | ||||
| 88472-22090 |
MX73..GLX..SA;MX73..ARL,EUR,GEN,ME;GX71,LX7#,MX72,RX7#,YX70 |
2 | ||
| 88716A - PIPE, COOLER REFRIGERANT LIQUID, A | ||||
| 88716-22450 |
LX7#,RX70,YX70 |
1 | ||
| 88716-22641 |
LX70 |
1 | ||
| 88716B - PIPE, COOLER REFRIGERANT LIQUID, B | ||||
| 88716-22550 |
LX7# |
1 | ||
| 88716-22730 |
LX70 |
1 | ||
| 88718C - CLAMP, NO.3(FOR COOLER REFRIGERANT PIPE) | ||||
| 88718-22630 |
GX71,LX7#,MX7#,RX7#..LHD |
1 | ||
| Common parts | ||||
| 88894-22180 | ||||
| 90091-20609 | ||||
| 90159-60128 | ||||
| 90179-06032 | ||||

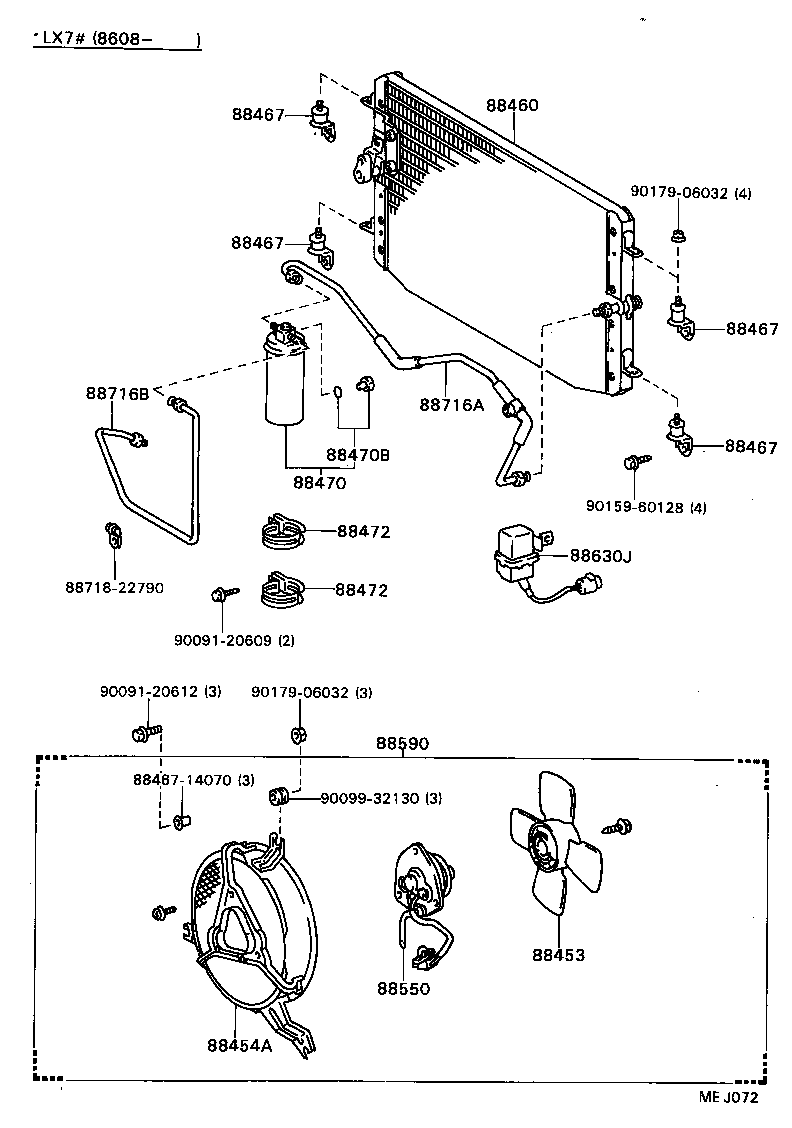

(8608- )LX70
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88453 - FAN, COOLING (FOR CONDENSER) | ||||
| 88453-28010 |
LX70 |
1 | ||
| 88454A - SHROUD, FAN | ||||
| 88454-22050 |
LX70 |
1 | ||
| 88460 - CONDENSER ASSY, COOLER | ||||
| 88460-22281 |
LX7#,RX70,YX70 |
1 | ||
| 88460-22280 |
LX7#,RX70 |
1 | ||
| 88460-22320 |
LX70 |
1 | ||
| 88467 - CUSHION, COOLER CONDENSER, NO.1 | ||||
| 88467-22060 |
MX73..EFI;MX73..GLX..TWC;GX71,LX7#,MX72,RX70,YX70 |
4 | ||
| 88467-22060 |
MX73..GLX..SA;MX73..ARL,GEN,ME;GX71,LX70,RX7#,YX70 |
4 | ||
| 88467 - CUSHION, COOLER CONDENSER, NO.1 | ||||
| 88467-22060 |
MX73..EFI;MX73..GLX..TWC;GX71,LX7#,MX72,RX70,YX70 |
4 | ||
| 88467-22060 |
MX73..GLX..SA;MX73..ARL,GEN,ME;GX71,LX70,RX7#,YX70 |
4 | ||
| 88467 - CUSHION, COOLER CONDENSER, NO.1 | ||||
| 88467-22060 |
MX73..EFI;MX73..GLX..TWC;GX71,LX7#,MX72,RX70,YX70 |
4 | ||
| 88467-22060 |
MX73..GLX..SA;MX73..ARL,GEN,ME;GX71,LX70,RX7#,YX70 |
4 | ||
| 88467 - CUSHION, COOLER CONDENSER, NO.1 | ||||
| 88467-22060 |
MX73..EFI;MX73..GLX..TWC;GX71,LX7#,MX72,RX70,YX70 |
4 | ||
| 88467-22060 |
MX73..GLX..SA;MX73..ARL,GEN,ME;GX71,LX70,RX7#,YX70 |
4 | ||
| 88470 - RECEIVER & DRYER ASSY, COOLER | ||||
| 88470-12070 |
MX73..EFI;MX73..GLX..TWC;GX71,LX7#,MX72,RX70,YX70 |
1 | ||
| 88470-12070 |
MX73..GLX..SA;MX73..ARL,GEN,ME;GX71,LX70,RX7#,YX70 |
1 | ||
| 88470B - BOLT, FUSE | ||||
| 88475-12020 |
MX73..GLX..SA;MX73..ARL,GEN,ME;GX71,LX70,RX7#,YX70 |
1 | ||
| 88475-12020 |
MX73..EFI;MX73..GLX..TWC;GX71,LX7#,MX72,RX70,YX70 |
1 | ||
| 88472 - BRACKET, RECEIVER TANK, NO.1 | ||||
| 88472-22090 |
MX73..GLX..SA;MX73..ARL,EUR,GEN,ME;GX71,LX7#,MX72,RX7#,YX70 |
2 | ||
| 88472 - BRACKET, RECEIVER TANK, NO.1 | ||||
| 88472-22090 |
MX73..GLX..SA;MX73..ARL,EUR,GEN,ME;GX71,LX7#,MX72,RX7#,YX70 |
2 | ||
| 88550 - MOTOR ASSY, BLOWER (FOR CONDENSER) | ||||
| 88550-12090 |
LX70 |
1 | ||
| 88590 - BLOWER ASSY, W/SHROUD | ||||
| 88590-22030 |
LX70 |
1 | ||
| 88630J - RELAY ASSY (FOR CONDENSER MOTOR) | ||||
| 88630-14020 |
LX70 |
1 | ||
| 88716A - PIPE, COOLER REFRIGERANT LIQUID, A | ||||
| 88716-22450 |
LX7#,RX70,YX70 |
1 | ||
| 88716-22641 |
LX70 |
1 | ||
| 88716B - PIPE, COOLER REFRIGERANT LIQUID, B | ||||
| 88716-22550 |
LX7# |
1 | ||
| 88716-22730 |
LX70 |
1 | ||
| Common parts | ||||
| 88467-14070 | ||||
| 88718-22790 | ||||
| 90091-20609 | ||||
| 90091-20612 | ||||
| 90099-32130 | ||||
| 90159-60128 | ||||
| 90179-06032 | ||||
