LX70L-XEPES (1984)

Toyota Cressida

Production Aug 1984 - Aug 1988
Engine 2L
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8408-8608)GX71,MX7#..LHD..EUR ; (8408- )GX71..LHD..EFI ; (8510- )

Click highlighted areas on diagram

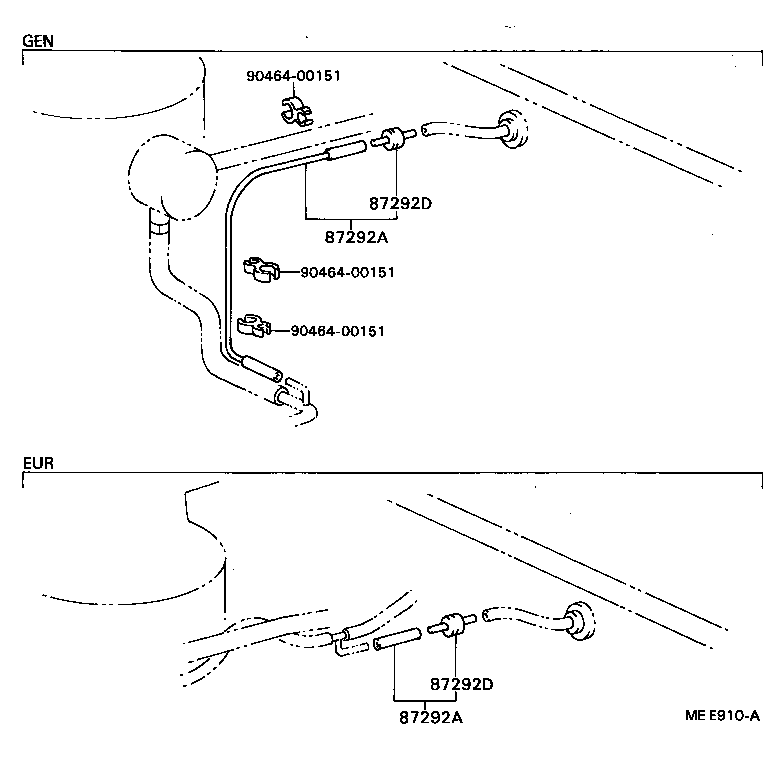

diagram 87292A 87292A 87292D 87292D 9046400141 9046400151 9046400175 9046400248 9046400248 9046400248
Part # Description Qty Price
87292A - HOSE, VACUUM TANK
88807-22140

LX70..GEN

 1
87292A - HOSE, VACUUM TANK
88807-22140

LX70..GEN

 1
87292D - CONNECTOR, VACUUM PIPE
88684-22010

GX71,LX7#,MX7#,RX7#..LHD

 1
87292D - CONNECTOR, VACUUM PIPE
88684-22010

GX71,LX7#,MX7#,RX7#..LHD

 1
Common parts
90464-00141
90464-00151
90464-00175
90464-00248

(8408- )LX7#

Click highlighted areas on diagram

diagram 87292A 87292A 87292D 87292D 9046400151 9046400151 9046400151
Part # Description Qty Price
87292A - HOSE, VACUUM TANK
88807-22140

LX70..GEN

 1
87292A - HOSE, VACUUM TANK
88807-22140

LX70..GEN

 1
87292D - CONNECTOR, VACUUM PIPE
88684-22010

GX71,LX7#,MX7#,RX7#..LHD

 1
87292D - CONNECTOR, VACUUM PIPE
88684-22010

GX71,LX7#,MX7#,RX7#..LHD

 1
Common parts
90464-00151

(8408- )LX7#

Click highlighted areas on diagram

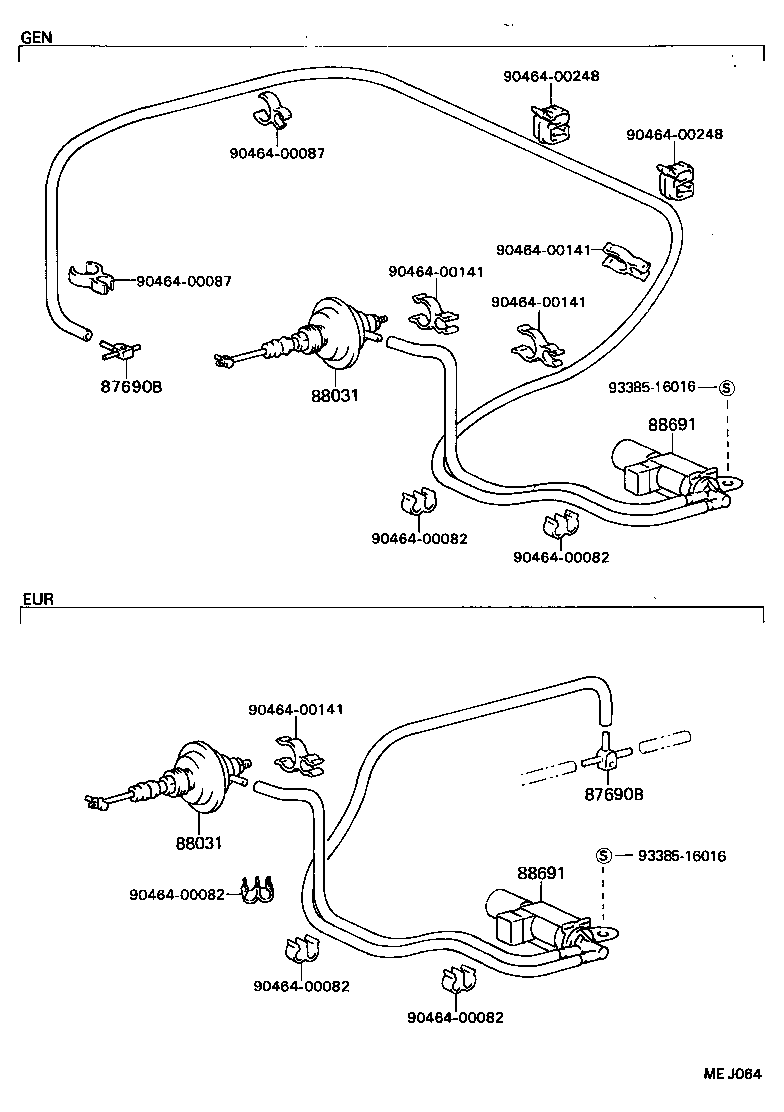

diagram 87690B 87690B 88031 88031 88691 88691 9046400082 9046400082 9046400082 9046400082 9046400082 9046400087 9046400087 9046400141 9046400141 9046400141 9046400141 9046400248 9046400248 9338516016 9338516016
Part # Description Qty Price
87690B - WAY, 3
90413-04001

LX7#

 1
87690B - WAY, 3
90413-04001

LX7#

 1
88031 - ACTUATOR SET, IDLE-UP
88031-12150

LX7#

 1
88031 - ACTUATOR SET, IDLE-UP
88031-12150

LX7#

 1
88691 - VALVE, MAGNET (FOR IDLE UP DEVICE)
88690-22450

LX70..GEN

 1
88691 - VALVE, MAGNET (FOR IDLE UP DEVICE)
88690-22450

LX70..GEN

 1
Common parts
90464-00082
90464-00087
90464-00141
90464-00248
93385-16016
