LX70L-XEPES (1984)
Toyota Cressida
Production
Aug 1984
-
Aug 1988
Engine
2L
Transmission
4FC ATM
Displacement
2500cc
Power
168 HP (125 kW)
(8408- )LX7#

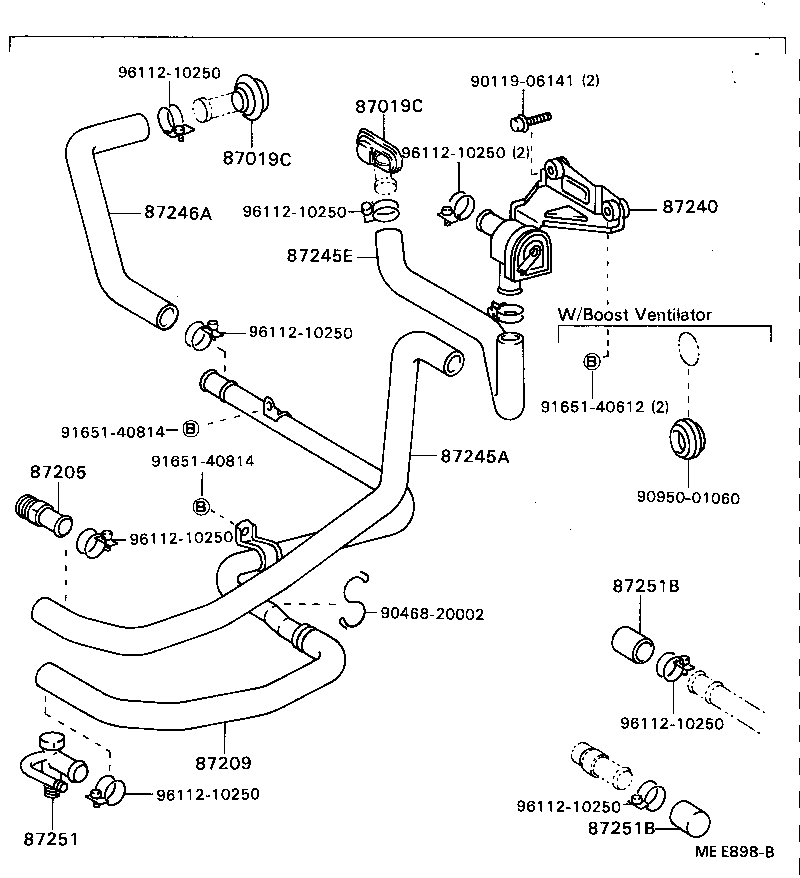

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 87019C - GROMMET, HEATER HOSE | ||||
| 90480-01272 |
GX71,LX7#,MX7#,RX7#..LHD INLET |
1 | ||
| 90480-36011 |
GX71,LX7#,MX7#,RX7#..LHD OUTLET |
1 | ||
| 87019C - GROMMET, HEATER HOSE | ||||
| 90480-01272 |
GX71,LX7#,MX7#,RX7#..LHD INLET |
1 | ||
| 90480-36011 |
GX71,LX7#,MX7#,RX7#..LHD OUTLET |
1 | ||
| 87205 - JOINT OR UNION, FRONT HEATER HOSE THROUGH OR INLET VALV | ||||
| 87251-30200 |
MX73..RHD..(EUR,GEN,SA);LX7#,MX73..LHD..(DSL,TD,TWC) |
1 | ||
| 87209 - HOSE SUB-ASSY, WATER | ||||
| 87209-22100 |
LX7# |
1 | ||
| 87240 - VALVE ASSY, HEATER WATER | ||||
| 87240-22260 |
GX71,LX7#,RX70,YX70 |
1 | ||
| 87240-22261 |
GX71,LX70,RX7# |
1 | ||
| 87245A - HOSE, HEATER WATER, INLET A | ||||
| 87245-22740 |
LX7# |
1 | ||
| 87245-22500 |
LX70 |
1 | ||
| 87245E - HOSE, HEATER WATER, INLET E | ||||
| 87245-22780 |
LX7# |
1 | ||
| 87246A - HOSE, HEATER WATER, OUTLET A | ||||
| 87245-22860 |
LX7# |
1 | ||
| 87251 - JOINT OR UNION, WATER HOSE THROUGH | ||||
| 90404-54023 |
LX7# |
1 | ||
| 87251B - PLUG, HEATER WATER | ||||
| 90339-16007 |
LX70..GEN |
2 | ||
| 87251B - PLUG, HEATER WATER | ||||
| 90339-16007 |
LX70..GEN |
2 | ||
| Common parts | ||||
| 90119-06141 | ||||
| 90468-20002 | ||||
| 90950-01060 | ||||
| 91651-40612 | ||||
| 91651-40814 | ||||
| 96112-10250 | ||||
