LX70L-XEPES (1984)
Toyota Cressida
(8408- )ARL ; (8408- )GX71,LX7#..LHD..DSL,EFI,TD..EUR,GEN ; (8701- )MX73..

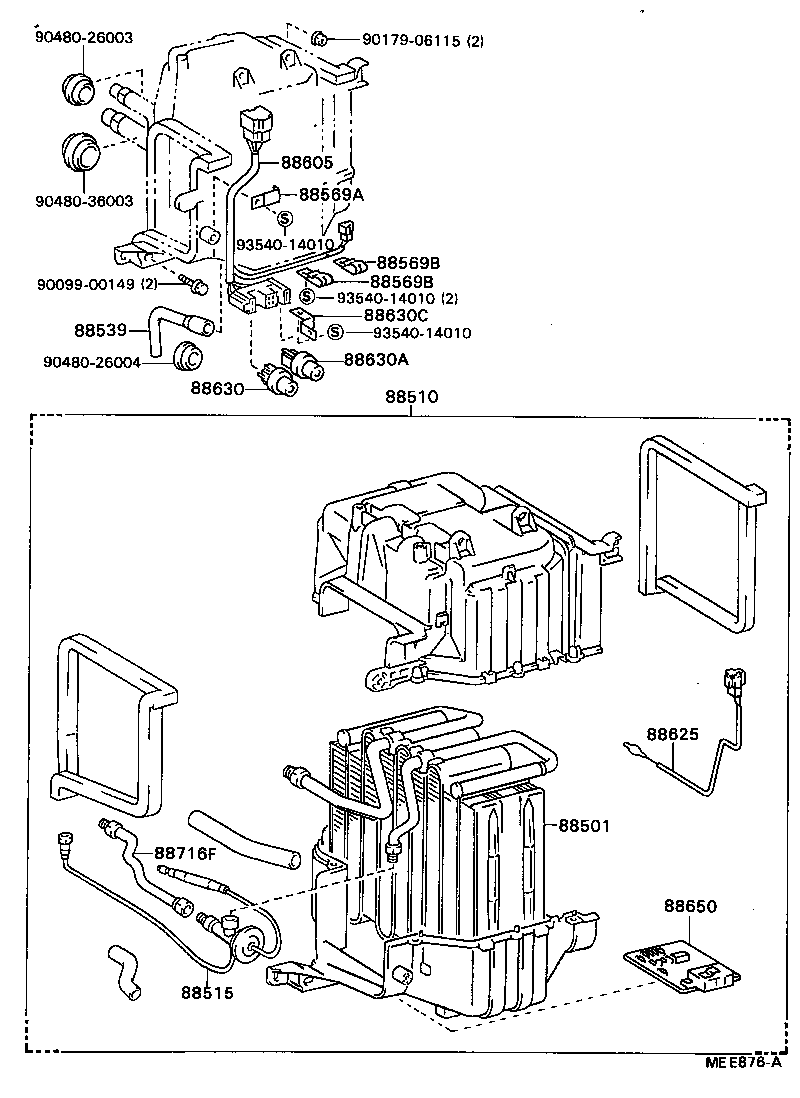

| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88501 - EVAPORATOR SUB-ASSY, COOLER, NO.1 | ||||
| 88501-22161 |
GX71,LX7#,MX7#,RX70..LHD |
1 | ||
| 88501-22162 |
GX71,LX70,MX73,RX7#..LHD |
1 | ||
| 88501-22160 |
GX71,LX7#,MX7#,RX70..LHD |
1 | ||
| 88510 - UNIT ASSY, COOLER | ||||
| 88510-22320 |
LX70..GEN |
1 | ||
| 88510-22370 |
LX70..GEN W/*BV |
1 | ||
| 88510-22371 |
LX70 W/*BV |
1 | ||
| 88510-22321 |
LX70 |
1 | ||
| 88515 - VALVE, COOLER EXPANSION | ||||
| 88515-16030 |
LX70,RX7#..GEN W/*BV |
1 | ||
| 88515-22070 |
MX73..GLX..TWC;MX73..EFI..(ARL,EUR);GX71,LX7#,MX72,RX70,YX70..EUR,GEN,SA W/HEATER |
1 | ||
| 88515-22070 |
GX71,LX7#,MX7#,RX70,YX70 W/HEATER |
1 | ||
| 88515-16030 |
LX70,RX70..GEN W/*BV |
1 | ||
| 88539 - HOSE, COOLER UNIT DRAIN, NO.1 | ||||
| 88539-22110 |
MX73..EFI;MX73..GLX..TWC;GX71,LX7#,MX72,RX70,YX70 |
1 | ||
| 88539-22110 |
MX73..GLX..SA;MX73..ARL,GEN,ME;GX71,LX70,RX7#,YX70 |
1 | ||
| 88569A - CLAMP, NO.1(FOR COOLER WIRING HARNESS) | ||||
| 88567-22230 |
LX7# |
1 | ||
| 88569-22230 |
LX70 |
1 | ||
| 88569B - CLAMP, NO.2(FOR COOLER WIRING HARNESS) | ||||
| 88569-22150 |
LX70..GEN W/*BV |
2 | ||
| 88569B - CLAMP, NO.2(FOR COOLER WIRING HARNESS) | ||||
| 88569-22150 |
LX70..GEN W/*BV |
2 | ||
| 88605 - HARNESS SUB-ASSY, COOLER WIRING, NO.1 | ||||
| 88605-22380 |
LX70..GEN W/*BV |
1 | ||
| 88605-22320 |
LX70..GEN W/HEATER |
1 | ||
| 88605-22460 |
LX70..4FC W/HEATER |
1 | ||
| 88605-22470 |
LX70..4FC W/*BV |
1 | ||
| 88625 - THERMISTOR, COOLER, NO.1 | ||||
| 88625-90A00 |
LX70..GEN W/*BV |
1 | ||
| 88630 - RELAY ASSY, COOLER | ||||
| 90987-03001 |
MX73..GLX..SA;MX73..ARL,GEN,ME;GX71,LX70,RX7#,YX70 |
1 | ||
| 88630A - RELAY ASSY, COOLER | ||||
| 90987-02004 |
LX70..GEN W/*BV |
1 | ||
| 88630C - BRACKET, COOLER RELAY | ||||
| 88688-22240 |
LX7# |
1 | ||
| 88650 - AMPLIFIER ASSY, COOLER STABILIZER | ||||
| 88650-22160 |
LX70..GEN W/*BV |
1 | ||
| 88716F - PIPE, COOLER REFRIGERANT LIQUID, F | ||||
| 88716-22691 |
GX71,LX70,MX73,RX7#..LHD |
1 | ||
| 88716-22690 |
GX71,LX7#,MX7#,RX70..LHD |
1 | ||
| Common parts | ||||
| 90099-00149 | ||||
| 90179-06115 | ||||
| 90480-26003 | ||||
| 90480-26004 | ||||
| 90480-36003 | ||||
| 93540-14010 | ||||
(8504- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90167-50018 | ||||
| 93567-55016 | ||||
