LX70L-XEPES (1984)
Toyota Cressida
(8408- )LX7#

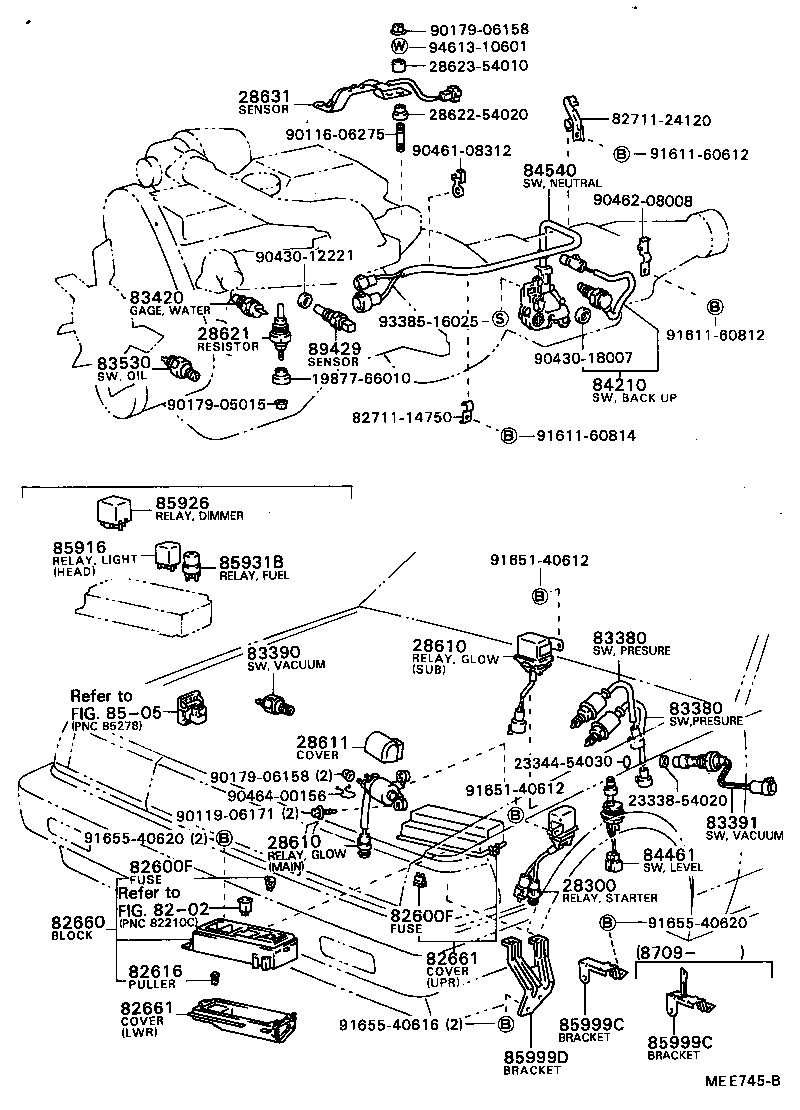

| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 28300 - RELAY ASSY, STARTER | ||||
| 28300-64030 |
2L#..LX7# |
1 | ||
| 28610 - RELAY ASSY, INTAKE HEATER OR GLOW PLUG | ||||
| 28610-64040 |
2L..LX70 SUB |
1 | ||
| 28610-54240 |
2L#..LX7# SUB |
1 | ||
| 28610 - RELAY ASSY, INTAKE HEATER OR GLOW PLUG | ||||
| 28610-64040 |
2L..LX70 SUB |
1 | ||
| 28610-54240 |
2L#..LX7# SUB |
1 | ||
| 82600F - FUSE, FUSE BLOCK | ||||
| 90982-09002 |
GX71,LX7#,MX7#,RX7# 10A,10A |
2 | ||
| 90982-09004 |
GX71,LX7#,MX7#,RX7#,YX70 20A,YELLOW,20A |
3 | ||
| 90982-09005 |
GX71,LX7#,MX7#,RX7#,YX70 7.5A,7.5A |
8 | ||
| 90982-09003 |
GX71,LX7#,MX7#,RX7#,YX70 15A,15A |
13 | ||
| 82600F - FUSE, FUSE BLOCK | ||||
| 90982-09002 |
GX71,LX7#,MX7#,RX7# 10A,10A |
2 | ||
| 90982-09004 |
GX71,LX7#,MX7#,RX7#,YX70 20A,YELLOW,20A |
3 | ||
| 90982-09005 |
GX71,LX7#,MX7#,RX7#,YX70 7.5A,7.5A |
8 | ||
| 90982-09003 |
GX71,LX7#,MX7#,RX7#,YX70 15A,15A |
13 | ||
| 82616 - PULLER, FUSE | ||||
| 82616-12010 |
GX71,LX7#,MX7#,RX7#,YX70 |
1 | ||
| 82660 - BLOCK ASSY, RELAY, ENGINE ROOM | ||||
| 82660-22260 |
LX7# |
1 | ||
| 82661 - COVER, RELAY BLOCK, NO.1 | ||||
| 82661-22120 |
GX71,LX7#,MX7# LWR |
1 | ||
| 82661-22100 |
LX70,MX73..ARL,GEN,ME,SA UPR |
1 | ||
| 82661-22100 |
GX71,LX70,MX73..ARL,GEN,ME,SA UPR |
1 | ||
| 82661-22121 |
GX71,LX70,MX73 LWR |
1 | ||
| 82661-22101 |
LX70,MX73..ARL,GEN,ME UPR |
1 | ||
| 82661 - COVER, RELAY BLOCK, NO.1 | ||||
| 82661-22120 |
GX71,LX7#,MX7# LWR |
1 | ||
| 82661-22100 |
LX70,MX73..ARL,GEN,ME,SA UPR |
1 | ||
| 82661-22100 |
GX71,LX70,MX73..ARL,GEN,ME,SA UPR |
1 | ||
| 82661-22121 |
GX71,LX70,MX73 LWR |
1 | ||
| 82661-22101 |
LX70,MX73..ARL,GEN,ME UPR |
1 | ||
| 83390 - SWITCH ASSY, VACUUM WARNING | ||||
| 83390-30020 |
LX7# |
1 | ||
| 83420 - GAGE ASSY, WATER TEMPERATURE SENDER | ||||
| 83420-20020 |
GX71,LX7#,MX7#,RX7#,YX70 |
1 | ||
| 83530 - SWITCH ASSY, OIL PRESSURE (FOR ENGINE) | ||||
| 83530-30060 |
LX7# |
1 | ||
| 83530-36011 |
LX7# |
1 | ||
| 84461 - SWITCH, LEVEL WARNING | ||||
| 84461-35030 |
LX70 |
1 | ||
| 84461-14030 |
LX7# |
1 | ||
| 84540 - SWITCH ASSY, NEUTRAL START | ||||
| 84540-22170 |
GX71,LX7#,MX7#..4FC |
1 | ||
| 85916 - RELAY, LIGHT CONTROL | ||||
| 90987-02002 |
GX71,LX7#,MX7#,RX7#,YX70 TAIL,MARUKO |
1 | ||
| 90987-02004 |
GX71,LX7#,MX7#,RX7#,YX70 TAIL,DENSO |
1 | ||
| 90987-02006 |
GX71,LX7#,MX7#,RX7#,YX70 HEAD |
1 | ||
| 85999C - BRACKET, RELAY, NO.3 | ||||
| 85999-22240 |
LX7# |
1 | ||
| 85999-22300 |
LX70 |
1 | ||
| 85999C - BRACKET, RELAY, NO.3 | ||||
| 85999-22240 |
LX7# |
1 | ||
| 85999-22300 |
LX70 |
1 | ||
| 85999D - BRACKET, RELAY, NO.4 | ||||
| 85999-22230 |
LX7# |
1 | ||
| 89429 - SENSOR, OIL TEMPERATURE | ||||
| 89422-30020 |
LX7# |
1 | ||
| Common parts | ||||
| 19877-66010 | ||||
| 23338-54020 | ||||
| 23344-54030 | ||||
| 28622-54020 | ||||
| 28623-54010 | ||||
| 82711-14750 | ||||
| 82711-24120 | ||||
| 90116-06275 | ||||
| 90119-06171 | ||||
| 90179-05015 | ||||
| 90179-06158 | ||||
| 90430-12221 | ||||
| 90430-18007 | ||||
| 90461-08312 | ||||
| 90462-08008 | ||||
| 90464-00156 | ||||
| 91611-60612 | ||||
| 91611-60812 | ||||
| 91611-60814 | ||||
| 91651-40612 | ||||
| 91655-40616 | ||||
| 91655-40620 | ||||
| 93385-16025 | ||||
| 94613-10601 | ||||
| Linked diagrams | ||||
| 8202 | ||||
| 8505 | ||||
(8408- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 84052 - SWITCH ASSY, UN-LOCK WARNING | ||||
| 84052-22030 |
GX71,LX70,MX73,RX7#..GD,GL,GLX,GT,GTX W/*PW |
1 | ||
| 84052-22030 |
GX71,LX7#,MX7#,RX70..(SED,WG)..LHD..(GD,GL,GLX) W/*PW |
1 | ||
| 84090 - SWITCH SET, EASY OPERATE | ||||
| 84090-22090 |
GX71,LX70,MX73,RX70..(SED,WG)..LHD..(GEN,ME) OUTER,W/*RCM |
1 | ||
| 84091-22170 |
GX71,LX70,MX73,RX7#..(SED,WG)..LHD OUTER,W/*RCM |
1 | ||
| 84090 - SWITCH SET, EASY OPERATE | ||||
| 84090-22090 |
GX71,LX70,MX73,RX70..(SED,WG)..LHD..(GEN,ME) OUTER,W/*RCM |
1 | ||
| 84091-22170 |
GX71,LX70,MX73,RX7#..(SED,WG)..LHD OUTER,W/*RCM |
1 | ||
| 84090 - SWITCH SET, EASY OPERATE | ||||
| 84090-22090 |
GX71,LX70,MX73,RX70..(SED,WG)..LHD..(GEN,ME) OUTER,W/*RCM |
1 | ||
| 84091-22170 |
GX71,LX70,MX73,RX7#..(SED,WG)..LHD OUTER,W/*RCM |
1 | ||
| 84090B - BULB (FOR EASY OPERATE SWITCH SET) | ||||
| 84999-10170 |
GX71,LX7#,MX7#,RX7#,YX70 12V 1.1W(BASE:GRAY) |
2 | ||
| 84090B - BULB (FOR EASY OPERATE SWITCH SET) | ||||
| 84999-10170 |
GX71,LX7#,MX7#,RX7#,YX70 12V 1.1W(BASE:GRAY) |
2 | ||
| 84090B - BULB (FOR EASY OPERATE SWITCH SET) | ||||
| 84999-10170 |
GX71,LX7#,MX7#,RX7#,YX70 12V 1.1W(BASE:GRAY) |
2 | ||
| 84118 - KNOB, LIGHT CONTROL RHEOSTAT | ||||
| 84118-20011 |
GX71,LX7#,MX7#,RX70,YX70 |
1 | ||
| 84118-22030 |
GX71,LX70,MX73,RX7#..ARL,GEN,ME |
1 | ||
| 84119 - RHEOSTAT, LIGHT CONTROL | ||||
| 84119-20082 |
GX71,LX7#,RX7#,YX70 W/*AS |
1 | ||
| 84119A - BOLT OR NUT, RHEOSTAT CONTROL SET | ||||
| 90170-09002 |
GX71,LX70,MX73,RX7#..ARL,GEN,ME |
1 | ||
| 90170-09167 |
GX71,LX7#,MX7#,RX70,YX70 |
1 | ||
| 84330 - SWITCH ASSY, HAZARD WARNING SIGNAL | ||||
| 84332-22090 |
GX71,LX70,MX73,RX70..(SED,WG)..LHD..(GEN,ME) |
1 | ||
| 84450 - SWITCH ASSY, IGNITION OR STARTER | ||||
| 84450-22150 |
GX71,LX7#,MX7#,RX70..(SED,WG)..LHD..(GD,GL,GLX) W/*PW |
1 | ||
| 84450-22140 |
GX71,LX7#,MX7#,RX70..(SED,WG)..LHD..(GL,XL) |
1 | ||
| 84450-22140 |
LX70,RX7#..LHD..GEN |
1 | ||
| 84450-22150 |
LX70,RX7#..LHD..GL..GEN W/*PW |
1 | ||
| 84660C - SWITCH, COOLER | ||||
| 84660-22070 |
LX70,RX7#..LHD |
1 | ||
| 84660-22070 |
GX71,LX7#,RX70,YX70 |
1 | ||
| 84730 - SWITCH ASSY, HEATER BLOWER | ||||
| 84732-22080 |
GX71,LX7#,MX7#,RX70,YX70..GL,GLX,STD,XL |
1 | ||
| 84732-22080 |
GX71,LX70,MX73,RX7#..LHD |
1 | ||
| 84730B - BULB, HEATER BLOWER SWITCH | ||||
| 90981-11018 |
GX71,LX7#,MX7#,RX7#,YX70 12V 1.2W W/O SOCKET,12V 1.4W |
1 | ||
| 84790 - SWITCH ASSY, REAR WINDOW DEFOGGER | ||||
| 84790-22110 |
MX73..XL..SA;MX73..GD,GL,GLX,GT,GTX;GX71,LX7#,MX72,RX7#,YX70 |
1 | ||
| 84790B - BULB(FOR REAR WINDOW DEFOGGER SWITCH) | ||||
| 84999-10170 |
MX73..XL..SA;MX73..GD,GL,GLX,GT,GTX;GX71,LX7#,MX72,RX7#,YX70 12V 1.12W,12V 1.1W |
2 | ||
| 84870A - SWITCH ASSY, OUTER MIRROR | ||||
| 84870-22070 |
GX71,LX7#,MX7#,RX70..LHD |
1 | ||
| 85500 - LIGHTER ASSY, CIGARETTE | ||||
| 85500-22130 |
GX71,LX70,MX73,RX7#..ARL,GEN,ME |
1 | ||
| 85500B - BULB, CIGARETTE LIGHTER | ||||
| 90981-11014 |
GX71,LX7#,MX7#,RX7#,YX70 14V 1.4W,12V 1.4W |
2 | ||
| 85500B - BULB, CIGARETTE LIGHTER | ||||
| 90981-11014 |
GX71,LX7#,MX7#,RX7#,YX70 14V 1.4W,12V 1.4W |
2 | ||
| 85533 - LENS, CIGARETTE LIGHTER INDICATOR | ||||
| 85533-20011 |
GX71,LX7#,MX7#,RX7#,YX70 |
1 | ||
| Common parts | ||||
| 90164-30003 | ||||
| 90463-13003 | ||||
| 90463-15003 | ||||
| 93319-13008 | ||||
| 93319-14012 | ||||
| 93568-55016 | ||||
| Linked diagrams | ||||
| 8301 | ||||
(8408- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 27790 - RELAY ASSY, CHARGE LAMP | ||||
| 27790-35020 |
2L#..LX7# |
1 | ||
| 81980 - FLASHER ASSY, TURN SIGNAL | ||||
| 81980-22070 |
GX71,LX7#,MX7#,RX70,YX70 |
1 | ||
| 81980-16010 |
GX71,LX70,MX73,RX7#,YX70 |
1 | ||
| 82600F - FUSE, FUSE BLOCK | ||||
| 90982-09002 |
GX71,LX7#,MX7#,RX7# 10A,10A |
2 | ||
| 90982-09004 |
GX71,LX7#,MX7#,RX7#,YX70 20A,YELLOW,20A |
3 | ||
| 90982-09005 |
GX71,LX7#,MX7#,RX7#,YX70 7.5A,7.5A |
8 | ||
| 90982-09003 |
GX71,LX7#,MX7#,RX7#,YX70 15A,15A |
13 | ||
| 82650 - BREAKER ASSY, WIRING CIRCUIT, NO.1 | ||||
| 82650-20011 |
GX71,LX7#,MX73,RX7#,YX70 30A,30A,*PW |
1 | ||
| 82650 - BREAKER ASSY, WIRING CIRCUIT, NO.1 | ||||
| 82650-20011 |
GX71,LX7#,MX73,RX7#,YX70 30A,30A,*PW |
1 | ||
| 82650B - BREAKER ASSY, WIRING CIRCUIT, NO.3 | ||||
| 82650-20011 |
GX71,LX7#,MX7#,RX7#,YX70 30A,30A,DEFOGGER |
1 | ||
| 82660A - BLOCK ASSY, RELAY, COWL SIDE | ||||
| 82602-22230 |
GX71,LX7#,MX73,RX70..LHD NO.1 |
1 | ||
| 82602-22231 |
GX71,LX7#,MX73,RX70..LHD NO.1 |
1 | ||
| 82602-22232 |
GX71,LX70,MX73,RX7#..LHD NO.1 |
1 | ||
| 82602-22160 |
GX71,LX7#,MX73,RX7#..LHD NO.2 |
1 | ||
| 82660A - BLOCK ASSY, RELAY, COWL SIDE | ||||
| 82602-22230 |
GX71,LX7#,MX73,RX70..LHD NO.1 |
1 | ||
| 82602-22231 |
GX71,LX7#,MX73,RX70..LHD NO.1 |
1 | ||
| 82602-22232 |
GX71,LX70,MX73,RX7#..LHD NO.1 |
1 | ||
| 82602-22160 |
GX71,LX7#,MX73,RX7#..LHD NO.2 |
1 | ||
| 82660A - BLOCK ASSY, RELAY, COWL SIDE | ||||
| 82602-22230 |
GX71,LX7#,MX73,RX70..LHD NO.1 |
1 | ||
| 82602-22231 |
GX71,LX7#,MX73,RX70..LHD NO.1 |
1 | ||
| 82602-22232 |
GX71,LX70,MX73,RX7#..LHD NO.1 |
1 | ||
| 82602-22160 |
GX71,LX7#,MX73,RX7#..LHD NO.2 |
1 | ||
| 85912A - RELAY, DEFOGGER TIMER | ||||
| 90987-02004 |
GX71,LX7#,MX7#,RX7#,YX70 DENSO |
1 | ||
| 90987-02002 |
GX71,LX7#,MX7#,RX7#,YX70 MARUKO |
1 | ||
| 85916 - RELAY, LIGHT CONTROL | ||||
| 90987-02002 |
GX71,LX7#,MX7#,RX7#,YX70 TAIL,MARUKO |
1 | ||
| 90987-02004 |
GX71,LX7#,MX7#,RX7#,YX70 TAIL,DENSO |
1 | ||
| 90987-02006 |
GX71,LX7#,MX7#,RX7#,YX70 HEAD |
1 | ||
| 85930 - RELAY ASSY, POWER WINDOW | ||||
| 90987-02004 |
GX71,LX70,MX73,RX7#..GD,GL,GLX,GT,GTX DENSO |
1 | ||
| 90987-02002 |
GX71,LX70,MX73,RX7#..GD,GL,GLX,GT,GTX MARUKO |
1 | ||
| 85959A - HOLDER, RELAY | ||||
| 85959-22070 |
LX7# |
1 | ||
| 85980 - RELAY ASSY, DOOR CONTROL | ||||
| 85980-22120 |
GX71..ME;GX71..RHD;LX70,MX73,RX70..(HT,SED)..(GD,GL,GLX,GTX)..(ARL,GEN,ME,SA) |
1 | ||
| 85980-22090 |
GX71,LX7#,MX7#,RX70..GD,GL,GLX,GTX |
1 | ||
| 85980-22140 |
LX70,RX7#..GL,GT |
1 | ||
| 85999 - BRACKET, COMBINATION RELAY | ||||
| 85999-22180 |
GX71,LX7#,MX7#,RX7#..LHD |
1 | ||
| Common parts | ||||
| 90119-06067 | ||||
| 91651-60612 | ||||
| 93567-55016 | ||||
| 93580-15012 | ||||
| 93580-15014 | ||||
| Linked diagrams | ||||
| 8301 | ||||
(8408- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 28521 - TIMER, PREHEATING | ||||
| 28521-54320 |
2L..LX70 |
1 | ||
| 28529 - BRACKET, PREHEATING TIMER, NO.1 | ||||
| 28529-54130 |
2L..LX70 |
1 | ||
| 28529-54100 |
2L..LX70 |
1 | ||
| 82600F - FUSE, FUSE BLOCK | ||||
| 90982-09002 |
GX71,LX7#,MX7#,RX7# 10A,10A |
2 | ||
| 90982-09004 |
GX71,LX7#,MX7#,RX7#,YX70 20A,YELLOW,20A |
3 | ||
| 90982-09005 |
GX71,LX7#,MX7#,RX7#,YX70 7.5A,7.5A |
8 | ||
| 90982-09003 |
GX71,LX7#,MX7#,RX7#,YX70 15A,15A |
13 | ||
| 82650A - BREAKER ASSY, WIRING CIRCUIT, NO.2 | ||||
| 82650-20011 |
GX71,LX7#,MX7#,RX7#,YX70 30A,30A,HEATER |
1 | ||
| 82650-20020 |
GX71,LX70,MX73,RX7#,YX70 40A,40A,BLOWER MOTOR |
1 | ||
| 85910C - RELAY ASSY (FOR HEATER BLOWER MOTOR) | ||||
| 90987-04002 |
GX71,LX7#,MX7#,RX7#,YX70 |
1 | ||
| 85940 - RELAY ASSY, WINDSHIELD WIPER | ||||
| 85940-22120 |
GX71,LX7#,MX7#,RX7# |
1 | ||
| 85965 - RELAY, ROOM LAMP CONTROL | ||||
| 85965-22021 |
GX71,LX7#,MX7#,RX7# |
1 | ||
| 85999A - BRACKET, RELAY, NO.2 | ||||
| 85999-22210 |
MX73..EUR,ME;GX71,LX7#,RX7#..LHD |
1 | ||
| 86650 - BUZZER ASSY, VACUUM INDICATOR | ||||
| 86650-22110 |
LX70..GEN |
1 | ||
| Common parts | ||||
| 90179-06115 | ||||
| 93540-55014 | ||||
| 93567-55016 | ||||
(8408- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 84095 - BRACKET SUB-ASSY, HAND BRAKE SIGNAL SWITCH | ||||
| 84956-22050 |
GX71,LX7#,MX7#,RX7#,YX70 |
1 | ||
| 84232 - SWITCH ASSY, COURTESY LAMP (FOR GLOVE BOX) | ||||
| 84242-20030 |
GX71,LX7#,MX7#,RX7# GLOVE BOX |
1 | ||
| 84233 - SWITCH ASSY, COURTESY LAMP (FOR FRONT DOOR) | ||||
| 84230-12120 |
GX71,LX7#,MX7#,RX7#,YX70 |
2 | ||
| 84233B - CUSHION, COURTESY SWITCH (FOR FRONT DOOR) | ||||
| 84234-22020 |
GX71,LX7#,MX7#,RX7#,YX70 |
2 | ||
| 84234 - SWITCH ASSY, COURTESY LAMP (FOR REAR DOOR) | ||||
| 84230-12120 |
GX71,LX7#,MX7#,RX7#,YX70 |
2 | ||
| 84234B - CUSHION, COURTESY SWITCH (FOR REAR DOOR) | ||||
| 84234-22020 |
GX71,LX7#,MX7#,RX7#,YX70 |
2 | ||
| 84340 - SWITCH ASSY, STOP LAMP | ||||
| 84340-30030 |
GX71,LX7#,RX7#,YX70 MATSUSHITA |
1 | ||
| 84340-32010 |
GX71,LX7#,RX7#,YX70 TOKAIRIKA |
1 | ||
| 84550 - SWITCH ASSY, PARKING BRAKE | ||||
| 84550-24010 |
GX71,LX7#,MX7#,RX7#,YX70 |
1 | ||
| 84931B - SWITCH, DOOR CONTROL | ||||
| 84931-22030 |
GX71,LX7#,MX7#,RX70..(GL,GLX)..(EUR,GEN,SA) |
2 | ||
| 84931-22060 |
GX71,LX7#,MX7#,RX70..(GL,GLX)..(EUR,GEN,SA) |
2 | ||
| 84931-22060 |
GX71,LX70,MX73,RX7#..GD,GL,GLX |
2 | ||
| 84931B - SWITCH, DOOR CONTROL | ||||
| 84931-22030 |
GX71,LX7#,MX7#,RX70..(GL,GLX)..(EUR,GEN,SA) |
2 | ||
| 84931-22060 |
GX71,LX7#,MX7#,RX70..(GL,GLX)..(EUR,GEN,SA) |
2 | ||
| 84931-22060 |
GX71,LX70,MX73,RX7#..GD,GL,GLX |
2 | ||
| 84931B - SWITCH, DOOR CONTROL | ||||
| 84931-22030 |
GX71,LX7#,MX7#,RX70..(GL,GLX)..(EUR,GEN,SA) |
2 | ||
| 84931-22060 |
GX71,LX7#,MX7#,RX70..(GL,GLX)..(EUR,GEN,SA) |
2 | ||
| 84931-22060 |
GX71,LX70,MX73,RX7#..GD,GL,GLX |
2 | ||
| 84931B - SWITCH, DOOR CONTROL | ||||
| 84931-22030 |
GX71,LX7#,MX7#,RX70..(GL,GLX)..(EUR,GEN,SA) |
2 | ||
| 84931-22060 |
GX71,LX7#,MX7#,RX70..(GL,GLX)..(EUR,GEN,SA) |
2 | ||
| 84931-22060 |
GX71,LX70,MX73,RX7#..GD,GL,GLX |
2 | ||
| Common parts | ||||
| 82711-2A090 | ||||
| 82711-32360 | ||||
| 90167-20001 | ||||
| 90170-10017 | ||||
| 90266-02002 | ||||
| 90463-12014 | ||||
| 93315-14014 | ||||
| 93319-15008 | ||||
(8408- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83320 - GAGE ASSY, FUEL SENDER | ||||
| 83320-80008 |
LX7#..SED |
1 | ||
| 84236 - SWITCH ASSY, COURTESY LAMP(FOR LUGGAGE COMPARTMENT ROOM | ||||
| 84231-22020 |
GX71,LX7#,MX73,RX7#..HT,SED |
1 | ||
| 84231-12030 |
GX71,LX7#,MX73,RX70..SED |
1 | ||
| 84742 - SWITCH, SLIDE ROOF LIMIT | ||||
| 84742-20010 |
GX71,LX70,RX7#..(GL,GLX)..GEN |
1 | ||
| 84810 - SWITCH ASSY, POWER WINDOW REGULATOR | ||||
| 84810-32050 |
GX71,LX7#,MX7#,RX7#..GD,GL,GLX,GT,GTX |
3 | ||
| 84810 - SWITCH ASSY, POWER WINDOW REGULATOR | ||||
| 84810-32050 |
GX71,LX7#,MX7#,RX7#..GD,GL,GLX,GT,GTX |
3 | ||
| 84810 - SWITCH ASSY, POWER WINDOW REGULATOR | ||||
| 84810-32050 |
GX71,LX7#,MX7#,RX7#..GD,GL,GLX,GT,GTX |
3 | ||
| 84820 - MASTER SWITCH ASSY, POWER WINDOW REGULATOR | ||||
| 84820-22260 |
GX71,LX70,MX73,RX70..LHD..(GD,GL,GLX,GTX)..(GEN,ME) |
1 | ||
| 84820-32110 |
GX71,LX70,MX73,RX7#..LHD..(GD,GL,GLX,GT,GTX) |
1 | ||
| 84930 - SWITCH ASSY, DOOR CONTROL | ||||
| 84930-32030 |
GX71,LX70,MX73,RX7#..LHD..(GD,GL,GLX,GT,GTX) DOOR ARM REST |
1 | ||
| 84930 - SWITCH ASSY, DOOR CONTROL | ||||
| 84930-32030 |
GX71,LX70,MX73,RX7#..LHD..(GD,GL,GLX,GT,GTX) DOOR ARM REST |
1 | ||
| 85921 - RELAY, SLIDING ROOF CONTROL | ||||
| 85921-20010 |
GX71,LX70,RX7#..(GL,GLX)..GEN |
1 | ||
| 89439 - BRACKET, SENSOR | ||||
| 89439-22010 |
GX71,LX7#,MX73,RX7#,YX70..HT,SED |
1 | ||
| 89439 - BRACKET, SENSOR | ||||
| 89439-22010 |
GX71,LX7#,MX73,RX7#,YX70..HT,SED |
1 | ||
| Common parts | ||||
| 90119-06072 | ||||
| 90179-06007 | ||||
| 90463-12014 | ||||
| 91651-40610 | ||||
| 93315-15010 | ||||
| 93319-14010 | ||||
| 93385-16014 | ||||
| 93540-54012 | ||||
| Linked diagrams | ||||
| 8511 | ||||
(8408- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 84110 - SWITCH ASSY, LIGHT CONTROL, NO.1 | ||||
| 84112-29435 |
GX71,LX7#,MX7#,RX70..LHD |
1 | ||
| 84112-29655 |
GX71,LX70,MX73,RX7#..LHD..(GL,GLX,GT,XL) |
1 | ||
| 84112-29385 |
GX71,LX7#,MX7#,RX70..LHD |
1 | ||
| 84140 - SWITCH ASSY, HEADLAMP DIMMER | ||||
| 84140-29175 |
GX71,LX7#,MX7#,RX70..LHD |
1 | ||
| 84140-19135 |
GX71,LX7#,MX7#,RX70..LHD |
1 | ||
| 84140-22040 |
GX71,LX70,MX73,RX7#..LHD |
1 | ||
| 84310 - SWITCH ASSY, TURN SIGNAL | ||||
| 84310-22420 |
GX71,LX7#,MX7#,RX70..LHD W/*IW |
1 | ||
| 84310-22400 |
GX71,LX70,MX73,RX70..LHD..(GEN,ME) |
1 | ||
| 84310-22530 |
GX71,LX70,MX73,RX7#..LHD..(GL,GLX,GT,XL) W/*IW |
1 | ||
| 84310-22510 |
GX71,LX70,MX73,RX7#..LHD..(GL,GLX,GT,XL) |
1 | ||
| 84310B - SWITCH, TURN SIGNAL | ||||
| 84332-29245 |
GX71,LX7#,MX7#,RX70..LHD |
1 | ||
| 84332-39205 |
GX71,LX7#,MX7#,RX70..LHD |
1 | ||
| 84312 - PLATE, HORN CONTACT | ||||
| 84312-32010 |
GX71,LX7#,MX7#,RX7#,YX70 |
1 | ||
| 84650 - SWITCH ASSY, WINDSHIELD WIPER | ||||
| 84652-29835 |
GX71,LX70,MX73,RX70..LHD..(GEN,ME) |
1 | ||
| 84652-22370 |
GX71,LX70,MX73,RX7#..LHD W/*IW |
1 | ||
| 84652-80045 |
GX71,LX7#,MX7#,RX70..LHD W/*IW |
1 | ||
| 84652-80066 |
GX71,LX70,MX73,RX70..LHD..(GEN,ME) |
1 | ||
| 84652-22360 |
GX71,LX70,MX73,RX7#..LHD |
1 | ||
| Common parts | ||||
| 82711-20290 | ||||
| 82711-30430 | ||||
| 93315-14010 | ||||
| 93315-14012 | ||||
| 93319-15012 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
