LX70L-XEPES (1984)
Toyota Cressida
Production
Aug 1984
-
Aug 1988
Engine
2L
Transmission
4FC ATM
Displacement
2500cc
Power
168 HP (125 kW)
(8408- )LX7#

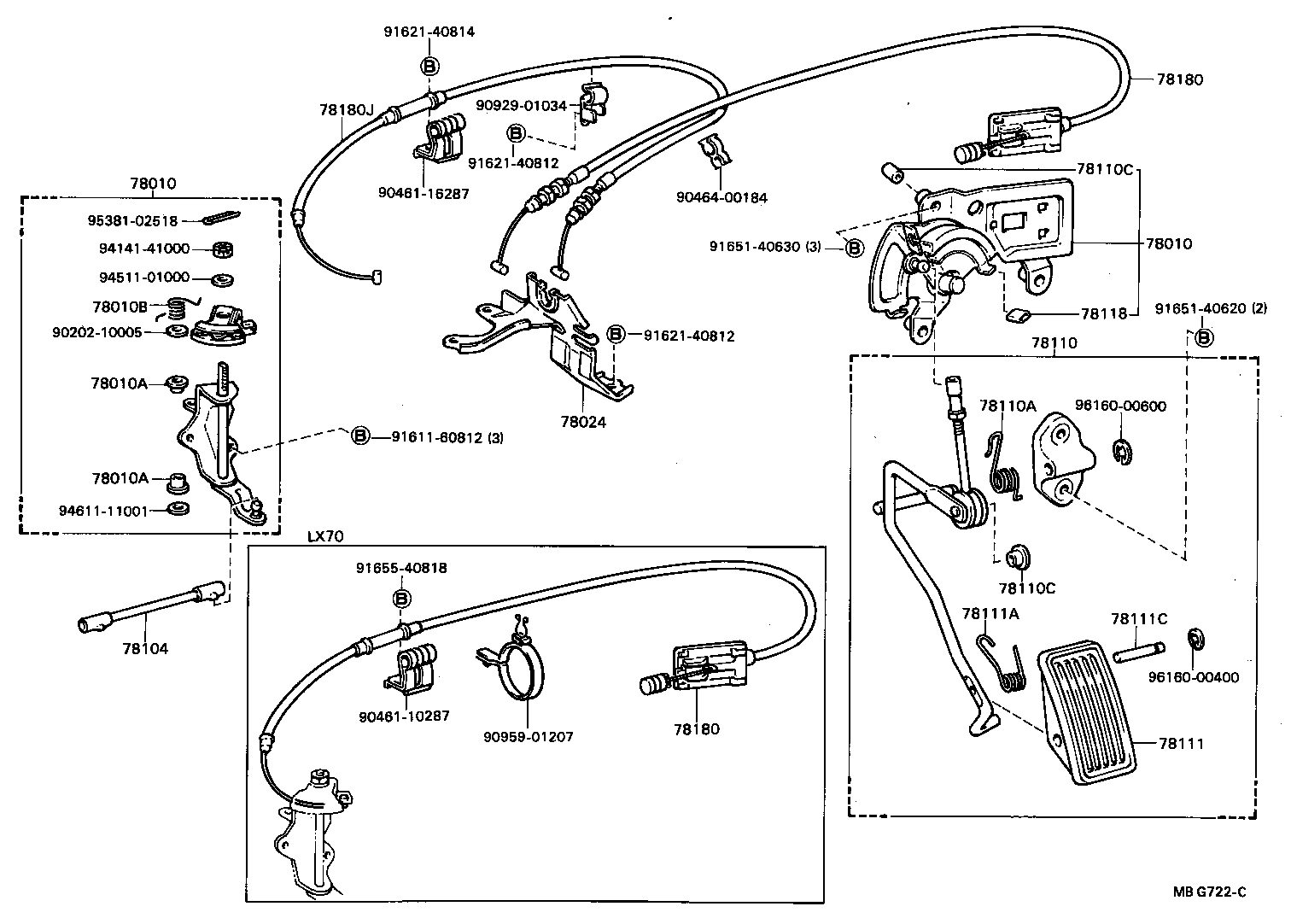

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 78010 - LINK, ACCELERATOR | ||||
| 78100-22050 |
LX70,MX73..LHD |
1 | ||
| 78100-22080 |
LX70..4FC |
1 | ||
| 78100-22050 |
GX71,LX7#,MX7#..GL..(EUR,GEN) |
1 | ||
| 78010 - LINK, ACCELERATOR | ||||
| 78100-22050 |
LX70,MX73..LHD |
1 | ||
| 78100-22080 |
LX70..4FC |
1 | ||
| 78100-22050 |
GX71,LX7#,MX7#..GL..(EUR,GEN) |
1 | ||
| 78010A - BUSH (FOR ACCELERATOR LINK) | ||||
| 90386-10138 |
LX7# |
2 | ||
| 78010A - BUSH (FOR ACCELERATOR LINK) | ||||
| 90386-10138 |
LX7# |
2 | ||
| 78010B - SPRING, TORSION (FOR ACCELERATOR LINK) | ||||
| 90508-16010 |
LX7# |
1 | ||
| 78104 - ROD SUB-ASSY, ACCELERATOR CONNECTING, NO.2 | ||||
| 78104-30120 |
LX7# |
1 | ||
| 78110 - ROD ASSY, ACCELERATOR PEDAL | ||||
| 78120-22250 |
LX7#,MX7#..LHD..4FC |
1 | ||
| 78110A - SPRING (FOR ACCELERATOR PEDAL ROD) | ||||
| 90508-18060 |
MX73..5F..EUG;GX71,LX7#,MX7#,RX70,72..4FC |
1 | ||
| 78110C - BUSH (FOR ACCELERATOR PEDAL ROD) | ||||
| 90386-08050 |
GX71,LX7#,MX7#..GL..(EUR,GEN) D=17 |
1 | ||
| 90386-08050 |
LX70,MX73 D=17 |
1 | ||
| 90386-08164 |
GX71,LX7#,MX7#..GL..(EUR,GEN) D=14 |
2 | ||
| 90386-08164 |
LX70,MX73..LHD D=14 |
2 | ||
| 78110C - BUSH (FOR ACCELERATOR PEDAL ROD) | ||||
| 90386-08050 |
GX71,LX7#,MX7#..GL..(EUR,GEN) D=17 |
1 | ||
| 90386-08050 |
LX70,MX73 D=17 |
1 | ||
| 90386-08164 |
GX71,LX7#,MX7#..GL..(EUR,GEN) D=14 |
2 | ||
| 90386-08164 |
LX70,MX73..LHD D=14 |
2 | ||
| 78111 - PEDAL, ACCELERATOR | ||||
| 78111-12100 |
GX71,LX7#,MX7#,RX7#,YX70 |
1 | ||
| 78111A - SPRING (FOR ACCELERATOR PEDAL) | ||||
| 90508-23088 |
GX71,LX7#,MX7#,RX7#,YX70 |
1 | ||
| 78111C - PIN (FOR ACCELERATOR PEDAL) | ||||
| 90249-05001 |
GX71,LX7#,MX7#,RX7#,YX70 |
1 | ||
| 78118 - PAD, ACCELERATOR PEDAL | ||||
| 78119-30050 |
LX70,MX73..LHD |
1 | ||
| 78119-30050 |
GX71,LX7#,MX7#..GL..(EUR,GEN) |
1 | ||
| 78180 - WIRE ASSY, ACCELERATOR | ||||
| 78180-22520 |
LX70 |
1 | ||
| 78180 - WIRE ASSY, ACCELERATOR | ||||
| 78180-22520 |
LX70 |
1 | ||
| Common parts | ||||
| 90202-10005 | ||||
| 90461-10287 | ||||
| 90461-16287 | ||||
| 90464-00184 | ||||
| 90929-01034 | ||||
| 90959-01207 | ||||
| 91611-60812 | ||||
| 91621-40812 | ||||
| 91621-40814 | ||||
| 91651-40620 | ||||
| 91651-40630 | ||||
| 91655-40818 | ||||
| 94141-41000 | ||||
| 94511-01000 | ||||
| 94611-11001 | ||||
| 95381-02518 | ||||
| 96160-00400 | ||||
| 96160-00600 | ||||
