LX70L-XEMES (1984)

Toyota Cressida

Production Aug 1984 - Aug 1988
Engine 2L
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8408- )LX70..GEN

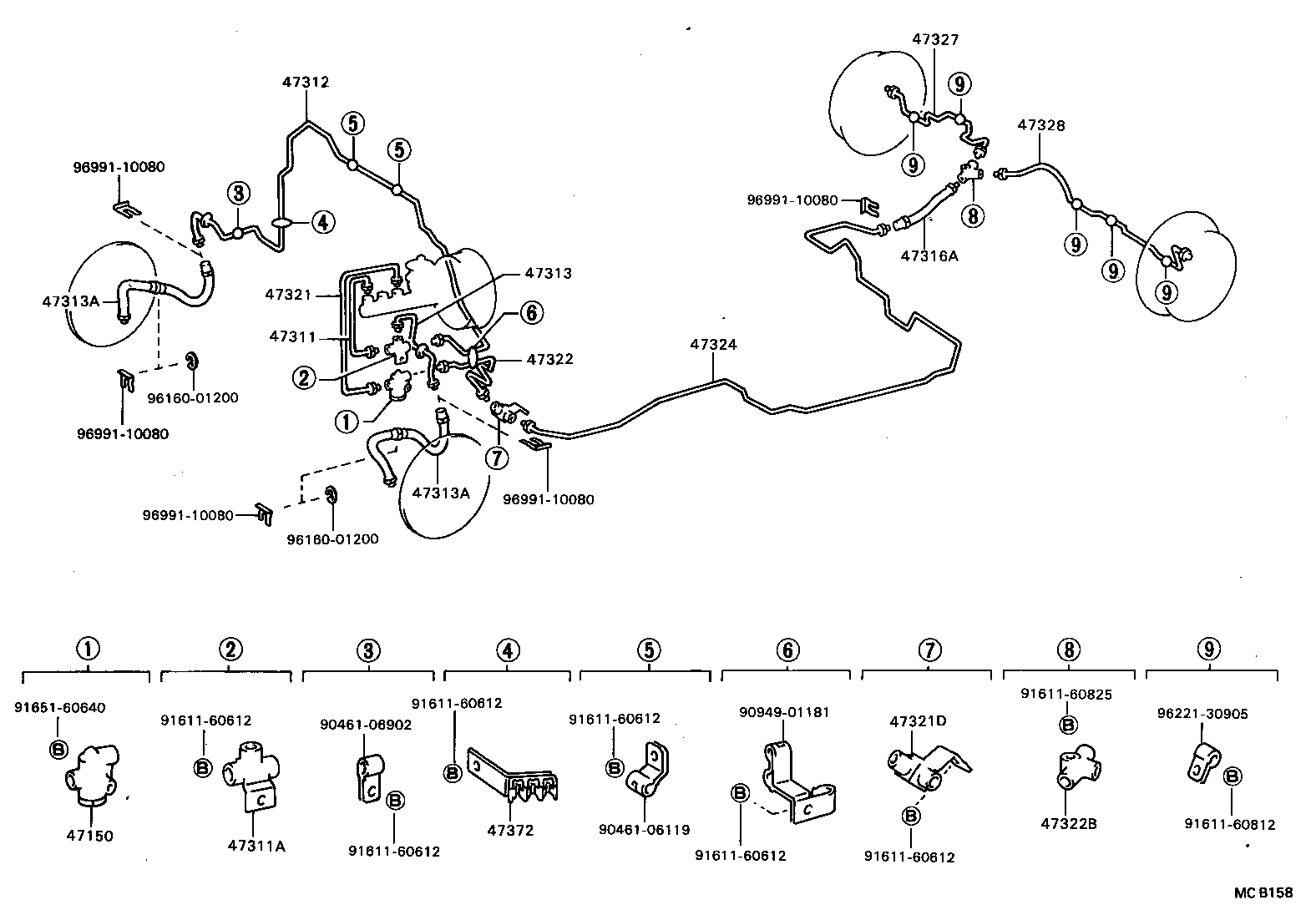

Click highlighted areas on diagram

diagram 47150 47311 47311A 47312 47313 47313A 47313A 47316A 47321 47321D 47322 47322B 47324 47327 47328 47372 9046106119 9046106902 9094901181 9161160612 9161160612 9161160612 9161160612 9161160612 9161160612 9161160812 9161160825 9165160640 9616001200 9616001200 9622130905 9699110080 9699110080 9699110080 9699110080 9699110080
Part # Description Qty Price
47150 - VALVE ASSY, PROPORTIONING
47150-12031

GX71,LX70..GL..(DSL,EFI,TD)

 1
47311 - TUBE, FRONT BRAKE, NO.1
47311-22350

LX70..GEN

 1
47311A - WAY(FOR FRONT BRAKE TUBE)
90413-10004

GX71,LX70,MX73,RX7#..LHD..(GEN,ME)

 1
47312 - TUBE, FRONT BRAKE, NO.2
47312-22150

LX70..GEN

 1
47313 - TUBE, FRONT BRAKE, NO.3
47313-22260

GX71,LX70,MX73,RX7#..LHD..(GEN,ME)

 1
47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT)
90947-02462

GX71,LX7#,MX7#,RX7#,YX70

 2
47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT)
90947-02462

GX71,LX7#,MX7#,RX7#,YX70

 2
47316A - HOSE, FLEXIBLE(FOR REAR BRAKE TUBE)
96940-32955

LX70,RX70,72,YX70..HT,SED

 1
47321 - TUBE, REAR BRAKE, NO.1
47321-22170

LX7#

 1
47321D - WAY, NO.1(FOR REAR BRAKE TUBE)
90412-10118

GX71,LX70,MX7#

 1
47322 - TUBE, REAR BRAKE, NO.2
47322-22150

GX71,LX7#,MX7#..LHD

 1
47322B - WAY, NO.2(FOR REAR BRAKE TUBE)
90413-10098

LX70,MX72,RX70,72,YX70

 1
47324 - TUBE, REAR BRAKE, NO.4
47324-22180

LX70..GEN

 1
47327 - TUBE, REAR BRAKE, NO.7
47327-22100

LX70,RX70,72,YX70..HT,SED

 1
47328 - TUBE, REAR BRAKE, NO.8
47328-22100

LX70,RX70,72,YX70..HT,SED

 1
47372 - CLAMP, BRAKE TUBE, NO.2
47371-22040

GX71,LX7#,RX70,71,72,YX70

 1
Common parts
90461-06119
90461-06902
90949-01181
91611-60612
91611-60812
91611-60825
91651-60640
96160-01200
96221-30905
96991-10080
