LX70L-XEMES (1984)

Toyota Cressida

Production Aug 1984 - Aug 1988
Engine 2L
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8408-8508)MX73..EFI ; (8408- )GX71..EUR,GEN; (8502- )GX71,LX7#..GL..DSL,EFI

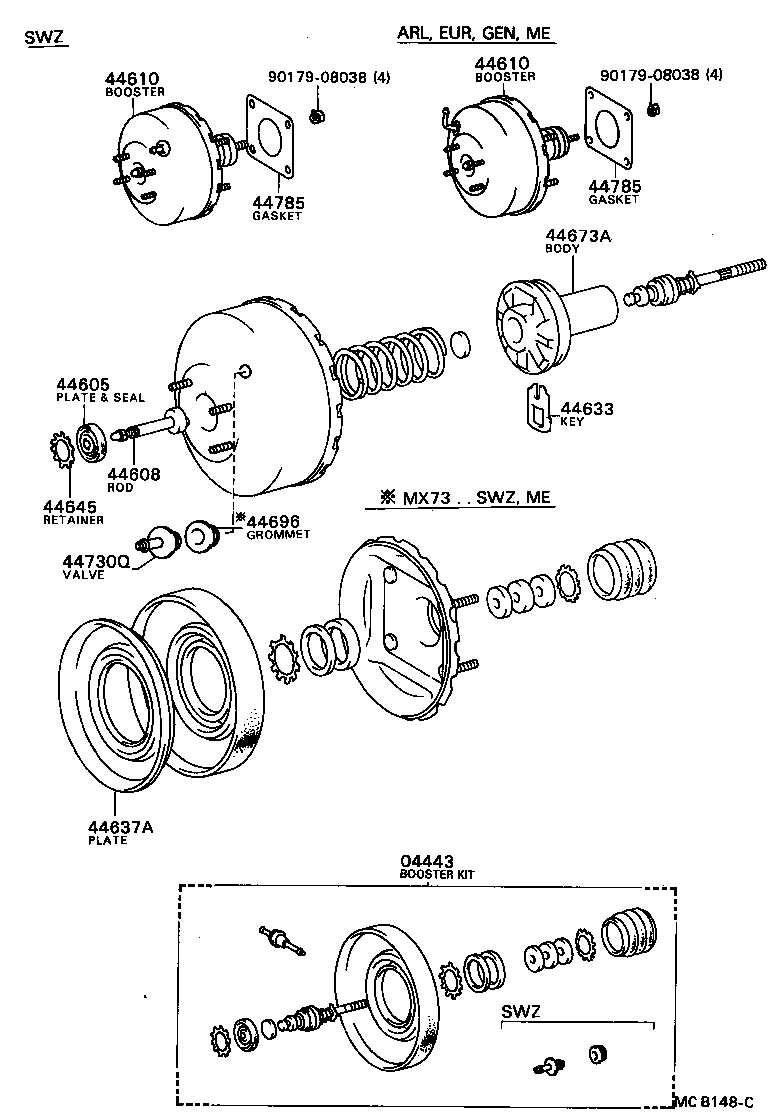

Click highlighted areas on diagram

GEN)

diagram 04443 44605 44608 44610 44610 44633 44637A 44645 44673A 44696 44730Q 44785 44785 9017908038 9017908038
Part # Description Qty Price
04443 - BOOSTER KIT, BRAKE
04443-22440

LX70

 1
04443-22440

LX70..GEN

 1
04443-22510

LX70..GEN

JKC

 1
44605 - PLATE & SEAL SUB-ASSY, BOOSTER
44605-22021

LX70..GEN

 1
44608 - PUSH ROD SUB-ASSY, BOOSTER
44606-12520

GX71,LX7#,MX72,RX70..(GL,XL)..(CBR,DSL,EFI,TD)

 1
44608-32020

LX70..GEN

 1
44610 - BOOSTER ASSY, BRAKE
44610-22460

LX70..GEN

AISIN

 1
44610-22460

LX70,RX70..LHD

 1
44610-22590

LX70..GEN

JKC

 1
44610 - BOOSTER ASSY, BRAKE
44610-22460

LX70..GEN

AISIN

 1
44610-22460

LX70,RX70..LHD

 1
44610-22590

LX70..GEN

JKC

 1
44633 - KEY, BOOSTER VALVE PLUNGER
44633-28130

LX70..GEN

 1
44637A - PLATE, BOOSTER DIAPHRAGM
44637-32020

LX70..GEN

 1
44645 - RETAINER, BOOSTER PUSH ROD SEAL
44645-22020

LX70..GEN

 1
44673A - BODY, BOOSTER VALVE
44673-16060

LX70..GEN

 1
44785 - GASKET, BRAKE BOOSTER
44785-32010

GX71,LX7#,MX7#,RX7#,YX70

 1
44785 - GASKET, BRAKE BOOSTER
44785-32010

GX71,LX7#,MX7#,RX7#,YX70

 1
Common parts
90179-08038

(8408-8502)GX71,LX7#,MX72,RX70..GL,XL..CBR,DSL,EFI,TD ; (8502-8508)MX72 ; (8502-870

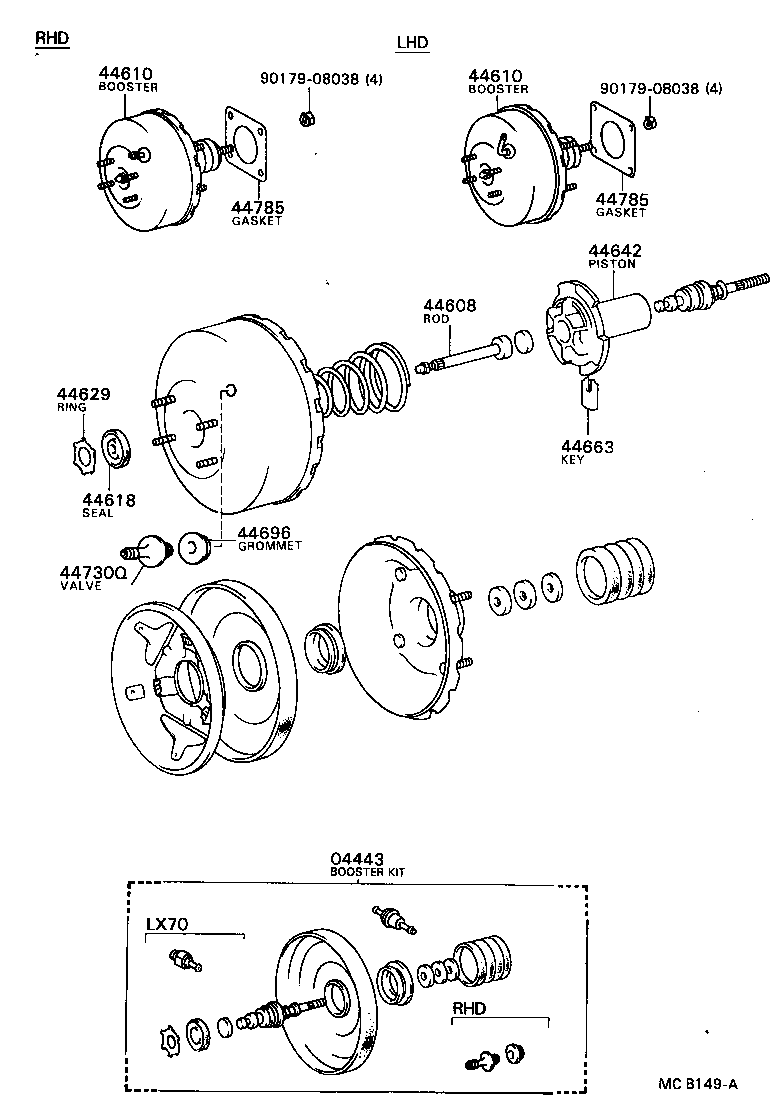

Click highlighted areas on diagram

diagram 04443 44608 44610 44610 44618 44629 44642 44663 44696 44730Q 44785 44785 9017908038 9017908038
Part # Description Qty Price
04443 - BOOSTER KIT, BRAKE
04443-22440

LX70

 1
04443-22440

LX70..GEN

 1
04443-22510

LX70..GEN

JKC

 1
44608 - PUSH ROD SUB-ASSY, BOOSTER
44606-12520

GX71,LX7#,MX72,RX70..(GL,XL)..(CBR,DSL,EFI,TD)

 1
44608-32020

LX70..GEN

 1
44610 - BOOSTER ASSY, BRAKE
44610-22460

LX70..GEN

AISIN

 1
44610-22460

LX70,RX70..LHD

 1
44610-22590

LX70..GEN

JKC

 1
44610 - BOOSTER ASSY, BRAKE
44610-22460

LX70..GEN

AISIN

 1
44610-22460

LX70,RX70..LHD

 1
44610-22590

LX70..GEN

JKC

 1
44618 - SEAL, BOOSTER BODY
44621-28120

GX71,LX7#,MX72,RX70..(GL,XL)..(CBR,DSL,EFI,TD)

 1
44629 - RING, CIRCULAR INTERNAL
44628-28120

GX71,LX7#,MX72,RX70..(GL,XL)..(CBR,DSL,EFI,TD)

 1
44642 - PISTON, BRAKE BOOSTER
44642-16050

LX70,RX70

 1
44642-16050

LX70..GEN

 1
44663 - KEY, VALVE STOPPER
44635-28120

GX71,LX7#,MX72,RX70..(GL,XL)..(CBR,DSL,EFI,TD)

 1
44785 - GASKET, BRAKE BOOSTER
44785-32010

GX71,LX7#,MX7#,RX7#,YX70

 1
44785 - GASKET, BRAKE BOOSTER
44785-32010

GX71,LX7#,MX7#,RX7#,YX70

 1
Common parts
90179-08038

(8408- )LX7#

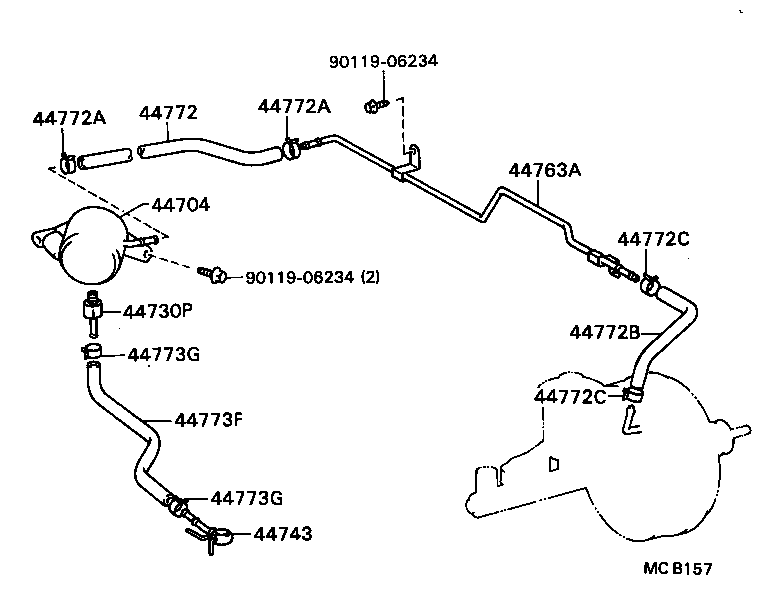

Click highlighted areas on diagram

diagram 44704 44730P 44743 44763A 44772 44772A 44772A 44772B 44772C 44772C 44773F 44773G 44773G 9011906234 9011906234
Part # Description Qty Price
44704 - RESERVOIR SUB-ASSY, VACUUM
44704-22020

LX7#

 1
44730P - VALVE ASSY, VACUUM CHECK, NO.1
44730-60050

LX70

 1
44730-60040

LX7#

 1
44743 - UNION(FOR VACUUM PUMP)
90405-09062

LX7#

 1
44763A - TUBE, HOSE TO HOSE, NO.1
44763-22060

LX7#

 1
44772 - HOSE, CHECK VALVE TO CONNECTOR TUBE
44772-22050

LX7#

 1
44772A - CLIP(FOR CHECK VALVE TO CONNECTOR TUBE)
90467-16002

LX7#,YX70;MX73..RHD

 2
44772A - CLIP(FOR CHECK VALVE TO CONNECTOR TUBE)
90467-16002

LX7#,YX70;MX73..RHD

 2
44772B - HOSE, CHECK VALVE TO BRAKE BOOSTER
44772-22090

GX71,LX7#,RX70..LHD

 1
44772-22090

LX7#,RX7#..LHD

 1
44772C - CLIP(FOR CHECK VALVE TO BRAKE BOOSTER HOSE)
90467-16002

RX70,72..LHD;GX71,LX7#,RX71,73,YX70

 2
44772C - CLIP(FOR CHECK VALVE TO BRAKE BOOSTER HOSE)
90467-16002

RX70,72..LHD;GX71,LX7#,RX71,73,YX70

 2
44773F - HOSE, UNION TO CHECK VALVE
44773-22360

LX7#

 1
44773G - CLIP(FOR UNION TO CHECK VALVE HOSE)
90467-16002

LX7#,MX7#..LHD

 2
44773G - CLIP(FOR UNION TO CHECK VALVE HOSE)
90467-16002

LX7#,MX7#..LHD

 2
Common parts
90119-06234
