LX60RG-XWPDS (1980)
Toyota Cressida
Production
Sep 1980
-
Aug 1982
Engine
L
Transmission
4FC ATM
Displacement
2500cc
Power
168 HP (125 kW)
(8009- )LX60..RHD

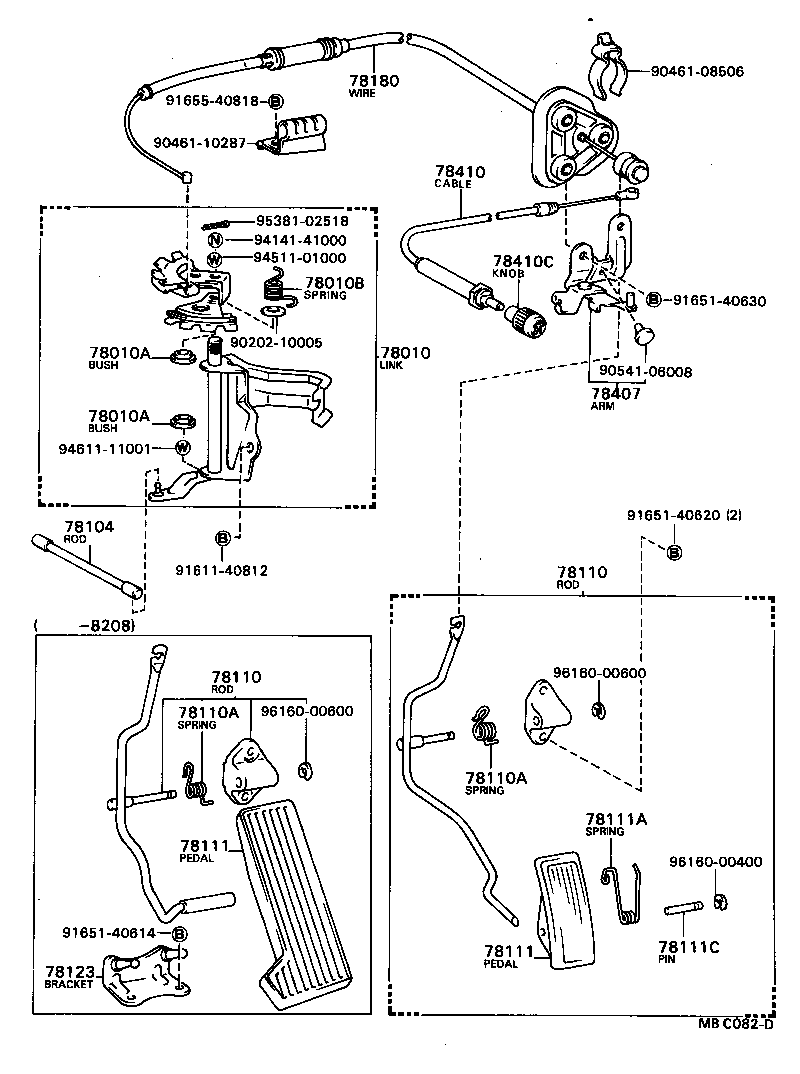

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 78010 - LINK, ACCELERATOR | ||||
| 78100-30460 |
LX60 |
1 | ||
| 78010A - BUSH (FOR ACCELERATOR LINK) | ||||
| 90386-10138 |
LX60 |
2 | ||
| 78010A - BUSH (FOR ACCELERATOR LINK) | ||||
| 90386-10138 |
LX60 |
2 | ||
| 78010B - SPRING, TORSION (FOR ACCELERATOR LINK) | ||||
| 90508-16010 |
LX60 |
1 | ||
| 78104 - ROD SUB-ASSY, ACCELERATOR CONNECTING, NO.2 | ||||
| 78104-30120 |
LX60 |
1 | ||
| 78110 - ROD ASSY, ACCELERATOR PEDAL | ||||
| 78120-22140 |
LX60,RX60..RHD |
1 | ||
| 78110 - ROD ASSY, ACCELERATOR PEDAL | ||||
| 78120-22140 |
LX60,RX60..RHD |
1 | ||
| 78110A - SPRING (FOR ACCELERATOR PEDAL ROD) | ||||
| 90508-18006 |
LX60,MX62,RX6#..RHD |
1 | ||
| 78110A - SPRING (FOR ACCELERATOR PEDAL ROD) | ||||
| 90508-18006 |
LX60,MX62,RX6#..RHD |
1 | ||
| 78111 - PEDAL, ACCELERATOR | ||||
| 78111-30080 |
LX60,MX62,RX6#,TX62..RHD |
1 | ||
| 78111 - PEDAL, ACCELERATOR | ||||
| 78111-30080 |
LX60,MX62,RX6#,TX62..RHD |
1 | ||
| 78180 - WIRE ASSY, ACCELERATOR | ||||
| 78180-22191 |
LX60..RHD |
1 | ||
| 78407 - ARM SUB-ASSY, THROTTLE CONTROL | ||||
| 78407-22040 |
LX60..RHD |
1 | ||
| 78410 - CABLE ASSY, THROTTLE CONTROL | ||||
| 78401-22020 |
LX60..RHD |
1 | ||
| 78410C - KNOB, THROTTLE CABLE | ||||
| 78411-22010 |
LX60 |
1 | ||
| Common parts | ||||
| 90202-10005 | ||||
| 90461-08506 | ||||
| 90461-10287 | ||||
| 90541-06008 | ||||
| 91611-40812 | ||||
| 91651-40614 | ||||
| 91651-40620 | ||||
| 91651-40630 | ||||
| 91655-40818 | ||||
| 94141-41000 | ||||
| 94511-01000 | ||||
| 94611-11001 | ||||
| 95381-02518 | ||||
| 96160-00400 | ||||
| 96160-00600 | ||||
