LX60RG-XWMDS (1980)

Toyota Cressida

Production Sep 1980 - Aug 1982
Engine L
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8009- )RHD

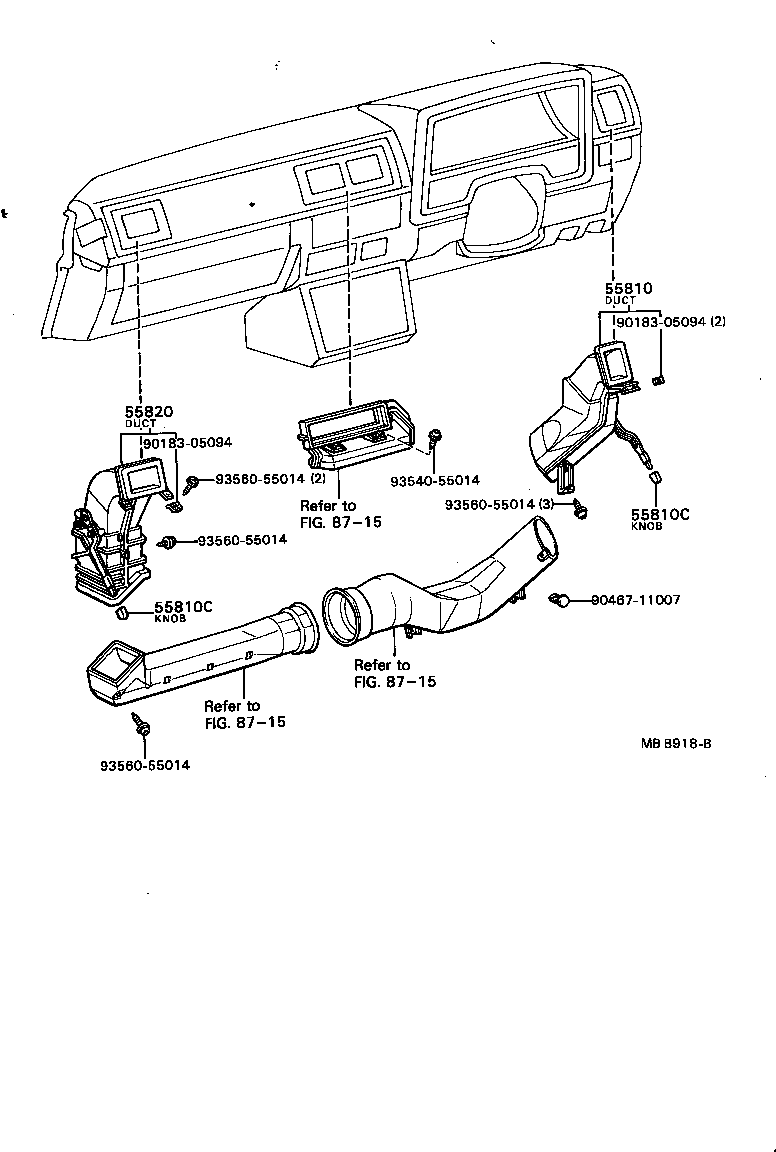

Click highlighted areas on diagram

diagram 55810 55810C 55810C 55820 8715 8715 8715 9018305094 9018305094 9046711007 9354055014 9356055014 9356055014 9356055014 9356055014
Part # Description Qty Price
55810 - DUCT ASSY, SIDE VENTILATOR, RH
55084-22020

GX6#,LX60,MX6#,RX6#,TX62..RHD

 1
55810C - KNOB SUB-ASSY, CONTROL(FOR VENTILATOR DUCT)
55804-22020

GX6#,LX60,MX6#,RX6#,TX62

 2
55810C - KNOB SUB-ASSY, CONTROL(FOR VENTILATOR DUCT)
55804-22020

GX6#,LX60,MX6#,RX6#,TX62

 2
55820 - DUCT ASSY, SIDE VENTILATOR, LH
55087-22040

GX6#,LX60,MX6#,RX6#,TX62..RHD

 1
Common parts
90183-05094
90467-11007
93540-55014
93560-55014
Linked diagrams
8715
