GX81R-AEPQK (1988)

Toyota Cressida

Production Aug 1988 - Feb 1993
Engine 1GFE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

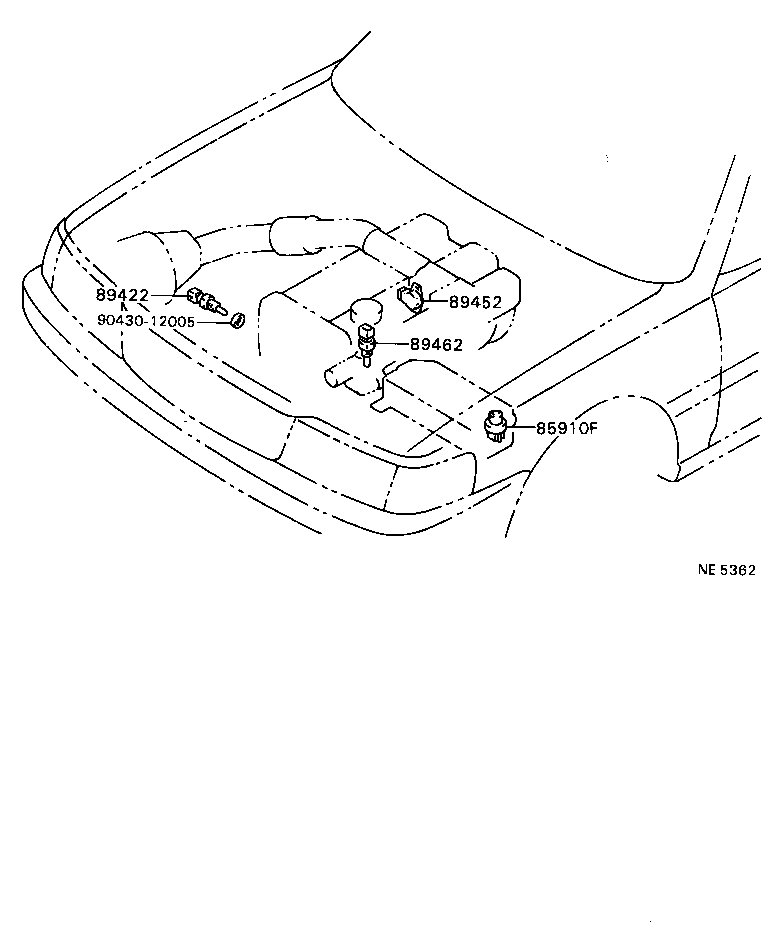

ILLUST NO. 1 OF 2(8808-9302)GX81

Click highlighted areas on diagram

diagram 85910F 89422 89452 89462 9043012005
Part # Description Qty Price
85910F - RELAY, COMPUTER (FOR EFI)
90987-02004

GX81,MX8#

 1
89422 - SENSOR, WATER TEMPERATURE (FOR E.F.I.)
89422-20010

GX81,MX8#

 1
89452 - SENSOR, THROTTLE POSITION (FOR E.F.I.)
89452-22010

GX81

 1
89452-22010

GX81,MX81

 1
89462 - SWITCH, START INJECTOR TIME
89462-20020

GX81,MX83

 1
89462-20030

GX81,MX81

 1
Common parts
90430-12005

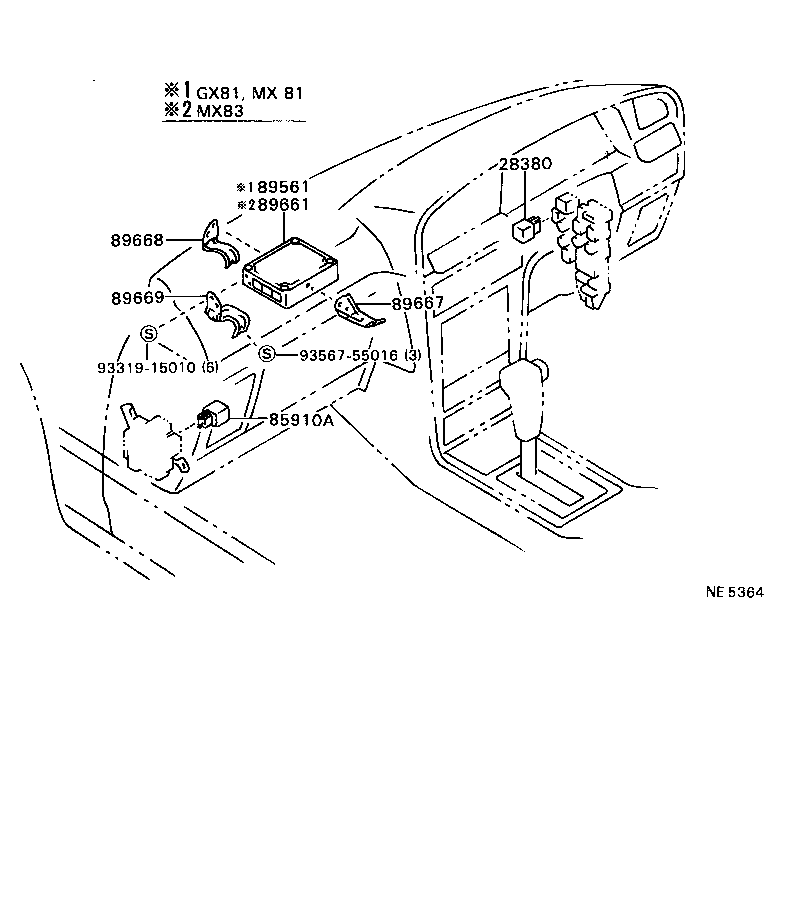

ILLUST NO. 2 OF 2(8808-9302)GX81,MX8#

Click highlighted areas on diagram

diagram 28380 85910A 89561 89661 89667 89668 89669 9331915010 9356755016
Part # Description Qty Price
85910A - RELAY ASSY, CIRCUIT OPENING (FOR EFI)
85910-30050

GX81,MX8#

 1
89561 - COMPUTER, FUEL INJECTION
89561-22090

GX81

 1
89667 - BRACKET, ENGINE CONTROL COMPUTER
89667-22100

GX81,MX83..RHD

 1
89668 - BRACKET, ENGINE CONTROL COMPUTER, NO.2
89668-22140

GX81,MX83..RHD

 1
89669 - BRACKET, ENGINE CONTROL COMPUTER, NO.3
89669-22160

GX81,MX83..RHD

 1
Common parts
93319-15010
93567-55016
