GX81R-AEMQK (1988)
Toyota Cressida
ILLUST NO. 1 OF 3(8808- )
CONTROL
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55538A - COVER, COOLER SWITCH HOLE | ||||
| 55538-22060 |
RX80..XL..V;MX81,RX81..GLX,XL;GX81,LX80,RX8#..GEN |
1 | ||
| 55902B - CONTROL SUB-ASSY, HEATER | ||||
| 55902-22080 |
GX81,MX8#..ARL,GEN |
1 | ||
| 55905A - KNOB, HEATER CONTROL | ||||
| 55905-22260 |
GX81,LX80,MX8#,RX8# TEMP & BLOWER |
2 | ||
| 55905-22280 |
GX81,LX80,MX81,RX8# MODE |
2 | ||
| 55905A - KNOB, HEATER CONTROL | ||||
| 55905-22260 |
GX81,LX80,MX8#,RX8# TEMP & BLOWER |
2 | ||
| 55905-22280 |
GX81,LX80,MX81,RX8# MODE |
2 | ||
| 55907A - CABLE SUB-ASSY, WATER VALVE CONTROL | ||||
| 55907-22200 |
GX81..RHD W(PUSH TYPE HEATER CONTROL) |
1 | ||
| 55907-22210 |
GX81,RX80..RHD |
1 | ||
| 55910 - CONTROL ASSY, HEATER OR BOOST VENTILATOR | ||||
| 55910-22480 |
GX81..RHD W(AUTO AIR CONDITIONER) |
1 | ||
| 55910-22460 |
GX81..RHD W(PUSH TYPE HEATER CONTROL) |
1 | ||
| 55910-22400 |
GX81,RX80..RHD |
1 | ||
| 55937A - KNOB, COOLER CONTROL LEVER | ||||
| 55905-22250 |
GX81,MX83..RHD |
1 | ||
| 81936B - BULB ASSY, COOLER CONTROL | ||||
| 81936-22120 |
GX81,MX8#..ARL,GEN |
2 | ||
| 81936B - BULB ASSY, COOLER CONTROL | ||||
| 81936-22120 |
GX81,MX8#..ARL,GEN |
2 | ||
| 87284 - RESISTOR SUB-ASSY, VARIABLE | ||||
| 88032-22100 |
GX81..RHD AUTOMATIC AIR CONDITIONER---DEALER OPT |
1 | ||
| Common parts | ||||
| 87126-12040 | ||||
| 90183-05103 | ||||
| 93560-55010 | ||||
| 93566-14512 | ||||
| 93567-55016 | ||||
| Linked diagrams | ||||
| 8401 | ||||
ILLUST NO. 1 OF 3(8808- )
CONTROL
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55538A - COVER, COOLER SWITCH HOLE | ||||
| 55538-22060 |
RX80..XL..V;MX81,RX81..GLX,XL;GX81,LX80,RX8#..GEN |
1 | ||
| 55905A - KNOB, HEATER CONTROL | ||||
| 55905-22260 |
GX81,LX80,MX8#,RX8# TEMP & BLOWER |
2 | ||
| 55905-22280 |
GX81,LX80,MX81,RX8# MODE |
2 | ||
| 55905A - KNOB, HEATER CONTROL | ||||
| 55905-22260 |
GX81,LX80,MX8#,RX8# TEMP & BLOWER |
2 | ||
| 55905-22280 |
GX81,LX80,MX81,RX8# MODE |
2 | ||
| 55905A - KNOB, HEATER CONTROL | ||||
| 55905-22260 |
GX81,LX80,MX8#,RX8# TEMP & BLOWER |
2 | ||
| 55905-22280 |
GX81,LX80,MX81,RX8# MODE |
2 | ||
| 55905A - KNOB, HEATER CONTROL | ||||
| 55905-22260 |
GX81,LX80,MX8#,RX8# TEMP & BLOWER |
2 | ||
| 55905-22280 |
GX81,LX80,MX81,RX8# MODE |
2 | ||
| 55906A - CABLE SUB-ASSY, DEFROSTER DAMPER CONTROL | ||||
| 55906-22130 |
GX81,RX80..RHD |
1 | ||
| 55907A - CABLE SUB-ASSY, WATER VALVE CONTROL | ||||
| 55907-22200 |
GX81..RHD W(PUSH TYPE HEATER CONTROL) |
1 | ||
| 55907-22210 |
GX81,RX80..RHD |
1 | ||
| 55908A - CABLE SUB-ASSY, AIR INLET DAMPER CONTROL | ||||
| 55908-22060 |
GX81,RX80..RHD |
1 | ||
| 55910 - CONTROL ASSY, HEATER OR BOOST VENTILATOR | ||||
| 55910-22480 |
GX81..RHD W(AUTO AIR CONDITIONER) |
1 | ||
| 55910-22460 |
GX81..RHD W(PUSH TYPE HEATER CONTROL) |
1 | ||
| 55910-22400 |
GX81,RX80..RHD |
1 | ||
| 55910C - GROMMET(FOR HEATER CONTROL CABLE) | ||||
| 90480-13024 |
GX81,LX80,MX81,RX8# |
1 | ||
| Common parts | ||||
| 55933-22040 | ||||
| 87126-12040 | ||||
| 90183-05103 | ||||
| 93567-55016 | ||||
| Linked diagrams | ||||
| 8302 | ||||
| 8401 | ||||
ILLUST NO. 1 OF 3(8808- )
CONTROL
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55538A - COVER, COOLER SWITCH HOLE | ||||
| 55538-22060 |
RX80..XL..V;MX81,RX81..GLX,XL;GX81,LX80,RX8#..GEN |
1 | ||
| 55905A - KNOB, HEATER CONTROL | ||||
| 55905-22260 |
GX81,LX80,MX8#,RX8# TEMP & BLOWER |
2 | ||
| 55905-22280 |
GX81,LX80,MX81,RX8# MODE |
2 | ||
| 55905A - KNOB, HEATER CONTROL | ||||
| 55905-22260 |
GX81,LX80,MX8#,RX8# TEMP & BLOWER |
2 | ||
| 55905-22280 |
GX81,LX80,MX81,RX8# MODE |
2 | ||
| 55905A - KNOB, HEATER CONTROL | ||||
| 55905-22260 |
GX81,LX80,MX8#,RX8# TEMP & BLOWER |
2 | ||
| 55905-22280 |
GX81,LX80,MX81,RX8# MODE |
2 | ||
| 55905A - KNOB, HEATER CONTROL | ||||
| 55905-22260 |
GX81,LX80,MX8#,RX8# TEMP & BLOWER |
2 | ||
| 55905-22280 |
GX81,LX80,MX81,RX8# MODE |
2 | ||
| 55906A - CABLE SUB-ASSY, DEFROSTER DAMPER CONTROL | ||||
| 55906-22130 |
GX81,RX80..RHD |
1 | ||
| 55908A - CABLE SUB-ASSY, AIR INLET DAMPER CONTROL | ||||
| 55908-22060 |
GX81,RX80..RHD |
1 | ||
| 55910 - CONTROL ASSY, HEATER OR BOOST VENTILATOR | ||||
| 55910-22480 |
GX81..RHD W(AUTO AIR CONDITIONER) |
1 | ||
| 55910-22460 |
GX81..RHD W(PUSH TYPE HEATER CONTROL) |
1 | ||
| 55910-22400 |
GX81,RX80..RHD |
1 | ||
| 87284 - RESISTOR SUB-ASSY, VARIABLE | ||||
| 88032-22100 |
GX81..RHD AUTOMATIC AIR CONDITIONER---DEALER OPT |
1 | ||
| Common parts | ||||
| 55933-22040 | ||||
| 90183-05103 | ||||
| 93567-55016 | ||||
| 93568-14512 | ||||
| Linked diagrams | ||||
| 8302 | ||||
| 8401 | ||||
ILLUST NO. 2 OF 3(8808- )
AUTO AIR CONDITIONER SENSOR
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88625C - THERMISTOR, COOLER | ||||
| 88625-22150 |
GX81..RHD ENGINE ROOM |
1 | ||
| 88625-22140 |
GX81..RHD *IP TOP |
1 | ||
| 88625-22150 |
GX81,MX81..GEN ENGINE ROOM |
1 | ||
| 88625-20130 |
GX81..RHD *IP INNER |
1 | ||
| 88625-22141 |
GX81..RHD *IP TOP |
1 | ||
| 88625-22150 |
GX81..RHD ENGINE ROOM |
1 | ||
| 88625C - THERMISTOR, COOLER | ||||
| 88625-22150 |
GX81..RHD ENGINE ROOM |
1 | ||
| 88625-22140 |
GX81..RHD *IP TOP |
1 | ||
| 88625-22150 |
GX81,MX81..GEN ENGINE ROOM |
1 | ||
| 88625-20130 |
GX81..RHD *IP INNER |
1 | ||
| 88625-22141 |
GX81..RHD *IP TOP |
1 | ||
| 88625-22150 |
GX81..RHD ENGINE ROOM |
1 | ||
| 88625C - THERMISTOR, COOLER | ||||
| 88625-22150 |
GX81..RHD ENGINE ROOM |
1 | ||
| 88625-22140 |
GX81..RHD *IP TOP |
1 | ||
| 88625-22150 |
GX81,MX81..GEN ENGINE ROOM |
1 | ||
| 88625-20130 |
GX81..RHD *IP INNER |
1 | ||
| 88625-22141 |
GX81..RHD *IP TOP |
1 | ||
| 88625-22150 |
GX81..RHD ENGINE ROOM |
1 | ||
| 88625C - THERMISTOR, COOLER | ||||
| 88625-22140 |
GX81..RHD *IP TOP |
1 | ||
| 88625-22150 |
GX81,MX81..GEN ENGINE ROOM |
1 | ||
| 88625-20130 |
GX81..RHD *IP INNER |
1 | ||
| 88625-22150 |
GX81..RHD ENGINE ROOM |
1 | ||
| 88625-22141 |
GX81..RHD *IP TOP |
1 | ||
| 88625-22150 |
GX81..RHD ENGINE ROOM |
1 | ||
| 88625C - THERMISTOR, COOLER | ||||
| 88625-22140 |
GX81..RHD *IP TOP |
1 | ||
| 88625-22150 |
GX81,MX81..GEN ENGINE ROOM |
1 | ||
| 88625-20130 |
GX81..RHD *IP INNER |
1 | ||
| 88625-22150 |
GX81..RHD ENGINE ROOM |
1 | ||
| 88625-22141 |
GX81..RHD *IP TOP |
1 | ||
| 88625-22150 |
GX81..RHD ENGINE ROOM |
1 | ||
| 88625C - THERMISTOR, COOLER | ||||
| 88625-22140 |
GX81..RHD *IP TOP |
1 | ||
| 88625-22150 |
GX81,MX81..GEN ENGINE ROOM |
1 | ||
| 88625-20130 |
GX81..RHD *IP INNER |
1 | ||
| 88625-22150 |
GX81..RHD ENGINE ROOM |
1 | ||
| 88625-22141 |
GX81..RHD *IP TOP |
1 | ||
| 88625-22150 |
GX81..RHD ENGINE ROOM |
1 | ||
| 88625C - THERMISTOR, COOLER | ||||
| 88625-22140 |
GX81..RHD *IP TOP |
1 | ||
| 88625-22150 |
GX81,MX81..GEN ENGINE ROOM |
1 | ||
| 88625-20130 |
GX81..RHD *IP INNER |
1 | ||
| 88625-22150 |
GX81..RHD ENGINE ROOM |
1 | ||
| 88625-22141 |
GX81..RHD *IP TOP |
1 | ||
| 88625-22150 |
GX81..RHD ENGINE ROOM |
1 | ||
| 88625C - THERMISTOR, COOLER | ||||
| 88625-22140 |
GX81..RHD *IP TOP |
1 | ||
| 88625-22150 |
GX81,MX81..GEN ENGINE ROOM |
1 | ||
| 88625-20130 |
GX81..RHD *IP INNER |
1 | ||
| 88625-22150 |
GX81..RHD ENGINE ROOM |
1 | ||
| 88625-22141 |
GX81..RHD *IP TOP |
1 | ||
| 88625-22150 |
GX81..RHD ENGINE ROOM |
1 | ||
| 88669 - HOSE, COOLER AIR | ||||
| 88669-22050 |
GX81..RHD DEALER OPT |
1 | ||
| 88669-22030 |
GX81..RHD MAKER OPT |
1 | ||
| Common parts | ||||
| 88569-22300 | ||||
| 90091-20609 | ||||
| 90179-06032 | ||||
| 91651-F0616 | ||||
| 93510-55012 | ||||

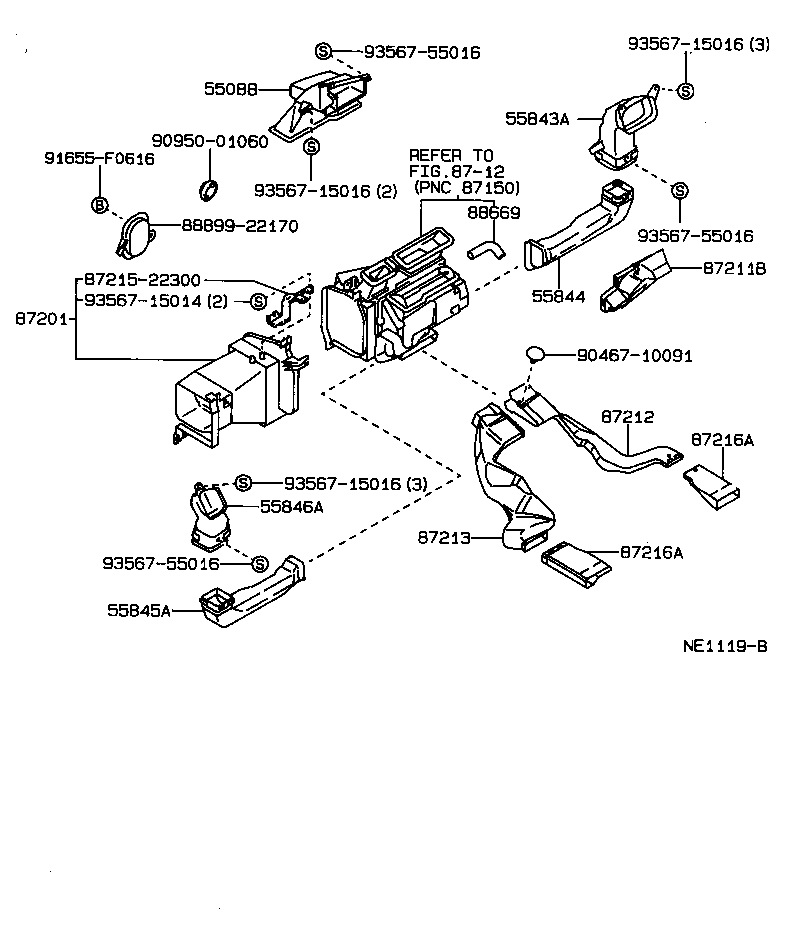

ILLUST NO. 3 OF 3(8808-9302)RHD
AIR DUCTS
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55088 - DUCT SUB-ASSY, HEATER TO REGISTER, NO.5 | ||||
| 55088-22100 |
GX81,MX83,RX80..RHD |
1 | ||
| 55843A - DUCT, HEATER TO REGISTER, NO.1 | ||||
| 55843-22110 |
GX81,MX83,RX80..RHD |
1 | ||
| 55844 - DUCT, HEATER TO REGISTER, NO.2 | ||||
| 55844-22110 |
GX81,MX83,RX80..RHD W(AIR CONDITIONER) |
1 | ||
| 55844-22090 |
GX81,MX83,RX80..RHD |
1 | ||
| 55845A - DUCT, HEATER TO REGISTER, NO.3 | ||||
| 55845-22180 |
GX81,MX83,RX80..RHD |
1 | ||
| 55846A - DUCT, HEATER TO REGISTER, NO.4 | ||||
| 55846-22080 |
GX81,MX83,RX80..RHD |
1 | ||
| 87201 - DUCT SUB-ASSY, AIR, NO.1 | ||||
| 87201-22010 |
GX81,MX83,RX80..RHD |
1 | ||
| 87211B - DUCT, AIR, NO.3 | ||||
| 87211-22130 |
GX81,MX83,RX80..RHD |
1 | ||
| 87212 - DUCT, AIR, REAR NO.1 | ||||
| 87212-22030 |
GX81,LX80,MX8#,RX8# |
1 | ||
| 87213 - DUCT, AIR, REAR NO.2 | ||||
| 87213-22030 |
GX81,LX80,MX8#,RX8# |
1 | ||
| 87216A - DUCT, AIR, REAR NO.5 | ||||
| 87216-22030 |
GX81,LX80,MX8#,RX8# LH |
1 | ||
| 87215-22020 |
GX81,LX80,MX8#,RX8# RH |
1 | ||
| 87216A - DUCT, AIR, REAR NO.5 | ||||
| 87216-22030 |
GX81,LX80,MX8#,RX8# LH |
1 | ||
| 87215-22020 |
GX81,LX80,MX8#,RX8# RH |
1 | ||
| 88669 - HOSE, COOLER AIR | ||||
| 88669-22050 |
GX81..RHD DEALER OPT |
1 | ||
| 88669-22030 |
GX81..RHD MAKER OPT |
1 | ||
| Common parts | ||||
| 87215-22300 | ||||
| 88899-22170 | ||||
| 90467-10091 | ||||
| 90950-01060 | ||||
| 91655-F0616 | ||||
| 93567-15014 | ||||
| 93567-15016 | ||||
| 93567-55016 | ||||
| Linked diagrams | ||||
| 8712 | ||||
