GX71L-XTPEEV (1985)
Toyota Cressida
Production
Apr 1985
-
Aug 1986
Engine
1GE
Transmission
4FC ATM
Displacement
2500cc
Power
168 HP (125 kW)
(8504-8608)HT

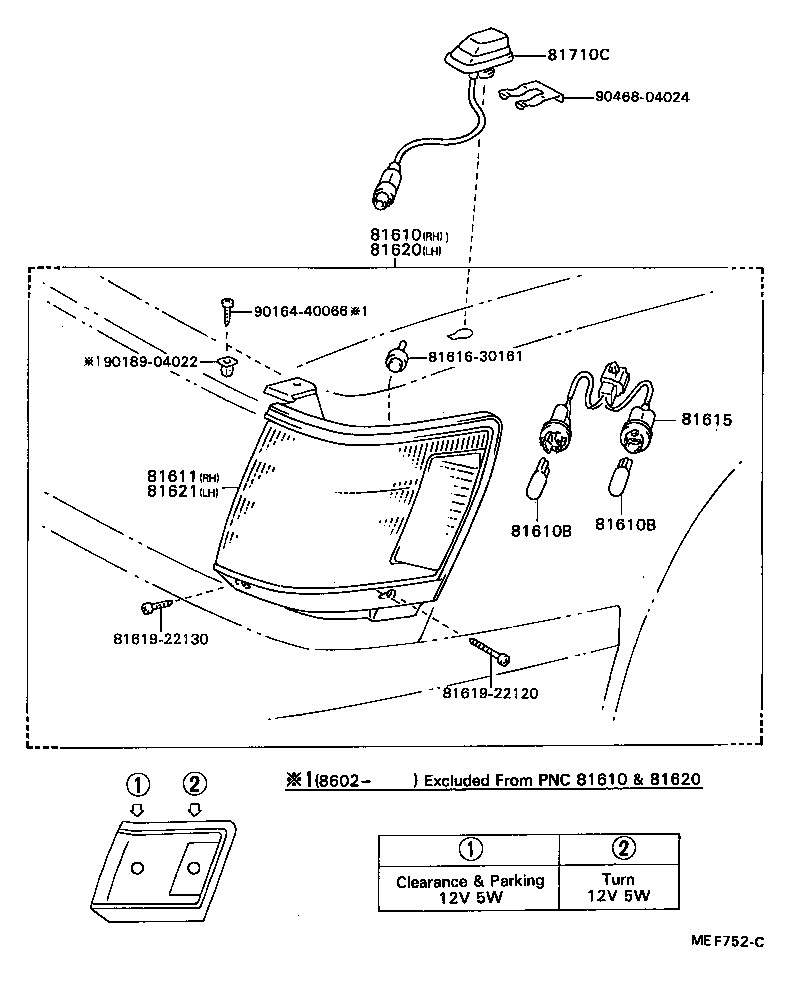

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 81610 - LAMP ASSY, PARKING & CLEARANCE, RH | ||||
| 81610-29455 |
GX71,MX73,RX70..HT |
1 | ||
| 81610-22160 |
GX71,MX73,RX70..HT |
1 | ||
| 81610B - BULB(FOR PARKING & CLEARANCE LAMP) | ||||
| 90981-12010 |
GX71,MX73,RX70..ME 12V 5W,12V 5W |
4 | ||
| 81610B - BULB(FOR PARKING & CLEARANCE LAMP) | ||||
| 90981-12010 |
GX71,MX73,RX70..ME 12V 5W,12V 5W |
4 | ||
| 81611 - LENS, PARKING & CLEARANCE LAMP, RH | ||||
| 81611-22160 |
GX71,MX73,RX70..HT |
1 | ||
| 81615 - SOCKET AND WIRE, CLEARANCE LAMP | ||||
| 81615-22160 |
GX71,MX73,RX70..HT |
2 | ||
| 81620 - LAMP ASSY, PARKING & CLEARANCE, LH | ||||
| 81620-22160 |
GX71,MX73,RX70..HT |
1 | ||
| 81620-29445 |
GX71,MX73,RX70..HT |
1 | ||
| 81621 - LENS, PARKING & CLEARANCE LAMP, LH | ||||
| 81621-22160 |
GX71,MX73,RX70..HT |
1 | ||
| Common parts | ||||
| 81616-30161 | ||||
| 81619-22120 | ||||
| 81619-22130 | ||||
| 90164-40066 | ||||
| 90189-04022 | ||||
| 90468-04024 | ||||
