YT140R-TEKRS (1988)
Toyota Corona Fr
Production
Jan 1988
-
Jul 1999
Engine
2Y
Transmission
4F MTM
Displacement
2500cc
Power
168 HP (125 kW)
ILLUST NO. 3 OF 3(9212- )
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90099-14044 | ||||
| 90099-14045 | ||||
| 90099-14046 | ||||
| 90099-14056 | ||||
| 90099-14067 | ||||
| 90099-14119 | ||||
| 90099-14120 | ||||
| 90099-14121 | ||||
| 90099-14122 | ||||
| 90099-14125 | ||||

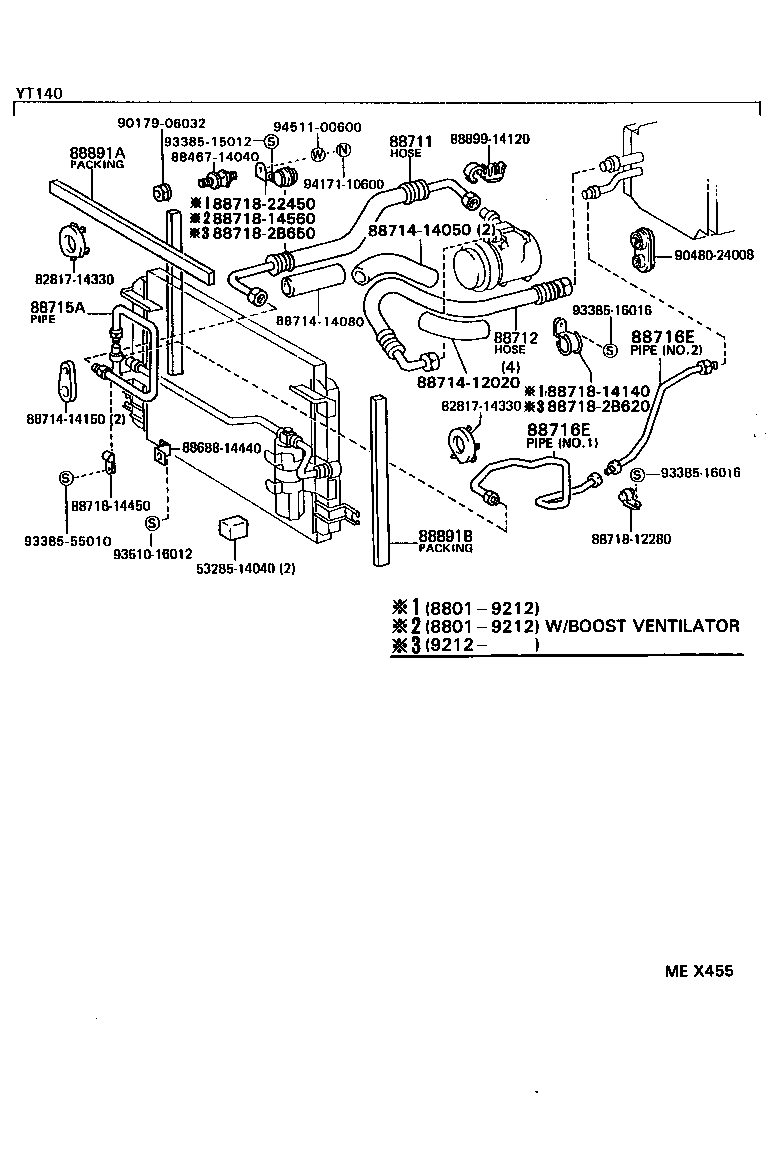

ILLUST NO. 2 OF 3(8801- )YT140..RHD
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88711 - HOSE, COOLER REFRIGERANT DISCHARGE, NO.1 | ||||
| 88711-20421 |
YT140 |
1 | ||
| 88711-20422 |
YT140 |
1 | ||
| 88712 - HOSE, COOLER REFRIGERANT SUCTION, NO.1 | ||||
| 88712-20510 |
YT140..RHD |
1 | ||
| 88712-20512 |
YT140..RHD |
1 | ||
| 88712-20511 |
YT140..RHD |
1 | ||
| 88715A - PIPE, COOLER REFRIGERANT DISCHARGE, A | ||||
| 88715-14131 |
YT140 |
1 | ||
| 88716E - PIPE, COOLER REFRIGERANT LIQUID, E | ||||
| 88716-2B351 |
CT141,YT140..RHD NO.1 |
1 | ||
| 88716-2B361 |
CT141,YT140..RHD NO.2 |
1 | ||
| 88716E - PIPE, COOLER REFRIGERANT LIQUID, E | ||||
| 88716-2B351 |
CT141,YT140..RHD NO.1 |
1 | ||
| 88716-2B361 |
CT141,YT140..RHD NO.2 |
1 | ||
| Common parts | ||||
| 53285-14040 | ||||
| 82817-14330 | ||||
| 88467-14040 | ||||
| 88688-14440 | ||||
| 88714-12020 | ||||
| 88714-14050 | ||||
| 88714-14080 | ||||
| 88714-14150 | ||||
| 88718-12280 | ||||
| 88718-14140 | ||||
| 88718-14450 | ||||
| 88718-14560 | ||||
| 88718-22450 | ||||
| 88718-2B620 | ||||
| 88718-2B650 | ||||
| 88899-14120 | ||||
| 90179-06032 | ||||
| 90480-24008 | ||||
| 93385-15012 | ||||
| 93385-16016 | ||||
| 93385-55010 | ||||
| 93510-16012 | ||||
| 94171-10600 | ||||
| 94511-00600 | ||||
