Toyota Corona fr YT140 CLUTCH MASTER CYLINDER

YT140R-TEKRS (1988)

Toyota Corona Fr

Production Jan 1988 - Jul 1999

Engine 2Y

Transmission 4F MTM

Displacement 2500cc

Power 168 HP (125 kW)

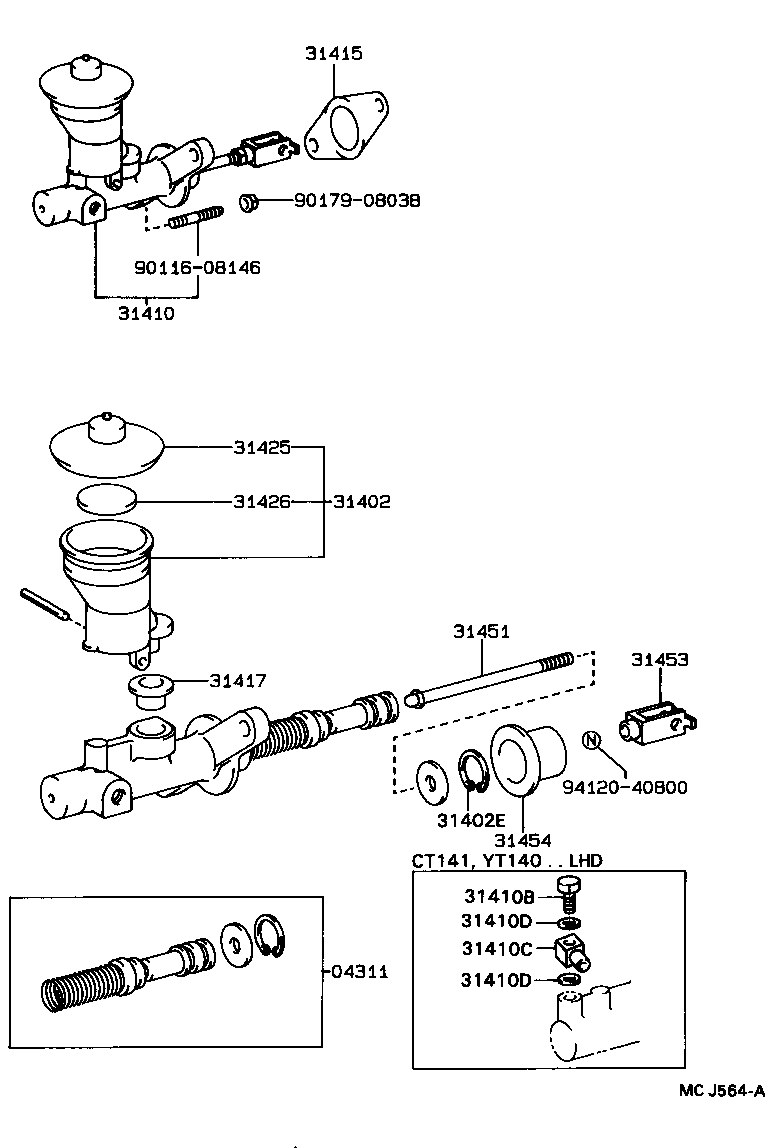

Click highlighted areas on diagram

Part #	Description	Period	Qty
04311 - CYLINDER KIT, CLUTCH MASTER
04311-20080	YT140	08/1989 - 08/1991	1
04311-30110	YT140	08/1991 - 05/1995	1
04311-30111	YT140	05/1995 - 07/1999	1
31402 - RESERVOIR SUB-ASSY, CLUTCH MASTER CYLINDER
31402-35030	YT140	08/1989 - 07/1999	1
31410 - CYLINDER ASSY, CLUTCH MASTER
31410-20302	YT140..RHD	01/1988 - 09/1988	1
31410-20304	YT140..RHD	08/1989 - 07/1999	1
31410-20303	YT140..RHD	09/1988 - 08/1989	1
31410 - CYLINDER ASSY, CLUTCH MASTER
31410-20302	YT140..RHD	01/1988 - 09/1988	1
31410-20304	YT140..RHD	08/1989 - 07/1999	1
31410-20303	YT140..RHD	09/1988 - 08/1989	1
31410 - CYLINDER ASSY, CLUTCH MASTER
31410-20302	YT140..RHD	01/1988 - 09/1988	1
31410-20304	YT140..RHD	08/1989 - 07/1999	1
31410-20303	YT140..RHD	09/1988 - 08/1989	1
31425 - CAP, CLUTCH MASTER CYLINDER RESERVOIR FILLER
47230-20040	CT14#,RT14#,ST141,TT14#,YT140..MTM	01/1982 - 07/1999	1
31426 - FLOAT, CLUTCH MASTER CYLINDER RESERVOIR
31426-30011	CT14#,RT14#,ST141,TT14#,YT140..MTM	01/1982 - 07/1999	1
31431 - BOLT, CLUTCH MASTER CYLINDER RESERVOIR SET
47231-30010	CT14#,RT14#,ST141,TT14#,YT140..MTM	01/1982 - 08/1989	1
31432 - WASHER, CLUTCH RESERVOIR SET BOLT
47232-30010	CT14#,RT14#,ST141,TT14#,YT140..MTM	01/1982 - 08/1989	1
31451 - ROD, CLUTCH MASTER CYLINDER PUSH
31451-35070	YT140	08/1989 - 07/1999	1
31454 - BOOT, CLUTCH MASTER CYLINDER
31454-24010	YT140	08/1989 - 07/1999	1
31454-14010	RT14#,ST141,TT14#,YT140..MTM	01/1982 - 08/1989	1
Common parts
90116-08146
90179-08038
94120-40800

Click highlighted areas on diagram

Part #	Description	Period	Qty
04311 - CYLINDER KIT, CLUTCH MASTER
04311-20080	YT140	08/1989 - 08/1991	1
04311-30110	YT140	08/1991 - 05/1995	1
04311-30111	YT140	05/1995 - 07/1999	1
31402 - RESERVOIR SUB-ASSY, CLUTCH MASTER CYLINDER
31402-35030	YT140	08/1989 - 07/1999	1
31402E - RING(FOR CLUTCH MASTER CYLINDER RESERVOIR)
96151-02200	YT140	08/1989 - 07/1999	1
31410 - CYLINDER ASSY, CLUTCH MASTER
31410-20302	YT140..RHD	01/1988 - 09/1988	1
31410-20304	YT140..RHD	08/1989 - 07/1999	1
31410-20303	YT140..RHD	09/1988 - 08/1989	1
31417 - GROMMET, CLUTCH RESERVOIR
31417-35010	YT140	08/1989 - 07/1999	1
31425 - CAP, CLUTCH MASTER CYLINDER RESERVOIR FILLER
47230-20040	CT14#,RT14#,ST141,TT14#,YT140..MTM	01/1982 - 07/1999	1
31426 - FLOAT, CLUTCH MASTER CYLINDER RESERVOIR
31426-30011	CT14#,RT14#,ST141,TT14#,YT140..MTM	01/1982 - 07/1999	1
31451 - ROD, CLUTCH MASTER CYLINDER PUSH
31451-35070	YT140	08/1989 - 07/1999	1
31454 - BOOT, CLUTCH MASTER CYLINDER
31454-24010	YT140	08/1989 - 07/1999	1
31454-14010	RT14#,ST141,TT14#,YT140..MTM	01/1982 - 08/1989	1
Common parts
90116-08146
90179-08038
94120-40800
