YT140L-TEKRS (1986)

Toyota Corona Fr

Production Dec 1986 - Jul 1999
Engine 2Y
Transmission 4F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8612- )2Y

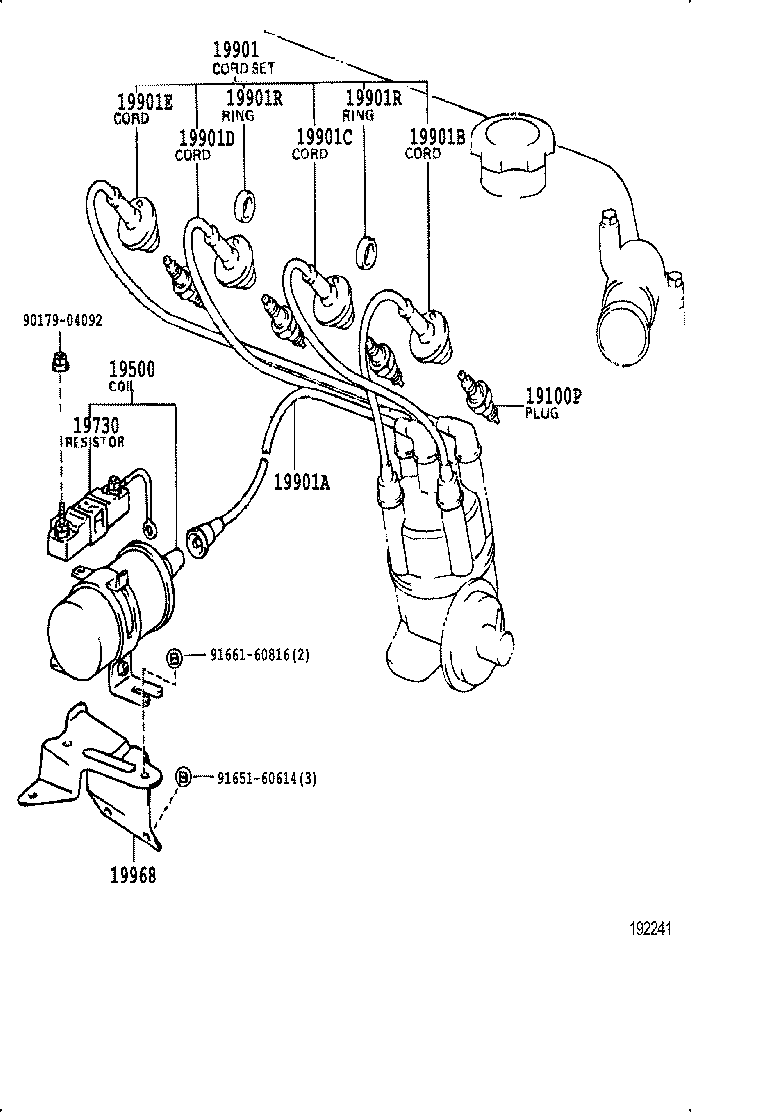

Click highlighted areas on diagram

diagram 19100P 19500 19730 19901 19901A 19901B 19901C 19901D 19901E 19901R 19901R 19968 9017904092 9165160614 9166160816
Part # Description Qty Price
19100P - PLUG, SPARK
90919-01059

2Y..YT140

W16EX-U,W16EX-U

 4
19500 - COIL ASSY, IGNITION
90919-02156

2Y..YT140

 1
19730 - RESISTOR, IGNITION COIL
90919-04033

2Y..YT140

 1
19901 - CORD SET, COIL & SPARK, W/RESISTIVE
90919-21495

2Y..YT140

 1
19901A - CORD, COIL RESISTIVE
90919-13039

2Y..YT140

 1
19901B - CORD, SPARK PLUG RESISTIVE, NO.1
90919-12469

2Y..YT140

 1
19901C - CORD, SPARK PLUG RESISTIVE, NO.2
90919-12470

2Y..YT140

 1
19901D - CORD, SPARK PLUG RESISTIVE, NO.3
90919-12471

2Y..YT140

 1
19901E - CORD, SPARK PLUG RESISTIVE, NO.4
90919-12472

2Y..YT140

 1
19901R - RING, RUBBER SPARK PLUG RESISTIVE CORD
90202-11067

2Y..YT140

 2
19901R - RING, RUBBER SPARK PLUG RESISTIVE CORD
90202-11067

2Y..YT140

 2
19968 - BRACKET, IGNITION COIL
19968-72020

2Y..YT140..LHD

 1
Common parts
90179-04092
91651-60614
91661-60816
