TT141RG-TWHDS (1982)

Toyota Corona Fr

Production Jan 1982 - Dec 1983
Engine 3T
Transmission 3FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

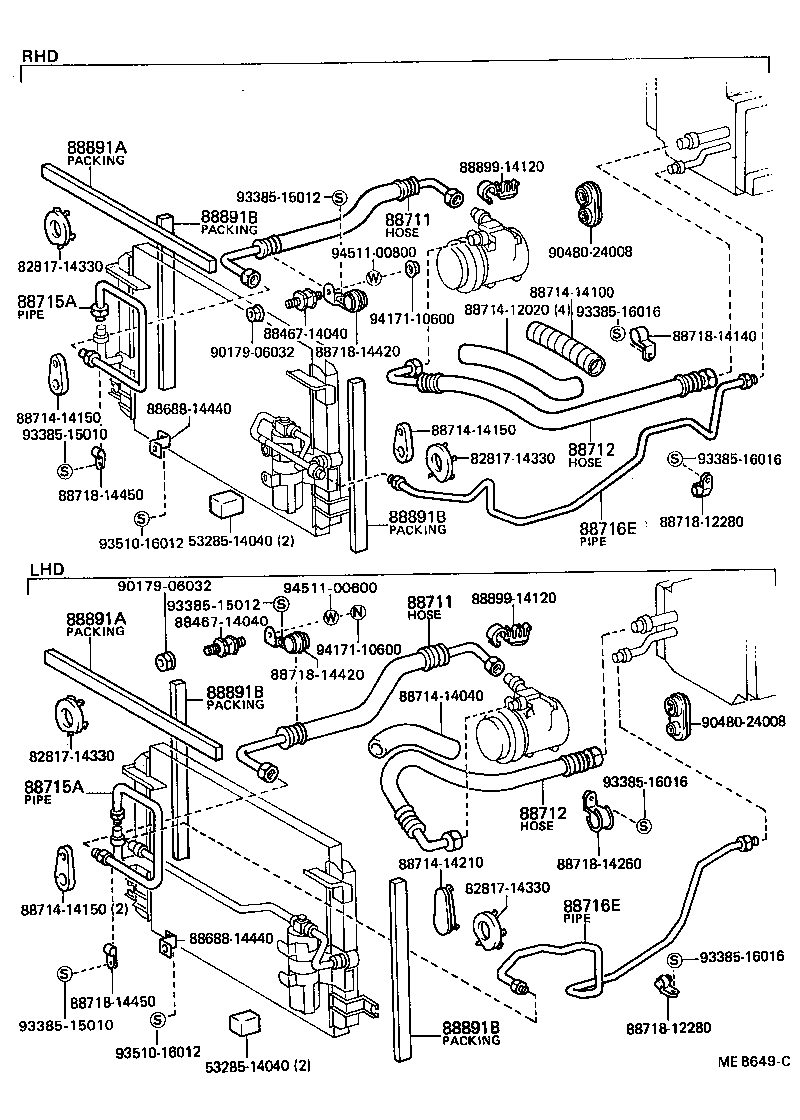

ILLUST NO. 2 OF 3(8201-8508)TT14#

Click highlighted areas on diagram

diagram 5328514040 5328514040 8281714330 8281714330 8281714330 8281714330 8846714040 8846714040 8868814440 8868814440 88711 88711 88712 88712 8871412020 8871414040 8871414100 8871414150 8871414150 8871414150 8871414210 88715A 88715A 88716E 88716E 8871812280 8871812280 8871814140 8871814260 8871814420 8871814420 8871814450 8871814450 88891A 88891A 88891B 88891B 88891B 88891B 8889914120 8889914120 9017906032 9017906032 9048024008 9048024008 9338515010 9338515010 9338515012 9338515012 9338516016 9338516016 9338516016 9338516016 9351016012 9351016012 9417110600 9417110600 9451100600 9451100800
Part # Description Qty Price
88711 - HOSE, COOLER REFRIGERANT DISCHARGE, NO.1
88711-14420

TT14#

 1
88711 - HOSE, COOLER REFRIGERANT DISCHARGE, NO.1
88711-14420

TT14#

 1
88712 - HOSE, COOLER REFRIGERANT SUCTION, NO.1
88712-14730

TT14#..RHD

 1
88712 - HOSE, COOLER REFRIGERANT SUCTION, NO.1
88712-14730

TT14#..RHD

 1
88715A - PIPE, COOLER REFRIGERANT DISCHARGE, A
88715-14130

TT14#

 1
88715A - PIPE, COOLER REFRIGERANT DISCHARGE, A
88715-14130

TT14#

 1
88716E - PIPE, COOLER REFRIGERANT LIQUID, E
88716-14760

CT140,TT14#..RHD

 1
88716E - PIPE, COOLER REFRIGERANT LIQUID, E
88716-14760

CT140,TT14#..RHD

 1
88891A - PACKING A (FOR COOLER)
53293-14050

TT141..3FC

 1
88891A - PACKING A (FOR COOLER)
53293-14050

TT141..3FC

 1
88891B - PACKING B (FOR COOLER)
53291-14020

TT14#

 2
88891B - PACKING B (FOR COOLER)
53291-14020

TT14#

 2
88891B - PACKING B (FOR COOLER)
53291-14020

TT14#

 2
88891B - PACKING B (FOR COOLER)
53291-14020

TT14#

 2
Common parts
53285-14040
82817-14330
88467-14040
88688-14440
88714-12020
88714-14040
88714-14100
88714-14150
88714-14210
88718-12280
88718-14140
88718-14260
88718-14420
88718-14450
88899-14120
90179-06032
90480-24008
93385-15010
93385-15012
93385-16016
93510-16012
94171-10600
94511-00600
94511-00800

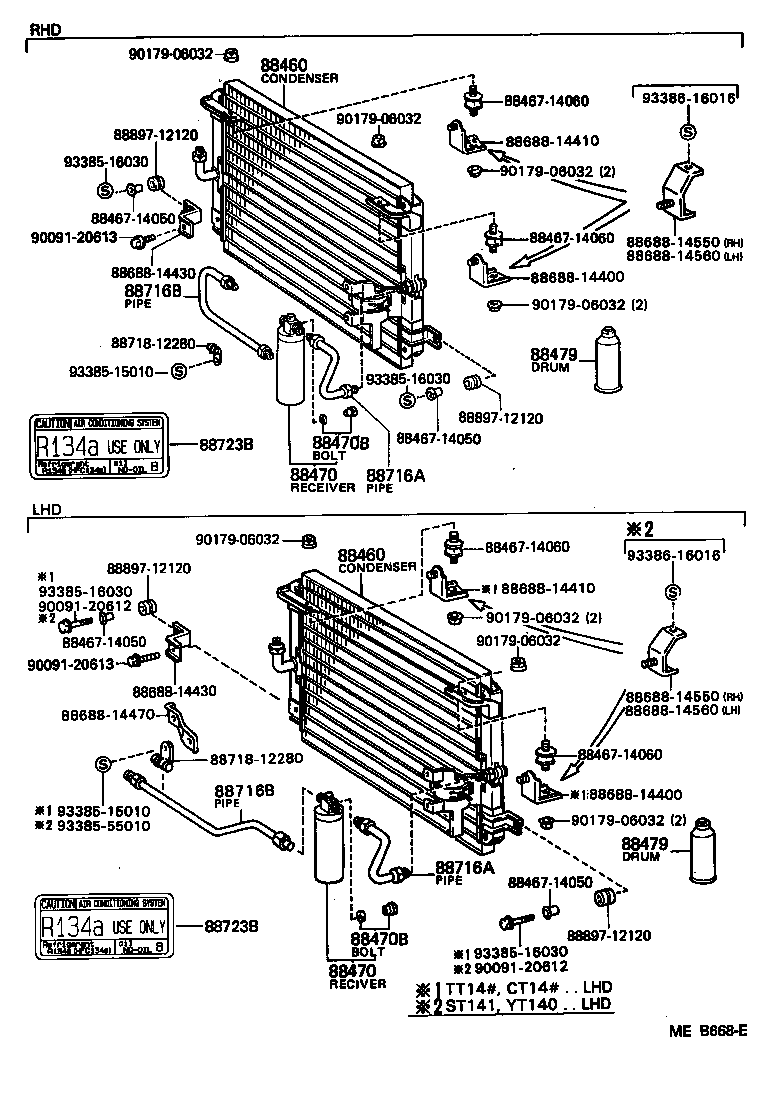

ILLUST NO. 1 OF 3(8201- )

Click highlighted areas on diagram

diagram 88460 88460 8846714050 8846714050 8846714050 8846714050 8846714060 8846714060 8846714060 8846714060 88470 88470 88470B 88470B 88479 88479 8868814400 8868814400 8868814410 8868814410 8868814430 8868814430 8868814470 8868814550 8868814550 8868814560 8868814560 88716A 88716A 88716B 88716B 8871812280 8871812280 88723B 88723B 8889712120 8889712120 8889712120 8889712120 9009120612 9009120612 9009120613 9009120613 9017906032 9017906032 9017906032 9017906032 9017906032 9017906032 9017906032 9017906032 9338515010 9338515010 9338516030 9338516030 9338516030 9338555010 9338616016 9338616016 9838516030
Part # Description Qty Price
88460 - CONDENSER ASSY, COOLER
88460-14210

CT140,TT14#

 1
88460 - CONDENSER ASSY, COOLER
88460-14210

CT140,TT14#

 1
88470 - RECEIVER & DRYER ASSY, COOLER
88470-14010

CT140,TT14#

 1
88470 - RECEIVER & DRYER ASSY, COOLER
88470-14010

CT140,TT14#

 1
88470B - BOLT, FUSE
88475-12020

CT140,TT14#

 1
88470B - BOLT, FUSE
88475-12020

CT140,TT14#

 1
88479 - FREON GAS, AIR CONDITIONER (DRUM, COOLER REFRIGERANT)
90986-02001

CT140,TT14#

400G

 2
88479 - FREON GAS, AIR CONDITIONER (DRUM, COOLER REFRIGERANT)
90986-02001

CT140,TT14#

400G

 2
88716A - PIPE, COOLER REFRIGERANT LIQUID, A
88716-14730

CT140,TT14#

 1
88716A - PIPE, COOLER REFRIGERANT LIQUID, A
88716-14730

CT140,TT14#

 1
88716B - PIPE, COOLER REFRIGERANT LIQUID, B
88716-14740

TT14#..RHD

 1
88716B - PIPE, COOLER REFRIGERANT LIQUID, B
88716-14740

TT14#..RHD

 1
Common parts
88467-14050
88467-14060
88688-14400
88688-14410
88688-14430
88688-14470
88688-14550
88688-14560
88718-12280
88897-12120
90091-20612
90091-20613
90179-06032
93385-15010
93385-16030
93385-55010
93386-16016
98385-16030
