TT141RG-TWHDS (1982)

Toyota Corona Fr

Production Jan 1982 - Dec 1983
Engine 3T
Transmission 3FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8201-8508)WG ; (8508-8612)WG..ARL

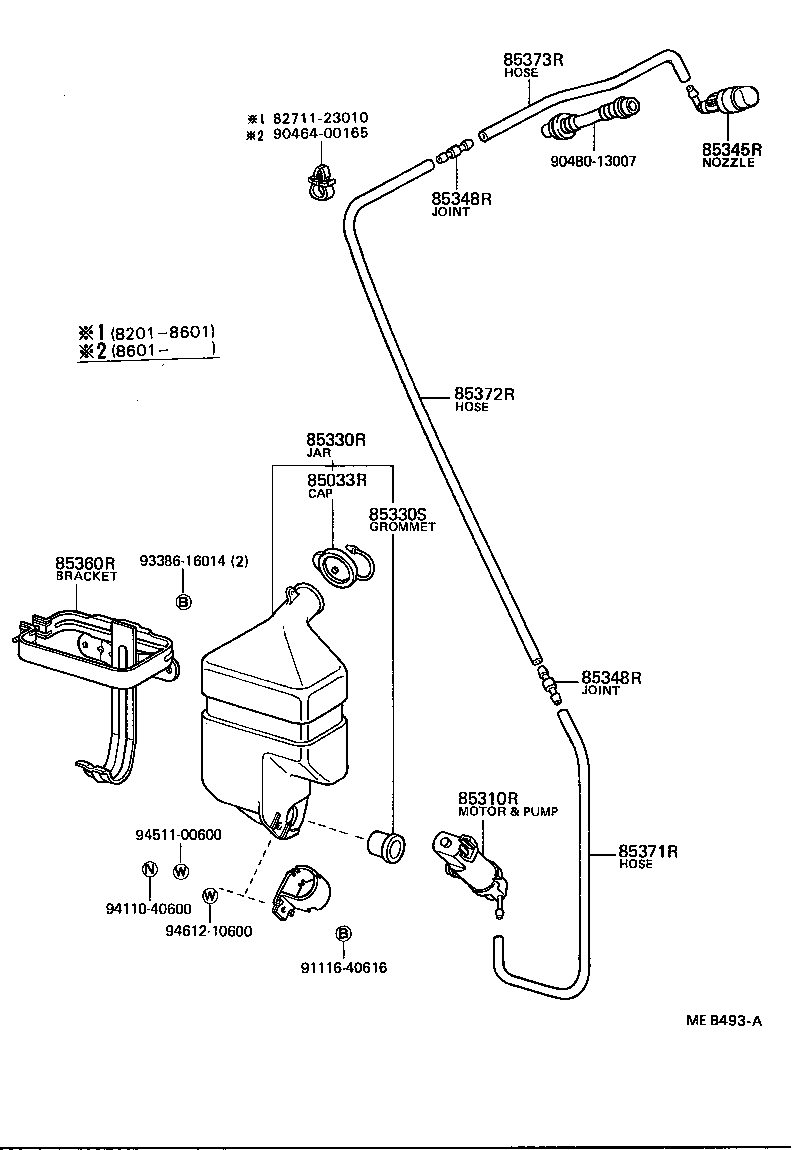

Click highlighted areas on diagram

diagram 8271123010 85033R 85310R 85330R 85330S 85345R 85348R 85348R 85360R 85371R 85372R 85373R 9046400165 9048013007 9111640616 9338616014 9411040600 9451100600 9461210600
Part # Description Qty Price
85033R - CAP ASSY, REAR WASHER
85033-36120

CT140,RT140,ST141,TT14#..WG

 1
85310R - MOTOR ASSY, REAR WASHER
85310-22080

CT140,RT140,ST141,TT14#..WG

 1
85330R - JAR ASSY, REAR WASHER
85330-23011

CT140,RT140,ST141,TT14#..WG

 1
85330S - BUSH, REAR WASHER JAR
90099-32089

CT140,RT140,ST141,TT14#..WG

 1
85345R - NOZZLE, REAR WASHER
85035-91255

CT140,RT140,ST141,TT14#..WG

 1
85348R - JOINT, REAR WASHER HOSE, NO.1
85349-89122

CT140,RT140,ST141,TT14#..WG

 2
85348R - JOINT, REAR WASHER HOSE, NO.1
85349-89122

CT140,RT140,ST141,TT14#..WG

 2
85360R - BRACKET ASSY, REAR WASHER
85360-15010

CT140,RT140,ST141,TT14#..WG

 1
85371R - HOSE, REAR WASHER (FROM MOTOR TO JOINT)
90099-33299

CT140,RT140,ST141,TT14#..WG

*H,L=450

 1
85372R - HOSE, REAR WASHER (FROM JOINT TO JOINT OR NOZZLE)
90446-06013

CT140,RT140,ST141,TT14#..WG

*H,L=900

 1
85373R - HOSE, REAR WASHER (FROM JOINT TO NOZZLE)
90099-33299

CT140,RT140,ST141,TT14#..WG

*H,L=300

 1
Common parts
82711-23010
90464-00165
90480-13007
91116-40616
93386-16014
94110-40600
94511-00600
94612-10600
