TT141R-TEMNS (1982)

Toyota Corona Fr

Production Jan 1982 - Dec 1984
Engine 3T
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8201-8612)

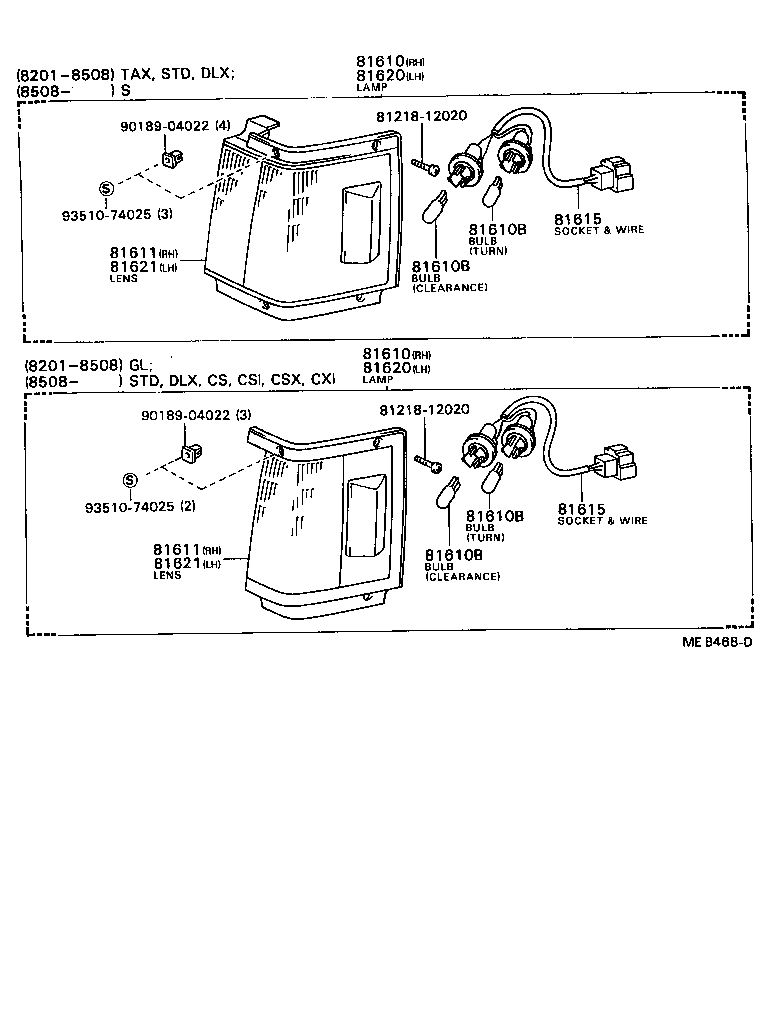

Click highlighted areas on diagram

diagram 8121812020 8121812020 81610 81610 81610B 81610B 81610B 81610B 81611 81611 81615 81615 81620 81620 81621 81621 9018904022 9018904022 9351074025 9351074025
Part # Description Qty Price
81610 - LAMP ASSY, PARKING & CLEARANCE, RH
81610-29385

ST141,TT141..CSX,GL

 1
81610-29255

ST141,TT141..CSX,GL

 1
81610-29265

CT140,RT140,ST141,TT14#..CS,DLX,S,STD,TAX

 1
81610-29385

TT141..GL

 1
81610 - LAMP ASSY, PARKING & CLEARANCE, RH
81610-29385

ST141,TT141..CSX,GL

 1
81610-29255

ST141,TT141..CSX,GL

 1
81610-29265

CT140,RT140,ST141,TT14#..CS,DLX,S,STD,TAX

 1
81610-29385

TT141..GL

 1
81610B - BULB(FOR PARKING & CLEARANCE LAMP)
99132-12050

CT140,RT14#,ST141,TT14#

12V 5W,12V 5W(CLEARANCE);12V 5W(TURN)

 2
81610B - BULB(FOR PARKING & CLEARANCE LAMP)
99132-12050

CT140,RT14#,ST141,TT14#

12V 5W,12V 5W(CLEARANCE);12V 5W(TURN)

 2
81610B - BULB(FOR PARKING & CLEARANCE LAMP)
99132-12050

CT140,RT14#,ST141,TT14#

12V 5W,12V 5W(CLEARANCE);12V 5W(TURN)

 2
81610B - BULB(FOR PARKING & CLEARANCE LAMP)
99132-12050

CT140,RT14#,ST141,TT14#

12V 5W,12V 5W(CLEARANCE);12V 5W(TURN)

 2
81611 - LENS, PARKING & CLEARANCE LAMP, RH
81611-20150

ST141,TT141..CSX,GL

 1
81611-20190

ST141,TT141..CSX,GL

 1
81611-20160

CT140,RT140,ST141,TT14#..CS,DLX,S,STD,TAX

 1
81611-20190

TT141..GL

 1
81611 - LENS, PARKING & CLEARANCE LAMP, RH
81611-20150

ST141,TT141..CSX,GL

 1
81611-20190

ST141,TT141..CSX,GL

 1
81611-20160

CT140,RT140,ST141,TT14#..CS,DLX,S,STD,TAX

 1
81611-20190

TT141..GL

 1
81615 - SOCKET AND WIRE, CLEARANCE LAMP
81615-20160

CT140,RT14#,ST141,TT14#..CS,CSI,DLX,S,STD,TAX

 2
81615-20150

RT142,ST141,TT141..CSX,CXI,GL

 2
81615 - SOCKET AND WIRE, CLEARANCE LAMP
81615-20160

CT140,RT14#,ST141,TT14#..CS,CSI,DLX,S,STD,TAX

 2
81615-20150

RT142,ST141,TT141..CSX,CXI,GL

 2
81620 - LAMP ASSY, PARKING & CLEARANCE, LH
81620-29375

TT141..GL

 1
81620-29375

ST141,TT141..CSX,GL

 1
81620-29245

ST141,TT141..CSX,GL

 1
81620-29255

CT140,RT140,ST141,TT14#..CS,DLX,S,STD,TAX

 1
81620 - LAMP ASSY, PARKING & CLEARANCE, LH
81620-29375

TT141..GL

 1
81620-29375

ST141,TT141..CSX,GL

 1
81620-29245

ST141,TT141..CSX,GL

 1
81620-29255

CT140,RT140,ST141,TT14#..CS,DLX,S,STD,TAX

 1
81621 - LENS, PARKING & CLEARANCE LAMP, LH
81621-20150

ST141,TT141..CSX,GL

 1
81621-20190

TT141..GL

 1
81621-20160

CT140,RT140,ST141,TT14#..CS,DLX,S,STD,TAX

 1
81621-20190

ST141,TT141..CSX,GL

 1
81621 - LENS, PARKING & CLEARANCE LAMP, LH
81621-20150

ST141,TT141..CSX,GL

 1
81621-20190

TT141..GL

 1
81621-20160

CT140,RT140,ST141,TT14#..CS,DLX,S,STD,TAX

 1
81621-20190

ST141,TT141..CSX,GL

 1
Common parts
81218-12020
90189-04022
93510-74025
