TT141R-TEMNS (1982)

Toyota Corona Fr

Production Jan 1982 - Dec 1984
Engine 3T
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

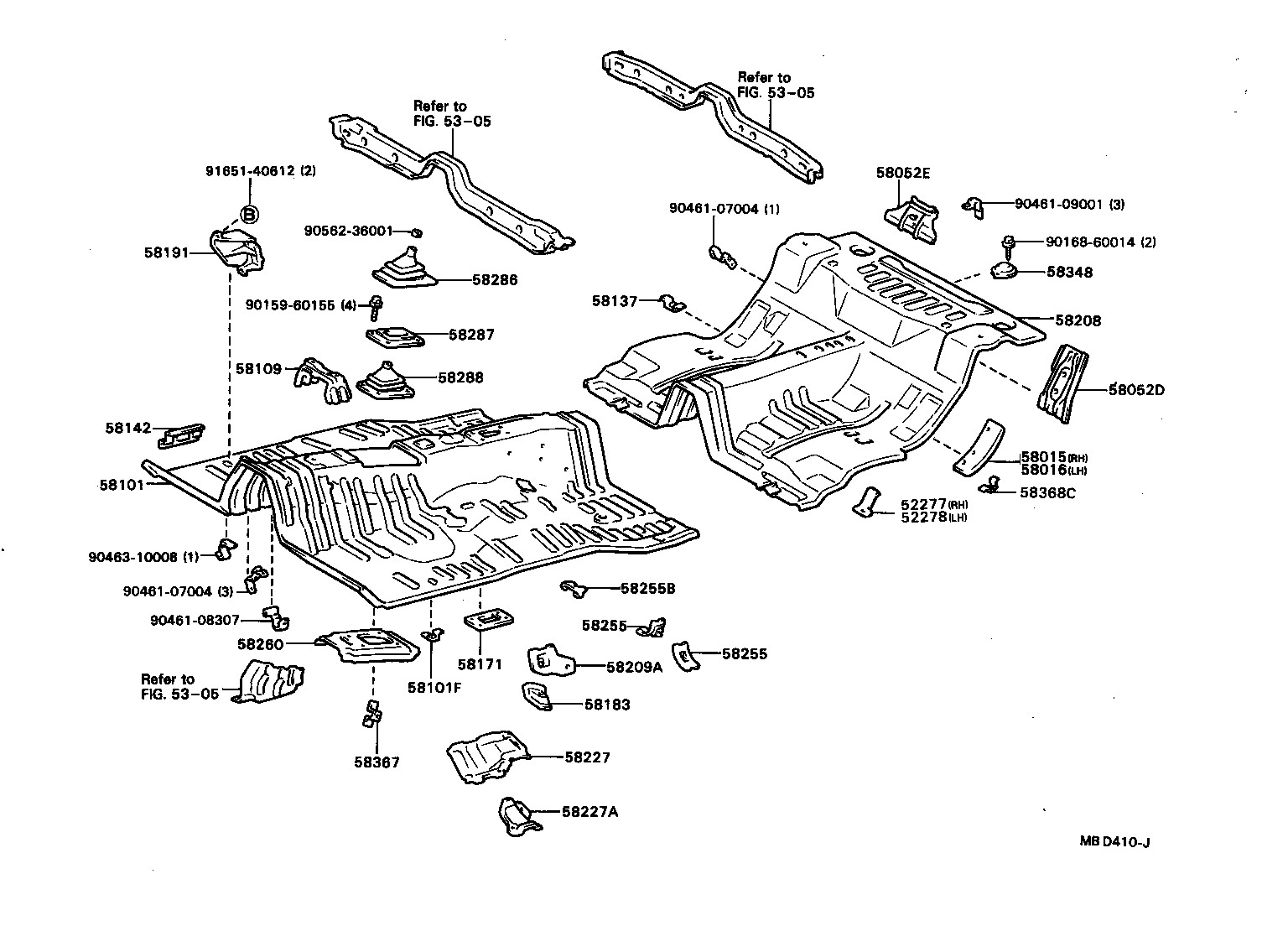

ILLUST NO. 1 OF 2(8201-8508)TT14#..SED ; (8201-8508)CT140,RT14#,ST141..CS,CSI,CSX,CXI,DLX,S,TAX ; (8

Click highlighted areas on diagram

(8612- )YT140

diagram 52277 52278 5305 5305 5305 58015 58016 58052D 58052E 58101 58101F 58109 58137 58142 58171 58183 58191 58208 58209A 58227 58227A 58255 58255 58255B 58260 58286 58287 58288 58348 58367 58368C 9015960155 9016860014 9046107004 9046107004 9046108307 9046109001 9046310008 9056236001 9165140612
Part # Description Qty Price
58015 - REINFORCEMENT, BELT ANCHOR TO FLOOR PAN, RH
58015-20011

CT140,RT140,TT14#..SED

 1
58015-20011

CT140,RT140,TT14#..SED

 1
58016 - REINFORCEMENT, BELT ANCHOR TO FLOOR PAN, LH
58016-20011

CT140,RT140,TT14#..SED

 1
58016-20011

CT140,RT140,TT14#..SED

 1
58052D - EXTENSION, CENTER FLOOR TO PACKAGE TRAY
64217-14050

TT141..GL

RH,W/RECLINING RR SEAT

 1
64217-14050

TT141..GL

RH,W/RECLINING RR SEAT

 1
64217-14030

CT140,RT140,TT14#..SED

RH,W/O RECLINING RR SEAT

 1
64217-14030

CT140,RT140,TT14#..SED

RH,W/O RECLINING RR SEAT

 1
64218-14020

CT140,RT140,TT14#..SED

LH,W/O RECLINING RR SEAT

 1
64218-14020

CT140,RT140,TT14#..SED

LH,W/O RECLINING RR SEAT

 1
64218-14040

TT141..GL

LH,W/RECLINING RR SEAT

 1
64218-14040

TT141..GL

LH,W/RECLINING RR SEAT

 1
58052E - EXTENSION, CENTER FLOOR TO BRACE
64227-14050

TT141..GL

W/RECLINING RR SEAT

 1
64227-14050

TT141..GL

W/RECLINING RR SEAT

 1
64227-14040

CT140,RT140,TT14#..SED

W/O RECLINING RR SEAT

 1
64227-14040

CT140,RT140,TT14#..SED

W/O RECLINING RR SEAT

 1
58101 - PAN SUB-ASSY, FRONT FLOOR
58111-24010

CT140,RT140,TT14#..3FC,4F,5F

 1
58111-24010

CT140,RT140,TT14#..3FC,4F,5F

 1
58101F - BRACKET, MOUNTING, FLOOR, NO.1
58131-12020

CT14#,RT14#,ST141,TT14#

 7
58131-12020

CT14#,RT14#,ST141,TT14#

 7
58109 - BRACKET SUB-ASSY, INSTRUMENT PANEL BRACE MOUNTING
58193-24010

CT140,RT140,TT14#

 1
58193-24010

CT140,RT140,TT14#

 1
58137 - BRACKET, CENTER FLOOR HEAT INSULATOR, NO.4
58236-14010

CT140,RT140,TT14#..SED

 1
58236-14010

CT140,RT140,TT14#..SED

 1
58142 - REINFORCEMENT, FLOOR SIDE MEMBER TO FLOOR PAN
58141-24010

CT14#,RT14#,ST141,TT14#

 2
58141-24010

CT14#,RT14#,ST141,TT14#

 2
58171 - REINFORCEMENT, PARKING BRAKE BASE
58171-24010

CT14#,RT14#,ST141,TT14#..3FC,4F,4FC,5F

 1
58171-24010

CT14#,RT14#,ST141,TT14#..3FC,4F,4FC,5F

 1
58183 - BRACKET, FRONT SEAT MOUNTING, INNER
58184-24010

CT14#,RT14#,ST141,TT14#..3FC,4F,4FC,5F

LH

 1
58184-24010

CT14#,RT14#,ST141,TT14#..3FC,4F,4FC,5F

LH

 1
58183-24010

CT14#,RT14#,ST141,TT14#..3FC,4F,4FC,5F

RH

 1
58183-24010

CT14#,RT14#,ST141,TT14#..3FC,4F,4FC,5F

RH

 1
58191 - FOOTREST, FRONT FLOOR
58191-24010

CT140,RT142,TT14#..RHD..(3FC,4F,4FC,5F)

 1
58191-24010

CT140,RT142,TT14#..RHD..(3FC,4F,4FC,5F)

 1
58208 - PAN, CENTER FLOOR
58211-14080

CT140,RT140,TT14#..SED

 1
58211-14080

CT140,RT140,TT14#..SED

 1
58209A - REINFORCEMENT SUB-ASSY, DRIVE SHAFT CENTER SUPPORT
58278-24010

CT140,RT14#,ST141,TT14#

LH

 1
58278-24010

CT140,RT14#,ST141,TT14#

LH

 1
58205-14020

RT140,TT14#

RH

 1
58205-14020

RT140,TT14#

RH

 1
58227 - PLATE, AIR GUIDE, OUTSIDE
58226-24010

CT140,RT140,TT14#

RH

 1
58226-24010

CT140,RT140,TT14#

RH

 1
58227-24010

CT140,RT140,TT14#

LH

 1
58227-24010

CT140,RT140,TT14#

LH

 1
58227A - PLATE, AIR GUIDE
58229-24010

CT140,RT140,TT14#

LH

 1
58229-24010

CT140,RT140,TT14#

LH

 1
58228-24010

CT140,RT140,TT14#

RH

 1
58228-24010

CT140,RT140,TT14#

RH

 1
58255 - CLAMP, PARKING BRAKE CABLE, NO.1
58207-14020

CT140,RT140,TT14#..SED

RH

 1
58207-14020

CT140,RT140,TT14#..SED

RH

 1
58208-14020

CT140,RT140,TT14#..SED

LH

 1
58208-14020

CT140,RT140,TT14#..SED

LH

 1
58255 - CLAMP, PARKING BRAKE CABLE, NO.1
58207-14020

CT140,RT140,TT14#..SED

RH

 1
58207-14020

CT140,RT140,TT14#..SED

RH

 1
58208-14020

CT140,RT140,TT14#..SED

LH

 1
58208-14020

CT140,RT140,TT14#..SED

LH

 1
58255B - BRACKET, PARKING BRAKE CABLE GUIDE, NO.1
58264-14010

CT14#,RT14#,ST141,TT14#

 1
58264-14010

CT14#,RT14#,ST141,TT14#

 1
58260 - COVER ASSY, TRANSMISSION, FRONT
58281-14080

CT14#,RT140,ST141,TT14#..4F,5F

 1
58281-14080

CT14#,RT140,ST141,TT14#..4F,5F

 1
58286 - BOOT, SHIFT & SELECT LEVER, NO.1
58286-14060

CT140,RT140,TT14#..4F,5F

 1
58286-14060

CT140,RT140,TT14#..4F,5F

 1
58287 - RETAINER, SHIFT LEVER BOOT
58287-14040

CT140,RT140,TT14#..4F,5F

 1
58287-14040

CT140,RT140,TT14#..4F,5F

 1
58288 - SEAL, SHIFT LEVER BOOT
58288-14070

CT140,RT140,TT14#..4F,5F

 1
58288-14070

CT140,RT140,TT14#..4F,5F

 1
58348 - COVER, REAR ABSORBER SERVICE HOLE
58348-14020

CT140,RT140,TT14#..SED

 2
58348-14020

CT140,RT140,TT14#..SED

 2
58367 - BRACKET, FUEL TUBE CLAMP
58266-14040

CT14#,RT140,ST141,TT14#

 2
58266-14040

CT14#,RT140,ST141,TT14#

 2
Common parts
90159-60155
90168-60014
90461-07004
90461-08307
90461-09001
90463-10008
90562-36001
91651-40612
Linked diagrams
5305

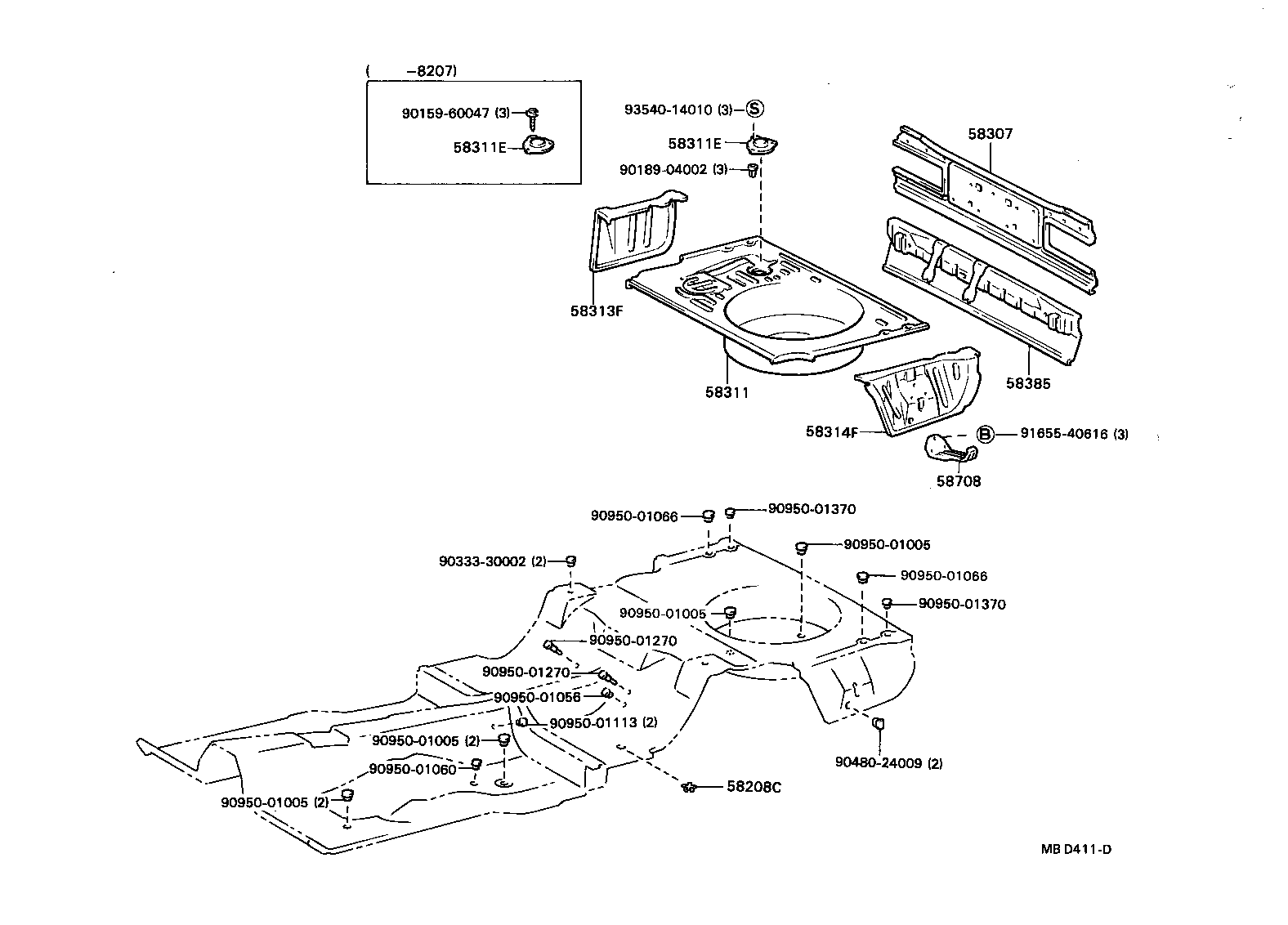

ILLUST NO. 2 OF 2(8201- )SED

Click highlighted areas on diagram

diagram 58208C 58307 58311 58311E 58311E 58313F 58314F 58385 58708 9015960047 9018904002 9033330002 9048024009 9095001005 9095001005 9095001005 9095001005 9095001056 9095001060 9095001066 9095001066 9095001113 9095001270 9095001270 9095001370 9095001370 9165540616 9354014010
Part # Description Qty Price
58208C - COVER, CENTER FLOOR HOLE
58285-14010

CT140,RT140,TT14#..SED

 2
58307 - PANEL SUB-ASSY, BODY LOWER BACK
58307-20380

CT140,RT14#,ST141,TT14#..SED

 1
58311 - PAN, REAR FLOOR
58301-14920

CT140,RT140,TT14#..SED..(GEN,PHL)

 1
58311E - COVER, REAR FLOOR SERVICE HOLE
58325-14020

CT140,RT140,TT14#..SED

 1
58311E - COVER, REAR FLOOR SERVICE HOLE
58325-14020

CT140,RT140,TT14#..SED

 1
58313F - EXTENSION, REAR FLOOR PAN TO QUARTER PANEL, RH
58313-14110

CT140,RT14#,ST141,TT14#..SED

 1
58314F - EXTENSION, REAR FLOOR PAN TO QUARTER PANEL, LH
58306-14050

CT14#,RT14#,ST141,TT14#..SED

 1
58385 - PANEL, REAR VALANCE
58308-14060

CT140,RT140,TT14#..SED..(GEN,PHL)

 1
58708 - CARRIER SUB-ASSY, JACK
58791-12050

CT14#,RT14#,ST141,TT14#..SED

 1
Common parts
90159-60047
90189-04002
90333-30002
90480-24009
90950-01005
90950-01056
90950-01060
90950-01066
90950-01113
90950-01270
90950-01370
91655-40616
93540-14010
