TT141R-TEHNS (1982)

Toyota Corona Fr

Production Jan 1982 - Dec 1984
Engine 3T
Transmission 3FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8201- )

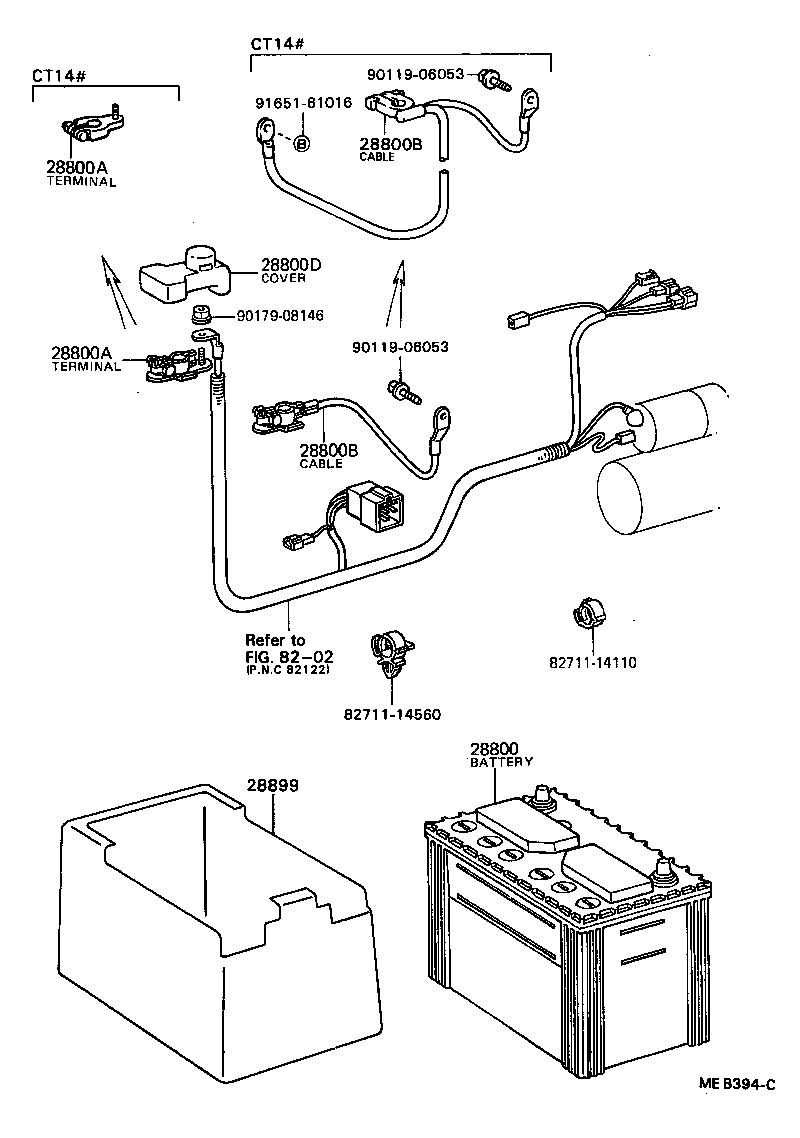

Click highlighted areas on diagram

diagram 28800 28800A 28800A 28800B 28800B 28800D 28899 8202 8271114110 8271114560 9011906053 9011906053 9017908146 9165161016
Part # Description Qty Price
28800 - BATTERY
28800-31031

2T,3T..TT14#

32C24L,32C24L(N40L)

 1
28800-43070

2T,3T..TT14#..GEN

55D23L-MF

 1
28800-70011

2T,3T..TT14#

34B19L,34B19L-MF(NS40ZAL-MF)

 1
28800A - TERMINAL, BATTERY POSITIVE
90982-05018

2T,3T..TT14#

34B19L(NS40ZAL)

 1
90982-05022

2T,3T..TT14#

32C24L(N40L),55D23L

 1
28800A - TERMINAL, BATTERY POSITIVE
90982-05018

2T,3T..TT14#

34B19L(NS40ZAL)

 1
90982-05022

2T,3T..TT14#

32C24L(N40L),55D23L

 1
28800B - CABLE, BATTERY TO GROUND
90982-02222

2T,3T..TT14#

BATTERY:34B19L(NS40ZAL)

 1
90982-02224

2T,3T..TT14#

BATTERY:32C24L(N40L),55D23L

 1
28800B - CABLE, BATTERY TO GROUND
90982-02222

2T,3T..TT14#

BATTERY:34B19L(NS40ZAL)

 1
90982-02224

2T,3T..TT14#

BATTERY:32C24L(N40L),55D23L

 1
28800D - COVER, CONNECTOR(FOR BATTERY TERMINAL)
82821-24010

12RM,1C,2C,2S#,2T,3T,2Y..CT14#,RT140,ST141,TT14#,YT140

 1
Common parts
82711-14110
82711-14560
90119-06053
90179-08146
91651-61016
Linked diagrams
8202
