TT141R-TEHNS (1982)

Toyota Corona Fr

Production Jan 1982 - Dec 1984
Engine 3T
Transmission 3FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8201- )

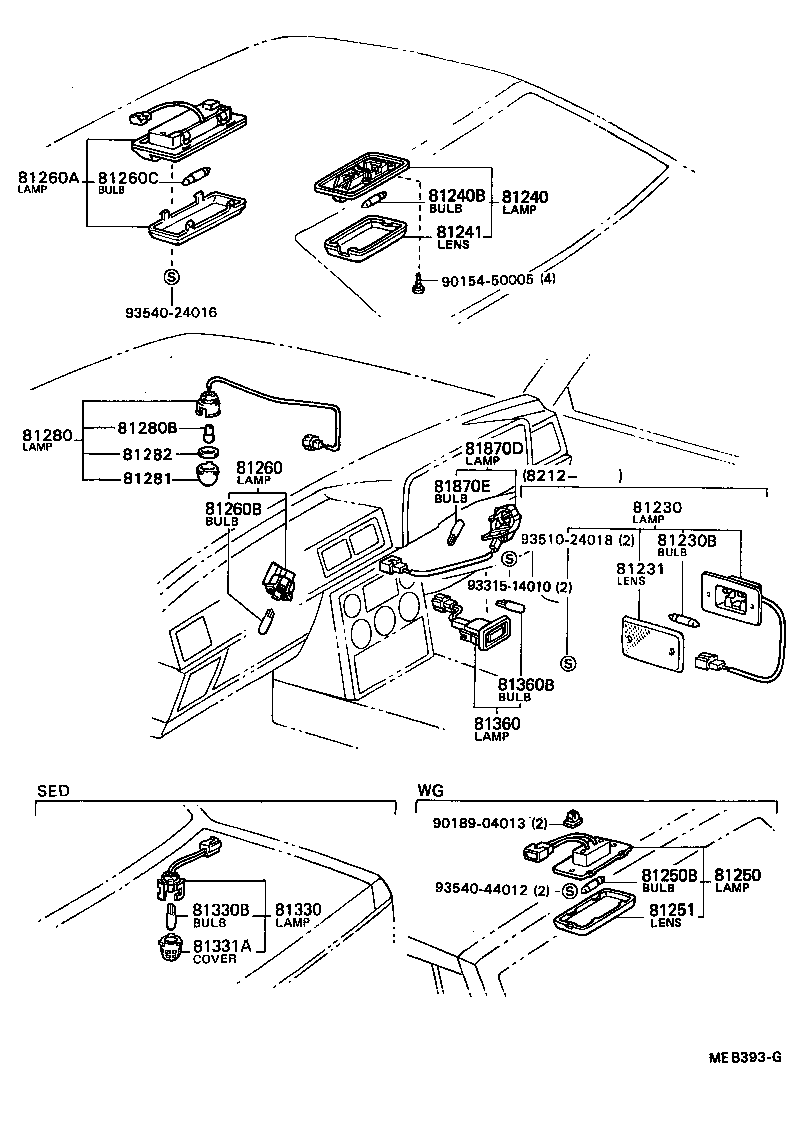

Click highlighted areas on diagram

diagram 81230 81230B 81231 81240 81240B 81241 81250 81250B 81251 81260 81260A 81260B 81260C 81280 81280B 81281 81282 81330 81330B 81331A 81360 81360B 81870D 81870E 9015450005 9018904013 9331514010 9351024018 9354024016 9354044012
Part # Description Qty Price
81230 - LAMP ASSY, COURTESY
81230-20020

TT141..GL

W/POWER WINDOW

 2
81230B - BULB(FOR COURTESY LAMP)
99132-13050

TT141..GL

12V 5W,W/POWER WINDOW,12V 5W

 2
81231 - LENS, COURTESY LAMP
81231-30080

TT141..GL

W/POWER WINDOW

 2
81240 - LAMP ASSY, ROOM, NO.1
81240-1601008

CT140,TT14#..SED

IVORY,IVORY

 1
81240-1601013

CT140,TT14#..SED

GRAY,GRAY

 1
81240-2006008

CT140,RT140,ST141,TT14#..ARL,GEN,PHL

SUSPENDED HEADLINING,IVORY,IVORY

 1
81240-2006013

CT140,RT140,ST141,TT14#..ARL,GEN,PHL

SUSPENDED HEADLINING,GRAY,GRAY

 1
81240B - BULB, ROOM LAMP, NO.1
99132-12100

CT14#,RT14#,ST141,TT14#,YT140

12V 10W,12V 10W

 1
81241 - LENS, ROOM LAMP, NO.1
81241-16010

CT140,TT14#..SED

 1
81241-20060

CT140,RT140,ST141,TT14#..ARL,GEN,PHL

SUSPENDED HEADLINING

 1
81260 - LAMP ASSY, GLOVE BOX
81260-22070

TT141..GL

 1
81260B - BULB(FOR GLOVE BOX)
90981-11018

TT141..GL

12V 1.2W W/O SOCKET,12V 1.4W

 1
81330 - LAMP ASSY, LUGGAGE COMPARTMENT, NO.1
81330-22030

CT140,RT14#,ST141,TT14#..SED..(CS,CSI,CSX,CXI,DLX,GL,TAX)

 1
81330B - BULB, LUGGAGE COMPARTMENT LAMP
99132-12050

CT140,RT14#,ST141,TT14#..SED..(CS,CSI,CSX,CXI,DLX,GL,TAX)

12V 5W,12V 5W

 1
81331A - COVER, LUGGAGE COMPARTMENT LAMP
81331-22030

CT140,RT14#,ST141,TT14#..SED..(CS,CSI,CSX,CXI,DLX,GL,TAX)

 1
81360 - LAMP ASSY, STEP OR SPOT
81380-24010

TT14#..SED..(DLX,GL)

 1
81360B - BULB, STEP OR SPOT LAMP
90981-11018

TT14#..SED..(DLX,GL)

12V 1.2W W/O SOCKET,12V 1.4W

 2
81870D - LAMP ASSY, KEY CYLINDER
81870-24011

TT14#..SED..(DLX,GL)

 1
81870E - BULB, KEY CYLINDER LAMP
90981-11018

TT14#..SED..(DLX,GL)

12V 1.2W W/O SOCKET,12V 1.4W

 1
Common parts
90154-50005
90189-04013
93315-14010
93510-24018
93540-24016
93540-44012
