TT141R-TEHNS (1982)
Toyota Corona Fr

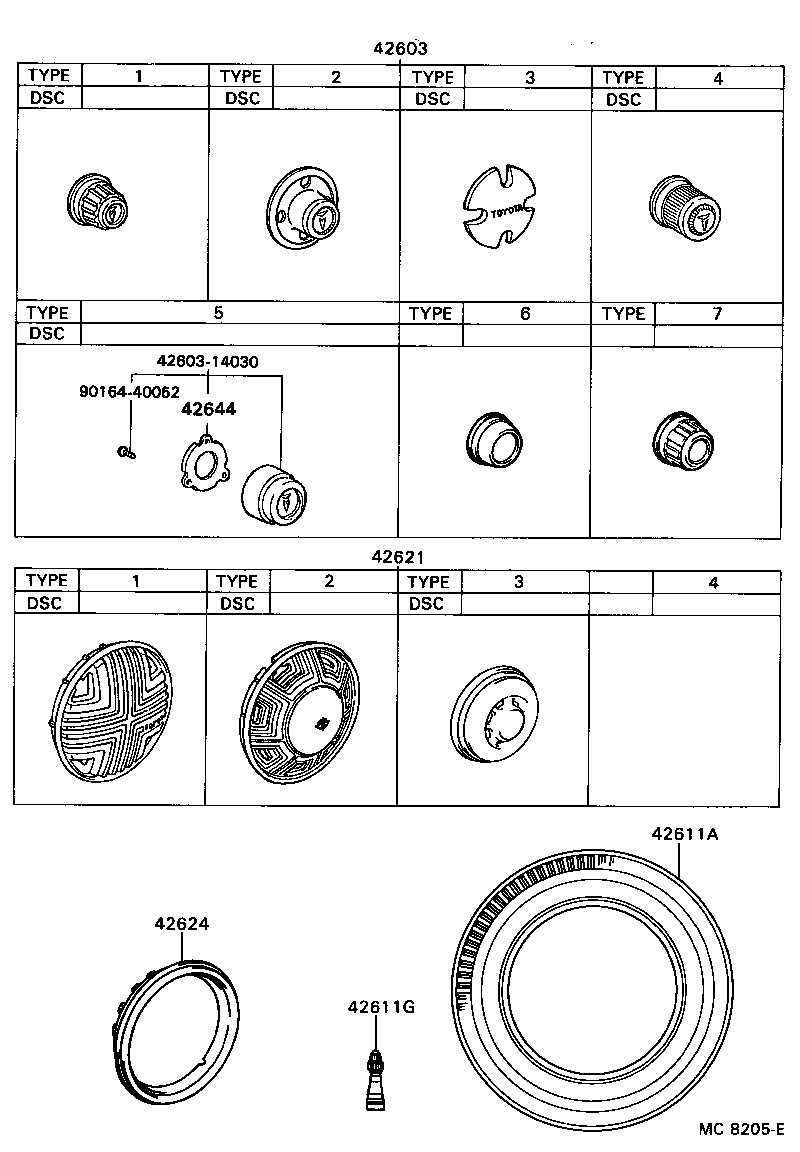

ILLUST NO. 1 OF 2(8201- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 42603 - ORNAMENT SUB-ASSY, WHEEL HUB | ||||
| 42603-12070 |
TT141..WG..LHD;CT140,TT14#..RHD;CT140,RT140,TT140..LHD..(STD,TAX) TYPE 1 |
4 | ||
| 42603-12110 |
CT140,RT140,TT14#..SED..(DLX,GL,TAX) TYPE 2 |
4 | ||
| 42603-14030 |
CT140,RT140,TT14#..SED..(DLX,GL,TAX) TYPE 5 |
4 | ||
| 42603-12120 |
TT141..RHD..GL W/ALUMI WHEEL,TYPE 3 |
4 | ||
| 42611A - TIRE TUBE SET OR TUBELESS TIRE | ||||
| 42652-14180 |
CT140,RT140,TT14#..SED..(DLX,GL,TAX) 185/70HR13 |
5 | ||
| 42652-14140 |
CT140,RT140,TT14# 165SR13 |
5 | ||
| 98921-64132 |
CT140,RT140,TT14#..SED 6.45-13-4,W/TUBE |
5 | ||
| 42652-22090 |
CT140,RT140,ST141,TT14#..SED..(GEN,ME,PHL) 6.45-13-4 |
5 | ||
| 98938-65130 |
CT140,RT140,TT14# 165SR13,W/TUBE |
5 | ||
| 42611G - VALVE (FOR TUBELESS TIRE) | ||||
| 90942-05009 |
CT140,RT140,ST141,TT14#,YT140..GEN,ME,PHL |
5 | ||
| 42621 - CAP, WHEEL | ||||
| 42602-20050 |
TT141..RHD..GL TYPE 1 |
4 | ||
| 42602-20050 |
TT141..SED..RHD..(3FC,4F) TYPE 1 |
4 | ||
| 42621-20200 |
CT140,RT140,TT14# TYPE 2 |
4 | ||
| 42624 - RING, WHEEL CAP | ||||
| 42624-14025 |
CT140,RT140,TT14#..SED..(DLX,GL,TAX) |
4 | ||
| 42644 - HOLDER, WHEEL HUB ORNAMENT | ||||
| 42644-14041 |
CT140,RT140,TT14#..SED..(DLX,GL,TAX) |
4 | ||
| Common parts | ||||
| 42603-14030 | ||||
| 90164-40052 | ||||

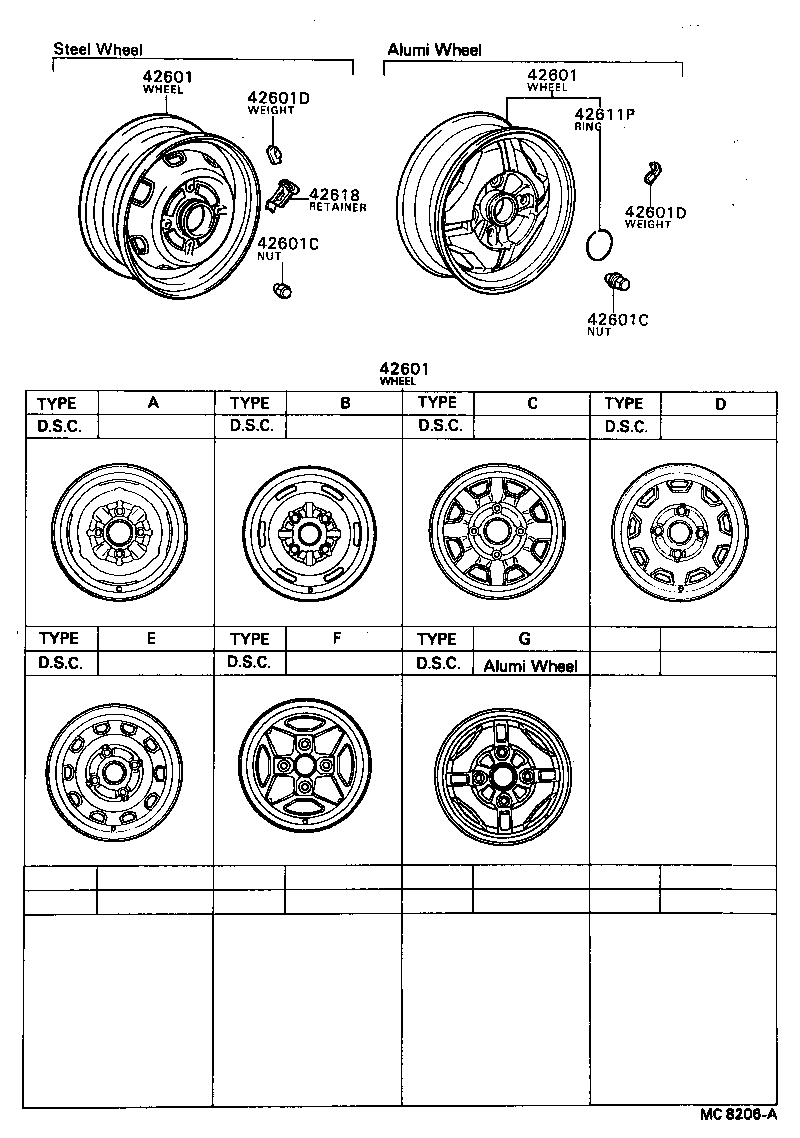

ILLUST NO. 2 OF 2(8201- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 42601 - WHEEL, DISC | ||||
| 42611-12241 |
CT140,RT140,TT14#..SED..(DLX,GL,TAX) 5J-13,TYPE F |
5 | ||
| 42601-12091 |
TT141..RHD..GL 5J-13,ALUMI TYPE G |
5 | ||
| 42611-12530 |
CT140,RT140,TT14#..SED..(DLX,GL,TAX) 5J-13,TYPE C |
5 | ||
| 42611-22121 |
CT140,RT140,TT14#..SED 13X4.5J,4.5J-13,TYPE B |
5 | ||
| 42601 - WHEEL, DISC | ||||
| 42611-12241 |
CT140,RT140,TT14#..SED..(DLX,GL,TAX) 5J-13,TYPE F |
5 | ||
| 42601-12091 |
TT141..RHD..GL 5J-13,ALUMI TYPE G |
5 | ||
| 42611-12530 |
CT140,RT140,TT14#..SED..(DLX,GL,TAX) 5J-13,TYPE C |
5 | ||
| 42611-22121 |
CT140,RT140,TT14#..SED 13X4.5J,4.5J-13,TYPE B |
5 | ||
| 42601 - WHEEL, DISC | ||||
| 42611-12241 |
CT140,RT140,TT14#..SED..(DLX,GL,TAX) 5J-13,TYPE F |
5 | ||
| 42601-12091 |
TT141..RHD..GL 5J-13,ALUMI TYPE G |
5 | ||
| 42611-12530 |
CT140,RT140,TT14#..SED..(DLX,GL,TAX) 5J-13,TYPE C |
5 | ||
| 42611-22121 |
CT140,RT140,TT14#..SED 13X4.5J,4.5J-13,TYPE B |
5 | ||
| 42601C - NUT, HUB (FOR AXLE) | ||||
| 90942-01021 |
CT140,RT140,TT14# CAP NUT |
16 | ||
| 90942-01007 |
CT140,RT140,TT14# |
16 | ||
| 90942-01026 |
TT141..RHD..GL W/ALUMI WHEEL |
16 | ||
| 42601C - NUT, HUB (FOR AXLE) | ||||
| 90942-01021 |
CT140,RT140,TT14# CAP NUT |
16 | ||
| 90942-01007 |
CT140,RT140,TT14# |
16 | ||
| 90942-01026 |
TT141..RHD..GL W/ALUMI WHEEL |
16 | ||
| 42601D - WEIGHT, BALANCE (FOR DISC WHEEL) | ||||
| 90942-03027 |
CT14#,RT140,ST141,TT14#,YT140..GEN,ME,PHL 60G,T=9.5,60G |
1 | ||
| 90942-03022 |
CT14#,RT140,ST141,TT14#,YT140..GEN,ME,PHL 40G,T=9.5,40G |
1 | ||
| 90942-03020 |
CT14#,RT140,ST141,TT14#,YT140..GEN,ME,PHL 30G,T=10,30G |
1 | ||
| 90942-03029 |
CT14#,RT140,ST141,TT14#,YT140..GEN,ME,PHL 70G,T=9.5,70G |
1 | ||
| 90942-03017 |
CT14#,RT140,ST141,TT14#,YT140..GEN,ME,PHL 20G,T=8,20G |
1 | ||
| 90942-03098 |
CT14#,RT140,ST141,TT14#,YT140..GEN,ME,PHL 15G,15G |
1 | ||
| 90942-03025 |
CT14#,RT140,ST141,TT14#,YT140..GEN,ME,PHL 50G,T=9.5,50G |
1 | ||
| 90942-03109 |
CT14#,RT140,ST141,TT14#,YT140..GEN,ME,PHL 75G,75G |
1 | ||
| 90942-03100 |
CT14#,RT140,ST141,TT14#,YT140..GEN,ME,PHL 35G,35G |
1 | ||
| 90942-03102 |
CT14#,RT140,ST141,TT14#,YT140..GEN,ME,PHL 55G,55G |
1 | ||
| 90942-03041 |
CT14#,RT140,ST141,TT14#,YT140..GEN,ME,PHL 10G,T=7.5,10G |
1 | ||
| 90942-03099 |
CT14#,RT140,ST141,TT14#,YT140..GEN,ME,PHL 25G,25G |
1 | ||
| 90942-03108 |
CT14#,RT140,ST141,TT14#,YT140..GEN,ME,PHL 65G,65G |
1 | ||
| 90942-03101 |
CT14#,RT140,ST141,TT14#,YT140..GEN,ME,PHL 45G,45G |
1 | ||
| 90942-03031 |
CT14#,RT140,ST141,TT14#,YT140..GEN,ME,PHL 80G,T=9.5,80G |
1 | ||
| 42601D - WEIGHT, BALANCE (FOR DISC WHEEL) | ||||
| 90942-03027 |
CT14#,RT140,ST141,TT14#,YT140..GEN,ME,PHL 60G,T=9.5,60G |
1 | ||
| 90942-03022 |
CT14#,RT140,ST141,TT14#,YT140..GEN,ME,PHL 40G,T=9.5,40G |
1 | ||
| 90942-03020 |
CT14#,RT140,ST141,TT14#,YT140..GEN,ME,PHL 30G,T=10,30G |
1 | ||
| 90942-03029 |
CT14#,RT140,ST141,TT14#,YT140..GEN,ME,PHL 70G,T=9.5,70G |
1 | ||
| 90942-03017 |
CT14#,RT140,ST141,TT14#,YT140..GEN,ME,PHL 20G,T=8,20G |
1 | ||
| 90942-03098 |
CT14#,RT140,ST141,TT14#,YT140..GEN,ME,PHL 15G,15G |
1 | ||
| 90942-03025 |
CT14#,RT140,ST141,TT14#,YT140..GEN,ME,PHL 50G,T=9.5,50G |
1 | ||
| 90942-03109 |
CT14#,RT140,ST141,TT14#,YT140..GEN,ME,PHL 75G,75G |
1 | ||
| 90942-03100 |
CT14#,RT140,ST141,TT14#,YT140..GEN,ME,PHL 35G,35G |
1 | ||
| 90942-03102 |
CT14#,RT140,ST141,TT14#,YT140..GEN,ME,PHL 55G,55G |
1 | ||
| 90942-03041 |
CT14#,RT140,ST141,TT14#,YT140..GEN,ME,PHL 10G,T=7.5,10G |
1 | ||
| 90942-03099 |
CT14#,RT140,ST141,TT14#,YT140..GEN,ME,PHL 25G,25G |
1 | ||
| 90942-03108 |
CT14#,RT140,ST141,TT14#,YT140..GEN,ME,PHL 65G,65G |
1 | ||
| 90942-03101 |
CT14#,RT140,ST141,TT14#,YT140..GEN,ME,PHL 45G,45G |
1 | ||
| 90942-03031 |
CT14#,RT140,ST141,TT14#,YT140..GEN,ME,PHL 80G,T=9.5,80G |
1 | ||
| 42611P - RING, SET | ||||
| 90522-64001 |
TT141..RHD..GL |
5 | ||
| 42618 - RETAINER, WHEEL CAP | ||||
| 42618-12030 |
CT140,RT140,TT14#..SED..(DLX,GL,TAX) |
20 | ||
