TT141R-TEHDS (1982)

Toyota Corona Fr

Production Jan 1982 - Dec 1983
Engine 3T
Transmission 3FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8201-8508)DLX,STD,TAX ; (8508-8612)S

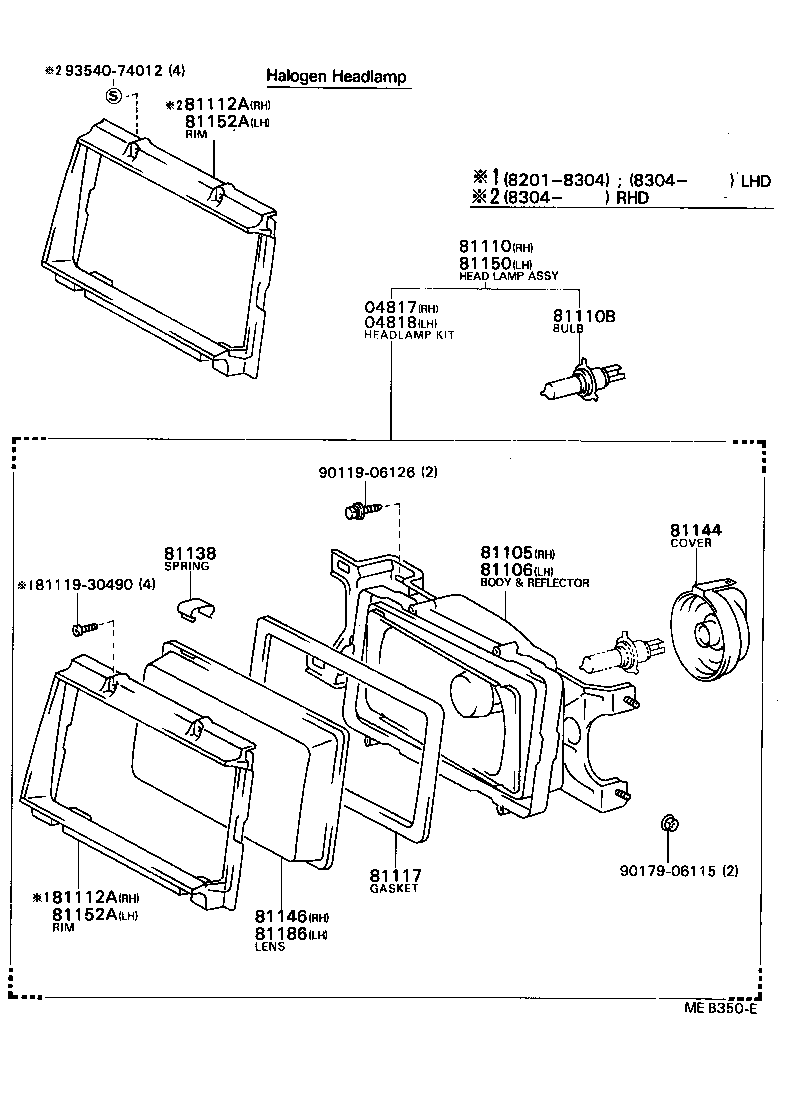

Click highlighted areas on diagram

diagram 04817 04818 81105 81106 81110 81110B 81112A 81112A 81117 8111930490 81138 81144 81146 81150 81152A 81152A 81186 9011906126 9017906115 9354074012
Part # Description Qty Price
04817 - HEADLAMP KIT, W/O SEALED BEAM, RH
04817-20070

CT140,ST141,TT14#..RHD..(CS,DLX,S,STD)

HALOGEN

 1
04818 - HEADLAMP KIT, W/O SEALED BEAM, LH
04818-20070

CT140,ST141,TT14#..RHD..(CS,DLX,S,STD)

HALOGEN

 1
81105 - HOUSING SUB-ASSY, HEADLAMP, RH
81135-20680

CT140,TT14#..RHD..(DLX,STD)

 1
81135-20690

CT140,ST141,TT14#..RHD..(CS,DLX,S,STD)

HALOGEN

 1
81106 - HOUSING SUB-ASSY, HEADLAMP, LH
81175-20650

CT140,ST141,TT14#..RHD..(CS,DLX,S,STD)

HALOGEN

 1
81175-20640

CT140,TT14#..RHD..(DLX,STD)

 1
81110 - HEADLAMP ASSY, RH
81110-80199

CT140,TT14#..RHD..(DLX,STD)

HALOGEN

 1
81110-80198

CT140,TT14#..RHD..(DLX,STD)

 1
81110B - BULB(FOR HEADLAMP, NO.1)
90981-13013

CT140,RT140,TT14#..DLX,STD,TAX

12V 45/40W,WHITE,12V 45/40W,*REC,WHITE

 2
90981-13015

CT140,RT14#,ST141,TT14#

12V 60/55W,*HAL *WH,12V 60/55W,WHITE,HALOGEN

 2
81112A - RIM, HEADLAMP, RH
81112-20600

CT140,RT140,ST141,TT14#..CS,DLX,S,STD,TAX

 1
81112A - RIM, HEADLAMP, RH
81112-20600

CT140,RT140,ST141,TT14#..CS,DLX,S,STD,TAX

 1
81117 - PACKING, HEADLAMP HOUSING
81147-30490

CT140,RT140,ST141,TT14#..CS,DLX,S,STD,TAX

 2
81138 - SPRING, HEADLAMP
81138-20550

CT140,RT14#,ST141,TT14#

 16
81144 - COVER, HEADLAMP, NO.1
81139-30490

CT140,RT14#,ST141,TT14#

 2
81146 - LENS, HEADLAMP, RH
81146-14471

CT140,ST141,TT14#..RHD..(CS,DLX,S,STD)

HALOGEN

 1
81146-14311

CT140,TT14#..RHD..(DLX,STD)

 1
81150 - HEADLAMP ASSY, LH
81150-80195

CT140,TT14#..RHD..(DLX,STD)

 1
81150-80196

CT140,TT14#..RHD..(DLX,STD)

HALOGEN

 1
81152A - RIM, HEADLAMP, LH
81152-20560

CT140,RT140,ST141,TT14#..CS,DLX,S,STD,TAX

 1
81152A - RIM, HEADLAMP, LH
81152-20560

CT140,RT140,ST141,TT14#..CS,DLX,S,STD,TAX

 1
81186 - LENS, HEADLAMP, LH
81186-14311

CT140,TT14#..RHD..(DLX,STD)

 1
81186-14471

CT140,ST141,TT14#..RHD..(CS,DLX,S,STD)

HALOGEN

 1
Common parts
81119-30490
90119-06126
90179-06115
93540-74012

(8201-8508)DLX,STD,TAX

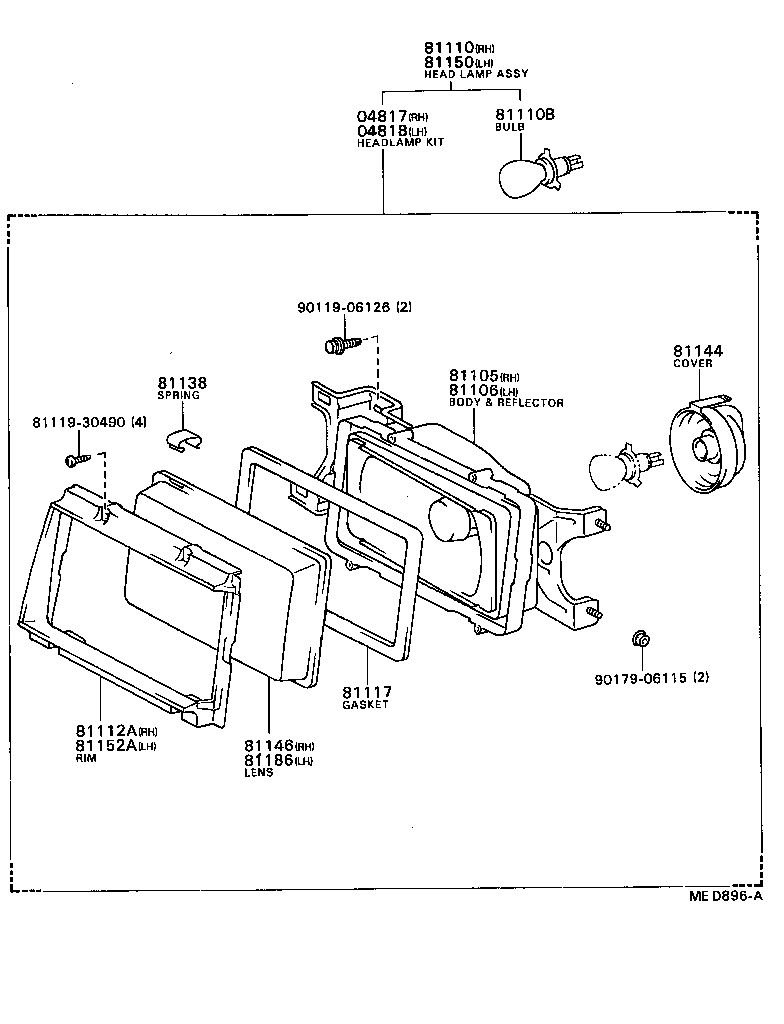

Click highlighted areas on diagram

diagram 04817 04818 81105 81106 81110 81110B 81112A 81117 8111930490 81138 81144 81146 81150 81152A 81186 9011906126 9017906115
Part # Description Qty Price
04817 - HEADLAMP KIT, W/O SEALED BEAM, RH
04817-20070

CT140,ST141,TT14#..RHD..(CS,DLX,S,STD)

HALOGEN

 1
04818 - HEADLAMP KIT, W/O SEALED BEAM, LH
04818-20070

CT140,ST141,TT14#..RHD..(CS,DLX,S,STD)

HALOGEN

 1
81105 - HOUSING SUB-ASSY, HEADLAMP, RH
81135-20680

CT140,TT14#..RHD..(DLX,STD)

 1
81135-20690

CT140,ST141,TT14#..RHD..(CS,DLX,S,STD)

HALOGEN

 1
81106 - HOUSING SUB-ASSY, HEADLAMP, LH
81175-20650

CT140,ST141,TT14#..RHD..(CS,DLX,S,STD)

HALOGEN

 1
81175-20640

CT140,TT14#..RHD..(DLX,STD)

 1
81110 - HEADLAMP ASSY, RH
81110-80199

CT140,TT14#..RHD..(DLX,STD)

HALOGEN

 1
81110-80198

CT140,TT14#..RHD..(DLX,STD)

 1
81110B - BULB(FOR HEADLAMP, NO.1)
90981-13013

CT140,RT140,TT14#..DLX,STD,TAX

12V 45/40W,WHITE,12V 45/40W,*REC,WHITE

 2
90981-13015

CT140,RT14#,ST141,TT14#

12V 60/55W,*HAL *WH,12V 60/55W,WHITE,HALOGEN

 2
81112A - RIM, HEADLAMP, RH
81112-20600

CT140,RT140,ST141,TT14#..CS,DLX,S,STD,TAX

 1
81117 - PACKING, HEADLAMP HOUSING
81147-30490

CT140,RT140,ST141,TT14#..CS,DLX,S,STD,TAX

 2
81138 - SPRING, HEADLAMP
81138-20550

CT140,RT14#,ST141,TT14#

 16
81144 - COVER, HEADLAMP, NO.1
81139-30490

CT140,RT14#,ST141,TT14#

 2
81146 - LENS, HEADLAMP, RH
81146-14471

CT140,ST141,TT14#..RHD..(CS,DLX,S,STD)

HALOGEN

 1
81146-14311

CT140,TT14#..RHD..(DLX,STD)

 1
81150 - HEADLAMP ASSY, LH
81150-80195

CT140,TT14#..RHD..(DLX,STD)

 1
81150-80196

CT140,TT14#..RHD..(DLX,STD)

HALOGEN

 1
81152A - RIM, HEADLAMP, LH
81152-20560

CT140,RT140,ST141,TT14#..CS,DLX,S,STD,TAX

 1
81186 - LENS, HEADLAMP, LH
81186-14311

CT140,TT14#..RHD..(DLX,STD)

 1
81186-14471

CT140,ST141,TT14#..RHD..(CS,DLX,S,STD)

HALOGEN

 1
Common parts
81119-30490
90119-06126
90179-06115
