TT141R-TEHDS (1982)

Toyota Corona Fr

Production Jan 1982 - Dec 1983
Engine 3T
Transmission 3FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8201- )SED

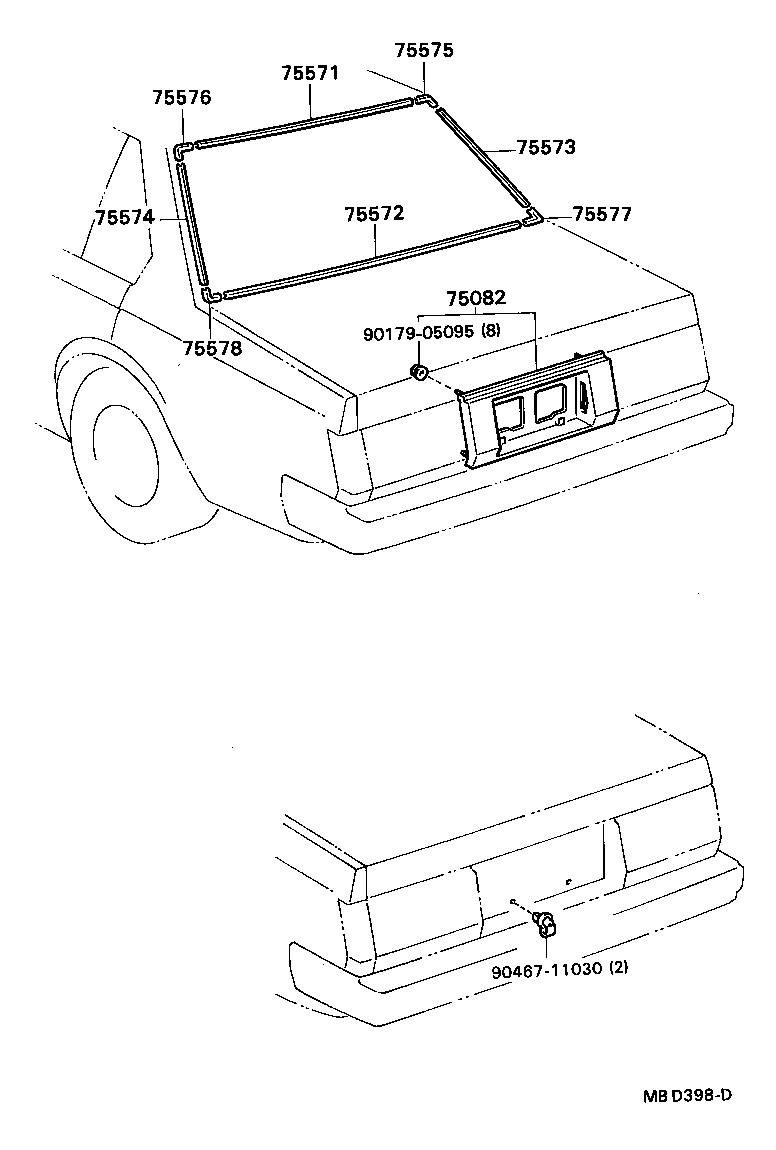

Click highlighted areas on diagram

diagram 75082 75571 75572 75573 75574 75575 75576 75577 75578 9017905095 9046711030
Part # Description Qty Price
75571 - MOULDING, BACK WINDOW, OUTSIDE UPPER
75571-20160

CT140,RT14#,ST141,TT14#..SED

 1
75572 - MOULDING, BACK WINDOW, LOWER
75575-20120

CT140,RT14#,ST141,TT14#..SED

 1
75573 - MOULDING, BACK WINDOW SIDE, RH
75573-20120

CT140,RT14#,ST141,TT14#..SED

 1
75574 - MOULDING, BACK WINDOW SIDE, LH
75573-20120

CT140,RT14#,ST141,TT14#..SED

 1
75575 - MOULDING, BACK WINDOW CORNER, UPPER RH
75581-20030

CT140,RT14#,ST141,TT14#..SED

 1
75576 - MOULDING, BACK WINDOW CORNER, UPPER LH
75581-20030

CT140,RT14#,ST141,TT14#..SED

 1
75577 - MOULDING, BACK WINDOW CORNER, LOWER RH
75583-20030

CT140,RT14#,ST141,TT14#..SED

 1
75578 - MOULDING, BACK WINDOW CORNER, LOWER LH
75583-20030

CT140,RT14#,ST141,TT14#..SED

 1
Common parts
90179-05095
90467-11030
