TT141L-TEMNSV (1982)

Toyota Corona Fr

Production Jan 1982 - Oct 1983
Engine 3T
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8201- )SED

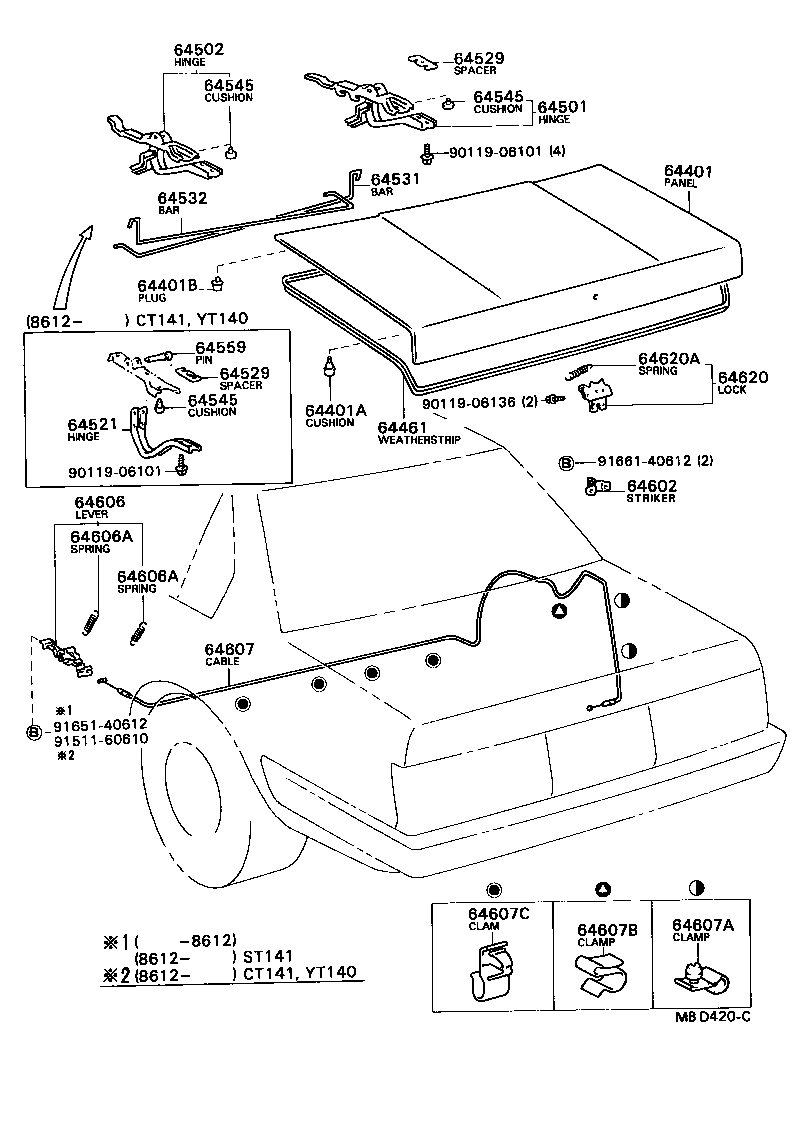

Click highlighted areas on diagram

diagram 64401 64401A 64401B 64461 64501 64502 64521 64529 64529 64531 64532 64545 64545 64545 64559 64602 64606 64606A 64606A 64607 64607A 64607B 64607C 64620 64620A 9011906101 9011906101 9011906136 9151160610 9165140612 9166140612
Part # Description Qty Price
64401 - PANEL SUB-ASSY, LUGGAGE COMPARTMENT DOOR
64401-20470

CT140,TT14#..SED

 1
64401A - CUSHION(FOR LUGGAGE COMPARTMENT DOOR PANEL)
90541-09021

CT14#,RT14#,ST141,TT14#..SED

 2
64401B - PLUG, HOLE(FOR LUGGAGE COMPARTMENT DOOR PANEL)
90541-06076

CT14#,RT14#,ST141,TT14#..SED

 2
64461 - WEATHERSTRIP, LUGGAGE COMPARTMENT DOOR
64461-20130

CT14#,RT14#,ST141,TT14#..SED

 1
64501 - HINGE SUB-ASSY, LUGGAGE COMPARTMENT DOOR, RH
64510-20060

CT14#,RT14#,ST141,TT14#..SED

 1
64502 - HINGE SUB-ASSY, LUGGAGE COMPARTMENT DOOR, LH
64520-20060

CT14#,RT14#,ST141,TT14#..SED

 1
64529 - SPACER, LUGGAGE COMPARTMENT DOOR HINGE
64529-20010

CT14#,RT14#,ST141,TT14#..SED

 4
64529 - SPACER, LUGGAGE COMPARTMENT DOOR HINGE
64529-20010

CT14#,RT14#,ST141,TT14#..SED

 4
64531 - BAR, LUGGAGE DOOR HINGE TORSION, RH
64531-20080

CT14#,RT14#,ST141,TT14#..SED

 1
64532 - BAR, LUGGAGE DOOR HINGE TORSION, LH
64532-20080

CT14#,RT14#,ST141,TT14#..SED

 1
64545 - CUSHION, LUGGAGE DOOR HINGE
90541-07007

CT14#,RT14#,ST141,TT14#..SED

 2
64545 - CUSHION, LUGGAGE DOOR HINGE
90541-07007

CT14#,RT14#,ST141,TT14#..SED

 2
64545 - CUSHION, LUGGAGE DOOR HINGE
90541-07007

CT14#,RT14#,ST141,TT14#..SED

 2
64602 - STRIKER SUB-ASSY, LUGGAGE COMPARTMENT DOOR LOCK
64620-22030

CT14#,RT14#,ST141,TT14#..SED

 1
64606 - LEVER SUB-ASSY, LUGGAGE DOOR LOCK OPEN
64606-14050

CT140,RT140,TT14#..SED..LHD..(DLX,GL,TAX)

 1
64606A - SPRING, TENSION(FOR LUGGAGE DOOR LOCK OPEN LEVER)
90506-09004

CT140,RT140,TT14#..SED..(DLX,GL,TAX)

 2
64606A - SPRING, TENSION(FOR LUGGAGE DOOR LOCK OPEN LEVER)
90506-09004

CT140,RT140,TT14#..SED..(DLX,GL,TAX)

 2
64607 - CABLE SUB-ASSY, LUGGAGE DOOR LOCK CONTROL
64607-14060

CT140,RT140,TT14#..SED..LHD..(DLX,GL,TAX)

 1
64607A - CLAMP, NO.1(FOR LUGGAGE DOOR LOCK CONTROL CABLE)
69749-12010

CT140,RT140,TT14#..SED..(DLX,GL,TAX)

 2
64607B - CLAMP, NO.2(FOR LUGGAGE DOOR LOCK CONTROL CABLE)
90463-05005

CT140,RT140,TT14#..SED..(DLX,GL,TAX)

 1
64607C - CLAMP, NO.3(FOR LUGGAGE DOOR LOCK CONTROL CABLE)
90467-12009

CT140,RT140,TT14#..SED..LHD..(DLX,GL,TAX)

 4
64620 - LOCK ASSY, LUGGAGE COMPARTMENT DOOR
64610-14050

CT140,RT14#,ST141,TT14#..SED..(CS,CSI,DLX,S,STD,TAX)

W/O CANCEL

 1
64610-14060

CT140,RT140,ST141,TT14#..SED..(CS,CSX,DLX,GL,TAX)

W/CANCEL

 1
64620A - SPRING, TENSION(FOR LUGGAGE COMPARTMENT DOOR LOCK)
90506-10028

CT140,RT14#,ST141,TT14#..SED..(CS,CSI,DLX,S,STD,TAX)

W/O CANCEL

 1
90506-09001

CT140,RT140,ST141,TT14#..SED..(CS,CSX,DLX,GL,TAX)

W/CANCEL

 1
Common parts
90119-06101
90119-06136
91511-60610
91651-40612
91661-40612
