TT141L-TEMNSV (1982)

Toyota Corona Fr

Production Jan 1982 - Oct 1983
Engine 3T
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8201-8508)2T,3T

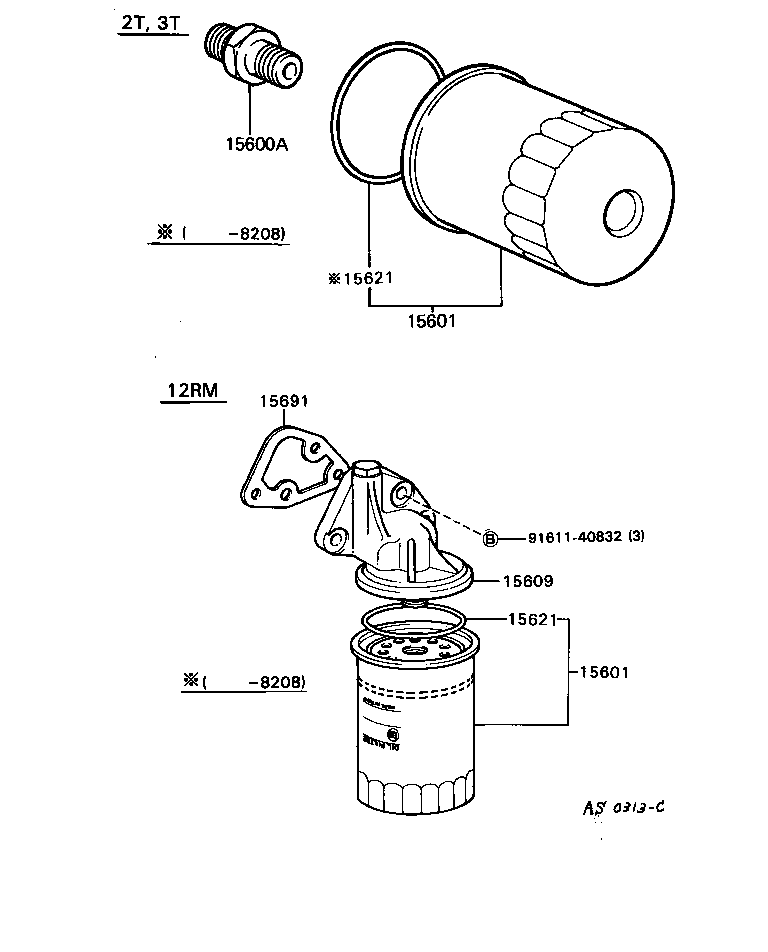

Click highlighted areas on diagram

MA4481B,MA5103C

diagram 15600A 15601 15601 15609 15621 15621 15691 9161140832
Part # Description Qty Price
15600A - UNION(FOR OIL FILTER)
90404-20173

2T,3T..TT14#

 1
90404-20173

2T,3T..TT14#

 1
15601 - FILTER SUB-ASSY, OIL
15600-25010

2T,3T..TT14#

 1
15600-25010

2T,3T..TT14#

 1
15601 - FILTER SUB-ASSY, OIL
15600-25010

2T,3T..TT14#

 1
15600-25010

2T,3T..TT14#

 1
15621 - GASKET, OIL FILTER BODY
15621-41010

2T,3T..TT14#

 1
15621-41010

2T,3T..TT14#

 1
15621 - GASKET, OIL FILTER BODY
15621-41010

2T,3T..TT14#

 1
15621-41010

2T,3T..TT14#

 1
Common parts
91611-40832
