TT141L-TEMNS (1982)

Toyota Corona Fr

Production Jan 1982 - Oct 1983
Engine 3T
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8201-8508)TT14#

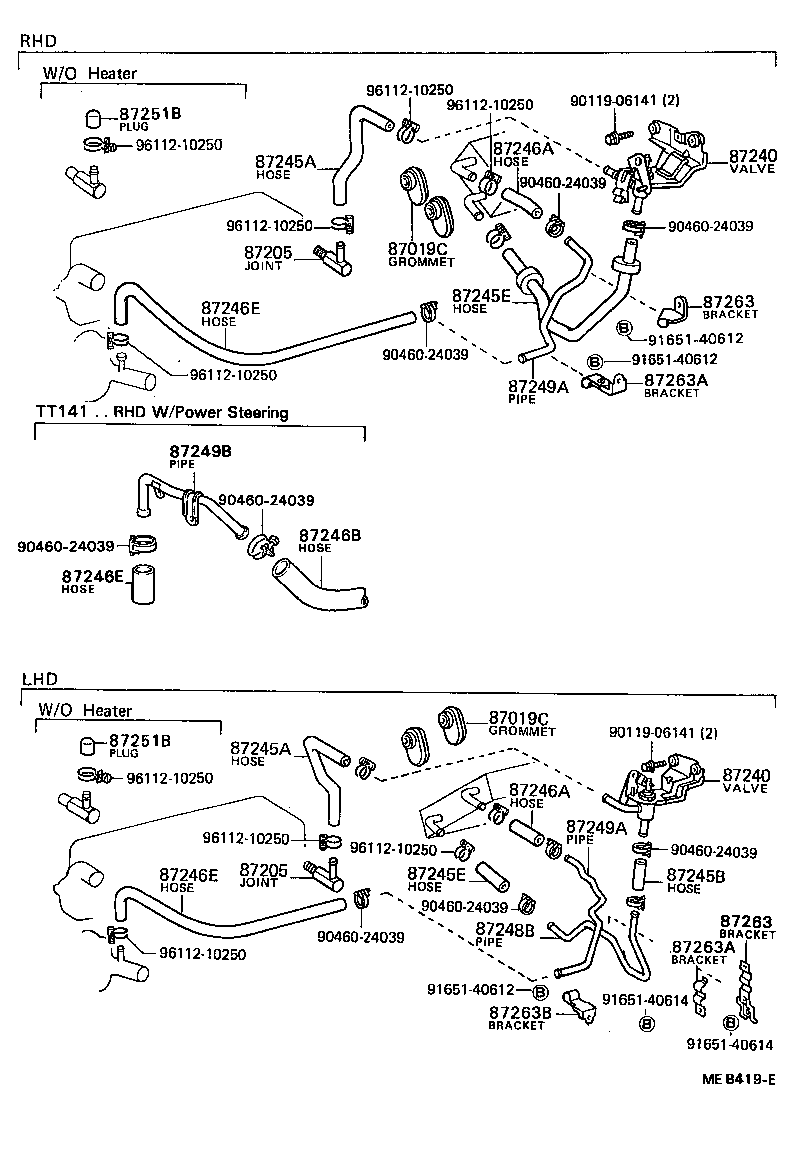

Click highlighted areas on diagram

diagram 87019C 87019C 87205 87205 87240 87240 87245A 87245A 87245B 87245E 87245E 87246A 87246A 87246B 87246E 87246E 87246E 87248B 87249A 87249A 87249B 87251B 87251B 87263 87263 87263A 87263A 87263B 9011906141 9011906141 9046024039 9046024039 9046024039 9046024039 9046024039 9046024039 9046024039 9046024039 9165140612 9165140612 9165140612 9165140614 9165140614 9611210250 9611210250 9611210250 9611210250 9611210250 9611210250 9611210250 9611210250 9611210250
Part # Description Qty Price
87019C - GROMMET, HEATER HOSE
90480-01015

CT14#,RT142,TT14#,YT140

 2
87019C - GROMMET, HEATER HOSE
90480-01015

CT14#,RT142,TT14#,YT140

 2
87205 - JOINT OR UNION, FRONT HEATER HOSE THROUGH OR INLET VALV
87251-20100

TT14#

 1
87205 - JOINT OR UNION, FRONT HEATER HOSE THROUGH OR INLET VALV
87251-20100

TT14#

 1
87240 - VALVE ASSY, HEATER WATER
87240-14120

TT14#..LHD

 1
87240 - VALVE ASSY, HEATER WATER
87240-14120

TT14#..LHD

 1
87245A - HOSE, HEATER WATER, INLET A
87245-14870

TT14#..LHD

 1
87245A - HOSE, HEATER WATER, INLET A
87245-14870

TT14#..LHD

 1
87245B - HOSE, HEATER WATER, INLET B
99556-30055

CT140,TT14#..LHD

*H,L=55

 1
99552-30100

CT140,TT14#..LHD

*H,L=55

 1
87245E - HOSE, HEATER WATER, INLET E
87245-1B060

CT140,TT14#..LHD

 1
87245E - HOSE, HEATER WATER, INLET E
87245-1B060

CT140,TT14#..LHD

 1
87246A - HOSE, HEATER WATER, OUTLET A
99552-30100

CT140,TT14#..LHD

*H,L=55

 1
87246A - HOSE, HEATER WATER, OUTLET A
99552-30100

CT140,TT14#..LHD

*H,L=55

 1
87246E - HOSE, HEATER WATER, OUTLET E
87245-1B050

TT14#

 1
87246E - HOSE, HEATER WATER, OUTLET E
87245-1B050

TT14#

 1
87246E - HOSE, HEATER WATER, OUTLET E
87245-1B050

TT14#

 1
87248B - PIPE, HEATER WATER INLET, B
87248-14160

CT140,TT14#..LHD

 1
87249A - PIPE, HEATER WATER OUTLET, A
87248-14190

CT140,TT14#..LHD

 1
87249A - PIPE, HEATER WATER OUTLET, A
87248-14190

CT140,TT14#..LHD

 1
87251B - PLUG, HEATER WATER
90339-16007

CT140,TT14#

W/O HEATER

 2
87251B - PLUG, HEATER WATER
90339-16007

CT140,TT14#

W/O HEATER

 2
87263 - BRACKET, HEATER WATER PIPE, NO.1
87263-14030

CT140,TT14#..LHD

 1
87263 - BRACKET, HEATER WATER PIPE, NO.1
87263-14030

CT140,TT14#..LHD

 1
87263A - BRACKET, HEATER WATER PIPE, NO.2
87263-14040

CT140,TT14#..LHD

 1
87263A - BRACKET, HEATER WATER PIPE, NO.2
87263-14040

CT140,TT14#..LHD

 1
87263B - BRACKET, HEATER WATER PIPE, NO.3
87263-14110

CT140,TT14#..LHD

 1
Common parts
90119-06141
90460-24039
91651-40612
91651-40614
96112-10250
