TT141L-TEMNS (1982)

Toyota Corona Fr

Production Jan 1982 - Oct 1983
Engine 3T
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8201-8612)

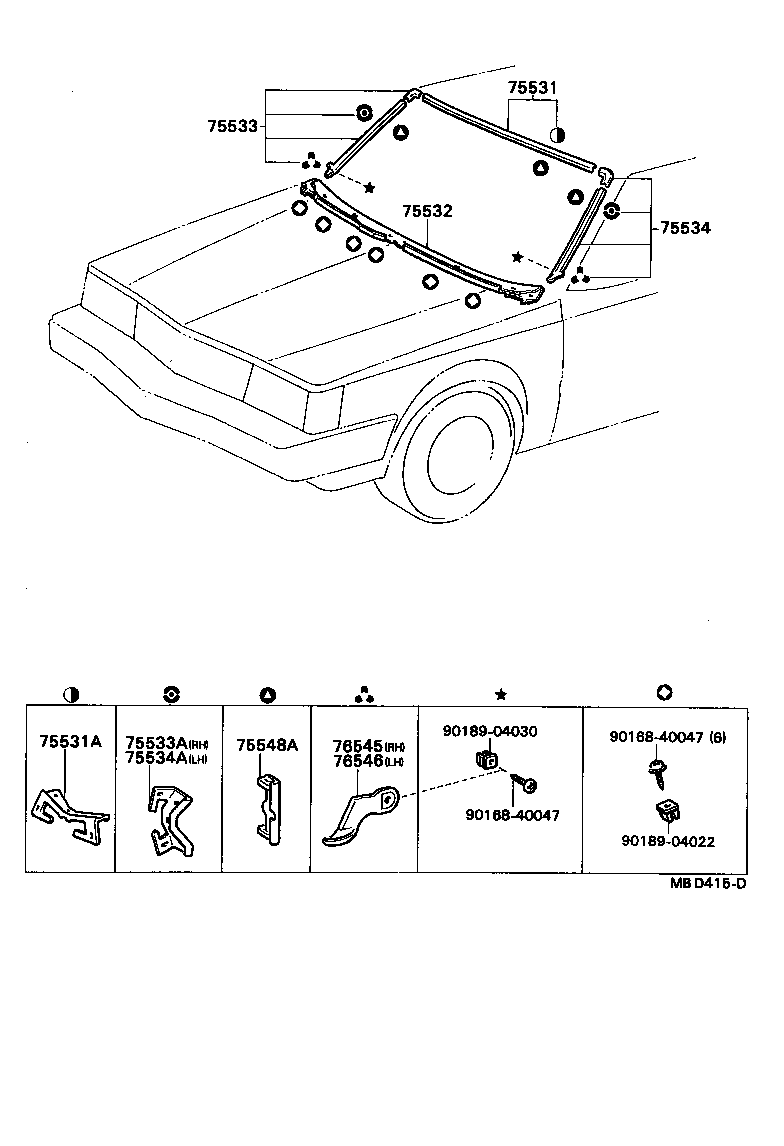

Click highlighted areas on diagram

diagram 75531 75531A 75532 75533 75533A 75534 75534A 75548A 76545 76546 9016840047 9016840047 9018904022 9018904030
Part # Description Qty Price
75531 - MOULDING, WINDSHIELD, OUTER UPPER
75531-14110

CT14#,RT14#,ST141,TT14#

 1
75531A - CLIP, WINDSHIELD MOULDING SET, NO.1
75546-14080

CT14#,RT14#,ST141,TT14#

 5
75532 - MOULDING, WINDSHIELD, LOWER
75535-14130

CT140,RT140,ST141,TT14#..LHD

 1
75533 - MOULDING, WINDSHIELD, OUTSIDE RH
75533-14120

CT14#,RT14#,ST141,TT14#

 1
75533A - CLIP, WINDSHIELD SIDE MOULDING, RH
75546-14080

CT14#,RT14#,ST141,TT14#

 2
75534 - MOULDING, WINDSHIELD, OUTSIDE LH
75534-14090

CT14#,RT14#,ST141,TT14#

 1
75534A - CLIP, WINDSHIELD SIDE MOULDING, LH
75546-14080

CT14#,RT14#,ST141,TT14#

 2
75548A - FASTENER, WINDSHIELD OUTSIDE MOULDING, NO.1
75548-24020

CT14#,RT14#,ST141,TT14#

 12
76545 - RETAINER, WINDSHIELD MOULDING, RH
76545-14040

CT14#,RT14#,ST141,TT14#

 1
76546 - RETAINER, WINDSHIELD MOULDING, LH
76546-14040

CT14#,RT14#,ST141,TT14#

 1
Common parts
90168-40047
90189-04022
90189-04030
