TT141L-TEMNS (1982)

Toyota Corona Fr

Production Jan 1982 - Oct 1983
Engine 3T
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8201- )

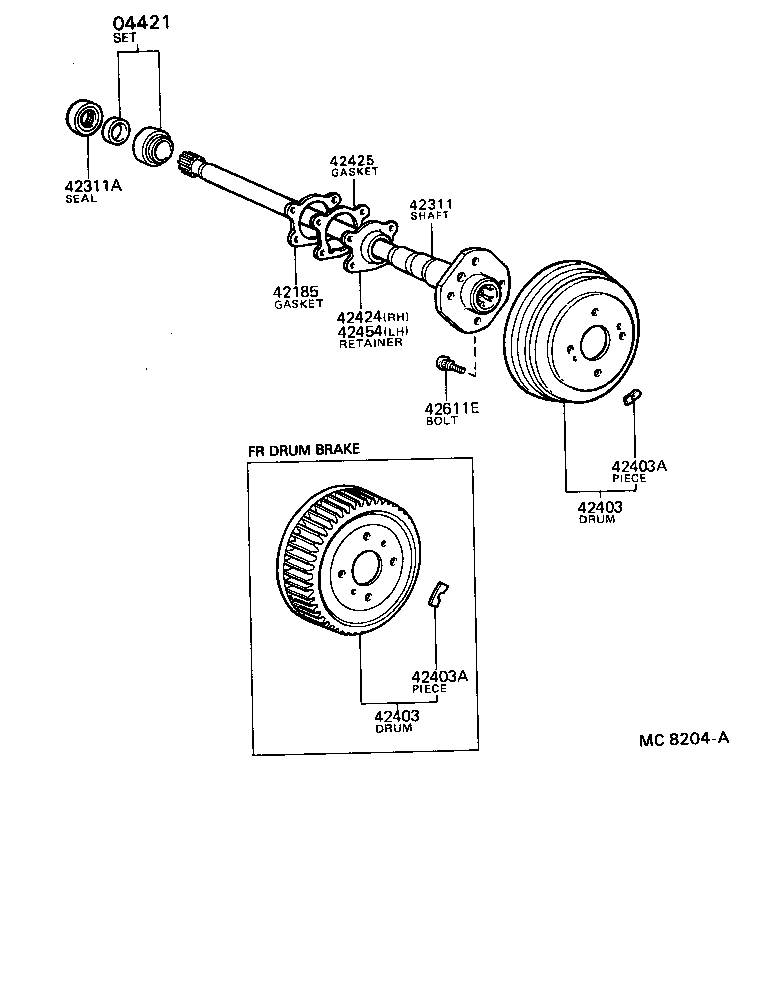

Click highlighted areas on diagram

diagram 04421 42185 42311 42311A 42403 42403 42403A 42403A 42424 42425 42454 42611E
Part # Description Qty Price
04421 - BEARING KIT, REAR AXLE SHAFT
04421-30011

CT14#,RT140,ST141,TT14#,YT140..GEN,ME,PHL

 2
42185 - GASKET, REAR AXLE HOUSING END
42185-14020

CT14#,RT140,ST141,TT14#,YT140..GEN,ME,PHL

 2
42311 - SHAFT, REAR AXLE
42311-14140

CT140,RT140,ST141,TT14#..SED..(GEN,ME,PHL)

 2
42311A - SEAL, OIL (FOR REAR AXLE SHAFT)
90311-52059

CT14#,RT140,ST141,TT14#,YT140..GEN,ME,PHL

 2
42403 - DRUM SUB-ASSY, REAR BRAKE
42431-12060

CT140,RT140,TT14#..DLX,GL,STD

FR DISC BRAKE

 2
42403 - DRUM SUB-ASSY, REAR BRAKE
42431-12060

CT140,RT140,TT14#..DLX,GL,STD

FR DISC BRAKE

 2
42403A - PIECE, BALANCE (FOR REAR BRAKE DRUM)
90937-01117

CT140,RT140,TT14#..DLX,GL,STD

10G,10G,FR DISC BRAKE

 2
90937-01119

CT140,RT140,TT14#..DLX,GL,STD

30G,30G,FR DISC BRAKE

 2
90937-01195

CT140,RT140,TT14#..DLX,GL,STD

40G,40G,FR DISC BRAKE

 2
90937-01196

CT140,RT140,TT14#..DLX,GL,STD

50G,50G,FR DISC BRAKE

 2
90937-01118

CT140,RT140,TT14#..DLX,GL,STD

20G,20G,FR DISC BRAKE

 2
90937-01197

CT140,RT140,TT14#..DLX,GL,STD

60G,60G,FR DISC BRAKE

 2
42403A - PIECE, BALANCE (FOR REAR BRAKE DRUM)
90937-01117

CT140,RT140,TT14#..DLX,GL,STD

10G,10G,FR DISC BRAKE

 2
90937-01119

CT140,RT140,TT14#..DLX,GL,STD

30G,30G,FR DISC BRAKE

 2
90937-01195

CT140,RT140,TT14#..DLX,GL,STD

40G,40G,FR DISC BRAKE

 2
90937-01196

CT140,RT140,TT14#..DLX,GL,STD

50G,50G,FR DISC BRAKE

 2
90937-01118

CT140,RT140,TT14#..DLX,GL,STD

20G,20G,FR DISC BRAKE

 2
90937-01197

CT140,RT140,TT14#..DLX,GL,STD

60G,60G,FR DISC BRAKE

 2
42424 - RETAINER, REAR AXLE BEARING, OUTER, RH
42424-14020

CT14#,RT140,ST141,TT14#,YT140..GEN,ME,PHL

 1
42425 - GASKET, REAR AXLE BEARING RETAINER
42425-14020

CT14#,RT140,ST141,TT14#,YT140..GEN,ME,PHL

 2
42454 - RETAINER, REAR AXLE BEARING, OUTER, LH
42454-14010

CT14#,RT140,ST141,TT14#,YT140..GEN,ME,PHL

 1
42611E - BOLT, HUB (FOR REAR AXLE)
90942-02035

CT140,RT140,TT14#

 8
