TT141L-TEMNS (1982)

Toyota Corona Fr

Production Jan 1982 - Oct 1983
Engine 3T
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8201-8508)2T,3T

Click highlighted areas on diagram

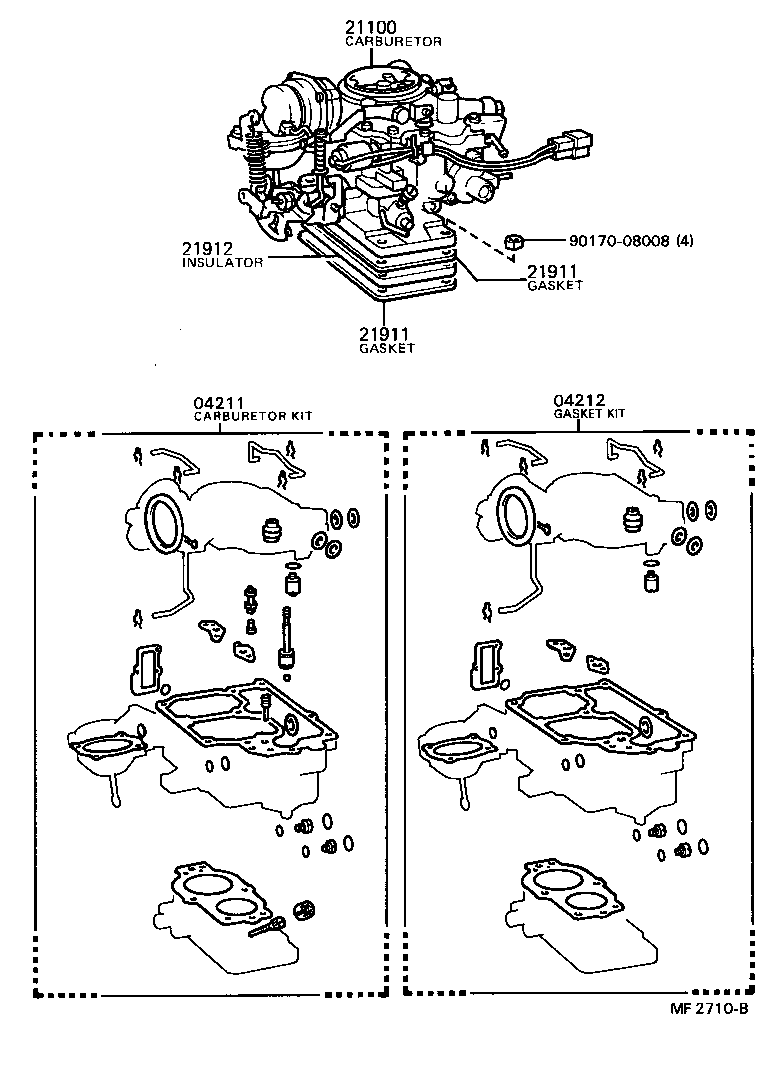

diagram 04211 04212 21100 21911 21911 21912 9017008008
Part # Description Qty Price
04211 - CARBURETOR KIT
04211-26250

2T,3T..TT14#

 1
04212 - GASKET KIT, CARBURETOR
04212-26080

2T,3T..TT14#

 1
21100 - CARBURETOR ASSY
21100-2A060

2T,3T..TT14#..SED..LHD..GEN

W/HOT AIR INTAKE

 1
21100-2A080

3T..TT141..3FC..ME;2T,3T..TT14#..LHD..MTM

 1
21911 - GASKET, CARBURETOR
21911-26010

2T,3T..TT14#

 2
21911 - GASKET, CARBURETOR
21911-26010

2T,3T..TT14#

 2
21912 - INSULATOR, CARBURETOR HEAT
21912-26021

2T,3T..TT14#

 1
Common parts
90170-08008
